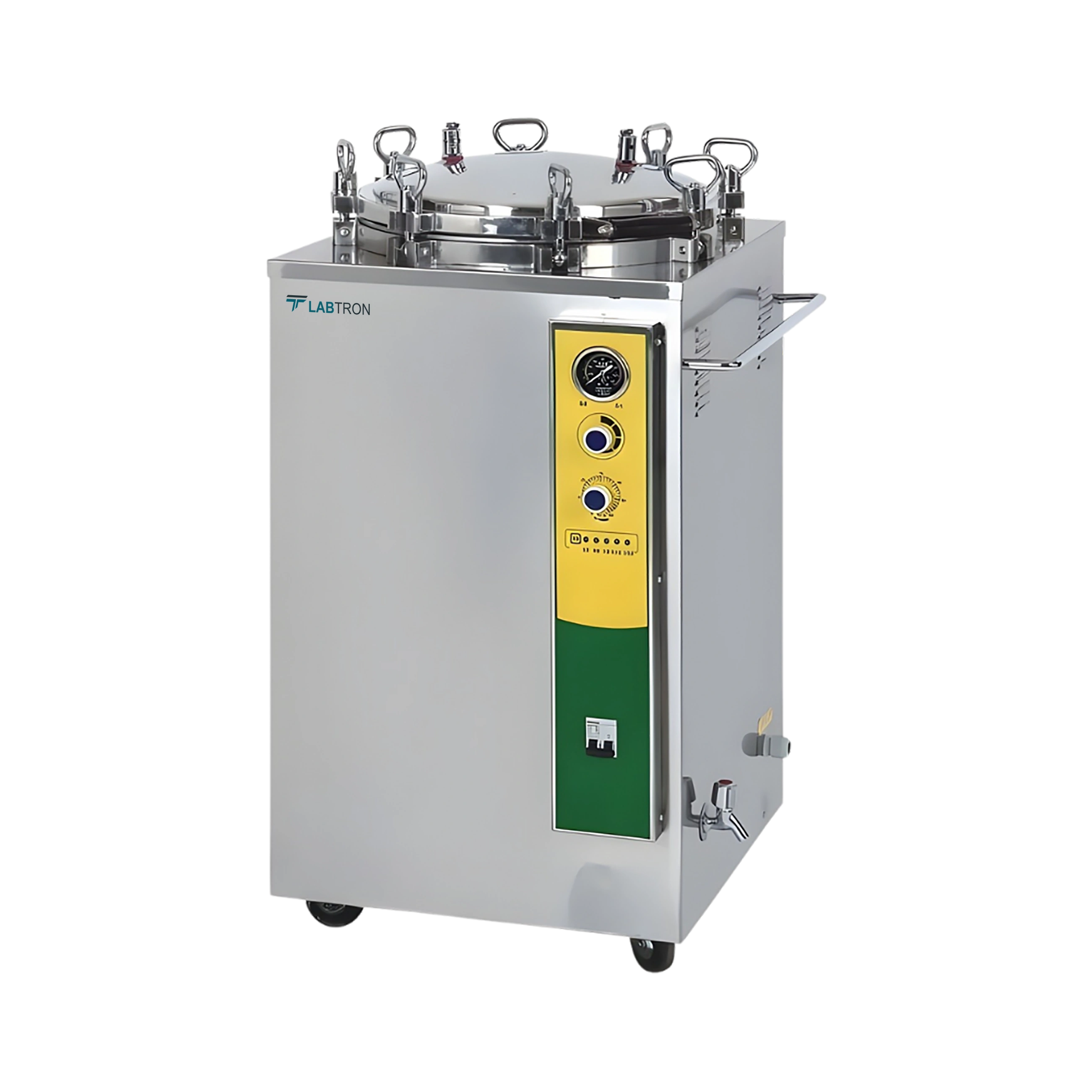

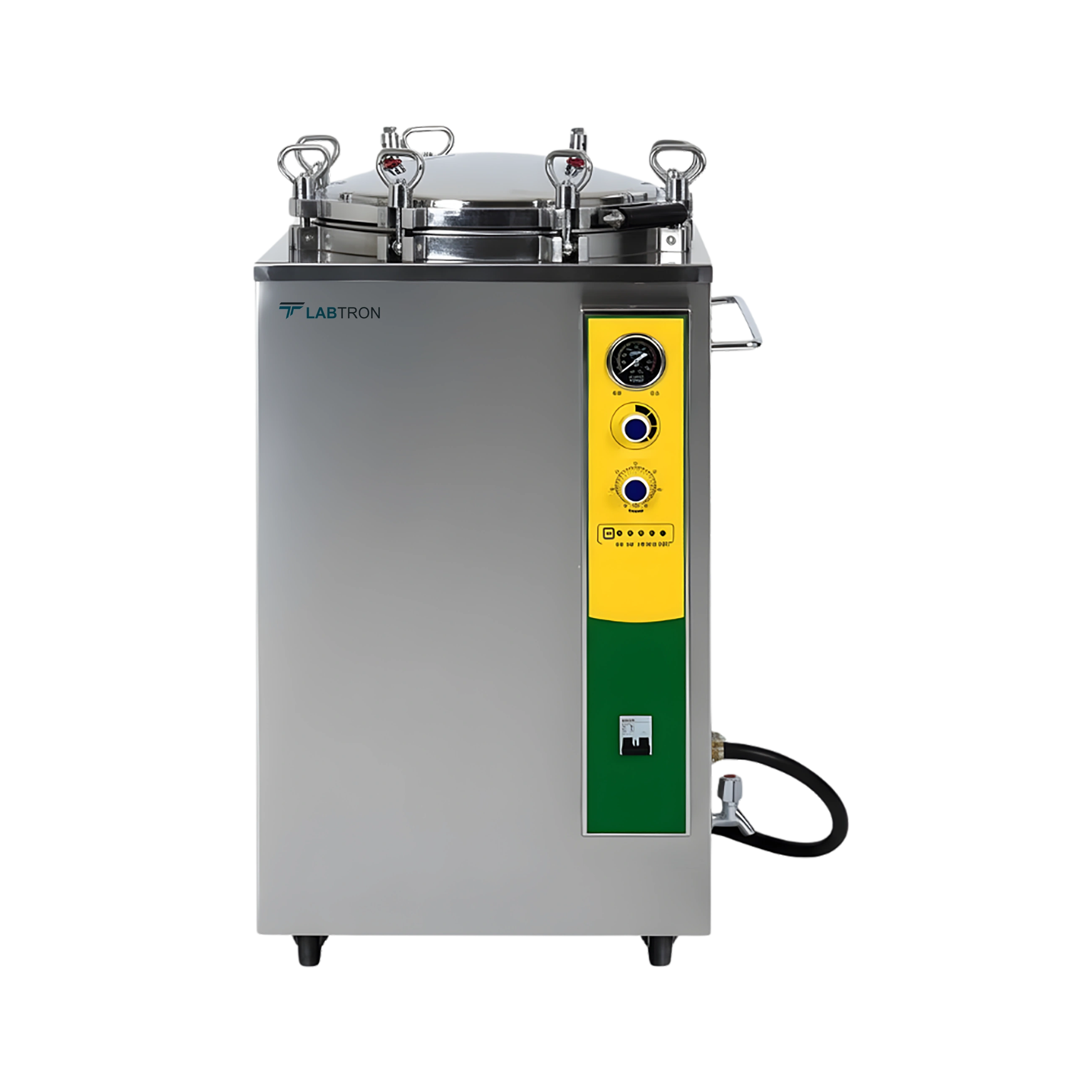

Vertical Autoclave LVA-A15

Vertical Autoclave LVA-A15

Vertical Autoclave LVA-A15 features working pressure of 0.22 MPa and a working temperature of 134°C, ensuring efficient sterilization. It offers customizable sterilization time from 0 to 60 minutes to ensure uniform performance. This unit is supported by indicator lights for water levels, combining ease of operation with enhanced safety. Durable yet portable, it features a corrosion-resistant chamber ideal for high-volume sterilization.

Vertical Autoclave LVA-A15
Vertical Autoclave LVA-A15
Request Quote
Capacity 150 L
Maximum Working Pressure 0.23 MPa
Working Pressure 0.22 MPa
Working Temperature 134°C
Temperature Range 105 to 134°C
Sterilization Time 0 to 60 min
Heat Average ≤ ±1°C
Control System Microprocessor
Display Type Indicator Light
Indicators Working Status & Water Level Indicator Lights
Voltage 110/220V, 50/60Hz, Single-Phase
Power Consumption 6.0 KW
Chamber Size 150L / Ø510 × 740 mm
Outer Dimensions 670 × 690 × 1130 mm
Packing Dimensions 760 × 760 × 1270 mm
Net Weight 110 kg
Gross Weight 140 kg
  • Spacious Chamber
  • User-Friendly Microprocessor Control
  • Wide Temperature and Time Settings
  • Even Heat Distribution
  • Status and Water Level Indicator Lights
  • Corrosion-Resistant Chamber
  • Safe Operating Pressure
  • Standard Voltage Inputs
  • Compact And Space-Saving Design
  • High-Performance Power Output
  • Sturdy Construction

Our Vertical Autoclave LVA-A15 is ideal for sterilizing laboratory instruments, glassware, culture media, and other heat-resistant materials.

Accessory no.NameMaterialQuantity

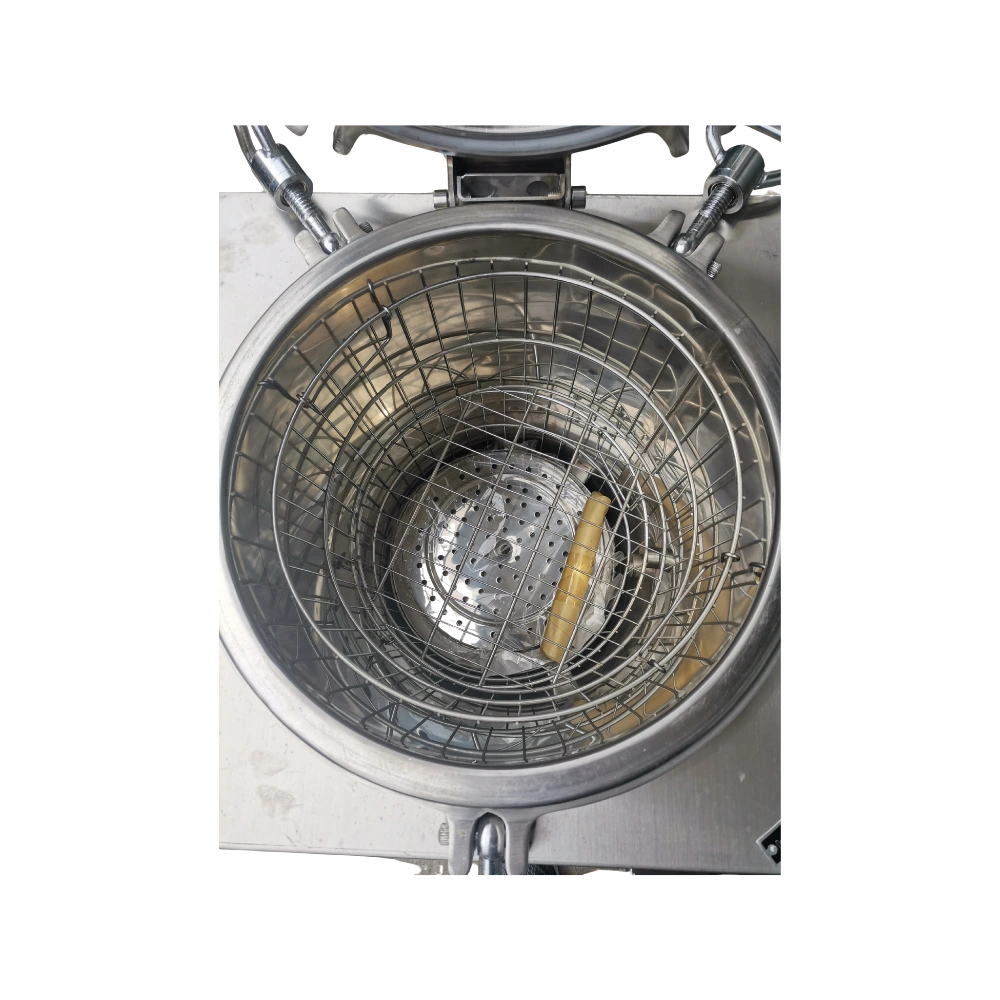

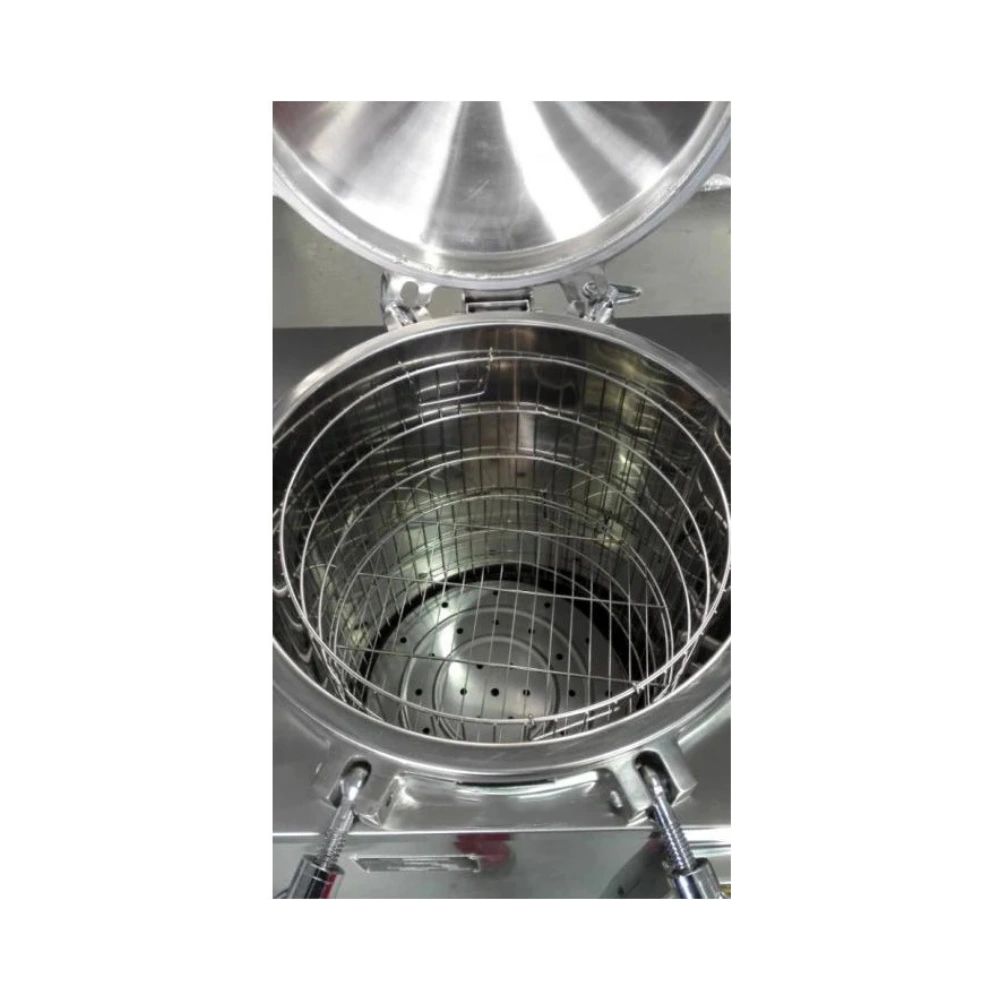

1BasketStainless steel02 pcs
Vertical Autoclave LVA-A15 | Capacity: 150 L | Sterilization Time: 0 to 60 min
Vertical Autoclave LVA-A15 | Wide Temperature and Time Settings | Corrosion-Resistant Chamber

Models of Vertical Autoclave

Labtron Vertical Autoclave provide upright design, high pressure steam sterilizer at working temperature of 134℃. Their orientation makes loading and unloading more convenient and efficient. They feature sensors and automatic shut off system enhancing safety by preventing overeating during operation. Their programmable controls enable automatic operation, managing heating, sterilization and cooling phases efficiently. Our Vertical Autoclave effectively eliminates pathogens from glassware and media, ensuring infection control in healthcare settings.

Vertical Autoclave LVA-M12

Vertical Autoclave LVA-M12

  • Capacity : 80 L
  • Drying Function : Yes
  • Working Temperature Range : 121°C to 134°C
  • Design Temperature : 150℃
Vertical Autoclave LVA-O24

Vertical Autoclave LVA-O24

  • Capacity : 75 L
  • Chamber Volume : Φ350 × 700 mm
  • Chamber Thickness : 2.0 mm
  • Temperature Range : 50 °C to 126 °C
Vertical Autoclave LVA-B10

Vertical Autoclave LVA-B10

  • Capacity : 35 L
  • Working Pressure : 0.22 MPa
  • Working Temperature : 134°C
  • Temperature Range : 105 to 134°C
Vertical Laboratory Autoclave LVA-I13
Vertical Laboratory Autoclave LVA-I13
  • Capacity : 100 L
  • Sterilization Temperature : 134 °C
  • Sterilization Pressure : 0.22 Mpa
  • Chamber Dimension ( Φ × D ) : 388 × 670 mm
Vertical Autoclave LVA-F22
Vertical Autoclave LVA-F22
  • Capacity : 100 L
  • Sterilization Temperature : 134℃
  • Sterilization Pressure : 0.22 Mpa
  • Time Range : 0 to 99 min or 0 to 99 h 59 min
Vertical Autoclave LVA-C14

Vertical Autoclave LVA-C14

  • Capacity : 120 L
  • Sterilization Temperature : 134 °C
  • Sterilization Pressure : 0.22 Mpa
  • Chamber Dimension ( Φ × D ) : 480 × 660 mm
Vertical Autoclave LVA-B11

Vertical Autoclave LVA-B11

  • Capacity : 50 L
  • Working Pressure : 0.22 MPa
  • Working Temperature : 134°C
  • Temperature Range : 105 to 134°C
Vertical Laboratory Autoclave LVA-J10

Vertical Laboratory Autoclave LVA-J10

  • Capacity : 35 L
  • Sterilization Temperature : 115 to 129 °C
  • Sterilization Pressure : 0.165 MPa
  • Chamber Dimension ( Φ × D ) : 280 × 500 mm
Vertical Autoclave LVA-A15 FAQ's
  • The Vertical Autoclave LVA-A15 is a Class N autoclave, tailored for sterilizing unwrapped, solid, non-porous instruments using high-pressure saturated steam. It features a non-digital display comprised of indicator lights for both system status and water level, offering a straightforward and intuitive user experience. The unit offers a substantial 150 L top-loading chamber, making it ideal for high-volume sterilization needs in labs, clinics, and medical facilities. Its microprocessor-based control system, combined with a dual-scale numerical pressure gauge, ensures accurate monitoring of both temperature and pressure throughout the sterilization cycle.

  • The Vertical Autoclave LVA-A15 is equipped with a microprocessor-based control system that ensures precise regulation of temperature, pressure, and sterilization time. This feature enhances user convenience and operational accuracy by maintaining consistent performance and allowing programmable sterilization cycles. It also contributes to user safety and reliability, making the unit ideal for critical sterilization processes.

  • The Vertical Autoclave LVA-A15 is designed with multiple safety elements, including working status and water level indicator lights. These indicators keep the user informed about the machine’s current state and prevent dry runs due to insufficient water. Additionally, the consistent heat distribution (within ±1°C) and stable working pressure of 0.22 MPa ensure that sterilization is both safe and effective.

  • Yes, the Vertical Autoclave LVA-A15 is compatible with dual voltage inputs, 110V or 220V at 50/60Hz single-phase, which allows it to be used in diverse regions and setups without the need for major electrical modifications. This versatility makes it suitable for international laboratories, research institutes, and healthcare facilities.

  • The Vertical Autoclave LVA-A15 is ideal for sterilizing a wide range of materials including laboratory glassware, culture media, and other heat-resistant items. Its spacious chamber and reliable sterilization process make it especially useful in medical centers, research labs, microbiology units, and pharmaceutical production where sterilization of bulky or numerous items is necessary.
