Vertical Laboratory Autoclave LVA-G11

Vertical Laboratory Autoclave LVA-G11

Vertical Autoclave LVA-G11 has hand wheel type quick open door structure design. It is equipped with two stainless steel baskets and indicator light to indicate working status of sterilization process. Autoclave is top loading sterilizer with four wheels for easy movement of the unit and self-bulge seal ring to prevent leakage. Vertical autoclave has dual scale numerical pressure gauge system and provides auto protection against over temperature & over pressure. Its safe, economic and reliable autoclave with multiple applications in hospitals, clinical research laboratories, food industry, biotechnology & microbiology labs etc.

Request Quote
Capacity 50L
Sterilization Temperature 134 °C
Sterilization Pressure 0.22 Mpa
Chamber Dimension ( Φ × D ) 340 × 550 mm
Timer Range 0 - 99 min
Number of sterilizing baskets 2
Heat Average ≤ ± 1 ℃
  • Designed with horizontal sliding door with safety interlock device which do not allow door to open until there is no pressure in the chamber
  • Equipped with four wheels for easy movement of the unit and self-bulge seal ring to prevent leakage
  • Two stainless steel sterilizing baskets
  • Indicator light indicates working status
  • Automatic shutdown with beep sound after completion of process
  • Dual scale numerical pressure gauge
  • Safe inflating type seal
  • Safety valve and door locking system with pressure or temperature overloading protection device

Vertical autoclave with pressure steam has applications medicine and clinical research industry, pharmaceutical industry, biotechnology, microbiology and other organizations to sterilize biological material, culture media, surgical equipments, glass wares etc.

Related Models :

Compare Models

Model Capacity Sterilization Temperature Sterilization Pressure Chamber Dimension ( Φ × D ) Timer Range Number of sterilizing baskets Heat Average
LVA-C10 35 L 134 °C 0.22 Mpa 318 × 450 mm 0 - 60 min 2 ≤ ± 1 ℃
LVA-C11 50 L 134 °C 0.22 Mpa 340 × 550 mm 0 - 60 min 2 ≤ ± 1 ℃
LVA-C12 75 L 134 °C 0.22 Mpa 400 × 600 mm 0 - 60 min 2 ≤ ± 1 ℃
LVA-C13 100 L 134 °C 0.22 Mpa 440 × 650 mm 0 - 60 min 2 ≤ ± 1 ℃
LVA-C14 120 L 134 °C 0.22 Mpa 480 × 660 mm 0 - 60 min 2 ≤ ± 1 ℃
LVA-C15 150 L 134 °C 0.22 Mpa 510 × 740 mm 0 - 60 min 2 ≤ ± 1 ℃
LVA-G10 35L 134 °C 0.22 Mpa 318 × 450 mm 0 - 99 min 2 ≤ ± 1 ℃
LVA-G11 50L 134 °C 0.22 Mpa 340 × 550 mm 0 - 99 min 2 ≤ ± 1 ℃
LVA-G12 75L 134 °C 0.22 Mpa 400 × 600 mm 0 - 99 min 2 ≤ ± 1 ℃
LVA-G13 100L 134 °C 0.22 Mpa 440 × 650 mm 0 - 99 min 2 ≤ ± 1 ℃
LVA-I10 35 L 134 °C 0.22 Mpa 280 × 500 mm 0 - 999 min - ≤ ± 1 ℃
LVA-I11 50 L 134 °C 0.22 Mpa 320 × 610 mm 0 - 999 min - ≤ ± 1 ℃
LVA-I12 75 L 134 °C 0.22 Mpa 388 × 530 mm 0 - 999 min - ≤ ± 1 ℃
LVA-I13 100 L 134 °C 0.22 Mpa 388 × 670 mm 0 - 999 min - ≤ ± 1 ℃
LVA-I14 120 L 134 °C 0.22 Mpa 460 × 670 mm 0 - 999 min - ≤ ± 1 ℃
LVA-I15 150 L 134 °C 0.22 Mpa 460 × 760 mm 0 - 999 min - ≤ ± 1 ℃
LVA-J10 35 L 115 to 129 °C 0.165 MPa 280 × 500 mm 0 - 80 min 2 ≤ ± 1 ℃
LVA-J11 50 L 115 to 129 °C 0.165 MPa 320 × 610 mm 0 - 80 min 2 ≤ ± 1 ℃
LVA-J12 75 L 115 to 129 °C 0.165 MPa 388 × 530 mm 0 - 80 min 2 ≤ ± 1 ℃
LVA-K10 60 L 134 °C 0.22 MPa 396 × 490 mm 0 - 99 min - ≤ ± 1 ℃
LVA-K11 80 L 134 °C 0.22 MPa 396 × 650 mm 0 - 99 min - ≤ ± 1 ℃
LVA-K12 100 L 134 °C 0.22 MPa 504 x 404 x 502 mm 0 - 99 min - ≤ ± 1 ℃
LVA-K13 120 L 134 °C 0.22 MPa 504 x 404 x 590 mm 0 - 99 min - ≤ ± 1 ℃
LVA-A10 35 L - - - - - ≤ ± 1°C
LVA-A11 50 L - - - - - ≤ ± 1°C
LVA-A12 75 L - - - - - ≤ ± 1°C
LVA-A13 100 L - - - - - ≤ ± 1°C
LVA-A14 120 L - - - - - ≤ ± 1°C
LVA-A15 150 L - - - - - ≤ ± 1°C
LVA-B10 35 L - - - - - ≤± 1℃
LVA-B11 50 L - - - - - ≤± 1℃
LVA-B12 75 L - - - - - ≤± 1℃
LVA-B13 100 L - - - - - ≤± 1℃
LVA-B14 120 L - - - - - ≤± 1℃
LVA-B15 150 L - - - - - ≤± 1℃
LVA-D10 35 L - - - - - ≤ ± 1°C
LVA-D11 50 L - - - - - ≤ ± 1°C
LVA-D12 75 L - - - - - ≤ ± 1°C
LVA-D13 100 L - - - - - ≤ ± 1°C
LVA-L10 60 L - - - - - -
LVA-L11 85 L - - - - - -
LVA-L12 110 L - - - - - -
LVA-L20 36 L - - - - - -
LVA-L21 54 L - - - - - -

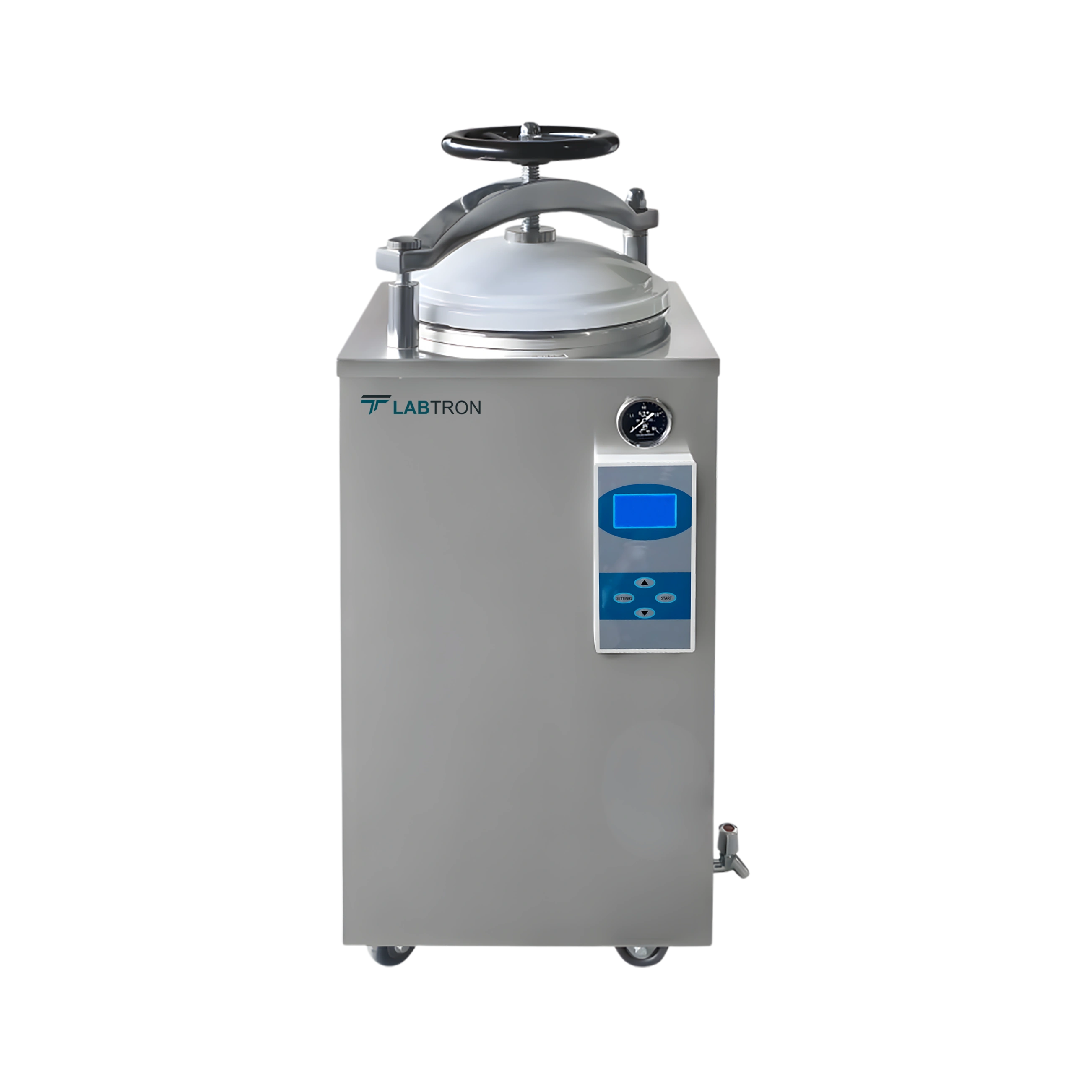

LVA-H10 35 L 134°C 0.22 Mpa - 0 to 99 min / 0 to 99 hr 59 min - -
LVA-H11 50 L 134°C 0.22 Mpa - 0 to 99 min / 0 to 99 hr 59 min - -
LVA-H12 75 L 134°C 0.22 Mpa - 0 to 99 min / 0 to 99 hr 59 min - -
LVA-H13 100 L 134°C 0.22 Mpa - 0 to 99 min / 0 to 99 hr 59 min - -
LVA-F10 50 L 134℃ 0.22 Mpa - - - ≤± 1℃
LVA-F11 75 L 134℃ 0.22 Mpa - - - ≤± 1℃
LVA-F13 100 L 134℃ 0.22 Mpa - - - ≤± 1℃
LVA-F20 50 L 134℃ 0.22 Mpa - - - ≤± 1℃
LVA-F21 75 L 134℃ 0.22 Mpa - - - ≤± 1℃
LVA-F22 100 L 134℃ 0.22 Mpa - - - ≤± 1℃
LVA-F23 35 L 134℃ 0.22 Mpa - - - ≤± 1℃
