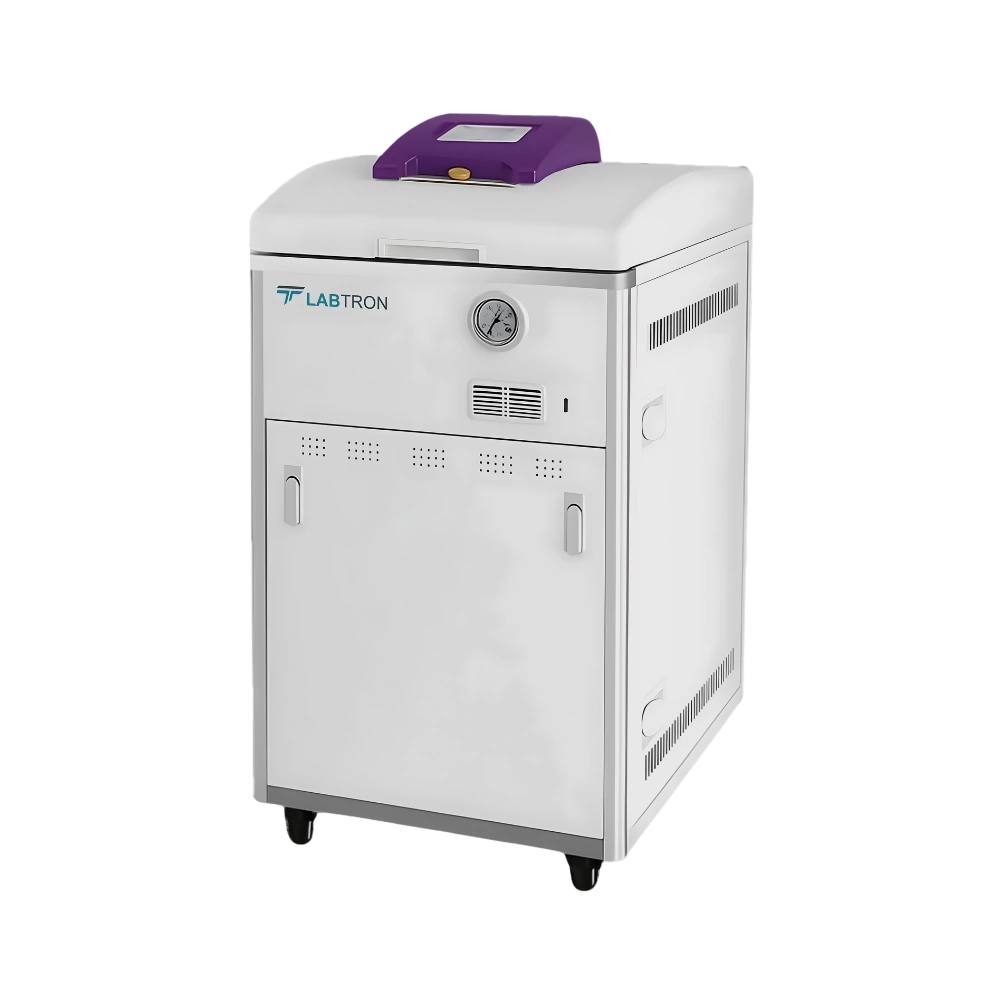

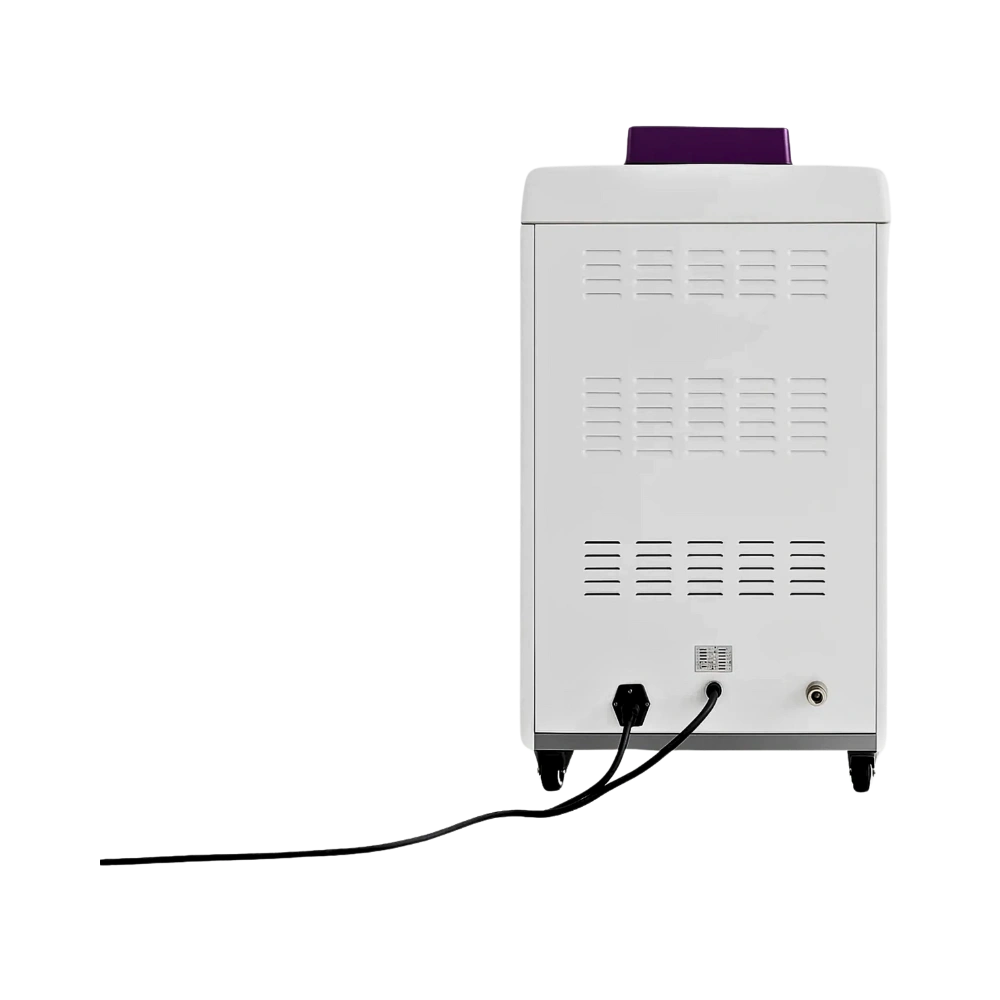

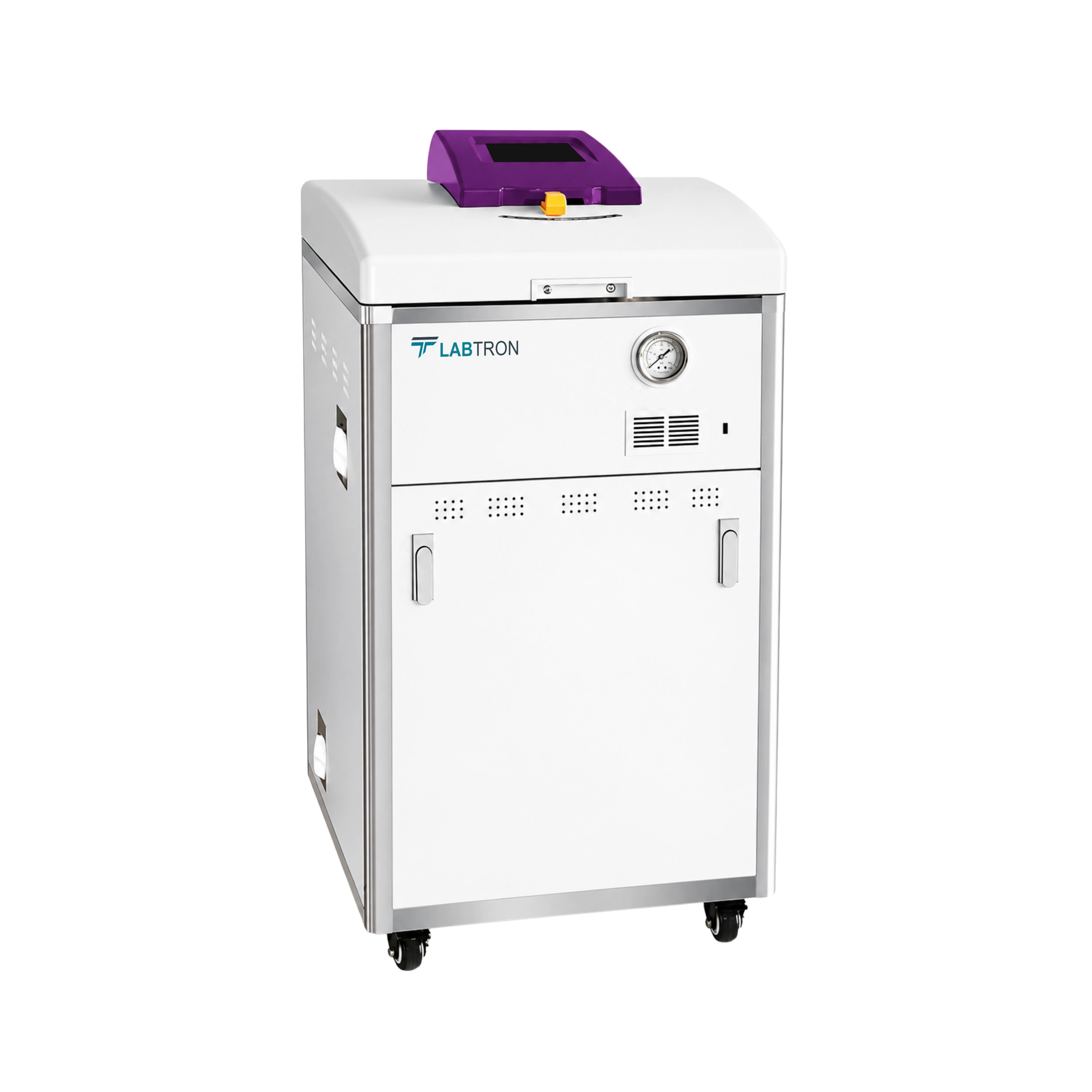

Vertical Autoclave LVA-E14

Vertical Autoclave LVA-E14

Vertical Autoclave LVA-E14 is a semi-automatic sterilizer designed to operate within a temperature range of 50°C to 134°C. It is equipped with an air-cooled chilling device. It includes an automatic fault detection and diagnosis system to ensure safe and reliable operation. It also features a heater anti-drying protection function and a leakage protection system for added safety. Our autoclave is ideal for sterilizing reusable tools, containers, and equipment in laboratories, dental clinics, veterinary centers, food testing labs, and fermentation units.

Vertical Autoclave LVA-E14
Request Quote
Volume of Chamber 75 L
Chamber thickness 2 mm
Working temperature 50 °C to 134 °C
Working pressure 0.217 MPa
Working environment 5 °C to 45°C
Relative Humidity 10% to 85%
Time setting range 0 to 99h
Rated power 3500W
Power supply 220V, 50/60Hz
Dimension 550 × 620 × 1070 mm
Net weight 107 Kg
Gross weight 111 Kg
  • Advanced anti-vibration design

  • Robust door locking mechanism

  • Programmable Timer

  • Automatic Water Level Control

  • Corrosion-Resistant Exterior

Our autoclave ideal for sterilization in veterinary clinics, dental offices, tattoo studios, pathology labs, research centers, agricultural labs, forensic labs, breweries, and educational and chemical testing facilities.

Vertical Autoclave LVA-E14 | Volume: 75 L | Chamber Thickness: 2 mm
Vertical Autoclave LVA-E14 | Advanced Anti-Vibration Design | Robust Door Locking Mechanism


Models of Vertical Autoclave

Labtron Vertical Autoclave provide upright design, high pressure steam sterilizer at working temperature of 134℃. Their orientation makes loading and unloading more convenient and efficient. They feature sensors and automatic shut off system enhancing safety by preventing overeating during operation. Their programmable controls enable automatic operation, managing heating, sterilization and cooling phases efficiently. Our Vertical Autoclave effectively eliminates pathogens from glassware and media, ensuring infection control in healthcare settings.

Vertical Autoclave LVA-F21

Vertical Autoclave LVA-F21

  • Capacity : 75 L
  • Sterilization Temperature : 134℃
  • Sterilization Pressure : 0.22 Mpa
  • Time Range : 0 to 99 min or 0 to 99 h 59 min
Vertical Autoclave LVA-E15

Vertical Autoclave LVA-E15

  • Volume of Chamber : 75 L
  • Chamber thickness : 2 mm
  • Working temperature : 50 °C to 134 °C
  • Working pressure : 0.217 MPa
Vertical Autoclave LVA-F23

Vertical Autoclave LVA-F23

  • Capacity : 35 L
  • Sterilization Temperature : 134℃
  • Sterilization Pressure : 0.22 Mpa
  • Time Range : 0 to 99 min or 0 to 99 h 59 min
Vertical Autoclave LVA-L20
Vertical Autoclave LVA-L20
  • Volume : 35 L
  • Design Pressure : -0.1 / 0.3 MPa
  • Ultimate Vacuum : -0.092 MPa
  • Sterilization Temperature Range : 105 to 136 °C
Vertical Autoclave LVA-O20
Vertical Autoclave LVA-O20
  • Capacity : 30 L
  • Chamber Volume : Φ350 × 400 mm
  • Chamber Thickness : 2.0 mm
  • Temperature Range : 50 °C to 126 °C
Vertical Autoclave LVA-C15

Vertical Autoclave LVA-C15

  • Capacity : 150 L
  • Sterilization Temperature : 134 °C
  • Sterilization Pressure : 0.22 Mpa
  • Chamber Dimension ( Φ × D ) : 510 × 740 mm
Vertical Laboratory Autoclave LVA-J11

Vertical Laboratory Autoclave LVA-J11

  • Capacity : 50 L
  • Sterilization Temperature : 115 to 129 °C
  • Sterilization Pressure : 0.165 MPa
  • Chamber Dimension ( Φ × D ) : 320 × 610 mm
Vertical Autoclave LVA-O22

Vertical Autoclave LVA-O22

  • Capacity : 50 L
  • Chamber Volume : Φ350 × 550 mm
  • Chamber Thickness : 2.0 mm
  • Temperature Range : 50 °C to 126 °C

Vertical Autoclave LVA-E14 FAQ's
  • Vertical Autoclave has a spacious 75-liter chamber capacity, making it suitable for sterilizing large volumes of instruments, glassware, and materials in one cycle. It operates within a temperature range of up to 134°C, which is the standard temperature for effective sterilization of most medical and laboratory equipment. This ensures thorough elimination of bacteria, viruses, fungi, and spores, making it highly reliable for use in hospitals, laboratories, pharmaceutical, and biotech industries.

  • Vertical Autoclave is equipped with a microcomputer control system featuring a user-friendly graphic display. This advanced control system allows for precise temperature and pressure regulation throughout the sterilization process. It automates the entire cycle, reducing the chances of human error, and allows users to program sterilization times and monitor the process in real-time. This results in consistent sterilization outcomes, increased efficiency, and ease of use.

  • The anti-vibration design in the vertical autoclave significantly reduces the transmission of mechanical vibrations and operational noise during the sterilization cycle. By minimizing these vibrations, the autoclave operates more smoothly and quietly, which is especially beneficial in sensitive laboratory or clinical environments where noise reduction is important. This design also helps protect delicate internal components from wear and tear caused by constant movement, thereby extending the overall lifespan of the autoclave. Additionally, improved stability enhances the accuracy and consistency of the sterilization process, ensuring reliable results with every cycle. Overall, the anti-vibration feature contributes to a safer, quieter, and more durable sterilization system.

  • Vertical autoclave includes an air-cooled chilling device designed to quickly cool down the chamber after the sterilization cycle ends. This significantly reduces the cooling time, allowing for faster opening of the autoclave lid and increasing the overall throughput of sterilized instruments and materials. The rapid cooling also helps maintain the integrity of heat-sensitive items by preventing prolonged exposure to high temperatures.

  • Yes, the vertical autoclave is versatile and designed to sterilize a wide range of items including surgical instruments, glassware, laboratory tools, and various materials used in pharmaceutical and biotech production. The programmable timer and precise temperature control allow it to accommodate different sterilization cycles tailored to the specific type of load, whether liquids, solids, or biohazardous waste, making it a highly adaptable sterilization solution.

Post your question?

Our experts are here to help!

Vertical Autoclave:
Vertical Autoclave LVA-F21, Vertical Autoclave LVA-E15, Vertical Autoclave LVA-F23, Vertical Autoclave LVA-L20, Vertical Autoclave LVA-O20, Vertical Autoclave LVA-C15, Vertical Laboratory Autoclave LVA-J11, Vertical Autoclave LVA-O22, and more.
