Vertical Autoclave LVA-E12

Vertical Autoclave LVA-E12

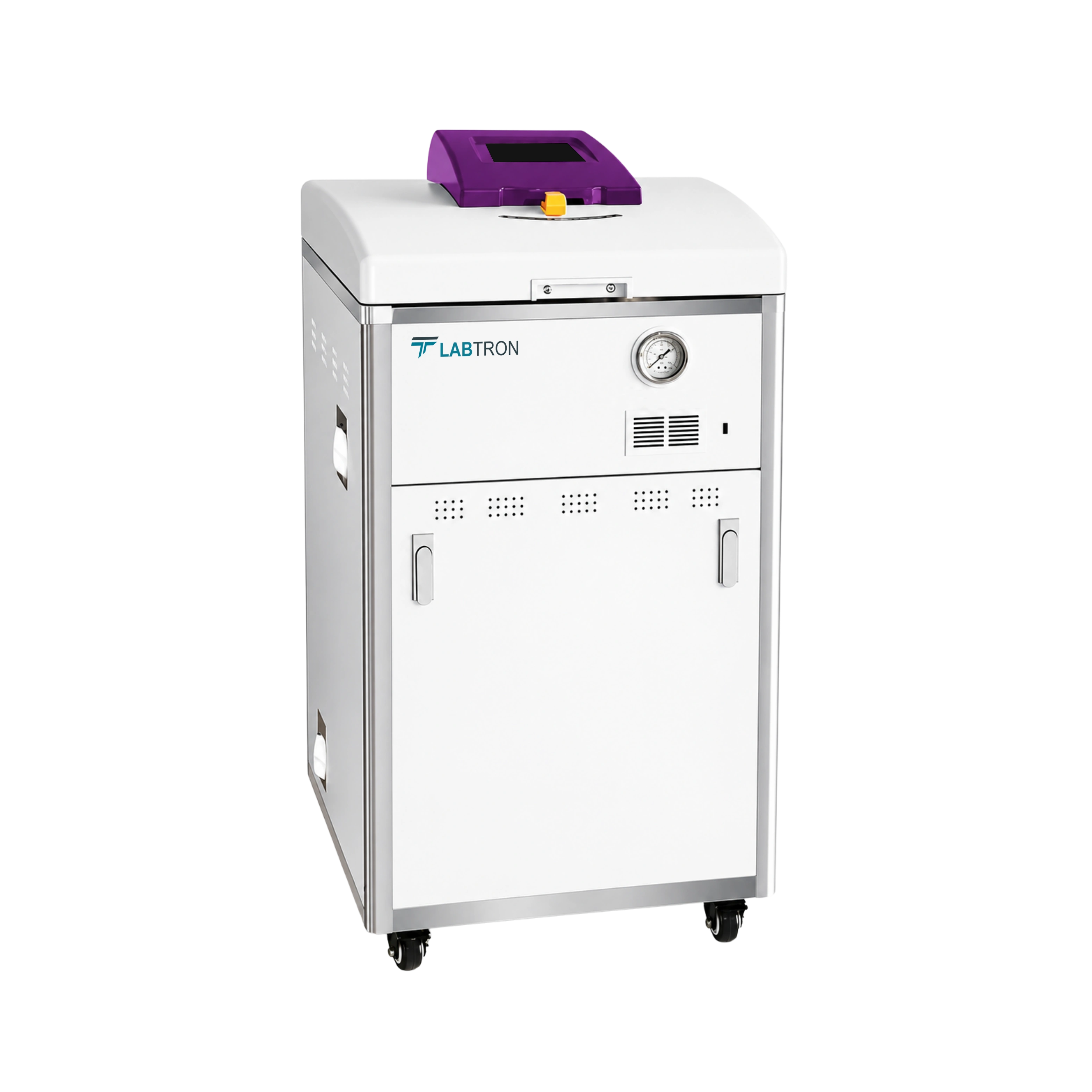

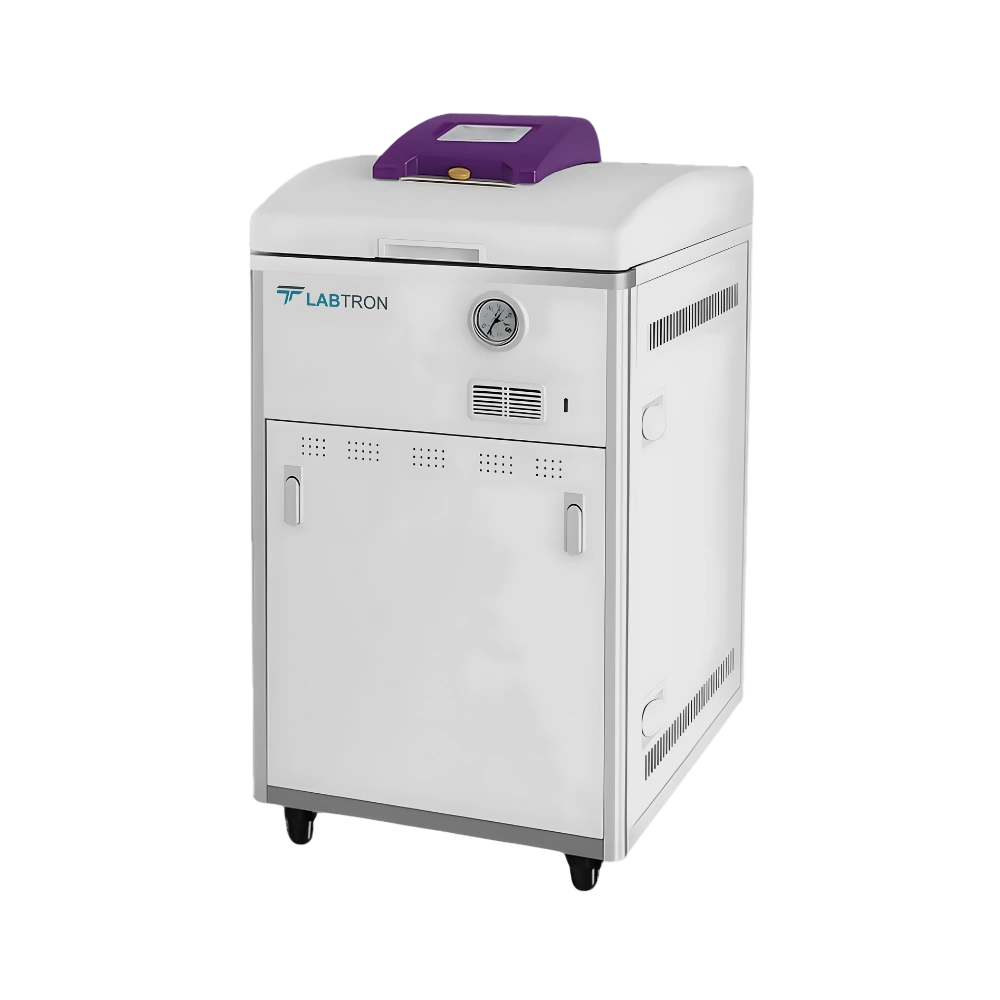

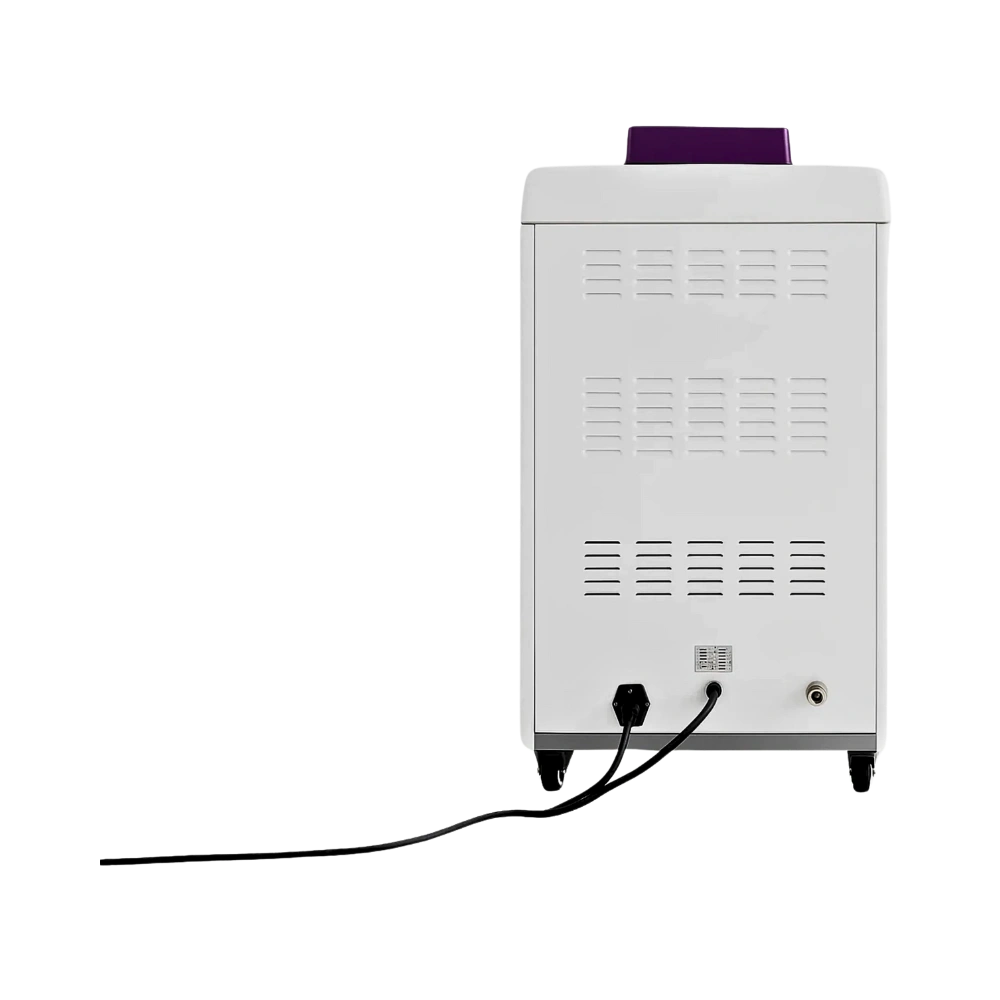

Vertical Autoclave LVA-E12 is made from durable SUS304 stainless steel, ensuring long-lasting performance. It features an LED display with microcomputer control for precise and efficient operation. The unit supports both external and internal discharging and includes a user-friendly up-and-down door mechanism. This compact and reliable autoclave ensures safe, contamination-free sterilization. Our Autoclave is widely used in the medical, microbiology, veterinary, and food industries.

Vertical Autoclave LVA-E12
Request Quote
Volume of Chamber 50 L
Chamber thickness 2 mm
Working temperature 50 °C to 134 °C
Working pressure 0.217 MPa
Working environment 5 °C to 45°C
Relative Humidity 10% to 85%
Time setting range 0 to 99h
Rated power 3500W
Power supply 220V, 50/60Hz
Dimension 550 × 620 × 1070 mm
Net weight 97 Kg
Gross weight 100 Kg
  • Visual Alarm System

  • Self-Inflating Sealing Ring

  • Overheat Protection

  • Clear Display Indicators

  • Data Logging Capability

Our autoclave is ideal for sterilizing laboratory instruments, surgical tools, and pharmaceutical equipment, ensuring thorough decontamination and a contamination-free environment in scientific, medical, and healthcare settings across various applications.

Vertical Autoclave LVA-E12 | Volume: 50 L | Chamber Thickness: 2 mm
Vertical Autoclave LVA-E12 | Visual Alarm System | Self-Inflating Sealing Ring


Models of Vertical Autoclave

Labtron Vertical Autoclave provide upright design, high pressure steam sterilizer at working temperature of 134℃. Their orientation makes loading and unloading more convenient and efficient. They feature sensors and automatic shut off system enhancing safety by preventing overeating during operation. Their programmable controls enable automatic operation, managing heating, sterilization and cooling phases efficiently. Our Vertical Autoclave effectively eliminates pathogens from glassware and media, ensuring infection control in healthcare settings.

Vertical Autoclave LVA-F13

Vertical Autoclave LVA-F13

  • Capacity : 100 L
  • Maximum Pressure : 0.23 MPa
  • Working Pressure : 0.22 MPa
  • Maximum Temperature : 136°C
Vertical Autoclave LVA-Q10

Vertical Autoclave LVA-Q10

  • Capacity : 35 L
  • Working Pressure : 0.22 MPa
  • Working Temperature : 100 to 134℃
  • Sterilization Time : 0 to 9999 minutes
Vertical Autoclave LVA-H14

Vertical Autoclave LVA-H14

  • Chamber Capacity : 150 L
  • Working Pressure : 0 to 0.22 MPa
  • Working Temperature Range : 105 to 134℃
  • Sterilization Time : 0 to 99 min or 0 to 99 hr 59 min
Vertical Autoclave LVA-A13
Vertical Autoclave LVA-A13
  • Capacity : 100 L
  • Maximum Working Pressure : 0.23 MPa
  • Working Pressure : 0.22 MPa
  • Working Temperature : 134°C
Vertical Autoclave LVA-E22
Vertical Autoclave LVA-E22
  • Volume of Chamber : 60 L
  • Chamber thickness : 2 mm
  • Working temperature : 50 °C to 134 °C
  • Working pressure : 0.217 MPa
Vertical Laboratory Autoclave LVA-I11

Vertical Laboratory Autoclave LVA-I11

  • Capacity : 50 L
  • Sterilization Temperature : 134 °C
  • Sterilization Pressure : 0.22 Mpa
  • Chamber Dimension ( Φ × D ) : 320 × 610 mm
Vertical Autoclave LVA-H11

Vertical Autoclave LVA-H11

  • Capacity : 50 L
  • Working Pressure : 0 to 0.22 MPa
  • Working Temperature Range : 105 to 134°C
  • Sterilization Time : 0 to 99 min or 0 to 99 hour 59 min
Vertical Autoclave LVA-O12

Vertical Autoclave LVA-O12

  • Capacity : 75 L
  • Chamber Volume : Ø400 × 625 mm
  • Working Sterilization Temperature : 134℃
  • Sterilization Temperature : 116℃ to 134℃

Vertical Autoclave LVA-E12 FAQ's
  • Yes, a vertical autoclave is highly effective for sterilizing surgical instruments. The high-pressure steam penetrates all surfaces of the instruments, ensuring complete sterilization and preventing infection. It complies with medical safety standards for sterilization processes. The SUS304 stainless steel chamber guarantees durability and resistance to corrosion during repeated cycles. This makes vertical autoclaves a trusted choice in hospitals and clinics.

  • Yes, operating a vertical autoclave is safe when following proper procedures and manufacturer guidelines. Wearing protective equipment like gloves and goggles is essential to avoid burns or injuries from steam and hot surfaces. The microcomputer control and LED display help users monitor the sterilization process accurately. Always wait for pressure normalization and chamber cooling before opening the door to prevent accidents. Regular maintenance also ensures the equipment stays safe and functional.

  • Routine maintenance includes cleaning the sterilization chamber and door gasket to prevent contamination and maintain a proper seal. Checking the control panel and LED display regularly helps identify any malfunctions early. Using distilled water in the reservoir reduces mineral deposits that can impair performance. Scheduling periodic professional inspections ensures the autoclave remains in optimal working condition. Proper maintenance extends the lifespan and reliability of the autoclave.

  • Yes, vertical autoclaves are widely used in the food industry for sterilizing packaging and processing equipment. They help eliminate bacteria and other microorganisms, ensuring food safety and compliance with hygiene standards. The compact design fits well in food production environments where space is limited. Its precise control over temperature and pressure guarantees thorough sterilization. This makes it an essential tool for maintaining product quality and safety.

  • Yes, using distilled or demineralized water is strongly recommended for operating a vertical autoclave. Tap water often contains minerals and impurities that can lead to scale buildup inside the heating elements and pressure chamber over time. This buildup not only reduces the efficiency of the sterilization process but can also damage sensitive components, leading to costly repairs or shorter equipment lifespan. Distilled water ensures a clean steam generation process, which is essential for achieving consistent and reliable sterilization results. Regular use of pure water also minimizes maintenance needs and supports long-term operational efficiency.
