Vertical Autoclave LVA-B13

Vertical Autoclave LVA-B13

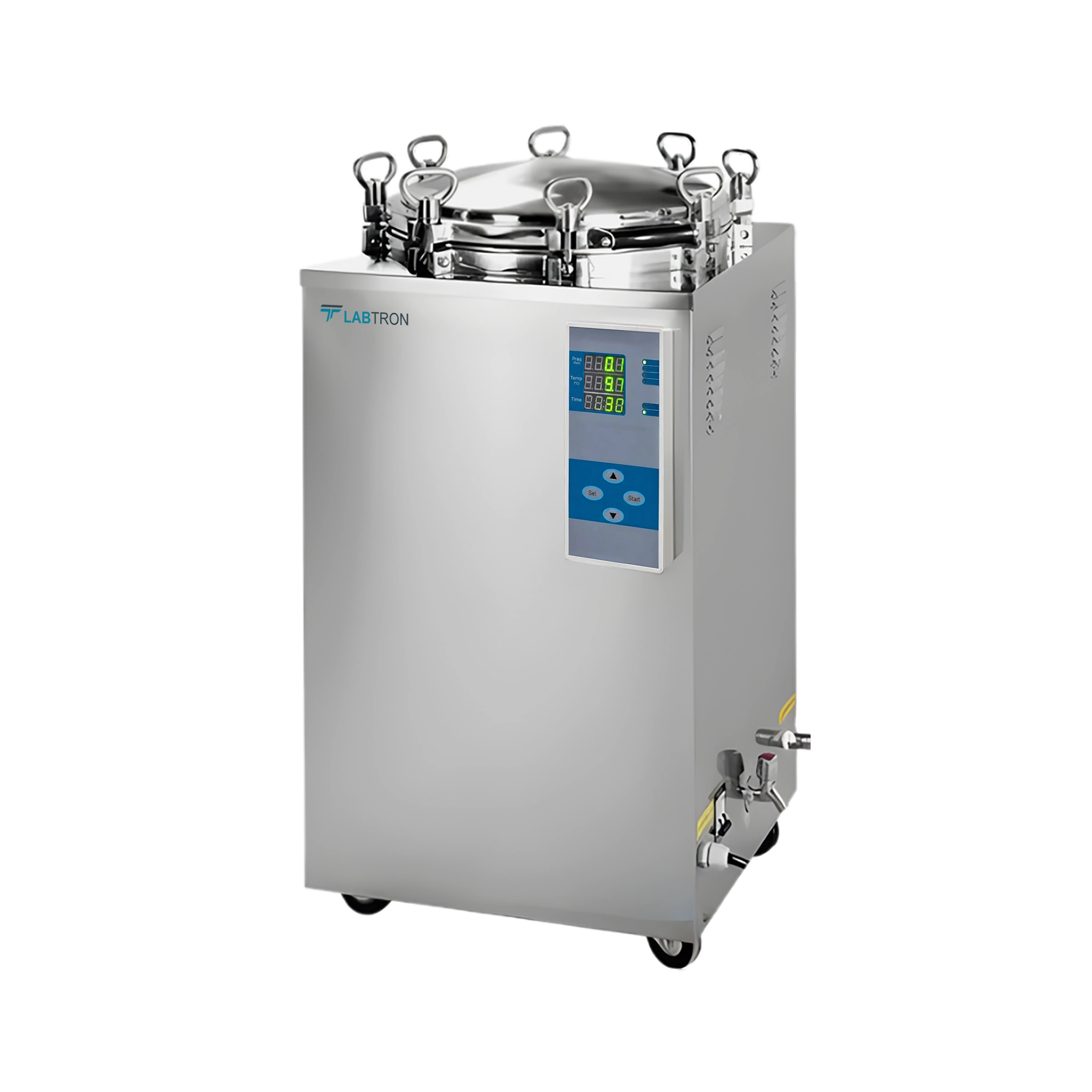

Vertical Autoclave LVA-B13 is top loading vertical pressure steam sterilizer with chamber capacity of 100 L, working sterilization temperature and pressure of 134°C and 0.22 MPa respectively. Designed with digital display of working status, with touch keypad and double stainless steel baskets to keep the sterilization material load. Material used stainless high-alloy steel body structure. Auto discharge the cool air, and steam discharging automatically after sterilization. It is used in pharmaceutical industry, medicine and health care industry.

Request Quote
Capacity 100 L
Chamber volume 440 × 650 mm
Working Temperature 134℃
Working Pressure 0.22 MPa
Max Working Pressure 0.23 MPa
Time Range 0 to 99 min or 0 to 99 hour 59 min
Sterilization Temperature Range 105 to 134℃
Heat Average ≤± 1℃
Power Consumption 4.5 kW
Power Supply AC 220 V, 50 Hz
Overall Dimension 590 × 590 × 1080 mm
Packing Dimension 680 × 650 × 1220 mm
Net weight 85 kg
Gross weight 105 kg
  • Material used for body structure is high-alloy stainless steel
  • Designed with digital display indicates working status, touch keypad control panel
  • Over temperature & over pressure auto-protection
  • Sterilization Temperature ranges from 105 to 134℃
  • Designed with auto discharge the cool air, and steam discharging automatically after sterilization
  • Automatically shut off with beep alarm after sterilization

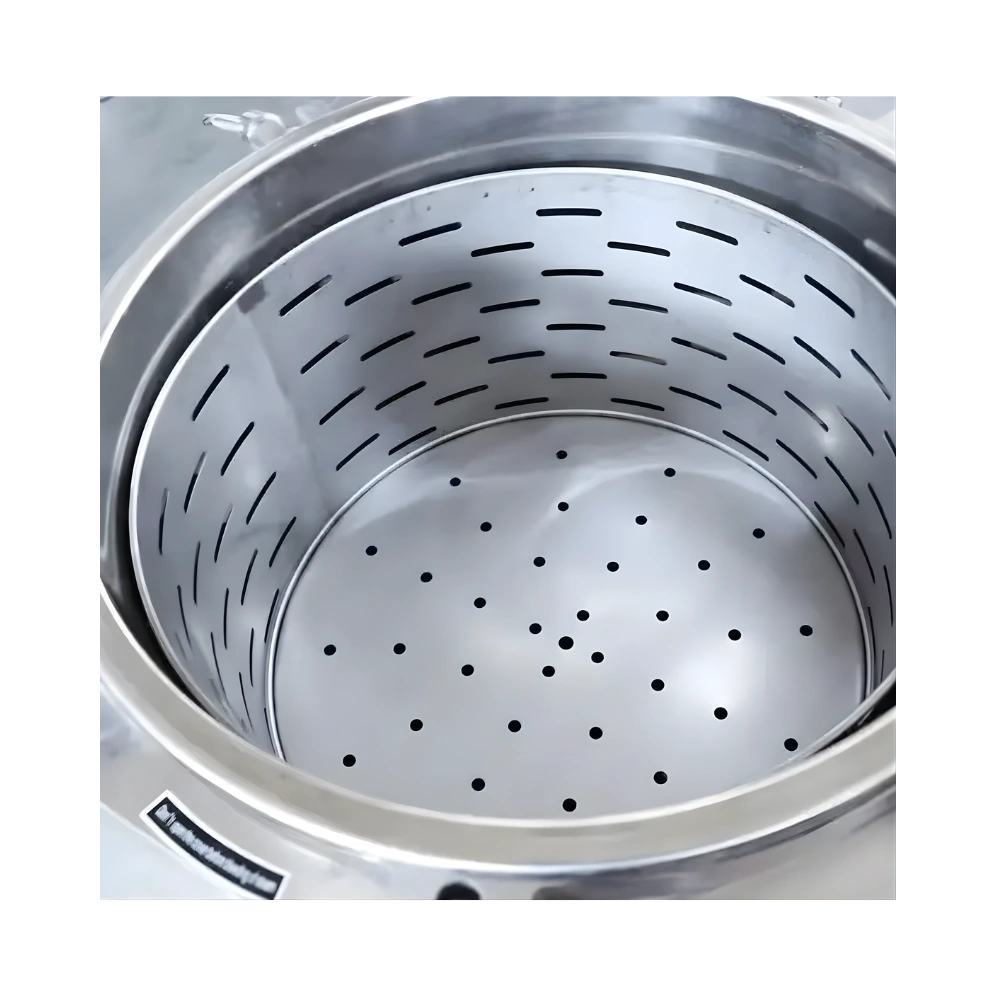

  • Dual stainless steel baskets as standard accessory
  • Equipped with movable casters for easy movement
  • Easy to operate, safe and reliable

Vertical autoclave used in pharmaceutical industry, medicine and health care industry, Biotechnology, Microbiology for effective sterilization of glassware’s, biological materials, culture media and others.

Accessories no.Name MaterialQuantity
1Basket Stainless steel02 pcs

Related Models :

Compare Models

Model Capacity Chamber volume Working Temperature Working Pressure Max Working Pressure Time Range Sterilization Temperature Range Heat Average Power Consumption Power Supply Overall Dimension Packing Dimension Net weight Gross weight
LVA-C10 35 L - - - - - - ≤ ± 1 ℃ - - - - - -
LVA-C11 50 L - - - - - - ≤ ± 1 ℃ - - - - - -
LVA-C12 75 L - - - - - - ≤ ± 1 ℃ - - - - - -
LVA-C13 100 L - - - - - - ≤ ± 1 ℃ - - - - - -
LVA-C14 120 L - - - - - - ≤ ± 1 ℃ - - - - - -
LVA-C15 150 L - - - - - - ≤ ± 1 ℃ - - - - - -
LVA-G10 35L - - - - - - ≤ ± 1 ℃ - - - - - -
LVA-G11 50L - - - - - - ≤ ± 1 ℃ - - - - - -
LVA-G12 75L - - - - - - ≤ ± 1 ℃ - - - - - -
LVA-G13 100L - - - - - - ≤ ± 1 ℃ - - - - - -
LVA-I10 35 L - - - - - - ≤ ± 1 ℃ - - - - - -
LVA-I11 50 L - - - - - - ≤ ± 1 ℃ - - - - - -
LVA-I12 75 L - - - - - - ≤ ± 1 ℃ - - - - - -
LVA-I13 100 L - - - - - - ≤ ± 1 ℃ - - - - - -
LVA-I14 120 L - - - - - - ≤ ± 1 ℃ - - - - - -
LVA-I15 150 L - - - - - - ≤ ± 1 ℃ - - - - - -
LVA-J10 35 L - - - - - - ≤ ± 1 ℃ - - - - - -
LVA-J11 50 L - - - - - - ≤ ± 1 ℃ - - - - - -
LVA-J12 75 L - - - - - - ≤ ± 1 ℃ - - - - - -
LVA-K10 60 L - - - - - - ≤ ± 1 ℃ - - - - - -
LVA-K11 80 L - - - - - - ≤ ± 1 ℃ - - - - - -
LVA-K12 100 L - - - - - - ≤ ± 1 ℃ - - - - - -
LVA-K13 120 L - - - - - - ≤ ± 1 ℃ - - - - - -
LVA-A10 35 L - - - - 0 to 60 mins 105 to 134°C ≤ ± 1°C 2.5 kW - 480×460×850 mm 570×550×970 mm 42 kg 56 kg
LVA-A11 50 L - - - - 0 to 60 mins 105 to 134°C ≤ ± 1°C 3 kW - 520×520×980 mm 590×590×1110 mm 50 kg 68 kg
LVA-A12 75 L - - - - 0 to 60 mins 105 to 134°C ≤ ± 1°C 4.5 kW - 560×560×980 mm 650×630×1150 mm 70 kg 90 kg
LVA-A13 100 L - - - - 0 to 60 mins 105 to 134°C ≤ ± 1°C 4.5 kW - 590×590×1080 mm 680×650×1220 mm 85 kg 105 kg
LVA-A14 120 L - - - - 0 to 60 mins 105 to 134°C ≤ ± 1°C 6 kW - 600×640×1140 mm 730×730×1270 mm 100 kg 125 kg
LVA-A15 150 L - - - - 1 to 60 mins 106 to 134°C ≤ ± 1°C 6 kW - 670×690×1130 mm 760×760×1270 mm 110 kg 135 kg
LVA-B10 35 L 318 × 450 mm 134℃ 0.22 MPa 0.23 MPa 0 to 99 min or 0 to 99 hour 59 min 105 to 134℃ ≤± 1℃ 2.5 kW AC 220 V, 50 Hz 480 × 460 × 850 mm 570 × 550 × 970 mm 42 kg 56 kg
LVA-B11 50 L 340 × 550 mm 134℃ 0.22 MPa 0.23 MPa 0 to 99 min or 0 to 99 hour 59 min 105 to 134℃ ≤± 1℃ 3 kW AC 220 V, 50 Hz 520 × 520 × 980 mm 590 × 590 × 1110 mm 50 kg 68 kg
LVA-B12 75 L 400 × 600 mm 134℃ 0.22 MPa 0.23 MPa 0 to 99 min or 0 to 99 hour 59 min 105 to 134℃ ≤± 1℃ 4.5 kW AC 220 V, 50 Hz 560 × 560 × 980 mm 650 × 630 × 1150 mm 70 kg 90 kg
LVA-B13 100 L 440 × 650 mm 134℃ 0.22 MPa 0.23 MPa 0 to 99 min or 0 to 99 hour 59 min 105 to 134℃ ≤± 1℃ 4.5 kW AC 220 V, 50 Hz 590 × 590 × 1080 mm 680 × 650 × 1220 mm 85 kg 105 kg
LVA-B14 120 L 480 × 660 mm 134℃ 0.22 MPa 0.23 MPa 0 to 99 min 105 to 134℃ ≤± 1℃ 6 kW AC 220 V, 50 Hz 600 × 640 × 1140 mm 730 × 730 × 1270 mm 100 kg 125 kg
LVA-B15 150 L 510 × 740 mm 134℃ 0.22 MPa 0.23 MPa 0 to 99 min 105 to 134℃ ≤± 1℃ 6 kW AC 220 V, 50 Hz 670 × 690 × 1130 mm 760 × 760 × 1270 mm 110 kg 135 kg
LVA-D10 35 L - - - - 0 to 99 mins 105 to 134°C ≤ ± 1°C 2.5 kW - 480×450×1010 mm 570×550×1150 mm 56 kg 72 kg
LVA-D11 50 L - - - - 0 to 99 mins 105 to 134°C ≤ ± 1°C 3 kW - 510×470×1130 mm 590×590×1280 mm 68 kg 88 kg
LVA-D12 75 L - - - - 0 to 99 mins 105 to 134°C ≤ ± 1°C 4.5 kW - 560×560×1120 mm 650×630×1280 mm 80 kg 100 kg
LVA-D13 100 L - - - - 0 to 99 mins 105 to 134°C ≤ ± 1°C 4.5 kW - 540×560×1250 mm 680×630×1370 mm 85 kg 110 kg
LVA-L10 60 L - - - - - - - - - - - - -
LVA-L11 85 L - - - - - - - - - - - - -
LVA-L12 110 L - - - - - - - - - - - - -
LVA-L20 36 L - - - - - - - - - - - - -
LVA-L21 54 L - - - - - - - - - - - - -
LVA-H10 35 L - - - - - - - - AC 220 V 50 Hz - - - -
LVA-H11 50 L - - - - - - - - AC 220 V 50 Hz - - - -
LVA-H12 75 L - - - - - - - - AC 220 V 50 Hz - - - -
LVA-H13 100 L - - - - - - - - AC 220 V 50 Hz - - - -
LVA-F10 50 L - - - - 0 to 99 min 105 to 134℃ ≤± 1℃ - AC 220 V, 50 Hz 690×470×1140 mm 760×550×1290 mm - -
LVA-F11 75 L - - - - 0 to 99 min 105 to 134℃ ≤± 1℃ - AC 220 V, 50 Hz 730×510×1270 mm 820×600×1380 mm - -
LVA-F13 100 L - - - - 0 to 99 min 105 to 134℃ ≤± 1℃ - AC 220 V, 50 Hz 750×550×13050 mm 840×640×1410 mm - -
LVA-F20 50 L - - - - 0 to 99 min or 0 to 99 h 59 min 0 to 134℃ ≤± 1℃ - AC 220 V, 50 Hz 650×410×1140 mm 730×500×1290 mm - -
LVA-F21 75 L - - - - 0 to 99 min or 0 to 99 h 59 min 0 to 134℃ ≤± 1℃ - AC 220 V, 50 Hz 690×470×1140 mm 760×550×1290 mm - -
LVA-F22 100 L - - - - 0 to 99 min or 0 to 99 h 59 min 0 to 134℃ ≤± 1℃ - AC 220 V, 50 Hz 730×510×1270 mm 820×600×1380 mm - -
LVA-F23 35 L - - - - 0 to 99 min or 0 to 99 h 59 min 0 to 134℃ ≤± 1℃ - AC 220 V, 50 Hz 600×410×1030 mm 730×500×1170 mm - -
