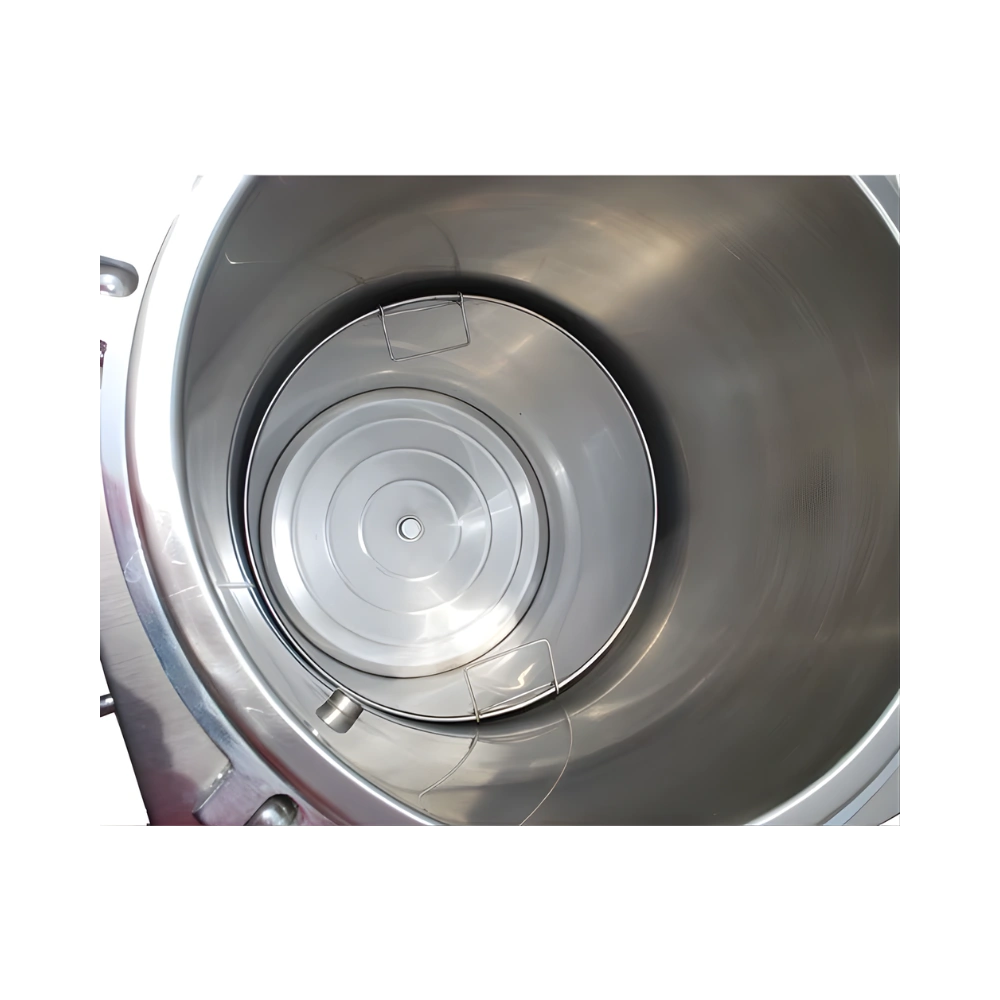

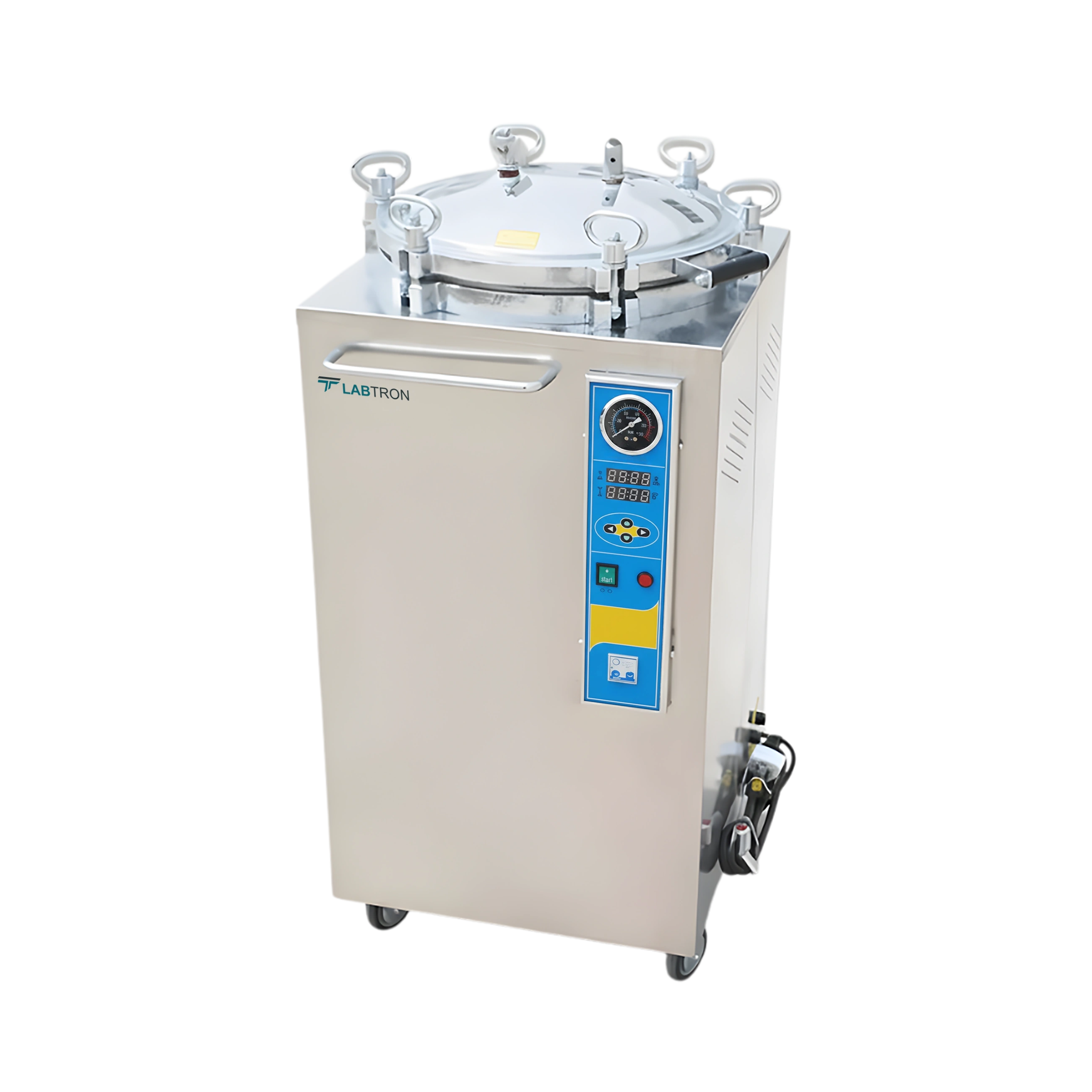

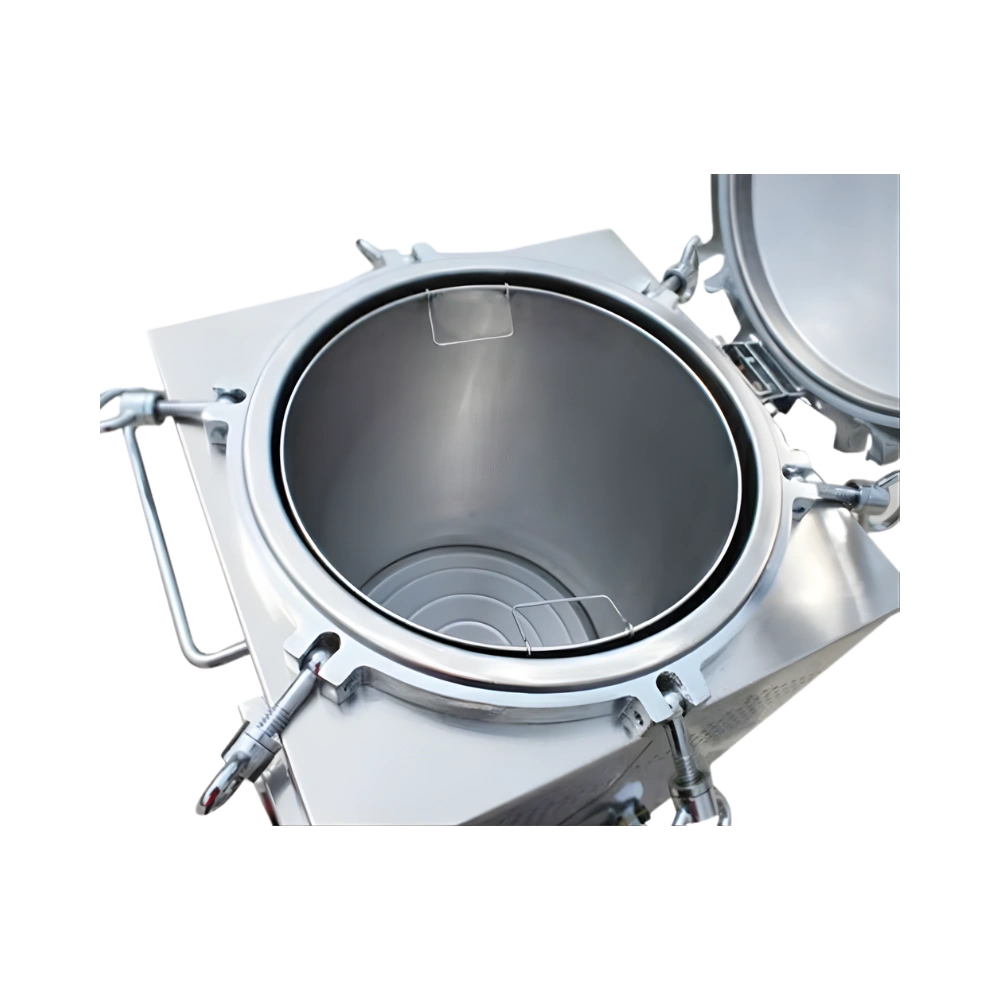

Vertical Laboratory Autoclave LVA-I14

Name: Vertical Laboratory Autoclave LVA-I14
Brand: Labtron
SKU: LVA-I14
Rating: 4.7 (644 reviews)

Vertical Autoclave LVA-I14 has microprocessor controlled system and LCD display with touch key pad to show sterilization time temperature and working status. Vertical autoclave is designed keeping safety interlock in mind which do not allow door to open until there is no pressure in the chamber. Composed of stainless steel SUS304 with in-built water tank. It is a top loading sterilizer which provides safe, economic and effective sterilization of laboratory instruments.

Request Quote

Capacity	120 L
Sterilization Temperature	134 °C
Sterilization Pressure	0.22 Mpa
Chamber Dimension ( Φ × D )	460 × 670 mm
Timer Range	0 - 999 min
Heat Average	≤ ± 1 ℃

Electric heating, direct heating by immersing copper tubes of heating elements
Silicon rubber seal to prevent from water lacking
LCD display with touch key pad shows sterilization time temperature and working status
Designed with safety interlock device which do not allow door to open until there is no pressure in the chamber
Made up of SUS304 stainless steel with in-built water tank
Equipped with silicon rubber seal to prevent steam leakage and safety alarm
Safety valve to get automatically release against over-pressure
Dual scale numerical pressure gauge indicates temperature and pressure
Over pressure auto discharge
Auto protection against over temperature and pressure

Vertical autoclave has applications in Biochemistry, pharmaceutical Industry, medicine and health care industry, Biotechnology, Microbiology and scientific research & development.

Download catalog for
Vertical Laboratory Autoclave LVA-I14 Catalog

Available Range :

Vertical Laboratory Autoclave LVA-C13 : 100 L Vertical Laboratory Autoclave LVA-G13 : 100L Vertical Autoclave LVA-L12 : 110 L Vertical Laboratory Autoclave LVA-C14 : 120 L Vertical Laboratory Autoclave LVA-C15 : 150 L Vertical Autoclave LVA-N13 : 200 L Vertical Autoclave LVA-N10 : 200L Vertical Autoclave LVA-E10 : 30 L Vertical Laboratory Autoclave LVA-C10 : 35 L Vertical Laboratory Autoclave LVA-G10 : 35L Vertical Laboratory Autoclave LVA-K14 : 40 L Vertical Laboratory Autoclave LVA-C11 : 50 L Vertical Laboratory Autoclave LVA-G11 : 50L Vertical Autoclave LVA-L21 : 54 L Vertical Laboratory Autoclave LVA-K10 : 60 L Vertical Laboratory Autoclave LVA-C12 : 75 L Vertical Laboratory Autoclave LVA-G12 : 75L Vertical Laboratory Autoclave LVA-K11 : 80 L Vertical Autoclave LVA-L11 : 85 L

Models of Vertical Autoclave

Labtron Vertical Autoclave provide upright design, high pressure steam sterilizer at working temperature of 134℃. Their orientation makes loading and unloading more convenient and efficient. They feature sensors and automatic shut off system enhancing safety by preventing overeating during operation. Their programmable controls enable automatic operation, managing heating, sterilization and cooling phases efficiently. Our Vertical Autoclave effectively eliminates pathogens from glassware and media, ensuring infection control in healthcare settings.
