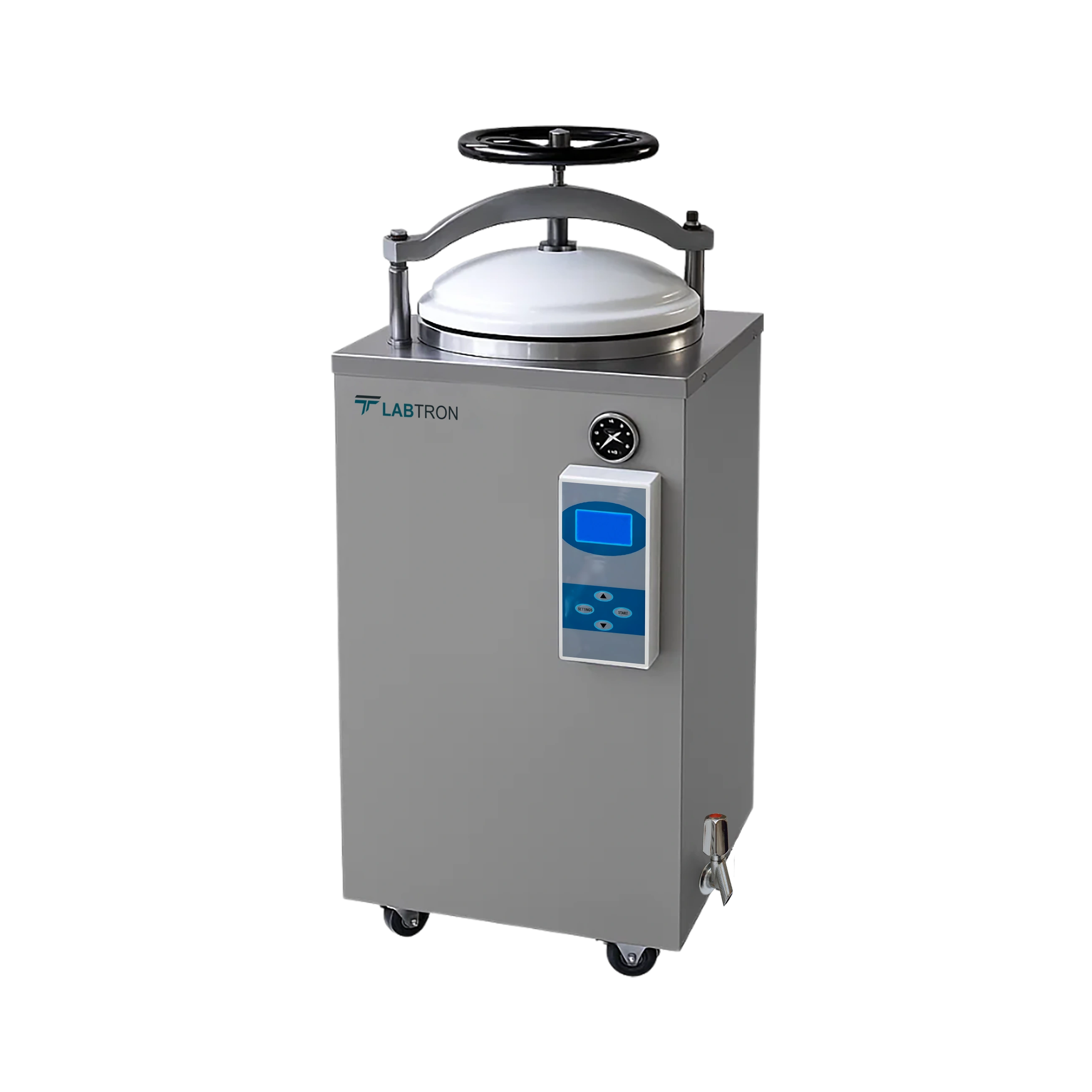

Vertical Autoclave LVA-H11

Vertical Autoclave LVA-H11

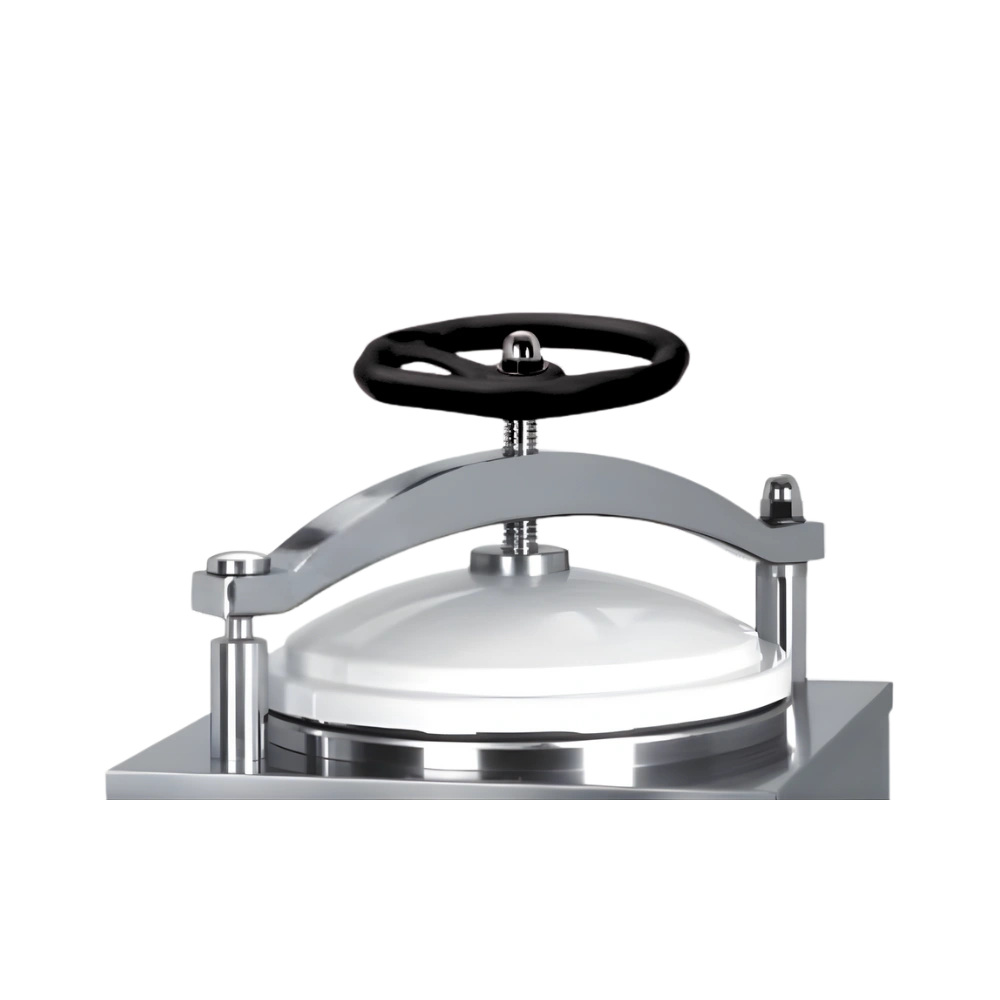

Vertical Autoclave LVA-H11 maintains a sterilization temperature of 134°C and a sterilization pressure of 0.22 Mpa. It accommodates with a capacity of 50 litres. Our autoclave integrated with a hand wheel type door for quick and easy opening. Features with an auto-protection against over temperature and over pressure.

Request Quote
Capacity 50 L
Sterilization Temperature 134°C
Sterilization Pressure 0.22 Mpa
Temperature Range 105°C to 134°C
Working Pressure 0.23 Mpa
Timer Range 0 to 99 min / 0 to 99 hr 59 min
Temperature Precision ≤ ± 1°C
Digital Display LCD Display
Power 3 kW
Power Supply AC 220 V 50 Hz
Chamber Dimension (Φ × D) 340×550 mm
Dimension (L × W × H) 510×470×1130 mm
Packaging Dimension (L × W × H) 590×590×1280 mm
Net Weight 68 kg
Gross Weight 88 kg
  • Consists of digital display with touch keypad
  • Made of SS 304 stainless steel structure and an integrated water tank
  • Incorporated with the microcomputer controlled system
  • Safety valve releases automatically
  • Featuring with a silicone rubber seal
  • Equipped with safety valve

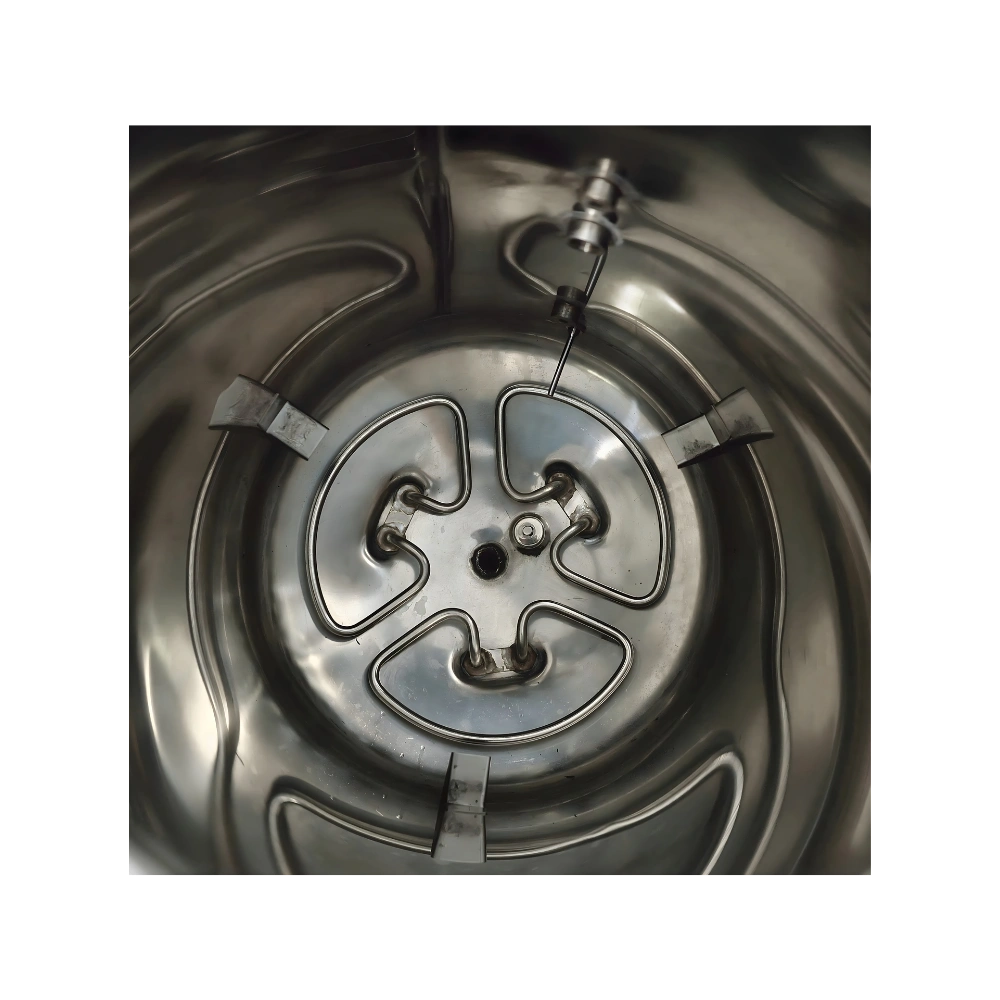

  • Immersed copper tubes serve as the direct heating elements
  • Integrated for water, temperature, steam sterilization, ventilation, and drying

Vertical Autoclave employed for sterilizing materials in biochemistry, pharmaceuticals, healthcare, food industries, and more.

Stainless Steel Basket: 2pcs

Related Models :

Compare Models

Model Capacity Sterilization Temperature Sterilization Pressure Temperature Range Working Pressure Timer Range Temperature Precision Digital Display Power Power Supply Chamber Dimension (Φ × D) Dimension (L × W × H) Packaging Dimension (L × W × H) Net Weight Gross Weight
LVA-C10 35 L 134 °C 0.22 Mpa - - 0 - 60 min - - - - - - - - -
LVA-C11 50 L 134 °C 0.22 Mpa - - 0 - 60 min - - - - - - - - -
LVA-C12 75 L 134 °C 0.22 Mpa - - 0 - 60 min - - - - - - - - -
LVA-C13 100 L 134 °C 0.22 Mpa - - 0 - 60 min - - - - - - - - -
LVA-C14 120 L 134 °C 0.22 Mpa - - 0 - 60 min - - - - - - - - -
LVA-C15 150 L 134 °C 0.22 Mpa - - 0 - 60 min - - - - - - - - -
LVA-G10 35L 134 °C 0.22 Mpa - - 0 - 99 min - - - - - - - - -
LVA-G11 50L 134 °C 0.22 Mpa - - 0 - 99 min - - - - - - - - -
LVA-G12 75L 134 °C 0.22 Mpa - - 0 - 99 min - - - - - - - - -
LVA-G13 100L 134 °C 0.22 Mpa - - 0 - 99 min - - - - - - - - -
LVA-I10 35 L 134 °C 0.22 Mpa - - 0 - 999 min - - - - - - - - -
LVA-I11 50 L 134 °C 0.22 Mpa - - 0 - 999 min - - - - - - - - -
LVA-I12 75 L 134 °C 0.22 Mpa - - 0 - 999 min - - - - - - - - -
LVA-I13 100 L 134 °C 0.22 Mpa - - 0 - 999 min - - - - - - - - -
LVA-I14 120 L 134 °C 0.22 Mpa - - 0 - 999 min - - - - - - - - -
LVA-I15 150 L 134 °C 0.22 Mpa - - 0 - 999 min - - - - - - - - -
LVA-J10 35 L 115 to 129 °C 0.165 MPa - - 0 - 80 min - - - - - - - - -
LVA-J11 50 L 115 to 129 °C 0.165 MPa - - 0 - 80 min - - - - - - - - -
LVA-J12 75 L 115 to 129 °C 0.165 MPa - - 0 - 80 min - - - - - - - - -
LVA-K10 60 L 134 °C 0.22 MPa - - 0 - 99 min - - - - - - - - -
LVA-K11 80 L 134 °C 0.22 MPa - - 0 - 99 min - - - - - - - - -
LVA-K12 100 L 134 °C 0.22 MPa - - 0 - 99 min - - - - - - - - -
LVA-K13 120 L 134 °C 0.22 MPa - - 0 - 99 min - - - - - - - - -
LVA-A10 35 L - - - - - - - - - - - - - -
LVA-A11 50 L - - - - - - - - - - - - - -
LVA-A12 75 L - - - - - - - - - - - - - -
LVA-A13 100 L - - - - - - - - - - - - - -
LVA-A14 120 L - - - - - - - - - - - - - -
LVA-A15 150 L - - - - - - - - - - - - - -
LVA-B10 35 L - - - - - - - - AC 220 V, 50 Hz - - - - -
LVA-B11 50 L - - - - - - - - AC 220 V, 50 Hz - - - - -
LVA-B12 75 L - - - - - - - - AC 220 V, 50 Hz - - - - -
LVA-B13 100 L - - - - - - - - AC 220 V, 50 Hz - - - - -
LVA-B14 120 L - - - - - - - - AC 220 V, 50 Hz - - - - -
LVA-B15 150 L - - - - - - - - AC 220 V, 50 Hz - - - - -
LVA-D10 35 L - - - - - - - - - - - - - -
LVA-D11 50 L - - - - - - - - - - - - - -
LVA-D12 75 L - - - - - - - - - - - - - -
LVA-D13 100 L - - - - - - - - - - - - - -
LVA-L10 60 L - - - - - - - - - - - - - 157 kg
LVA-L11 85 L - - - - - - - - - - - - - 162 kg
LVA-L12 110 L - - - - - - - - - - - - - 182 kg
LVA-L20 36 L - - - - - - - - - - - - - -
LVA-L21 54 L - - - - - - - - - - - - - -
LVA-H10 35 L 134°C 0.22 Mpa 105°C to 134°C 0.23 Mpa 0 to 99 min / 0 to 99 hr 59 min ≤ ± 1°C LCD Display 2.5 kW AC 220 V 50 Hz 318×450 mm 450×450×1010 mm 570×550×1150 mm 56 kg 72 kg
LVA-H11 50 L 134°C 0.22 Mpa 105°C to 134°C 0.23 Mpa 0 to 99 min / 0 to 99 hr 59 min ≤ ± 1°C LCD Display 3 kW AC 220 V 50 Hz 340×550 mm 510×470×1130 mm 590×590×1280 mm 68 kg 88 kg
LVA-H12 75 L 134°C 0.22 Mpa 105°C to 134°C 0.23 Mpa 0 to 99 min / 0 to 99 hr 59 min ≤ ± 1°C LCD Display 4.5 kW AC 220 V 50 Hz 400×600 mm 560×560×1120 mm 650×630×1280 mm 80 kg 100 kg
LVA-H13 100 L 134°C 0.22 Mpa 105°C to 134°C 0.23 Mpa 0 to 99 min / 0 to 99 hr 59 min ≤ ± 1°C LCD Display 4.5 kW AC 220 V 50 Hz 440×650 mm 540×560×1250 mm 680×630×1370 mm 85 kg 110 kg
LVA-F10 50 L 134℃ 0.22 Mpa - - - - - 3 kW AC 220 V, 50 Hz - - - 100 kg 120 kg
LVA-F11 75 L 134℃ 0.22 Mpa - - - - - 4.5 kW AC 220 V, 50 Hz - - - 118 kg 140 kg
LVA-F13 100 L 134℃ 0.22 Mpa - - - - - 4.5 kW AC 220 V, 50 Hz - - - 128 kg 160 kg
LVA-F20 50 L 134℃ 0.22 Mpa - - - - - 3 kW AC 220 V, 50 Hz - - - 83 kg 102 kg
LVA-F21 75 L 134℃ 0.22 Mpa - - - - - 4.5 kW AC 220 V, 50 Hz - - - 98 kg 120 kg
LVA-F22 100 L 134℃ 0.22 Mpa - - - - - 4.5 kW AC 220 V, 50 Hz - - - 110 kg 135 kg
LVA-F23 35 L 134℃ 0.22 Mpa - - - - - 2.5 kW AC 220 V, 50 Hz - - - 77 kg 96 kg
