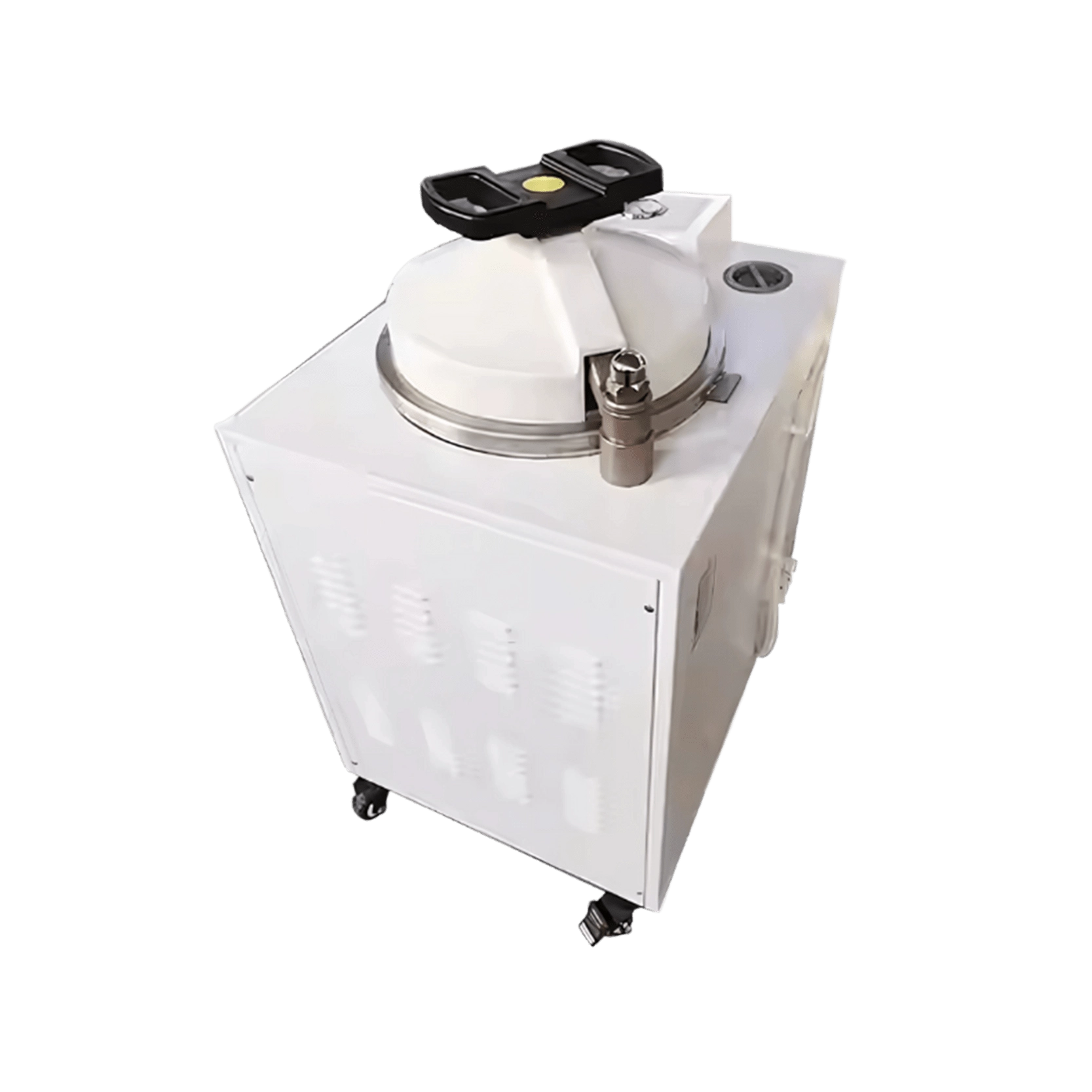

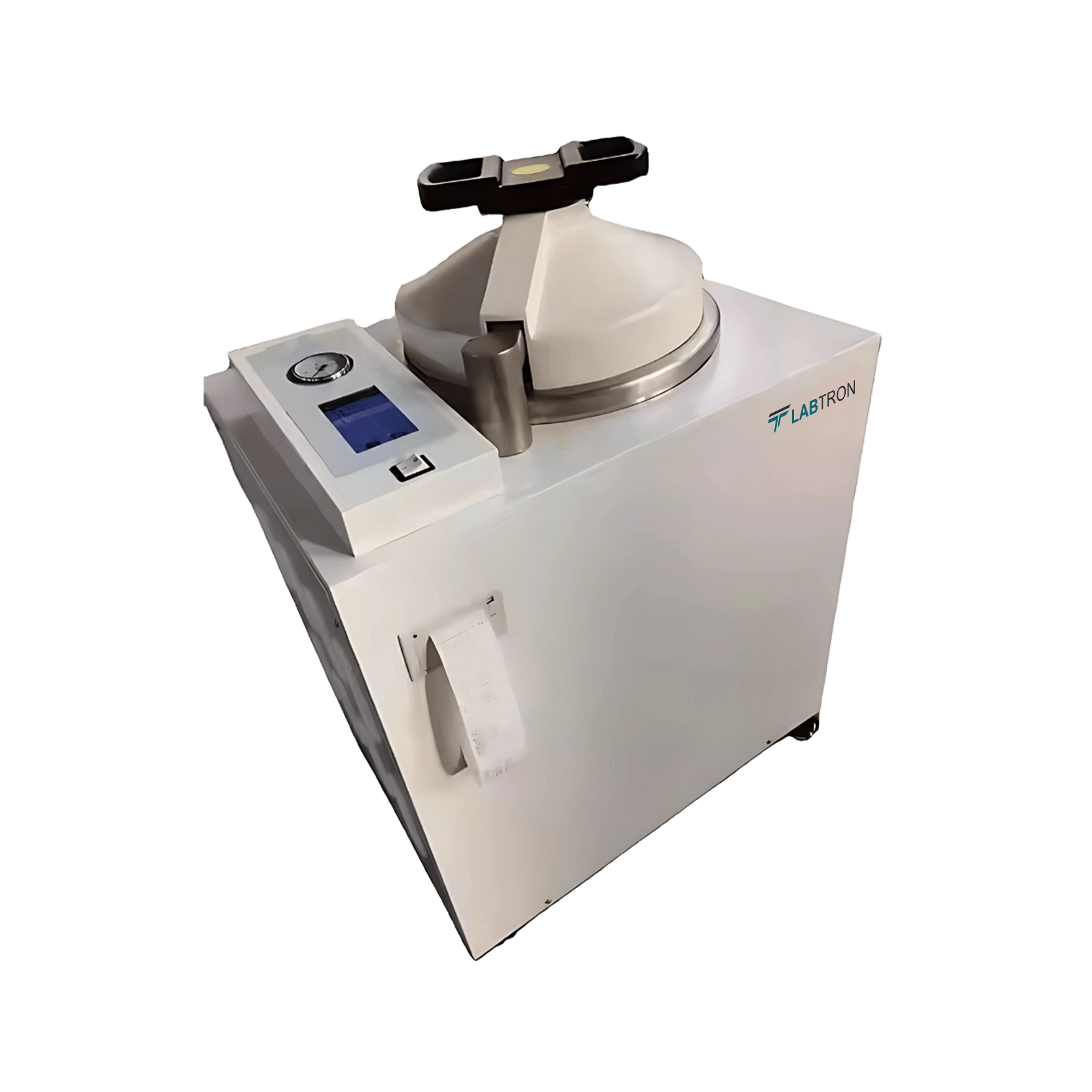

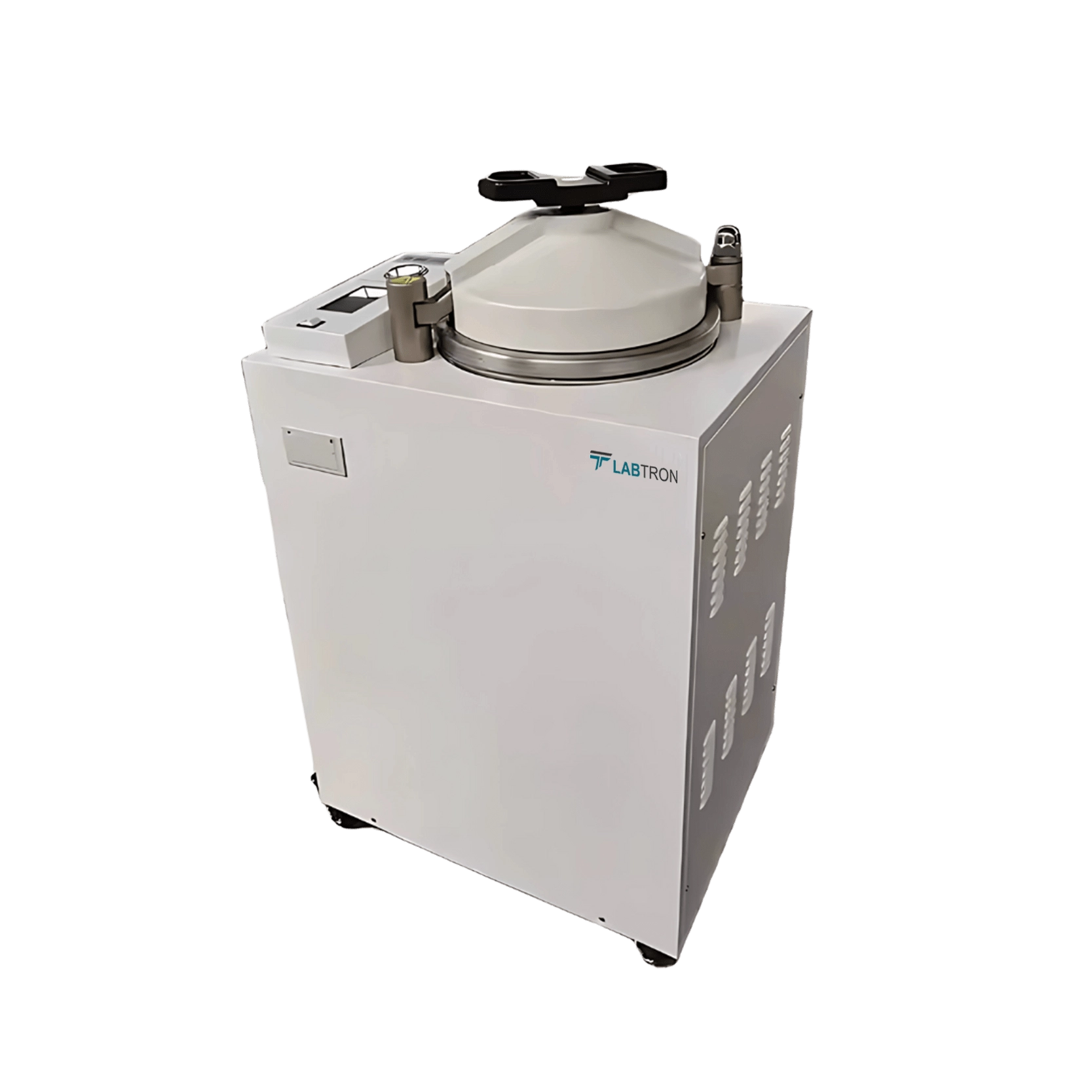

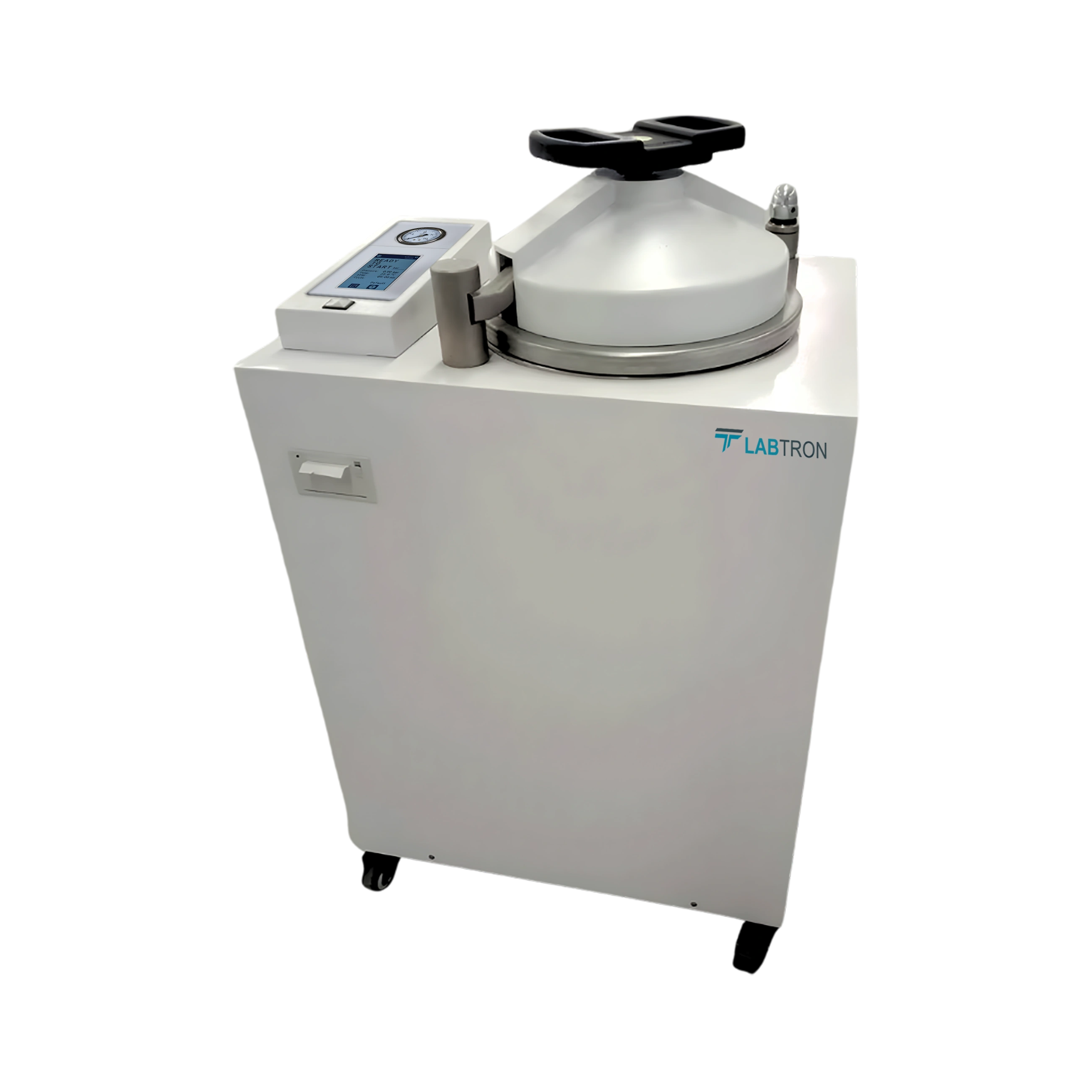

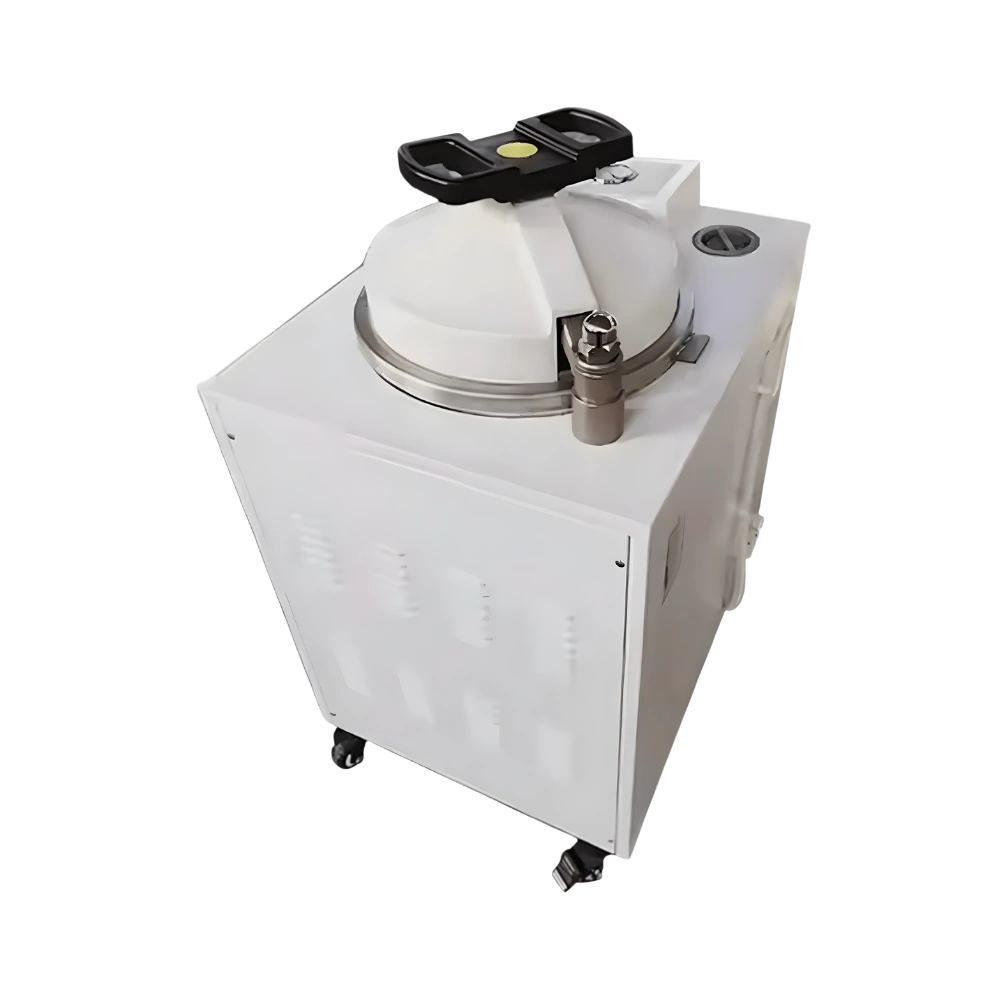

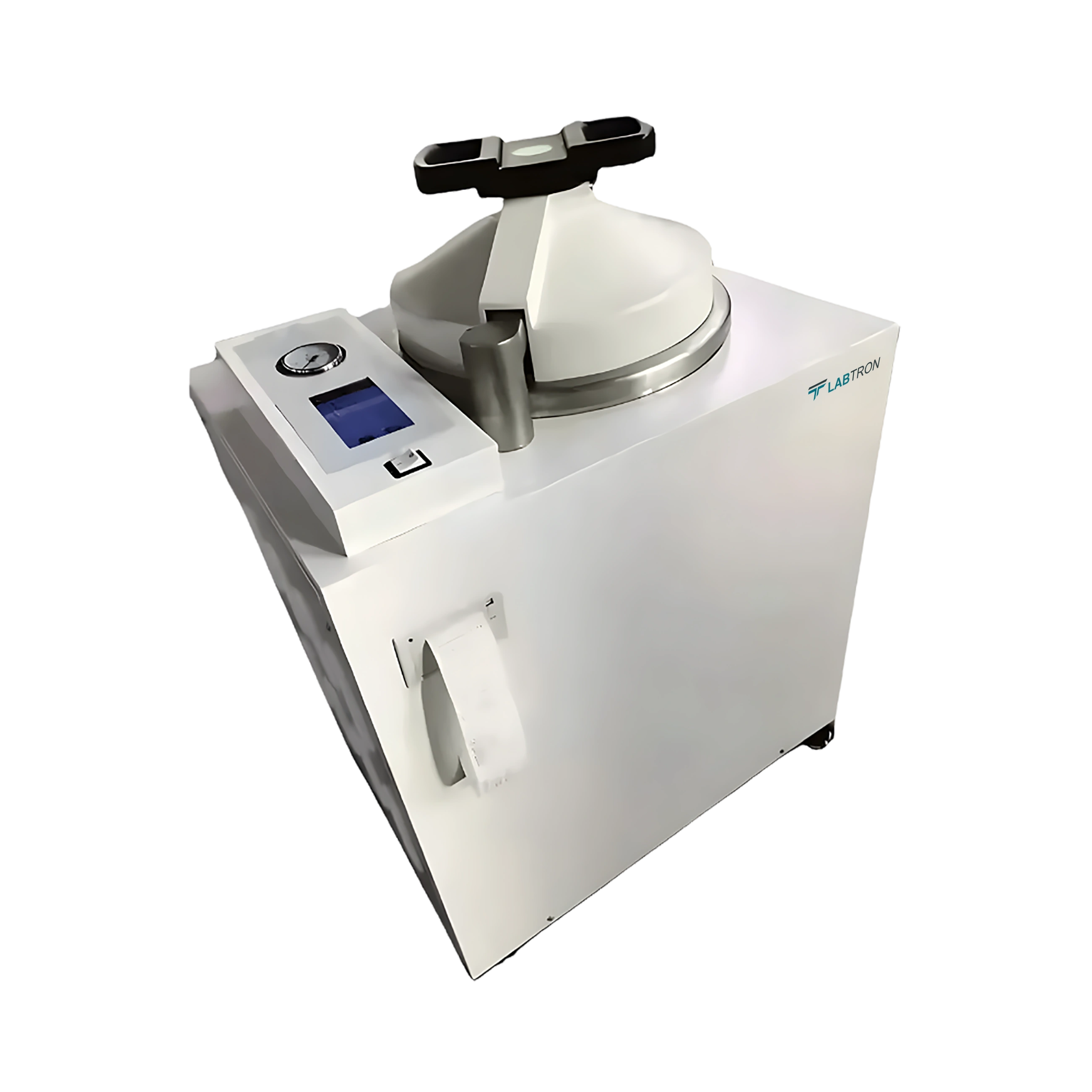

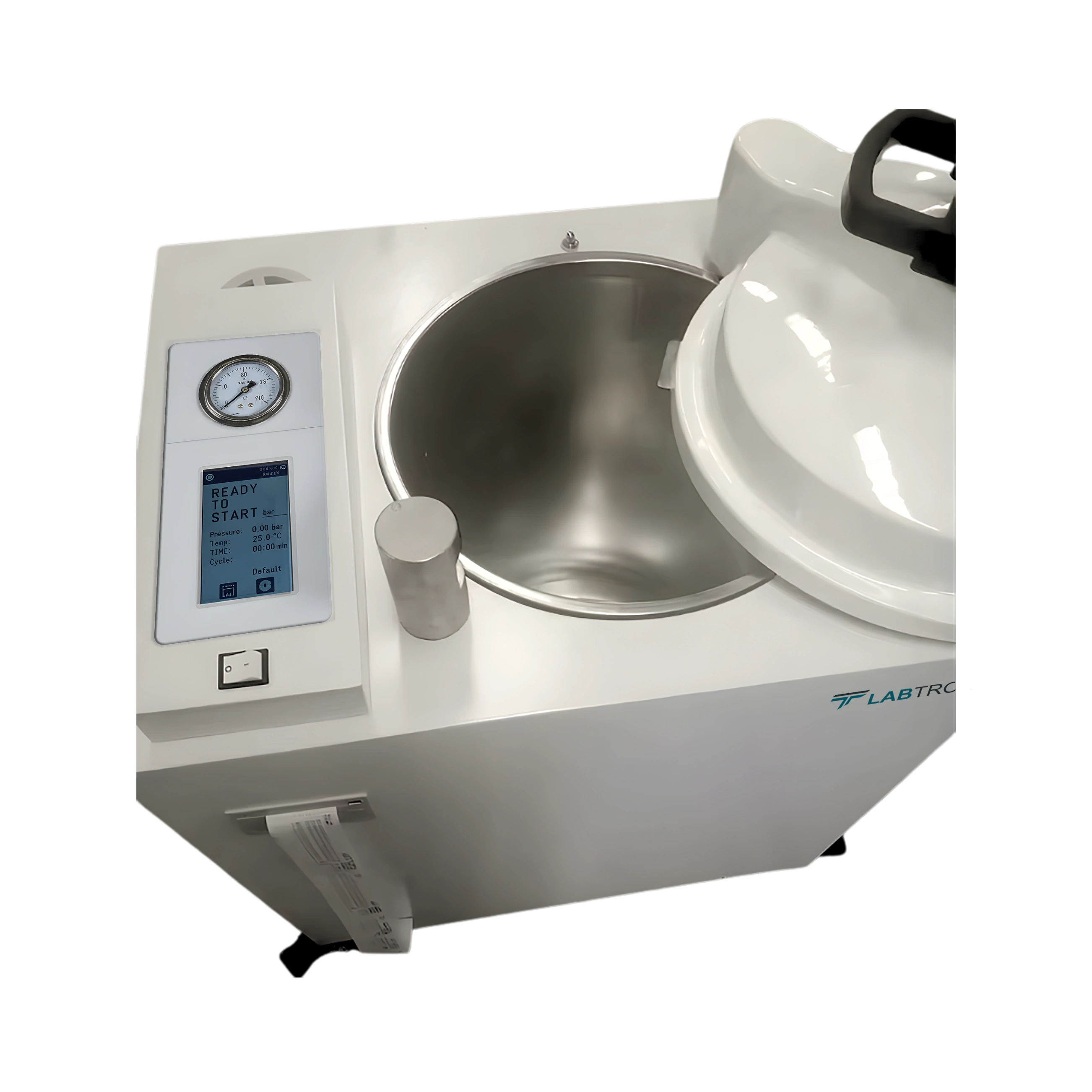

Vertical Autoclave LVA-M10

Name: Vertical Autoclave LVA-M10
Brand: Labtron
SKU: LVA-M10
Rating: 4.7 (921 reviews)

Vertical Autoclave LVA-M10 has 35L capacity and operates at design pressure of 0.1/0.3 Mpa that provide sterilization efficiently. Its user-friendly digital display allows precise temperature and pressure monitoring effortlessly. Equipped with built-in safety valve prevents overpressure conditions ensuring secure operation always. Features low-water level alarm prevents heating element damage during sterilization cycles. Provides memory function that stores previous cycle settings for repeated processes.

Request Quote

Capacity	35L
Design Pressure	0.1 / 0.3 MPa
Rated Working Pressure	0.23 MPa
Max. Working Temperature	138°C
Working Temperature Range	105°C to 134°C
Ultimate Vacuum Rate	-0.096 MPa
Time for Sterilization	0 to 99 min
Time for Drying	0 to 99 min
Temperature Accuracy	0.1°C
Pressure Accuracy	0.1 kPa
Temperature Uniformity	≤0.5°C
Display	5 inch LCD touch screen
Preset Program	7 cycles
User Defined Program	5 cycles
Power Consumption	2.5kw
Power Supply	110-220V,50/60Hz
Inner Dimension	316mm×450mm
Outer Dimension	476mm×616mm×830mm
Packing Dimension	600mm×720mm×1080mm
Net Weight	90kg
Gross Weight	110Kg

Microcomputer-controlled touch operation
Optional vacuum function available
Dynamic display of parameters
Fully automatic sterilization process
Pulse vacuum drying system
High vacuum rate capability
Preset and user-defined programs
Durable high-temperature door gasket

Our Vertical Autoclave LVA-M10 is used in hospitals, laboratories, pharmaceutical, and food industries for sterilizing medical instruments, dressings, rubber, liquids, implants, porous, and hollow instruments resistant to high temperatures.

Download catalog for
Vertical Autoclave LVA-M10 Catalog

Download manual for
Vertical Autoclave LVA-M10 Manual

Available Range :

Vertical Autoclave LVA-C13 : 100 L Vertical Laboratory Autoclave LVA-G13 : 100L Vertical Autoclave LVA-L12 : 110 L Vertical Autoclave LVA-C14 : 120 L Vertical Autoclave LVA-C15 : 150 L Vertical Autoclave LVA-N13 : 200 L Vertical Autoclave LVA-N10 : 200L Vertical Autoclave LVA-E10 : 30 L Vertical Autoclave LVA-C10 : 35 L Vertical Laboratory Autoclave LVA-G10 : 35L Vertical Laboratory Autoclave LVA-K14 : 40 L Vertical Autoclave LVA-C11 : 50 L Vertical Laboratory Autoclave LVA-G11 : 50L Vertical Autoclave LVA-L21 : 54 L Vertical Laboratory Autoclave LVA-K10 : 60 L Vertical Autoclave LVA-C12 : 75 L Vertical Laboratory Autoclave LVA-G12 : 75L Vertical Laboratory Autoclave LVA-K11 : 80 L Vertical Autoclave LVA-L11 : 85 L

Models of Vertical Autoclave

Labtron Vertical Autoclave provide upright design, high pressure steam sterilizer at working temperature of 134℃. Their orientation makes loading and unloading more convenient and efficient. They feature sensors and automatic shut off system enhancing safety by preventing overeating during operation. Their programmable controls enable automatic operation, managing heating, sterilization and cooling phases efficiently. Our Vertical Autoclave effectively eliminates pathogens from glassware and media, ensuring infection control in healthcare settings.
