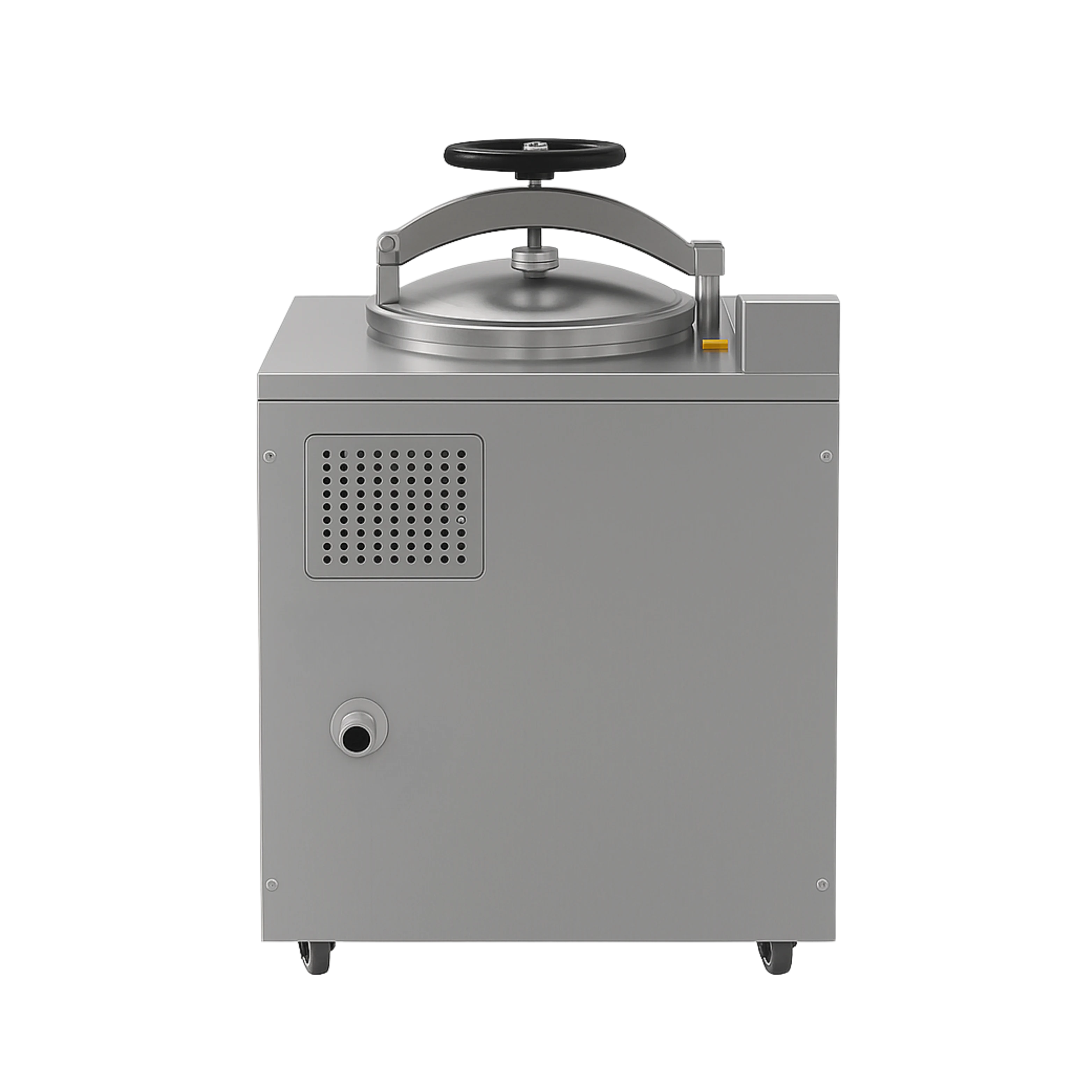

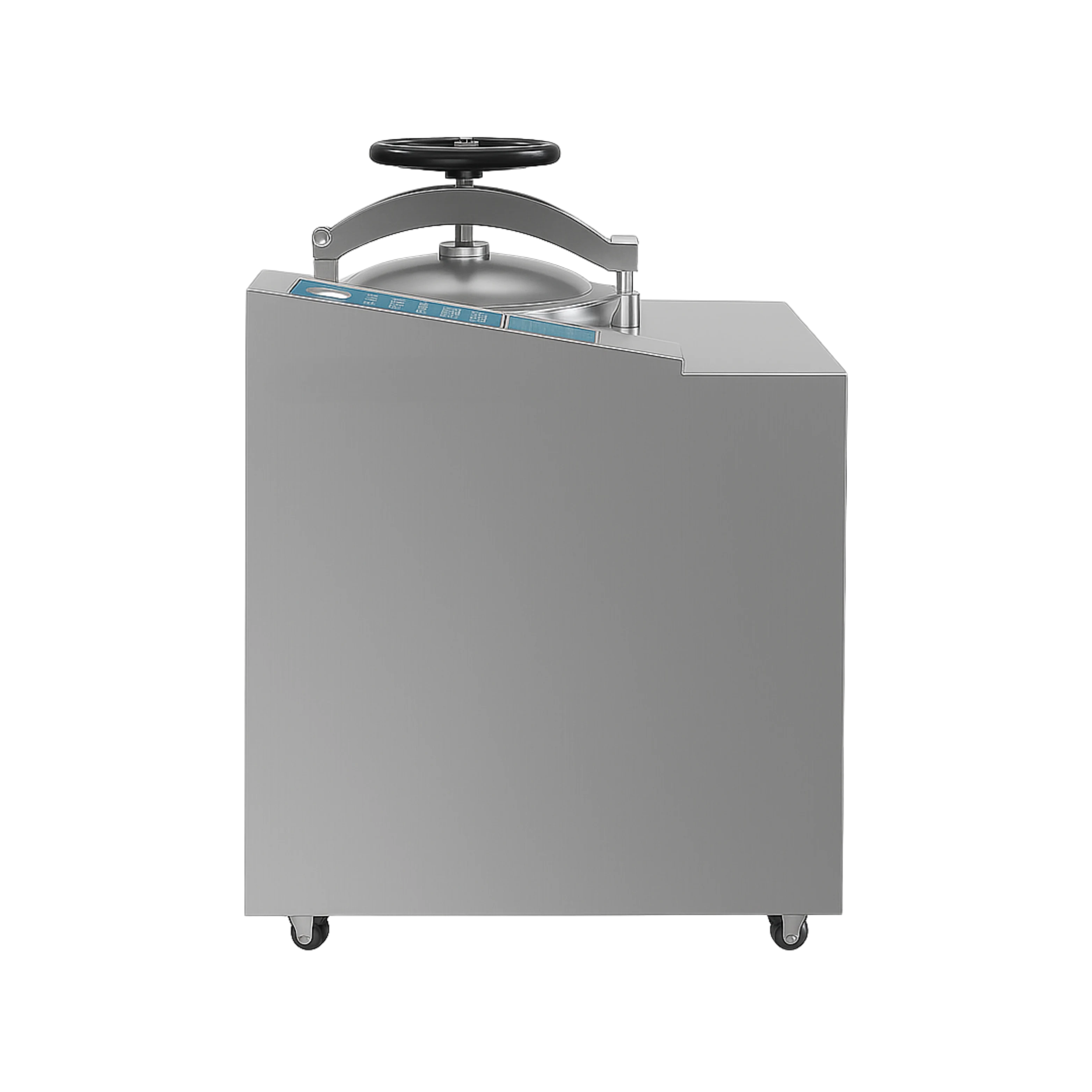

Vertical Autoclave LVA-F10

Vertical Autoclave LVA-F10 is top loading vertical pressure steam sterilizer with chamber capacity of 50 L, working sterilization temperature and pressure of 134°C and 0.22 MPa respectively. Designed LCD display with touch keypad and double stainless steel baskets to keep the sterilization material load. The chamber is constructed of long lasting 304 grade stainless steel with superior corrosion resistance property. The vertical autoclave units is equipped with PT/TT testing connector and pressure gauge to indicate temperature and pressure of the system. It works on electric heating or direct heating by immersing copper tubes of heating elements.

Available Range :

Capacity : 100 L Capacity : 75 L Capacity : 100 L Capacity : 75 L Capacity : 75 L Capacity : 150 L

Capacity	50 L
Chamber volume	340 × 650 mm
Working Sterilization Temperature	134℃
Working Sterilization Pressure	0.22 MPa
Time Range	0 to 99 min
Sterilization Temperature Range	105 to 134℃
Heat Average	≤± 1℃
Power Consumption	3 kW
Power Supply	AC 220 V, 50 Hz
Overall Dimension	690 × 470 × 1140 mm
Packing Dimension	760 × 550 × 1290 mm
Net weight	100 kg
Gross weight	120 kg

Material used stainless steel body structure, with hand wheel type structure to quickly open the door and door safety lock system
Designed LCD display with touch keypad
Multiple pulse vacuum drying after sterilizing, ensure the nice sterilizing
3 times pulse vacuum, which make the vacuum rate as - 0.081mpa and ensure the high extracting of inner air from dressing
Over temperature & over pressure auto-protection
Designed with steam-water inner circulation system no steam discharge, and the environment for sterilizing will be clean and dry
4 fixed programs for appliance, medical dressing, rubbers and fluid, and the user can set the program as per requirement
Automatically route for water inlet, pulse vacuum, heating, sterilizing, and draining, exhausting, vacuum drying
Equipped with the PT/TT testing connector, easy to run the testing
Multiple pulse vacuum drying after sterilizing, ensure the nice sterilizing
Adopts with immersed heating, with high heating efficiency
Automatically shut off with beep alarm after sterilization
Dual stainless steel baskets as standard accessory
Equipped with bacteria filter, ensure the sterile air enter the inner vacuum environment, avoid the second contamination

Vertical autoclave used in pharmaceutical industry, medicine and health care industry, Biotechnology, Microbiology for effective sterilization of glassware’s, biological materials, culture media and others.

Accessories no.	Name	Material	Quantity
1	Basket	Stainless steel	02 pcs
