What is the sterilization capacity and chamber size of the Vertical Autoclave LVA-F11, and how does it support high-volume operations?

The Vertical Autoclave LVA-F11 comes with a large 75-liter chamber (Ø400×600 mm), making it highly suitable for sterilizing a variety of instruments and materials in large batches. This capacity supports high-throughput environments like hospitals, laboratories, and pharmaceutical facilities where bulk sterilization is required without compromising on efficiency or reliability.

How does the Vertical Autoclave LVA-F11 ensure accurate temperature and pressure control during sterilization?

The Vertical Autoclave LVA-F11 is equipped with a microprocessor-controlled system that enables precise control of sterilization parameters. It maintains a working pressure of 0.22 MPa and a working temperature of 134°C, with a temperature accuracy of ± 0.1°C. This ensures that sterilization is consistent and reliable, which is crucial for medical and research-grade sterilization requirements.

What makes the Vertical Autoclave LVA-F11 efficient in drying sterilized instruments?

The LVA-F11 features a built-in vacuum drying system that achieves a vacuum rate of -0.081 MPa, ensuring effective moisture removal after the sterilization cycle. This not only improves sterilization efficiency but also reduces the overall process time by enabling faster and more thorough drying of instruments and materials.

What kind of user interface and control options are available in the Vertical Autoclave LVA-F11?

The Vertical Autoclave LVA-F11 includes a user-friendly LCD display that shows real-time sterilization status and parameters. It supports pre-set, user-defined, and test programs, offering operators flexibility and control over sterilization cycles based on the type of load and institutional requirements. This makes it highly adaptable to various application scenarios.

How does the design of the Vertical Autoclave LVA-F11 enhance safety and convenience during operation?

Vertical Autoclave LVA-F11 features a hand wheel type quick-open door that provides both ease of access and user safety. The quick-open mechanism simplifies the loading and unloading process, while built-in safety interlocks ensure the door cannot be opened under pressure, reducing the risk of accidents during operation.

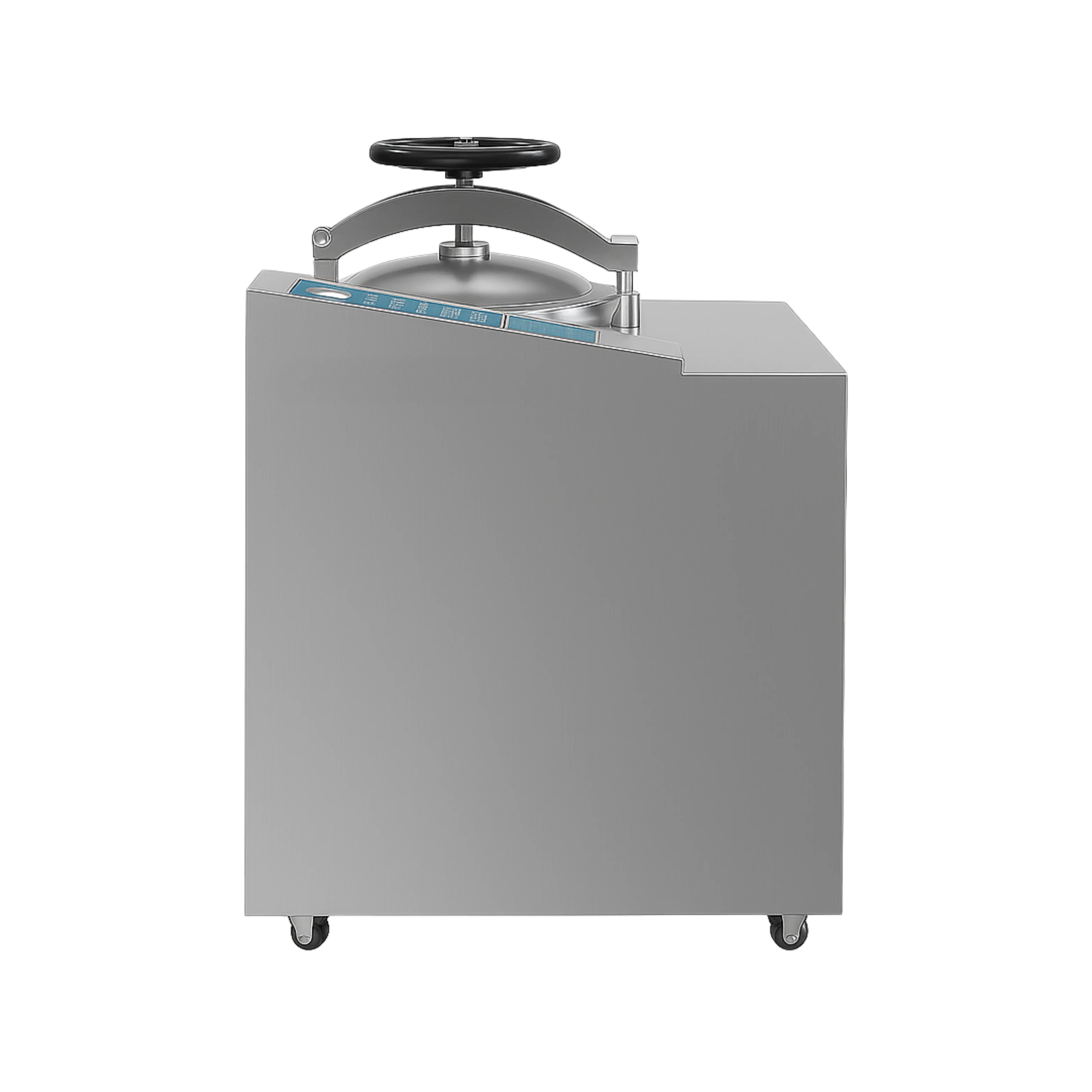

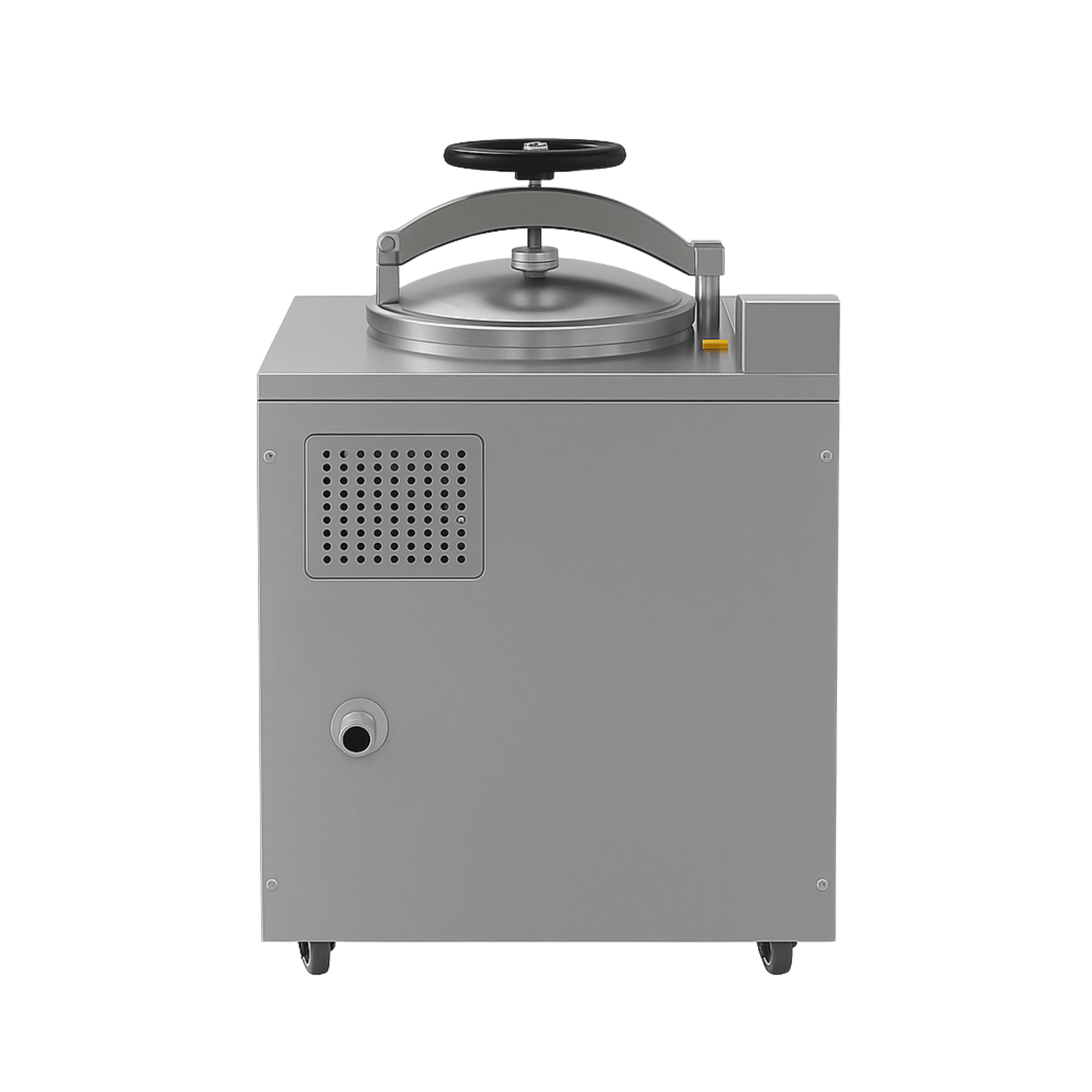

Vertical Autoclave LVA-F11

Name: Vertical Autoclave LVA-F11
Brand: Labtron
SKU: LVA-F11
Rating: 5 (967 reviews)

Vertical Autoclave LVA-F11 features 75-liter chamber, engineered for reliability in laboratories and research facilities. It supports vacuum drying and achieves a vacuum rate of -0.081 MPa, ensuring efficient moisture removal. It offers pre-set, user-defined, and test programs to accommodate varied sterilization needs. Additionally, it is designed with a hand wheel type quick-open door for ease of use. Its compact footprint and weight make it a robust yet space-saving solution for advanced sterilization.

Request Quote

Capacity	75 L
Maximum Pressure	0.23 MPa
Working Pressure	0.22 MPa
Maximum Temperature	136°C
Working Temperature	134°C
Working Temperature Range	105 to 134°C
Vacuum Rate	-0.081 MPa
Sterilization Time	0 to 99 min
Drying Time	0 to 99 min
Temperature Accuracy	± 0.1°C
Heat Distribution Uniformity	≤ ± 1°C
Control System	Microprocessor control
Door Type	Hand wheel type quick open door
Display	LCD display
Drying System	Vacuum drying
Vacuum Pump	Built-in
Steam Generator	Built-in
Sterilization Programs	Pre-set + User-defined + Test programs
Water Tank	Available
Printer	Included
Voltage	220 to 240V, 50/60Hz, Single-phase
Power Consumption	5.0 kW
Chamber Size	75L / Ø400×600 mm
Packing Dimensions	820 × 620 × 1450 mm
Gross Weight	170 kg

High-Capacity Chamber
Advanced Control System
Temperature Range and Accuracy
Pressure Management
Efficient Drying System
Customizable Sterilization Programs
Quick-Open Door Design
Uniform Heat Distribution
Integrated Steam Generator and Vacuum Pump
Data Logging with Printer
Built-in Water Tank
Energy Efficient Operation
Flexible Sterilization and Drying Time

Our Vertical Autoclave LVA-F11 is ideal for sterilizing items that can withstand high temperature and high pressure, including both unwrapped and wrapped instruments, rubber materials, liquids, porous items, and hollow instruments.

Stainless Steel Basket: 2pcs

Download catalog for
Vertical Autoclave LVA-F11 Catalog

Available Range :

Vertical Autoclave LVA-C13 : 100 L Vertical Laboratory Autoclave LVA-G13 : 100L Vertical Autoclave LVA-L12 : 110 L Vertical Autoclave LVA-C14 : 120 L Vertical Autoclave LVA-C15 : 150 L Vertical Autoclave LVA-N13 : 200 L Vertical Autoclave LVA-N10 : 200L Vertical Autoclave LVA-E10 : 30 L Vertical Autoclave LVA-C10 : 35 L Vertical Laboratory Autoclave LVA-G10 : 35L Vertical Laboratory Autoclave LVA-K14 : 40 L Vertical Autoclave LVA-C11 : 50 L Vertical Laboratory Autoclave LVA-G11 : 50L Vertical Autoclave LVA-L21 : 54 L Vertical Laboratory Autoclave LVA-K10 : 60 L Vertical Autoclave LVA-C12 : 75 L Vertical Laboratory Autoclave LVA-G12 : 75L Vertical Laboratory Autoclave LVA-K11 : 80 L Vertical Autoclave LVA-L11 : 85 L

Models of Vertical Autoclave

Labtron Vertical Autoclave provide upright design, high pressure steam sterilizer at working temperature of 134℃. Their orientation makes loading and unloading more convenient and efficient. They feature sensors and automatic shut off system enhancing safety by preventing overeating during operation. Their programmable controls enable automatic operation, managing heating, sterilization and cooling phases efficiently. Our Vertical Autoclave effectively eliminates pathogens from glassware and media, ensuring infection control in healthcare settings.

Vertical Laboratory Autoclave LVA-I12

Capacity : 75 L
Sterilization Temperature : 134 °C
Sterilization Pressure : 0.22 Mpa
Chamber Dimension ( Φ × D ) : 388 × 530 mm

Compare Remove

Vertical Autoclave LVA-O10

Capacity : 35 L
Chamber Volume : Ø350 × 400 mm
Working Sterilization Temperature : 134℃
Sterilization Temperature : 116℃ to 134℃

Compare Remove

Vertical Laboratory Autoclave LVA-K12

Capacity : 100 L
Working Temperature : 134℃
Temperature range : 0 to 134℃
Working Pressure : 0.22 MPa

Compare Remove

Vertical Laboratory Autoclave LVA-G13

Capacity : 100L
Sterilization Temperature : 134 °C
Sterilization Pressure : 0.22 Mpa
Chamber Dimension ( Φ × D ) : 440 × 650 mm

Compare Remove

Vertical Autoclave LVA-D13

Capacity : 100 L
Chamber Volume : 440×650 mm
Working Sterilization Temperature : 134°C
Working Sterilization Pressure : 0.22 MPa

Compare Remove

Vertical Autoclave LVA-O23

Capacity : 50 L
Chamber Volume : Φ350 × 550 mm
Chamber Thickness : 2.0 mm
Temperature Range : 50 °C to 126 °C

Compare Remove

Vertical Autoclave LVA-L10

Capacity : 60 L
Number of baskets : 2
Sterilization temperature : 105 °C to 138 °C
Working environment temperature : 5 °C to 45 °C

Compare Remove

Vertical Autoclave LVA-D12

Capacity : 75 L
Chamber Volume : 400×600 mm
Working Sterilization Temperature : 134°C
Working Sterilization Pressure : 0.22 MPa

Compare Remove

Vertical Autoclave LVA-F11 FAQ's

The Vertical Autoclave LVA-F11 comes with a large 75-liter chamber (Ø400×600 mm), making it highly suitable for sterilizing a variety of instruments and materials in large batches. This capacity supports high-throughput environments like hospitals, laboratories, and pharmaceutical facilities where bulk sterilization is required without compromising on efficiency or reliability.
The Vertical Autoclave LVA-F11 is equipped with a microprocessor-controlled system that enables precise control of sterilization parameters. It maintains a working pressure of 0.22 MPa and a working temperature of 134°C, with a temperature accuracy of ± 0.1°C. This ensures that sterilization is consistent and reliable, which is crucial for medical and research-grade sterilization requirements.
The LVA-F11 features a built-in vacuum drying system that achieves a vacuum rate of -0.081 MPa, ensuring effective moisture removal after the sterilization cycle. This not only improves sterilization efficiency but also reduces the overall process time by enabling faster and more thorough drying of instruments and materials.
The Vertical Autoclave LVA-F11 includes a user-friendly LCD display that shows real-time sterilization status and parameters. It supports pre-set, user-defined, and test programs, offering operators flexibility and control over sterilization cycles based on the type of load and institutional requirements. This makes it highly adaptable to various application scenarios.
Vertical Autoclave LVA-F11 features a hand wheel type quick-open door that provides both ease of access and user safety. The quick-open mechanism simplifies the loading and unloading process, while built-in safety interlocks ensure the door cannot be opened under pressure, reducing the risk of accidents during operation.
