Acrylic Glove Box LAGB-B14

Acrylic Glove Box LAGB-B14

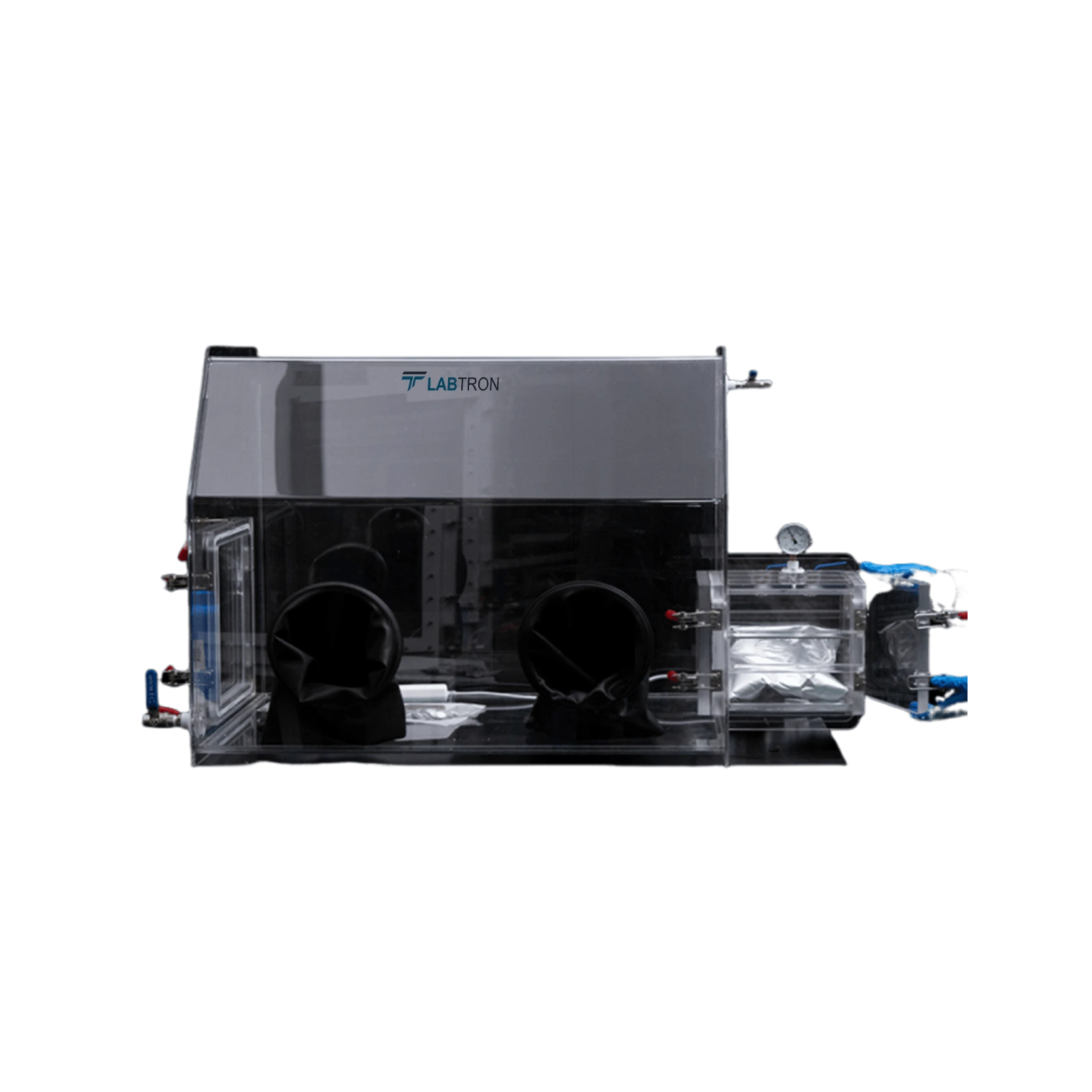

Acrylic Glove Box LAGB-B14 provides an antechamber made with acrylic material, allowing a clear view of the material transfer clearly. It can withstand immense pressure of up to 1000 Pa, making it suitable for high-pressure working conditions. The glove box has a vacuum capacity of – 0.1 Pa, ensuring ideal working conditions for sensitive material that requires low pressures to work on. Our glove box is used for pharmaceutical synthesis, nuclear industry, membrane industry, and many other fields.

Acrylic Glove Box LAGB-B14 _1
Acrylic Glove Box LAGB-B14 _2
Request Quote
Main Chamber Dimensions 700 × 450 × 550 mm
Material Thickness 6 mm
Vacuum Degree -0.1 Pa
Chamber Pressure Up to 1000 Pa
Antechamber Dimension 240 × 240 × 240 mm
Side Door Dimension 400 × 400 mm
  • Foot paddle for manual control

  • Acrylic material for durability

  • Desktop design

  •  Automatic pressure control

  • User-friendly operation

Our Acrylic Glove Box LAGB-B14 is mainly used for creating inert environments for organic metal chemistry, organic synthesis, etc. Labtron’s Acrylic Glove Box forms an inert environment for research and production, ideal for sensitive procedures.

1

2 L Vacuum Pump

2

4 L Vacuum Pump

3

Movable bracket

4

Fully automatic pressure controller

5

Imported moisture sensor

6

Imported oxygen sensor

7

Fully automatic moisture controller

8

Fully automatic oxygen controller

9

Foot pressure controller

10

UV sterilization lamp

11

Dust removal and cleaning system

12

Purification system H2O & O2 ≤ 0.1PPM

Models of Acrylic Glove Box

Labtron provides a comprehensive range of Acrylic Glove Boxes that allow the manipulation of materials in a controlled environment. They are constructed from high-quality transparent acrylic, offering excellent visibility and a lightweight design. These glove boxes have secure ports, airtight seals, and an optional inert gas purging system. Most of our glove boxes feature an antechamber, while some feature a side door. Our glove boxes are commonly used in research fields and production, such as organometallic chemistry, energy storage, etc.

Acrylic Glove Box LAGB-B12

Acrylic Glove Box LAGB-B12

  • Main Chamber Dimensions : 900 × 500 × 500 mm
  • Material Thickness : 6 mm
  • Vacuum Degree : - 0.1Pa
  • Chamber Pressure : Up to 1000 PA
Acrylic Glove Box LAGB-B11

Acrylic Glove Box LAGB-B11

  • Main Chamber Dimensions : 800 × 550 × 600 mm
  • Material Thickness : 6 mm
  • Vacuum Degree : -0.1 Pa
  • Chamber Pressure : Up to 1000 PA
Acrylic Glove Box LAGB-B10

Acrylic Glove Box LAGB-B10

  • Main Chamber Dimensions : 700 × 450 × 550 mm
  • Material Thickness : 6 mm
  • Vacuum Degree : -0.1 Pa
  • Chamber Pressure : Up to 1000 PA
Acrylic Glove Box LAGB-A16
Acrylic Glove Box LAGB-A16
  • Main Chamber Dimensions : 1200 × 800 × 700 mm
  • Material Thickness : 10 mm
  • Vacuum Degree : Up to 1000 Pa
  • Side Door Dimention : 400 × 400 mm
Acrylic Glove Box LAGB-B15
Acrylic Glove Box LAGB-B15
  • Main Chamber Dimensions : 1000 × 750 × 700 mm
  • Material Thickness : 10 mm
  • Vacuum Degree : -0.1 Pa
  • Chamber Pressure : Up to 1000 PA
Acrylic Glove Box LAGB-A13

Acrylic Glove Box LAGB-A13

  • Main Chamber Dimensions : 900 × 500 × 500 mm
  • Material Thickness : 6 mm
  • Vacuum Degree : Up to 1000 Pa
  • Side Door Dimension : 300 × 300 mm
Acrylic Glove Box LAGB-A10

Acrylic Glove Box LAGB-A10

  • Main Chamber Dimensions : 300 × 400 × 500 mm
  • Material Thickness : 6 mm
  • Vacuum Degree : Up to 1000 Pa
Acrylic Glove Box LAGB-A12

Acrylic Glove Box LAGB-A12

  • Main Chamber Dimensions : 800 × 550 × 600 mm
  • Material Thickness : 6 mm
  • Vacuum Degree : Up to 1000 Pa
  • Side Door Dimention : 300 × 300 mm
Acrylic Glove Box LAGB-B14 FAQ's
  • Yes, lightweight and portable models like the AGB-1A are available for laboratories or industrial settings that require mobility. These smaller glove boxes maintain basic sealing and inert gas purging capabilities while offering easier relocation. Portable models are especially useful for field testing, temporary setups, or teaching labs where flexibility and ease of transportation are necessary without compromising operational performance.

  • Thanks to their transparent acrylic construction, AGB series glove boxes offer excellent visibility from multiple angles. This full visibility improves operator comfort, reduces handling errors, and enhances safety by allowing better monitoring of delicate operations inside. Some models feature additional lighting or anti-glare coatings to further enhance visibility, making them ideal for detailed assembly work, sensitive experimental setups, and demonstrations.

  • While AGB glove boxes provide a sealed and inert environment suitable for sensitive materials, they are not generally recommended for handling highly toxic, infectious, or radioactive substances without additional containment measures. Acrylic material can degrade under prolonged exposure to aggressive chemicals. If dealing with hazardous materials, it’s advised to use glove boxes made from stainless steel or with specialized coatings for enhanced chemical resistance.

  • The wall thickness of Acrylic Glove Boxes generally ranges from 6 mm to 30 mm, depending on the model and intended use. Thicker walls provide greater structural strength and better vacuum resistance. Laboratories dealing with higher pressure differentials or mechanical stress typically opt for thicker walls. Meanwhile, lighter, portable versions designed for standard inert gas environments can function effectively with a 6-10 mm wall thickness.

  • Yes, customization is a standard offering for Acrylic Glove Boxes. Manufacturers can adjust dimensions, wall thickness, and number of glove ports, internal shelves, electrical feed through, vacuum antechambers, and gas purging systems according to user specifications. Customization ensures the glove box aligns perfectly with specific experimental protocols, whether it’s accommodating larger devices inside the chamber or integrating specialized monitoring systems for advanced atmospheric control.
