Does Labtron’s Acrylic Glove Box have Side door?

Yes, our Acrylic Glove box has side doors which are designed to insert laboratory equipment to work on and has a size that enables the user to insert the materials to work on and the design is unique and convenient for handling the materials to handle. Not only are the doors wide, it is also completely sealed when closed. It has a rubber seal to lock the inert atmosphere intact.

What types of gloves are used?

Our Acrylic Glove Box typically uses gloves made of butyl rubber or neoprene. Butyl rubber gloves are favored for their excellent resistance to chemicals, gases, and moisture, ensuring that even highly sensitive procedures can be conducted without any risk of contamination. The gloves are attached securely to ports on the front of the glove box, allowing for flexible and precise manipulation of objects inside without exposing the internal environment.

How is the internal atmosphere controlled?

The internal atmosphere of a Labtron’s Acrylic Glove Box is controlled by purging the chamber with an inert gas, such as nitrogen or argon, which displaces ambient air. Gas flow meters, valves, and optional sensors monitor and adjust the internal environment to maintain low oxygen and moisture levels. In more advanced models, automatic systems regulate pressure, humidity, and oxygen content continuously to maintain the desired environmental conditions for sensitive experiments.

What is the proper method for cleaning an Acrylic Glove Box?

To clean a Labtron’s Acrylic Glove Box, use lukewarm water and a clean, non-abrasive cloth. If needed, a mild, non-abrasive detergent can be applied. Avoid using alcohol or strong cleaning agents, as they can damage the acrylic material. After cleaning, dry the surface with a clean, dry cloth. For internal cleaning, ensure the surface is thoroughly dried before reintroducing moisture-sensitive materials, and consider purging the cabinet with nitrogen for several hours.

How do airlocks function in Labtron’s Acrylic Glove Boxes?

Airlocks, or transfer chambers, are designed to minimize nitrogen loss and prevent contamination when moving items in and out of the Acrylic Glove Box. They are typically mounted on the sides of the glove box and can be purged with inert gas to maintain the internal environment. Proper use of airlocks ensures that the glove box's atmosphere remains stable during transfers.

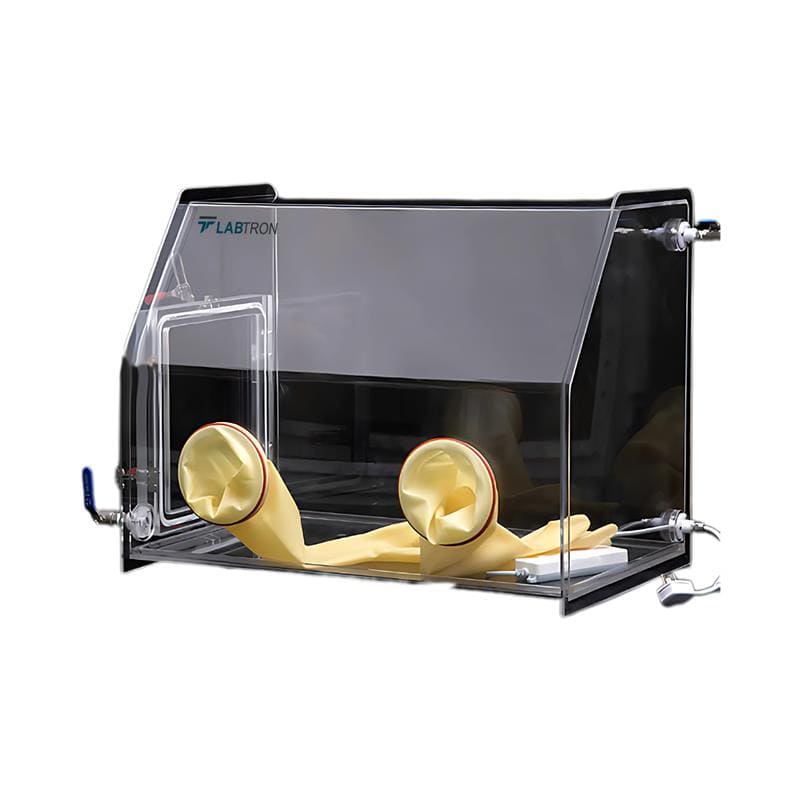

Acrylic Glove Box LAGB-A14

Name: Acrylic Glove Box LAGB-A14
Brand: Labtron
SKU: LAGB-A14
Rating: 5 (654 reviews)

Acrylic Glove Box LAGB-A14, with dimensions 900 × 600 × 700 mm, allows a wide workspace. The glove box is made from a 10 mm acrylic sheet, allowing better pressure endurance and visibility. Its design is wide and spacious to fit the necessary equipment, and it is also equipped with power sockets. Additionally, it has a foot paddle for pressure control in the chamber. Our glove box is used for pharmaceutical synthesis, nuclear, and membrane industries.

Request Quote

Main Chamber Dimensions	900 × 600 × 700 mm
Material Thickness	10 mm
Vacuum Degree	Up to 1000 Pa
Side Door Dimention	400 × 400 mm
Gross Weight	75 kg

Desktop design
Side doors
Acrylic material for durability
Lightweight
User-friendly operation

Our Acrylic Glove Box LAGB-A14 mainly used for creating non-moisture and non oxygen environments for lithium battery materials and battery assembly experiments, etc. Labtron’s Acrylic Glove Box forms an inert condition for research and productions and is ideal for special anaerobic functions.

1	2 L Vacuum Pump
2	4 L Vacuum Pump
3	Movable bracket
4	Fully automatic pressure controller
5	Imported moisture sensor
6	Imported oxygen sensor
7	Fully automatic moisture controller
8	Fully automatic oxygen controller
9	Foot pressure controller
10	UV sterilization lamp
11	Dust removal and cleaning system
12	Purification system H₂O & O₂ ≤ 0.1PPM

Download catalog for
Acrylic Glove Box LAGB-A14 Catalog

Available Range :

Acrylic Glove Box LAGB-A15 : 1000 × 750 × 700 mm Acrylic Glove Box LAGB-A16 : 1200 × 800 × 700 mm Acrylic Glove Box LAGB-A10 : 300 × 400 × 500 mm Acrylic Glove Box LAGB-A11 : 700 × 450 × 550 mm Acrylic Glove Box LAGB-A12 : 800 × 550 × 600 mm Acrylic Glove Box LAGB-A13 : 900 × 500 × 500 mm Acrylic Glove Box LAGB-A14 : 900 × 600 × 700 mm

Models of Acrylic Glove Box

Labtron provides a comprehensive range of Acrylic Glove Boxes that allow the manipulation of materials in a controlled environment. They are constructed from high-quality transparent acrylic, offering excellent visibility and a lightweight design. These glove boxes have secure ports, airtight seals, and an optional inert gas purging system. Most of our glove boxes feature an antechamber, while some feature a side door. Our glove boxes are commonly used in research fields and production, such as organometallic chemistry, energy storage, etc.

Acrylic Glove Box LAGB-B13

Main Chamber Dimensions : 900 × 600 × 700 mm
Material Thickness : 10 mm
Vacuum Degree : -0.1 Pa
Chamber Pressure : Up to 1000 PA

Compare Remove

Acrylic Glove Box LAGB-A13

Main Chamber Dimensions : 900 × 500 × 500 mm
Material Thickness : 6 mm
Vacuum Degree : Up to 1000 Pa
Side Door Dimension : 300 × 300 mm

Compare Remove

Acrylic Glove Box LAGB-A10

Main Chamber Dimensions : 300 × 400 × 500 mm
Material Thickness : 6 mm
Vacuum Degree : Up to 1000 Pa

Compare Remove

Acrylic Glove Box LAGB-A11

Main Chamber Dimensions : 700 × 450 × 550 mm
Material Thickness : 6 mm
Vacuum Degree : Up to 1000 Pa
Side Door : 300 × 300 mm

Compare Remove

Acrylic Glove Box LAGB-B12

Main Chamber Dimensions : 900 × 500 × 500 mm
Material Thickness : 6 mm
Vacuum Degree : - 0.1Pa
Chamber Pressure : Up to 1000 PA

Compare Remove

Acrylic Glove Box LAGB-B10

Main Chamber Dimensions : 700 × 450 × 550 mm
Material Thickness : 6 mm
Vacuum Degree : -0.1 Pa
Chamber Pressure : Up to 1000 PA

Compare Remove

Acrylic Glove Box LAGB-A12

Main Chamber Dimensions : 800 × 550 × 600 mm
Material Thickness : 6 mm
Vacuum Degree : Up to 1000 Pa
Side Door Dimention : 300 × 300 mm

Compare Remove

Acrylic Glove Box LAGB-B15

Main Chamber Dimensions : 1000 × 750 × 700 mm
Material Thickness : 10 mm
Vacuum Degree : -0.1 Pa
Chamber Pressure : Up to 1000 PA

Compare Remove

Acrylic Glove Box LAGB-A14 FAQ's

Yes, our Acrylic Glove box has side doors which are designed to insert laboratory equipment to work on and has a size that enables the user to insert the materials to work on and the design is unique and convenient for handling the materials to handle. Not only are the doors wide, it is also completely sealed when closed. It has a rubber seal to lock the inert atmosphere intact.
Our Acrylic Glove Box typically uses gloves made of butyl rubber or neoprene. Butyl rubber gloves are favored for their excellent resistance to chemicals, gases, and moisture, ensuring that even highly sensitive procedures can be conducted without any risk of contamination. The gloves are attached securely to ports on the front of the glove box, allowing for flexible and precise manipulation of objects inside without exposing the internal environment.
The internal atmosphere of a Labtron’s Acrylic Glove Box is controlled by purging the chamber with an inert gas, such as nitrogen or argon, which displaces ambient air. Gas flow meters, valves, and optional sensors monitor and adjust the internal environment to maintain low oxygen and moisture levels. In more advanced models, automatic systems regulate pressure, humidity, and oxygen content continuously to maintain the desired environmental conditions for sensitive experiments.
To clean a Labtron’s Acrylic Glove Box, use lukewarm water and a clean, non-abrasive cloth. If needed, a mild, non-abrasive detergent can be applied. Avoid using alcohol or strong cleaning agents, as they can damage the acrylic material. After cleaning, dry the surface with a clean, dry cloth. For internal cleaning, ensure the surface is thoroughly dried before reintroducing moisture-sensitive materials, and consider purging the cabinet with nitrogen for several hours.
Airlocks, or transfer chambers, are designed to minimize nitrogen loss and prevent contamination when moving items in and out of the Acrylic Glove Box. They are typically mounted on the sides of the glove box and can be purged with inert gas to maintain the internal environment. Proper use of airlocks ensures that the glove box's atmosphere remains stable during transfers.
