| Main Chamber Dimensions | 700 × 450 × 550 mm |
| Material Thickness | 6 mm |
| Vacuum Degree | -0.1 Pa |
| Chamber Pressure | Up to 1000 PA |
| Antechamber Dimension | 240 × 240 × 240 mm |
| Side Door Dimension | 300 × 300 mm |
Transparent Design
Acrylic material for durability
Desktop design
Automatic pressure control
User-friendly operation

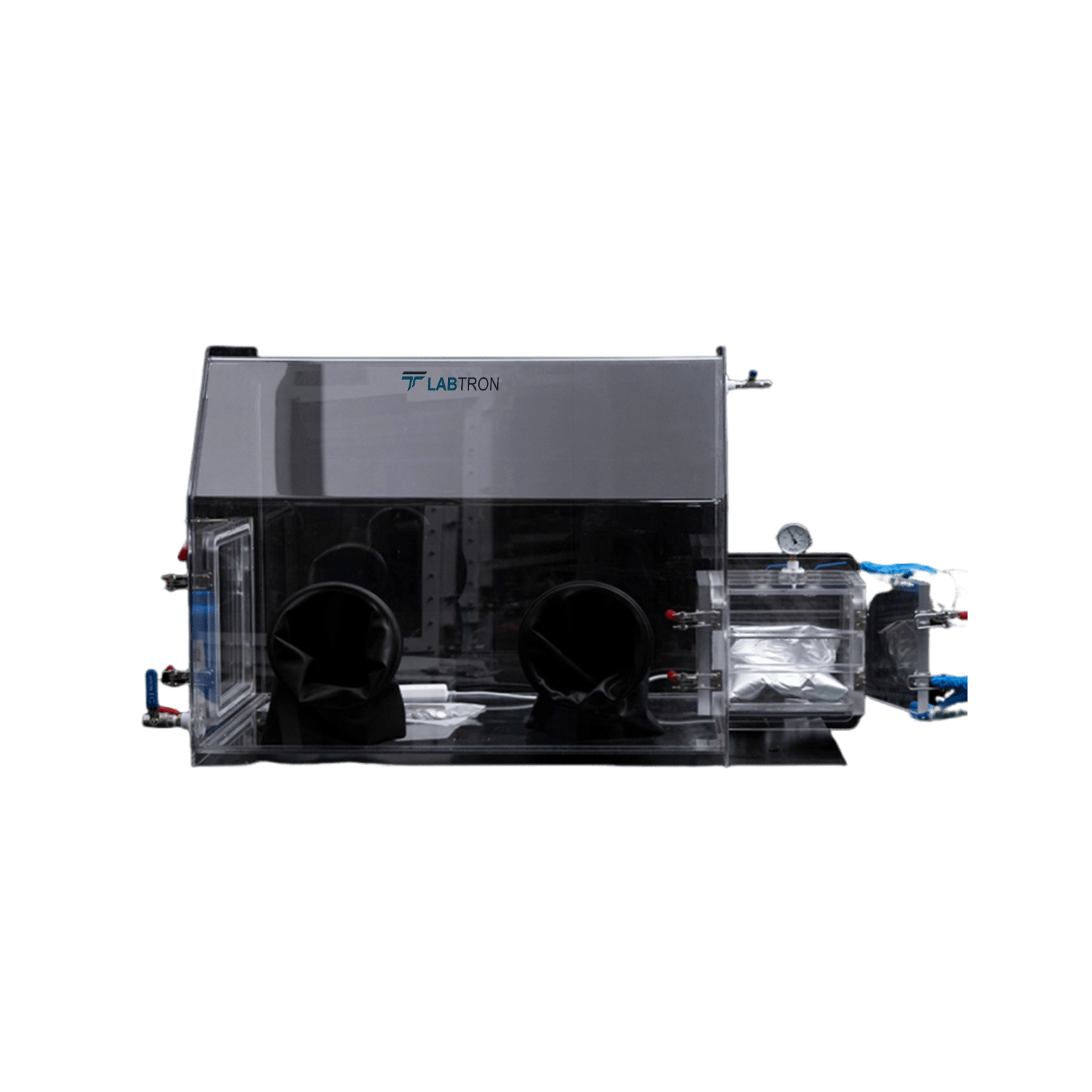

Our Acrylic Glove Box LAGB-B10 is built from acrylic material which is clear along with clear antechamber also attached ideal for save material transfer scientific and electronic experiments. Our glove box is ideal for aerospace field as well testing assembly of spacecraft.
2 L Vacuum Pump | Each | 1 | 330 |
4 L Vacuum Pump | Each | 1 | 430 |
Movable bracket | Each | 1 | 210 |
Fully automatic pressure controller | Each | 1 | 780 |
Imported moisture sensor | Each | 1 | 2100 |
Imported oxygen sensor | Each | 1 | 2700 |
Fully automatic moisture controller | Each | 1 | 760 |
Fully automatic oxygen controller | Each | 1 | 770 |
Foot pressure controller | Each | 1 | 580 |
UV sterilization lamp | Each | 1 | 300 |
Dust removal and cleaning system | Each | 1 | 1650 |
Purification system H2O & O 2 ≤ 0.1PPM | Each | 1 | 15000 |
Download catalog for
Acrylic Glove Box LAGB-B10 Catalog
Available Range :
Acrylic Glove Box LAGB-A15 : 1000 × 750 × 700 mm Acrylic Glove Box LAGB-A16 : 1200 × 800 × 700 mm Acrylic Glove Box LAGB-A10 : 300 × 400 × 500 mm Acrylic Glove Box LAGB-A11 : 700 × 450 × 550 mm Acrylic Glove Box LAGB-A12 : 800 × 550 × 600 mm Acrylic Glove Box LAGB-A13 : 900 × 500 × 500 mm Acrylic Glove Box LAGB-A14 : 900 × 600 × 700 mmLabtron provides a comprehensive range of Acrylic Glove Boxes that allow the manipulation of materials in a controlled environment. They are constructed from high-quality transparent acrylic, offering excellent visibility and a lightweight design. These glove boxes have secure ports, airtight seals, and an optional inert gas purging system. Most of our glove boxes feature an antechamber, while some feature a side door. Our glove boxes are commonly used in research fields and production, such as organometallic chemistry, energy storage, etc.
Maintaining low humidity can be challenging due to factors like leaks, insufficient purging, or the use of moist nitrogen. To address this, ensure that the nitrogen used is dry, continuously purge the glove box during use, and verify that your hygrometer can accurately read low humidity levels. Additionally, sealing all junctions with appropriate materials can help prevent moisture ingress.
Yes, our Acrylic Glove Boxes are not suitable for use with certain chemicals, especially those containing ammonia or alcohol, as these substances can damage the acrylic material. For applications involving such chemicals, consider using glove boxes made from materials like stainless steel, which offer better chemical resistance.
The wall thickness of Acrylic Glove Boxes generally ranges from 6 mm to 30 mm, depending on the model and intended use. Thicker walls provide greater structural strength and better vacuum resistance. Laboratories dealing with higher pressure differentials or mechanical stress typically opt for thicker walls. Meanwhile, lighter, portable versions designed for standard inert gas environments can function effectively with a 6-10 mm wall thickness.
Yes, customization is a standard offering for Acrylic Glove Boxes. Manufacturers can adjust dimensions, wall thickness, and number of glove ports, internal shelves, electrical feed through, vacuum antechambers, and gas purging systems according to user specifications. Customization ensures the glove box aligns perfectly with specific experimental protocols, whether it’s accommodating larger devices inside the chamber or integrating specialized monitoring systems for advanced atmospheric control.
