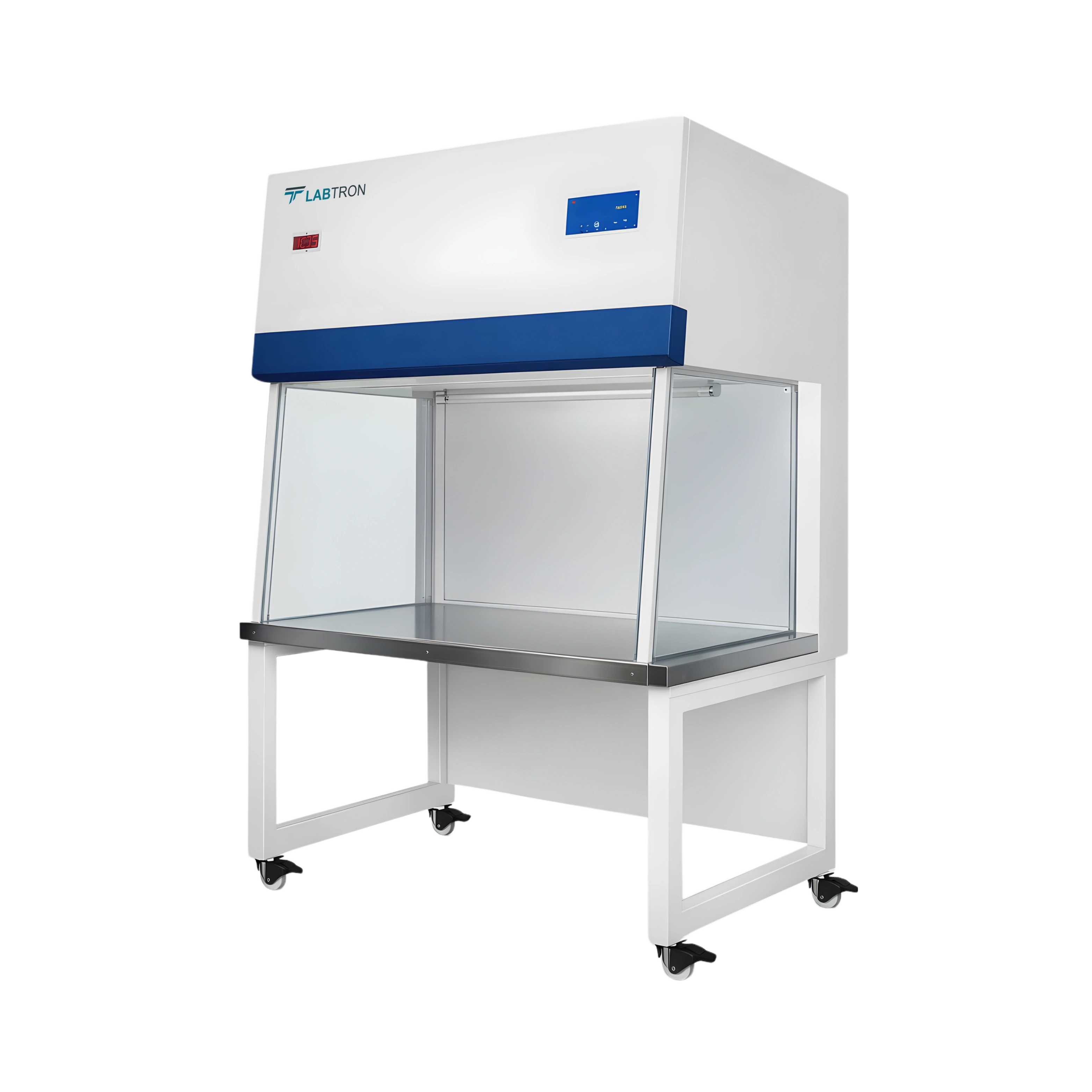

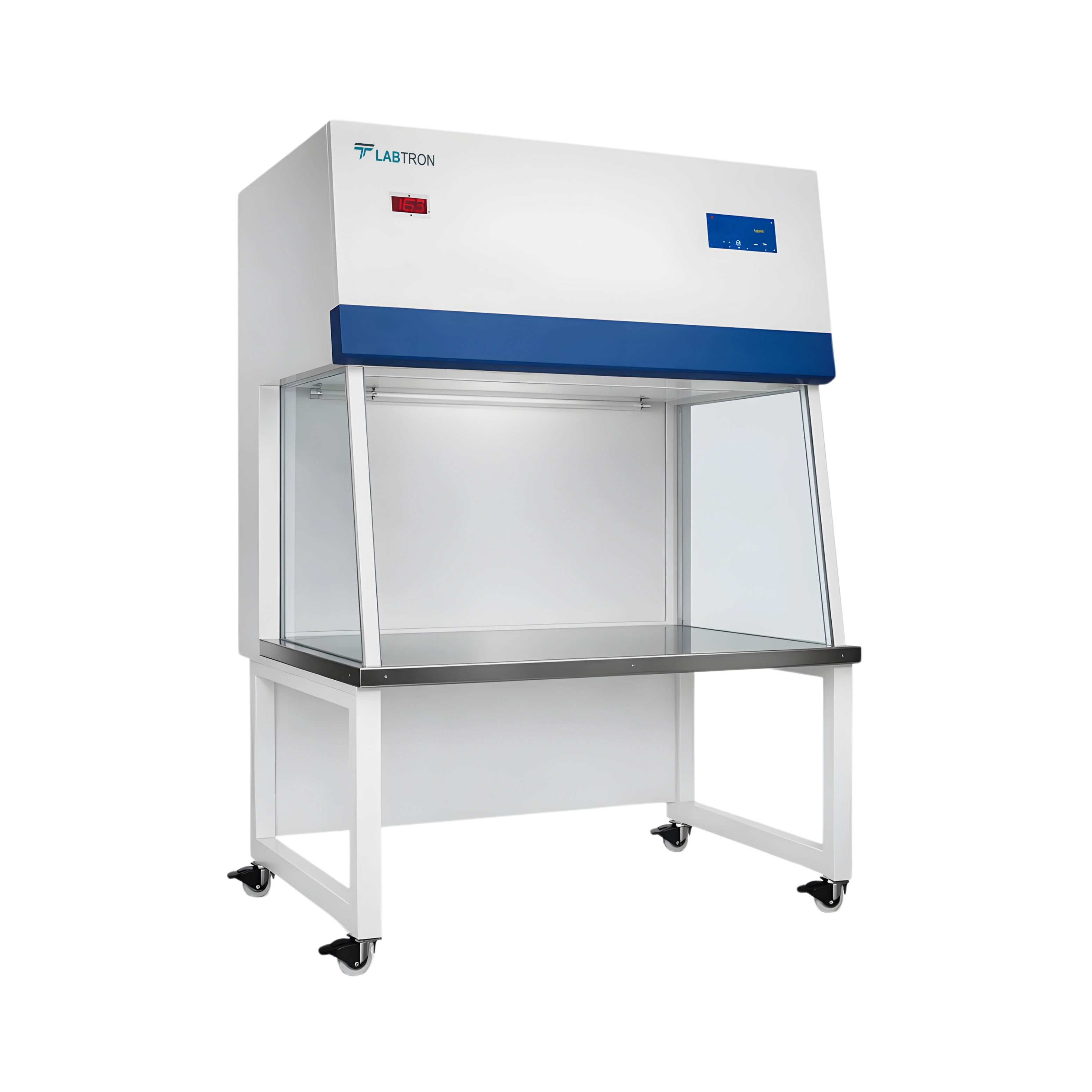

Horizontal laminar flow clean bench LHCB-A10

Horizontal laminar flow clean bench LHCB-A10

Horizontal laminar flow clean bench LHCB-A10 is a compact structure providing unmediated HEPA-filtered air horizontally over the work area with purification rank of 100 and is equipped with removable protective glass to provide enclosed environment for work region in order to protect your work from contamination.

Request Quote
External dimension (W x L x H) 1590 x 800 x 1800 mm
Internal dimension (W x L x H) 1430 x 620 x 575 mm
Illumination ≥ 300 lux
Purification rank (ISO 14644-1 Std.) 100
Noise ≤ 61 dB
Power 240 W
Power supply 220 V/50 Hz
LED standard 18X1
HEPA size (W x H x D) 610 x 1470 x 69 mm
Average velocity 0.25-0.4 m/s
Net Weight 170 kg
  • Horizontal laminar flow
  • Class 100 purification
  • Cold rolled powder coated exterior
    Polished stainless steel table board with work area up to 1430x620x575 mm
  • Adjustable air system with gear for speed regulation to maintain the work area wind speed in ideal condition
  • Air system is noise less and requires low maintenance
  • Provided with power saving fluorescent lamp
  • Equipped with protective glass in order to provide enclosed environment for work region
  • Removable cabinet support with adjustable foot margin

Used in clean environments such as production plants and research laboratories, bio-pharmaceutical industry, hard disk and other electronic devices inspection, food Industry, drug and medical devices industries.

Compare Models

Model External dimension (W x L x H) Internal dimension (W x L x H) Illumination Purification rank (ISO 14644-1 Std.) Air flow Noise Power Power supply LED standard Filtration efficiency (% @ 0.3μm) HEPA size (W x H x D) Average velocity Net Weight
LHCB-A10 1590 x 800 x 1800 mm 1430 x 620 x 575 mm ≥ 300 lux 100 - ≤ 61 dB 240 W 220 V/50 Hz 18X1 - 610 x 1470 x 69 mm 0.25-0.4 m/s 170 kg
LHCB-A11 1340 x 800 x 1800 mm 1180 x 620 x 575 mm ≥ 300 lux 100 - ≤ 61 dB 230 W 220 V/50 Hz 13x1 - 610 x 1220 x 69 mm 0.25-0.4 m/s 150 kg
LHCB-A12 1090 x 800 x 1800 mm 930 x 620 x 575 mm ≥ 300 lux 100 - ≤ 61 dB 220 W 220 V/50 Hz 9x1 - 610 x 970 x 69 mm 0.25-0.4 m/s 130 kg
LHCB-B10 960 x 780 x 1580 mm 930 x 600 x 650 mm ≥ 300 lux 100 600-950 m³⁄h ≤ 65 dB 290 W 220 V/50 Hz 9x1 99.99 - 0.3-0.5 m/s 120 kg
LHCB-B11 1200 x 820 x 1580 mm 1170 x 600 x 650 mm ≥ 300 lux 100 750-1100 m³⁄h ≤ 65 dB 570 W 220 V/50 Hz 13x1 99.99 - 0.3-0.5 m/s 140 kg
LHCB-B12 1500 x 900 x 1580 mm 1470 x 600 x 850 mm ≥ 300 lux 100 950-1400 m³⁄h ≤ 65 dB 575 W 220 V/50 Hz 18x1 99.99 - 0.3-0.5 m/s 160 kg
LVCB-A10 1000 x 700 x 1800 mm 900 x 650 x 600 mm ≥ 400 lux 100 600-950 m³⁄h ≤ 65 dB 124 W 220 V/50 Hz 9x1 99.99 - 0.25-0.45 m/s 130 kg
LVCB-A11 1200 x 700 x 1800 mm 1100 x 650 x 600 mm ≥ 400 lux 100 750-1100 m³⁄h ≤ 65 dB 127 W 220 V/50 Hz 13x1 99.99 - 0.25-0.45 m/s 145 kg
LVCB-A12 1500 x700 x 1800 mm 1400 x 650 x 600 mm ≥ 400 lux 100 950-1400 m³⁄h ≤ 65 dB 200 W 220 V/50 Hz 18X1 99.99 - 0.25-0.45 m/s 160 kg
LVCB-B10 1000 x 980 x 1900 mm 900 x 680 x 600 mm ≥ 300 lux 100 600-900 m³⁄h ≤ 65 dB 280 W 220 V/50 Hz 9x1 99.99 - 0.25-0.45 m/s 150 kg
LVCB-B11 1200 x 980 x 1900 mm 1100 x 680 x 600 mm ≥ 300 lux 100 800-1100 m³⁄h ≤ 65 dB 560 W 220 V/50 Hz 13x1 99.99 - 0.25-0.45 m/s 180 kg
LVCB-B12 1500 x 980 x 1900 mm 1400 x 680 x 600 mm ≥ 300 lux 100 1000-1500 m³⁄h ≤ 65 dB 580 W 220 V/50 Hz 18x1 99.99 - 0.25-0.45 m/s 210 kg
