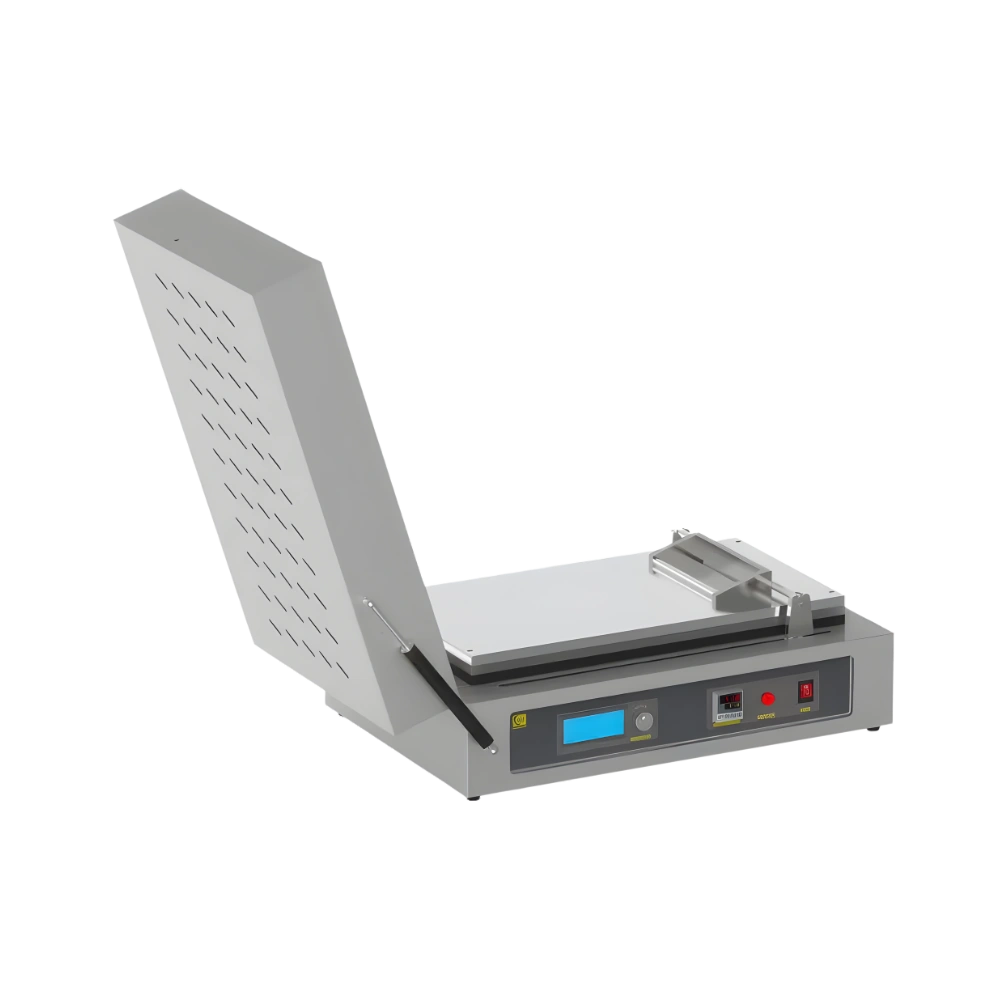

Casting Drying Coater LCDC-A10

Name: Casting Drying Coater LCDC-A10
Brand: Labtron
SKU: LCDC-A10
Rating: 4.8 (762 reviews)

Casting Drying Coater LCDC-A10 uses a precision film applicator with adjustable speeds ranging from 10 mm/s to 100 mm/s. It employs a precision film applicator, such as a wire bar or doctor blade, to achieve smooth and even coating layers. The coater includes an automatic drying function with a top dryer that can heat up to 120℃. Its drying process is highly controlled, with a temperature accuracy to ensure consistent drying. Our casting drying coater is ideal for advanced material research.

Request Quote

Coating Speed	10 mm/s to 100 mm/s
Speed Control Precision	1 mm/sec
Heating Method	Top dryer
Heating Temperature	≤ 120℃
Temperature Control Accuracy	± 1℃
Thermal Uniformity	Within ± 1%
Film Applicator	Doctor blade or wire bar
Maximum Stroke Length	420 mm
Vacuum Chuck Area	A4/A3
Vacuum Panel Size	345 mm × 540 mm
Drying Options	With drying or without drying (Customer needs to choose as per their requirement)
Heating Power	2500 W
Power Supply	AC 220 V, 50 Hz
Packing Dimension	1175 × 625 × 570mm
Gross Weight	130 Kg

Top-mounted dryer
Vacuum adsorption system
Uniform coating capability
Adjustable coating speed
High temperature and precision control

Casting Drying Coater LCDC-A10 is widely used in research and development of high-temperature coatings, including ceramic thin films, crystal thin films, battery material thin films, and nano thin films.

Drying Function

Download catalog for
Casting Drying Coater LCDC-A10 Catalog

Available Range :

Heating Coating Machine LHCM-A10 : 0 to 100 mm/s Doctor Blade Coating Machine LDCM-A10 : 0 to 100 mm/s adjustable Casting Drying Coater LCDC-A10 : 10 mm/s to 100 mm/s

Casting Drying Coater LCDC-A10|Speed Control Precision 1 mm/sec|Heating Method Top dryer

Casting Drying Coater LCDC-A10|Top-mounted dryer| Vacuum adsorption system

Models of Coating Machine

Labtron provides a wide range of Coating Machines such as Tablet Coating Machine, Blade Coaters, and Vacuum Spin Coaters. They ensure precise and uniform application of coatings on various substrates, enhancing product performance and quality. Their features like adjustable coating thickness, customizable speed, and advanced digital controls, make them useful for a variety of applications. These coating machines are engineered for efficiency, reliability, and consistency. Our machines are tailored to meet the unique needs of each industry, improving productivity and delivering superior results.
