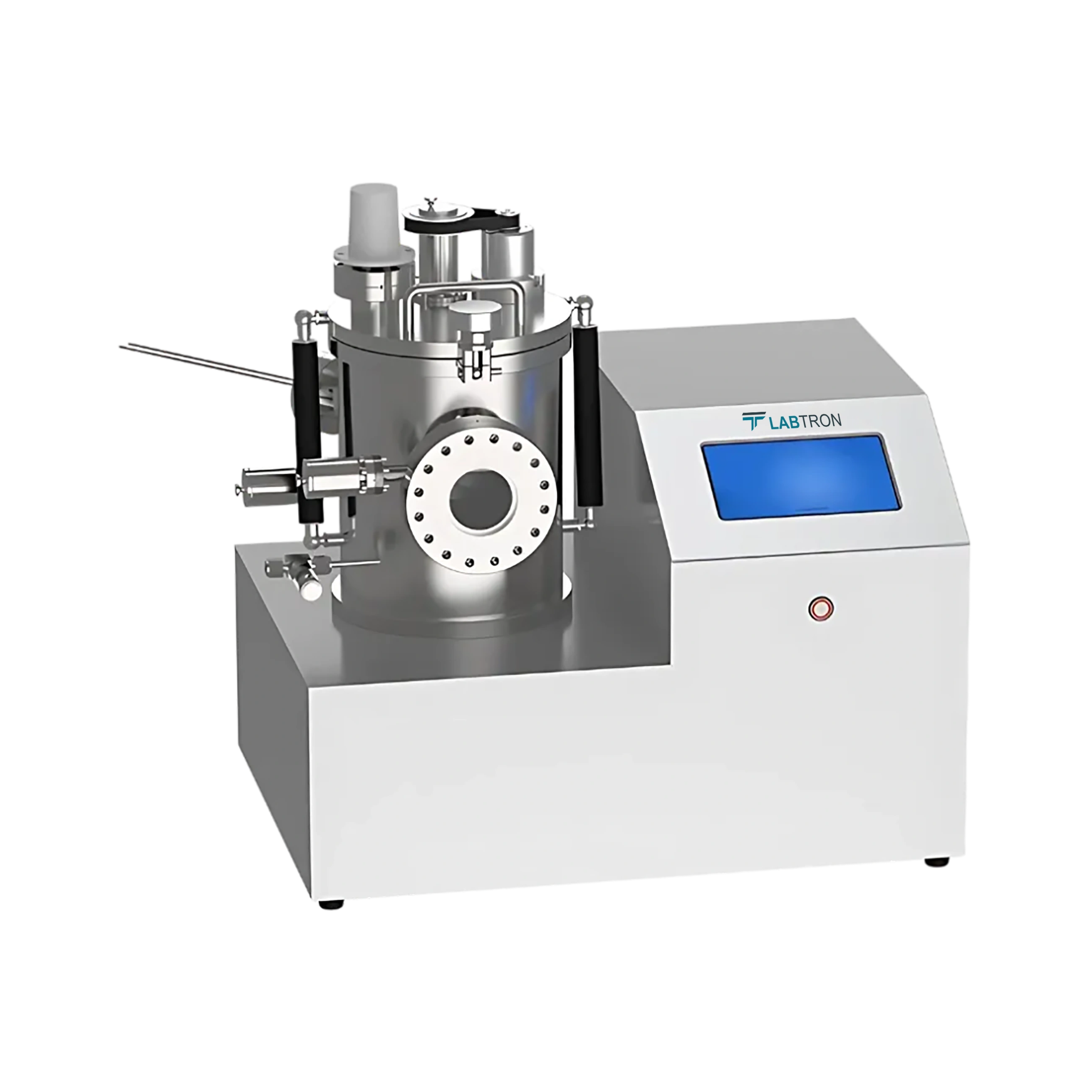

Magnetron Coating Machine LMMC-A11

Name: Magnetron Coating Machine LMMC-A11
Brand: Labtron
SKU: LMMC-A11
Rating: 4.8 (652 reviews)

Magnetron Coating Machine LMMC-A11 has a bottom-mounted target design with a sample stage size of 100 mm. It has an advanced vacuum system to achieve a vacuum level of ≤5×10⁻⁴ Pa. The rotatable sample stage can heat up to 500℃ and rotate at speeds between 0 to 20 rpm, ensuring uniform and well-adhered coatings. Its vacuum chamber is equipped with a Ф 60mm watch window. Our coating machine is perfect for precise and uniform thin film coatings.

Request Quote

Sample Stage Size	100 mm
Sample Stage Heating Temperature	≤ 500℃
Sample Stage Rotating Speed	1 to 20 rpm adjustable
Magnetron Sputtering Head Diameter	Ф 50.8 mm
Magnetron Sputtering Head Thickness	≤ 3 mm
Vacuum Chamber Size	Ф 180 × 215 mm
Vacuum Chamber Observation Window	Ф 60 mm
Vacuum Chamber Material	304 SUS
Vacuum Chamber Opening Mode	Removable cover
Vacuum System Backing Pump Type	Low noise two-stage rotary vane pump
Vacuum System Molecular Pump Type	Low noise and high pumping speed turbomolecular pump
Backing Pump Pumping Rate	1.1 L/s
Molecular Pump Pumping Rate	600 L/s
Vacuum System Ultimate Vacuum Pressure	≤ 5 × 10-4 Pa
Vacuum System Vacuum Measurement	Resistance gauge + ionisation gauge
Vacuum System Air Extraction Interface	KF16, KF40
Vacuum System Exhaust Interface	KF16
Target Power Supply	DC 300 W
Target Power Supply Quantity	1
Overall Power Supply	AC 220V, 50Hz
Total Power	2 kW
Dimension	550 × 350 × 400 mm

Controlled sputtering environment
304 stainless steel vacuum chamber
Advanced Monitoring
High-quality vacuum system
Uniform coating
Durable construction
Compact design

Magnetron Coating Machine LMMC-A11 is primarily used for metal sputtering and thin-film deposition. It is ideal for applications requiring low temperature rise and fast deposition speeds.

Download catalog for
Magnetron Coating Machine LMMC-A11 Catalog

Available Range :

Plasma Sputtering Coater LPSC-A10 : 100 mm Magnetron Coating Machine LMMC-A13 : Ф 150 mm Magnetron Coating Machine LMMC-A12 : Ф 50 mm

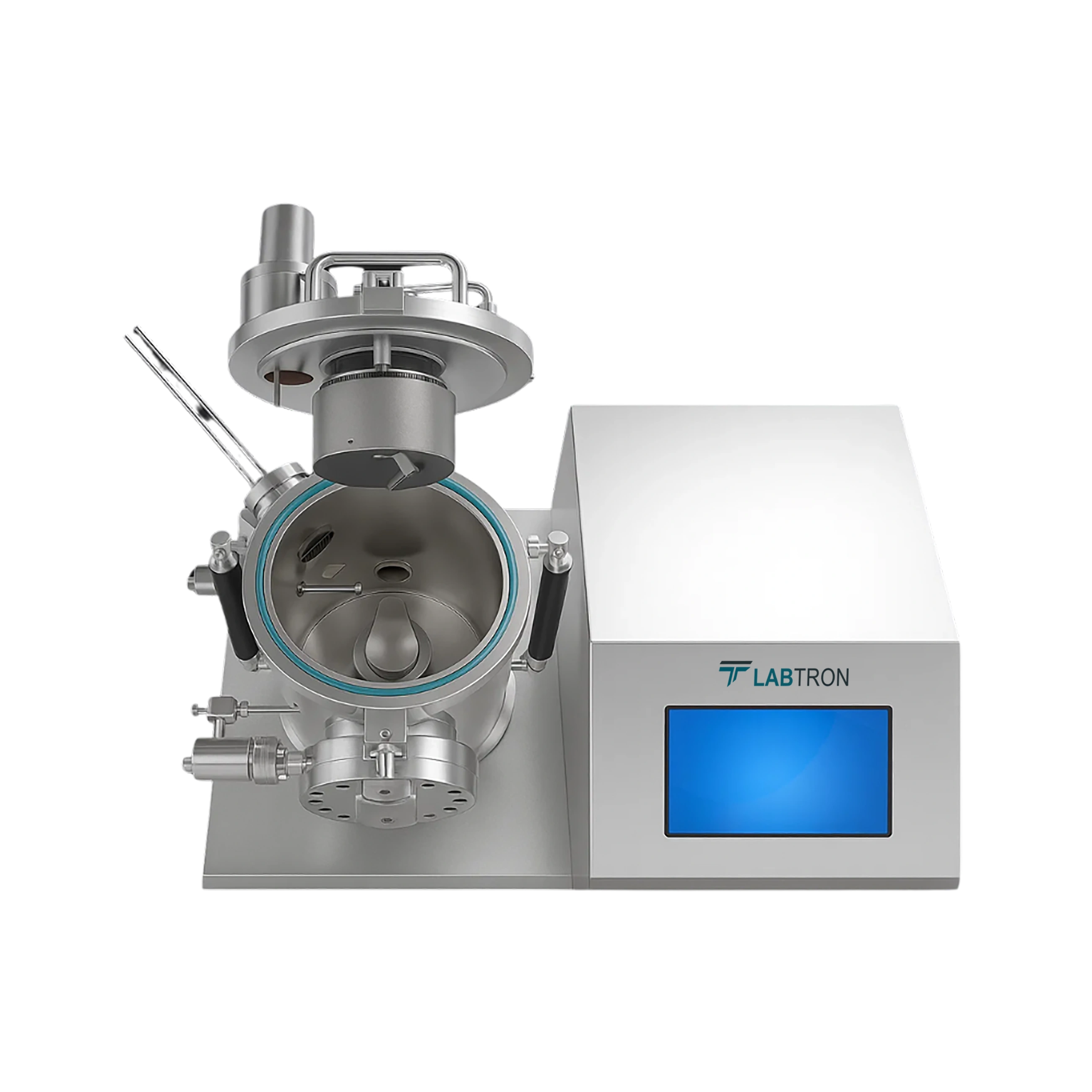

Magnetron Coating Machine LMMC-A11|Durable construction|Advanced Monitoring

Magnetron Coating Machine LMMC-A11|Vacuum Chamber Material 304 SUS|Sample Stage Heating Temperature ≤ 500℃
