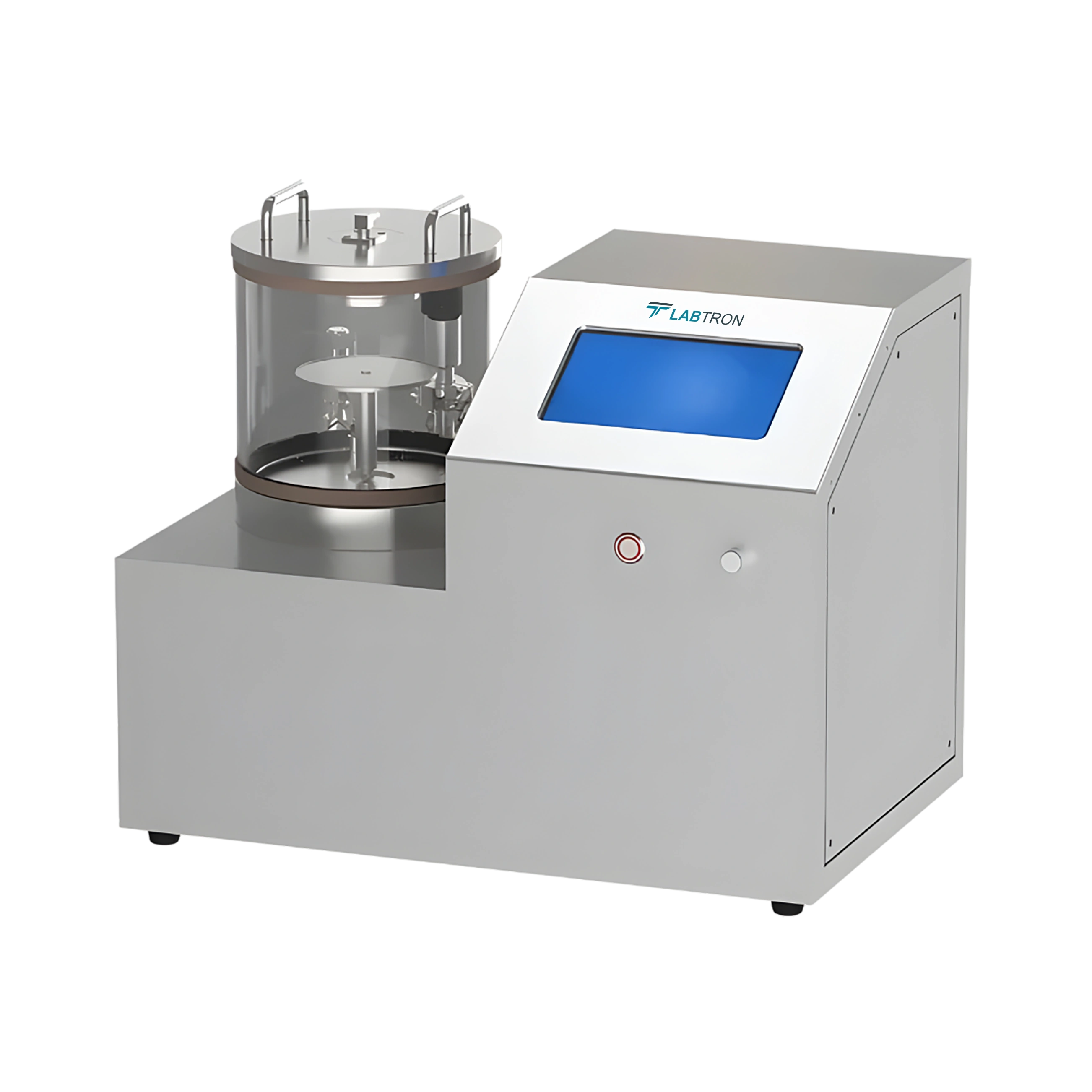

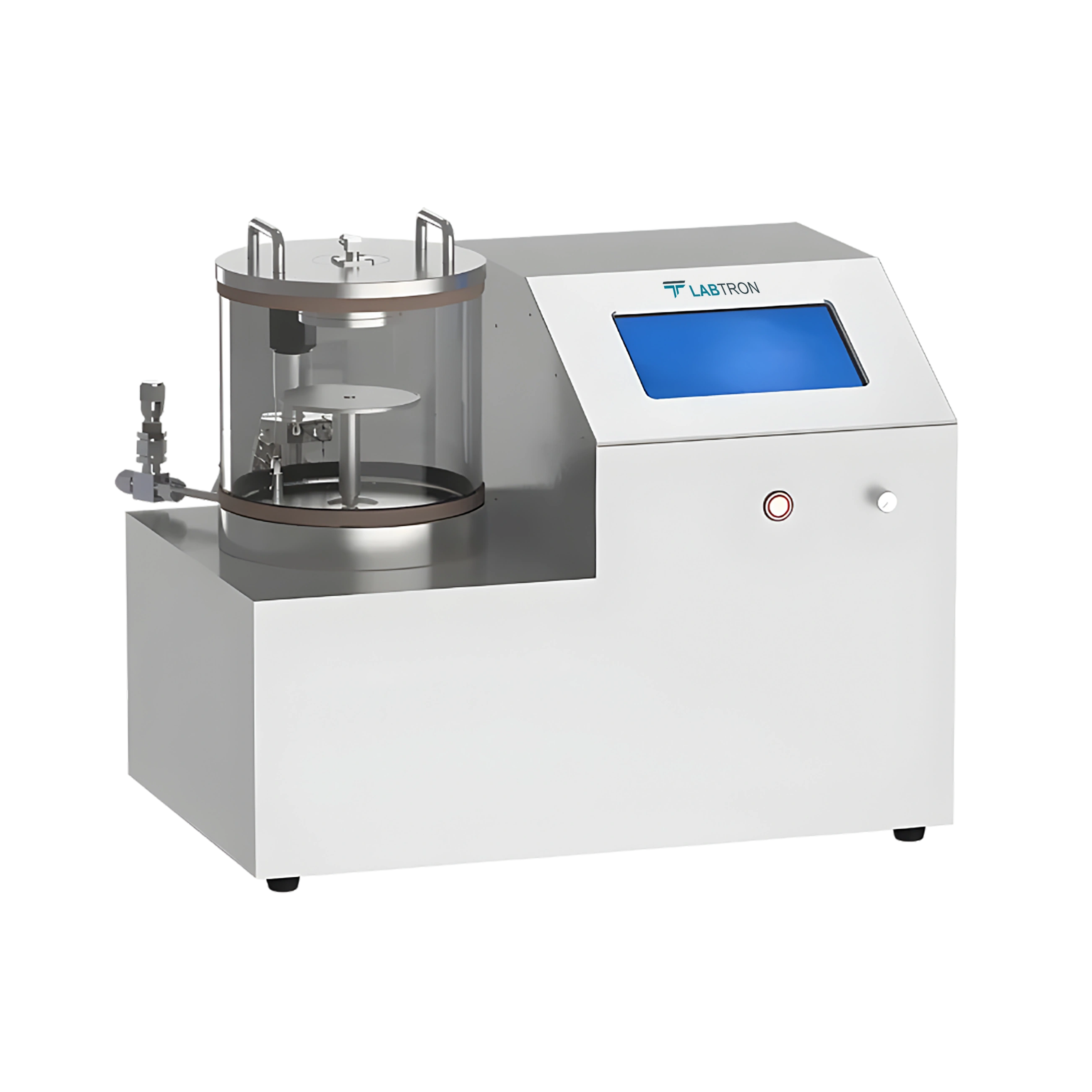

Plasma Sputtering Coater LPSC-A10

Name: Plasma Sputtering Coater LPSC-A10
Brand: Labtron
SKU: LPSC-A10
Rating: 5 (847 reviews)

Plasma Sputtering Coater LPSC-A10 ensures uniform coating with a 100 mm rotatable sample stage and an adjustable rotation speed of 1rpm to 20 rpm. It features a PLC touch screen interface, offering a user-friendly operation. The low temperature plasma process prevents thermal damage for sensitive samples. Its two-staged sputtering method increases its efficiency to deposit thin metal layers. Our coater provides precise coatings with low thermal effect.

Request Quote

Sample Stage Size	100 mm
Sample Stage Rotating Speed	1 to 20 rpm adjustable
Sample Stage To Target Surface Distance	20 to 25 mm height (adjustable)
Plasma Sputtering Source Quantity	2 inches x 1 target
Plasma Sputtering Source Cooling Method	Natural cooling
Vacuum Chamber Size	Ф 180 × 150 mm
Vacuum Chamber Observation Window	Omnidirectional visibility
Vacuum Chamber Material	High purity quartz
Vacuum Chamber Open Method	Top cover removable
Vacuum Chamber Cover Material (Upper And Lower)	304 SUS
Vacuum Chamber Pumping Port	KF25
Vacuum Chamber Intake Port	1/4 inch ferrule connector
Vacuum System Pump Type	Dual-stage rotary vane vacuum pump
Vacuum System Pumping Rate	1.1 L/s (4 m³/h)
Vacuum System Ultimate Vacuum Pressure	≥ 0.1 Pa
Vacuum System Vacuum Measurement	Resistance vacuum gauge
Vacuum System Pumping Port	KF25
Vacuum System Exhaust Interface	KF16
Plasma Sputtering Power Supply	3000 V, DC
Output Power of DC Power Supply	≤ 150 W
Maximum Sputtering Current	0.05 A
Power Supply	AC 220 V, 50 Hz
Total Power	1.5 kW/ 2 kW
Dimension	550 × 450 × 450 mm
Weight	30 kg

High-purity quartz vacuum chamber
Dual-staged rotary vane vacuum pump
Compact size
Easy operation

Plasma Sputtering Coater LPSC-A10 is used in materials science, nanotechnology, electronics, semiconductor research, and sample preparation for electron microscopy.

Download catalog for
Plasma Sputtering Coater LPSC-A10 Catalog

Available Range :

Plasma Sputtering Coater LPSC-A10 : 100 mm Magnetron Coating Machine LMMC-A13 : Ф 150 mm Magnetron Coating Machine LMMC-A12 : Ф 50 mm
