| Magnetron Sputtering Head Diameter | Ф 50.8 mm |
| Magnetron Sputtering Head Thickness | ≤ 3 mm |
| Sample Stage Size | 100 mm |
| Sample Stage Rotating Speed | 1 to 20 rpm adjustable |
| Sample Stage Heating Temperature | ≤ 500℃ |
| Vacuum Chamber Size | Ф 180 × 215 mm |
| Vacuum Chamber Observation Window | Omnidirectional transparency |
| Vacuum Chamber Material | High purity quartz |
| Vacuum Chamber Opening Mode | Removable cover |
| Vacuum System Backing Pump Type | Low noise two-stage rotary vane pump |
| Vacuum System Molecular Pump Type | Low noise and high pumping speed turbomolecular pump |
| Backing Pump Pumping Rate | 1.1 L/s |
| Molecular Pump Pumping Rate | 600 L/s |
| Vacuum System Pumping Rate | 1.1 L/s (4 m³/h) |
| Vacuum System Ultimate Vacuum Pressure | ≤ 5 × 10-4 Pa |
| Vacuum System Vacuum Measurement | Resistance gauge + ionisation gauge |
| Vacuum System Air Extraction Interface | KF16, KF40 |
| Vacuum System Exhaust Interface | KF16 |
| Magnetron Sputtering Power Supply Type | DC |
| DC Power Supply Quantity | 1 |
| Output Power of DC Power Supply | 300 W |
| Power Supply | AC 220V, 50Hz |
| Total Power | 2 kW |
| Dimension | 550 × 300 × 400 mm |
Advanced Monitoring
High-quality vacuum system
Uniform coating
Durable construction
Compact design

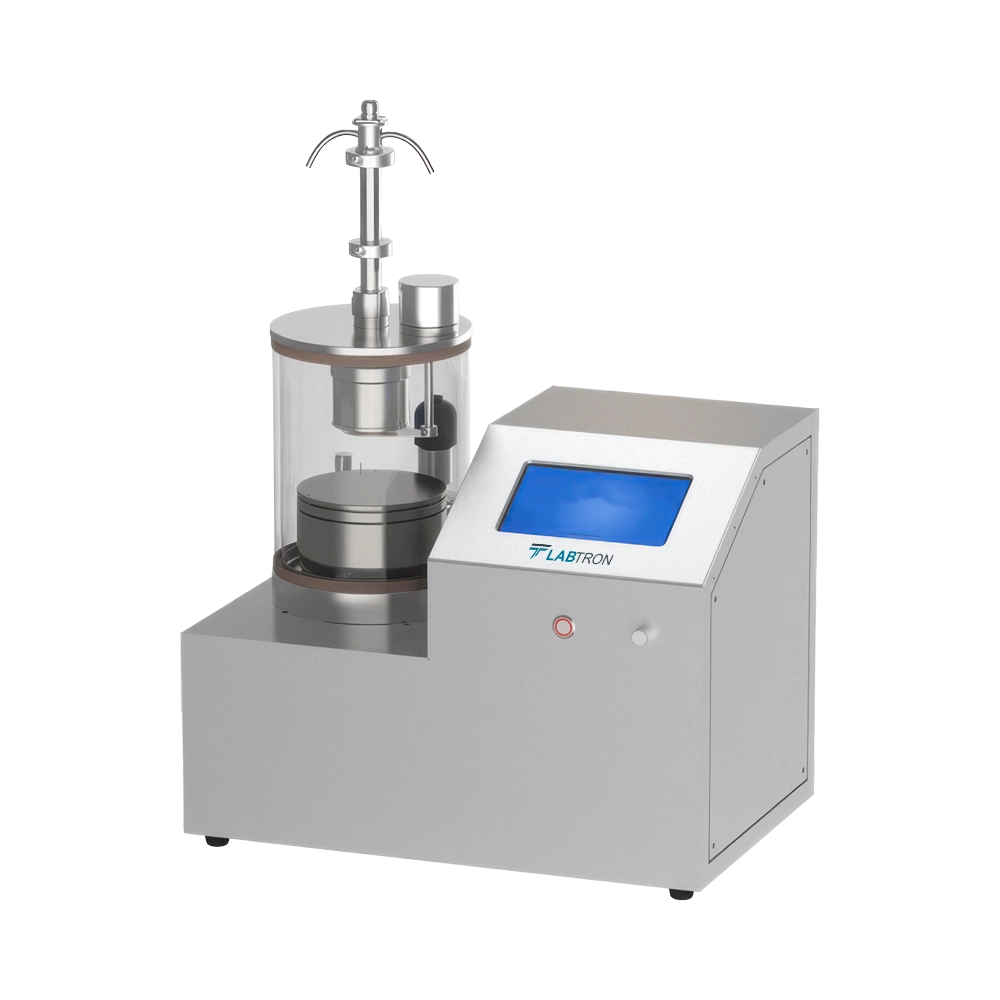

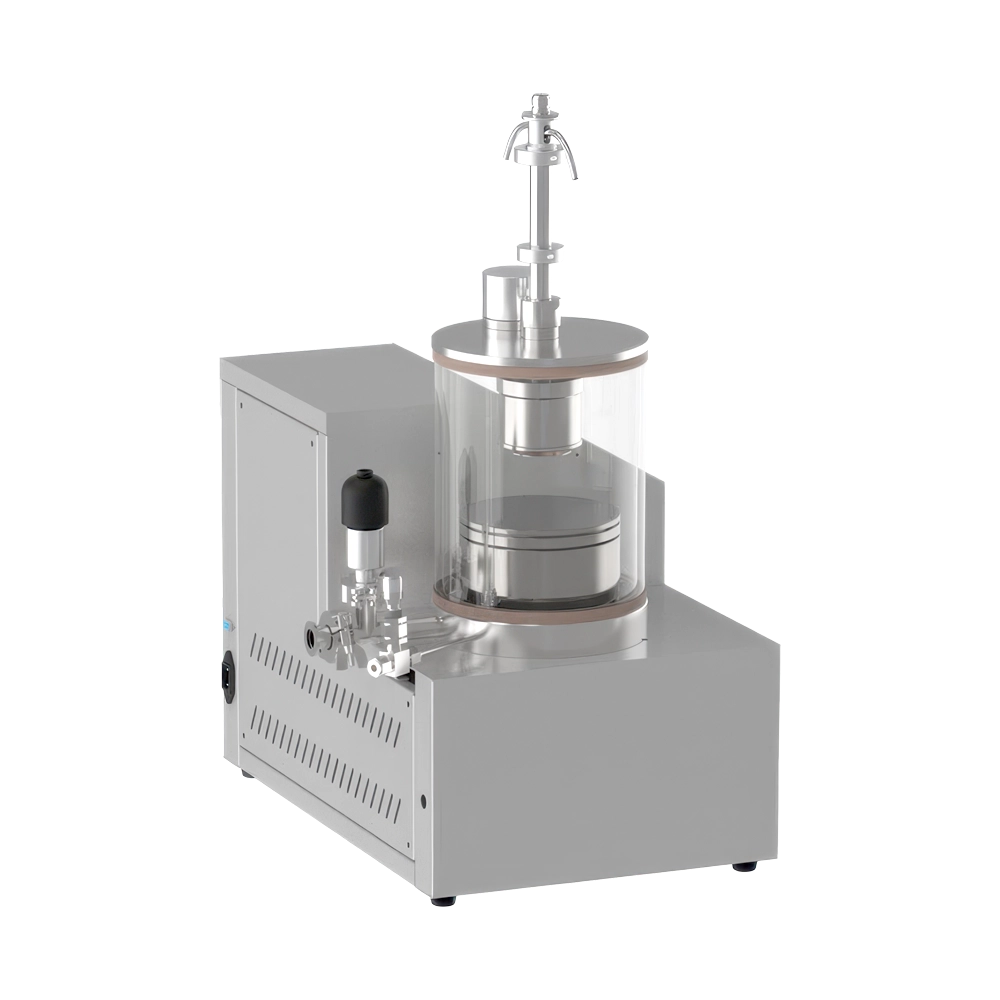

Magnetron Coating Machine LMMC-A10 used primarily for metal sputtering and thin-film deposition. It is ideal for applications requiring low temperature rise and fast deposition speeds.
Download catalog for
Magnetron Coating Machine LMMC-A10 Catalog
Labtron provides a wide range of Coating Machines such as Tablet Coating Machine, Blade Coaters, and Vacuum Spin Coaters. They ensure precise and uniform application of coatings on various substrates, enhancing product performance and quality. Their features like adjustable coating thickness, customizable speed, and advanced digital controls, make them useful for a variety of applications. These coating machines are engineered for efficiency, reliability, and consistency. Our machines are tailored to meet the unique needs of each industry, improving productivity and delivering superior results.
