| Sample Stage Size | Ф 50 mm |
| Sample Stage Rotating Speed | 1 to 10 rpm adjustable |
| Sample Stage Heating Temperature | ≤ 500℃ |
| Magnetron Sputtering Head Diameter | Ф 50.8 mm |
| Magnetron Sputtering Head Thickness | ≤ 3 mm |
| Vacuum Chamber Size | Ф 180 × 100 mm |
| Vacuum Chamber Observation Window | Omnidirectional transparency |
| Vacuum Chamber Material | High-purity quartz |
| Vacuum Chamber Opening Mode | Removable cover |
| Vacuum System Backing Pump Type | Low noise two-stage rotary vane pump |
| Vacuum System Molecular Pump Type | Low noise and high pumping speed turbomolecular pump |
| Backing Pump Pumping Rate | 1.1 L/s |
| Molecular Pump Pumping Rate | 600 L/s |
| Vacuum System Ultimate Vacuum Pressure | ≤ 5 × 10-4 Pa |
| Vacuum System Vacuum Measurement | Resistance gauge + ionisation gauge |
| Vacuum System Air Extraction Interface | KF16, KF40 |
| Vacuum System Exhaust Interface | KF16 |
| Target Power Supply | DC 300 W |
| Target Power Supply Quantity | 1 |
| Overall Power Supply | AC 220V, 50Hz |
| Total Power | 2 kW |
| Dimension | 550 × 320 × 620 mm |
High-purity quartz vacuum chamber
Adjustable rotation and heating
Fast vacuum system
Uniform coating
Compact design

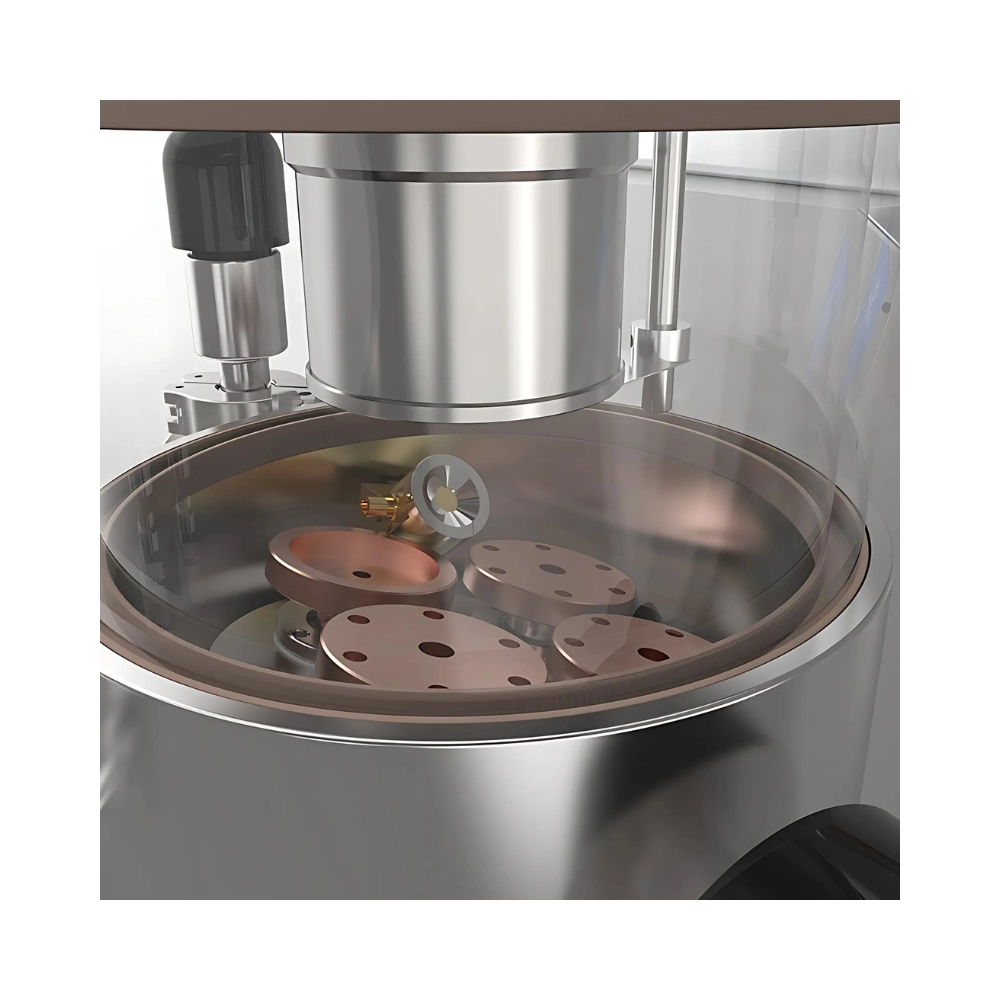

Magnetron Coating Machine LMMC-A12 is ideal for sputtering metals and conductive materials, enabling precise thin-film deposition for various coating tests, including research, development, and industrial applications.
Labtron provides a wide range of Coating Machines such as Tablet Coating Machine, Blade Coaters, and Vacuum Spin Coaters. They ensure precise and uniform application of coatings on various substrates, enhancing product performance and quality. Their features like adjustable coating thickness, customizable speed, and advanced digital controls, make them useful for a variety of applications. These coating machines are engineered for efficiency, reliability, and consistency. Our machines are tailored to meet the unique needs of each industry, improving productivity and delivering superior results.
