| Water Output Rate | 90 L/Hr |
| Inlet Water Pressure | 0.15 to 0.5 MPa |
| Tank Capacity | 40 L |
| Inlet Water Temperature | 5 to 40°C |
| RO Water Conductivity | 1 to 5 μS/cm |
| DI Water Resistivity | 10 to 16 MΩ·cm @ 25°C |
| DI Water Conductivity | <0.1 μS/cm |
| DI Water Total Organic Carbon (TOC) | <30 ppb |
| UP Water Resistivity | 18.25 MΩ·cm @ 25°C |
| UP Water Heavy Metal Ion | <0.01 ppb |
| UP Water TOC | <3 ppb |
| UP Water Bacteria | <1 CFU/ml (with terminal filter) |
| UP Water Particulate Matter | <1/ml (>0.1 microns) |
| UP Water Pyrogen (Endotoxin) | <0.001 EU/ml |
| UP Water Ribonuclease (RNase) | <1 pg/ml |
| UP Water Deoxyribonucleases (DNase) | <5 pg/ml |
| Power Supply | 100 to 240V, 50/60Hz |
| Power Consumption | 48 to 72W |
| Main Machine Dimension | 450 × 470 × 550 mm |
| Auxiliary Chassis Dimension | 470 × 500 × 870 mm |
| Main Machine Packaging Dimension | 550 × 630 × 750 mm |
| Auxiliary Chassis Packaging Dimension | 550 × 550 × 960 mm |
| Main Machine Net Weight | 30 kg |
| Auxiliary Chassis Net Weight | 50 kg |
| Main Machine Gross Weight | 40 kg |
| Auxiliary Chassis Gross Weight | 60 kg |
Integrated Pressure Test Gauge
Backlit LCD display with real-time status
Dual-Wavelength UV Sterilization
Clear Filtration Process Visualization
Automatic filter replacement reminders
Quick-Plug Filtration System
Portable TDS and Conductivity Test
Transparent Anti-Bacterial Pressure Tank

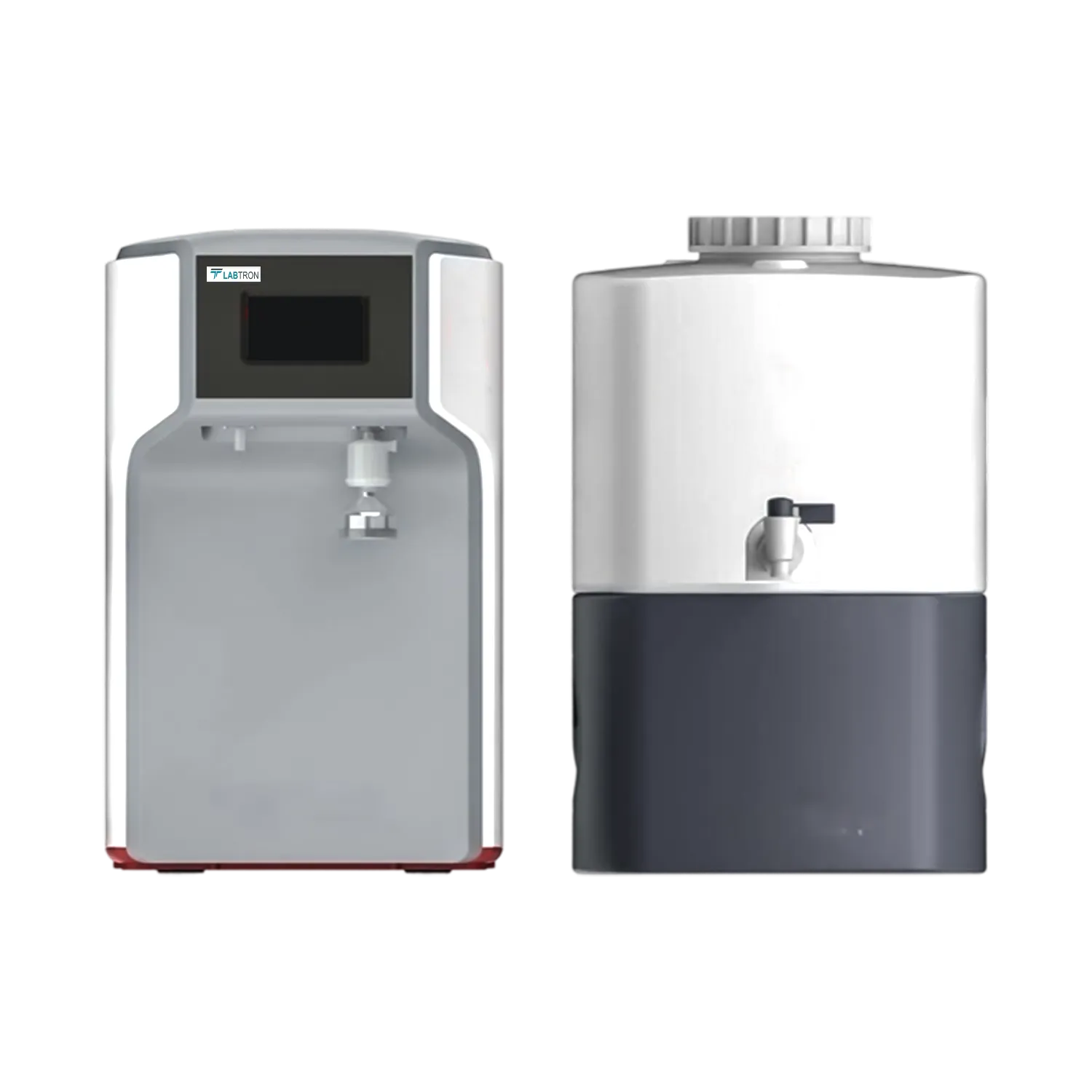

Our Deionized Water System LDIN-B11 supports applications like ultra-pure water preparation for laboratories, pharmaceuticals, electronics cleaning, chemical analysis, medical devices, and research requiring high water purity.
Accessories Name | Quantity |
60L Sterile Water Tank | 1 pc |
Delivery Pump | 1 pc |
Water Arm | 1 pc |
TOC Online Monitor | 3 pcs |
| Spare Parts | Quantity |
| 12" PP filter | 1 pc |
| 12" activated carbon filter | 1 pc |
| 600 GPD RO membrane | 3 pcs |
| 11" ultra-purification column (imported resin) | 4 pcs |
| EDI Module | 1 set |
| Imported PES 5000 Dalton UF heat source column | 2 pcs |
| 0.2 μm imported PES terminal filter | 1 pc |
| Dual wavelength (185 & 254 nm) UV lamp tube (import) | 1 pc |
Labtron Deionized Water System ensure efficient ion removal, producing high-purity water at rate of 10L to 90L per hour. Their multi-stage filtration process enhances quality by eliminating contaminants and impurities. They feature advanced resin-based technology, effectively reducing conductivity in treated liquid. Their automated control system enables real-time monitoring of standard parameters. Our Deionized Water System is applicable in laboratories, pharmaceuticals, and electronics ensuring contamination-free results in research, and manufacturing processes.
All optional accessories supplied with the Deionized Water System LDIN-B11 are intended to follow a replacement schedule of every five years to ensure continued performance and system integrity. This includes, but is not limited to, spare parts such as the PP filter, activated carbon filter, RO membranes, purification resin columns, EDI module, UF heat-source column, terminal filter, and UV lamp.
Labtron’s Deionized Water System LDIN-B11 is engineered for efficient water output suitable for laboratory demand, accommodating typical pressure variances and adapting to a broad ambient temperature range. Constructed with consistent output in mind, it is designed to maintain performance across varying inlet conditions and environmental shifts. The system includes a built-in tank to ensure steady availability of deionized water for continuous workflows. Its resilience to common laboratory fluctuations makes it reliable for extended daily use. The robust design makes it well-suited to research environments requiring uninterrupted ultra-pure water supply.
