| Water Output Rate | 60 Liters per hour |
| Inlet Water Pressure | 0.15 to 0.5 MPa |
| Tank Capacity | 40 L (EDI water storage tank) |
| Inlet Water Temperature | 5 to 40°C |
| RO Water Conductivity | 1 to 5 μS/cm (ASTM Type III Grade Water) |
| DI Water Resistivity | 10 to 16 MΩ·cm at 25°C (ASTM Type II Grade Water) |
| DI Water Conductivity | < 0.1 μS/cm |
| Boron Index | Feed Boron: 1.68 mg/L After Boron-Removal Resin: 0.8 mg/L |
| User Interface | Colored touch screen for real-time monitoring |
| Communication | RS-232C for data transfer/printing |
| Power Consumption | 48-72W |
| Power Supply | 100 -240V, 50/60Hz |
| Main Unit Dimension | 640 × 550 × 750 mm |
| Configuration Box Dimension | 550 × 550 × 960 mm |
| Main Unit Net Weight | 34 kg |
| Configuration Box Net Weight | 78 kg |
| Main Unit Gross Weight | 45 kg |
| Configuration Box Gross Weight | 90 kg |
Inbuilt feed water pressure gauge
DI water sterilization management
Pure water transfer pump
Backlight LCD, dual waterway monitoring

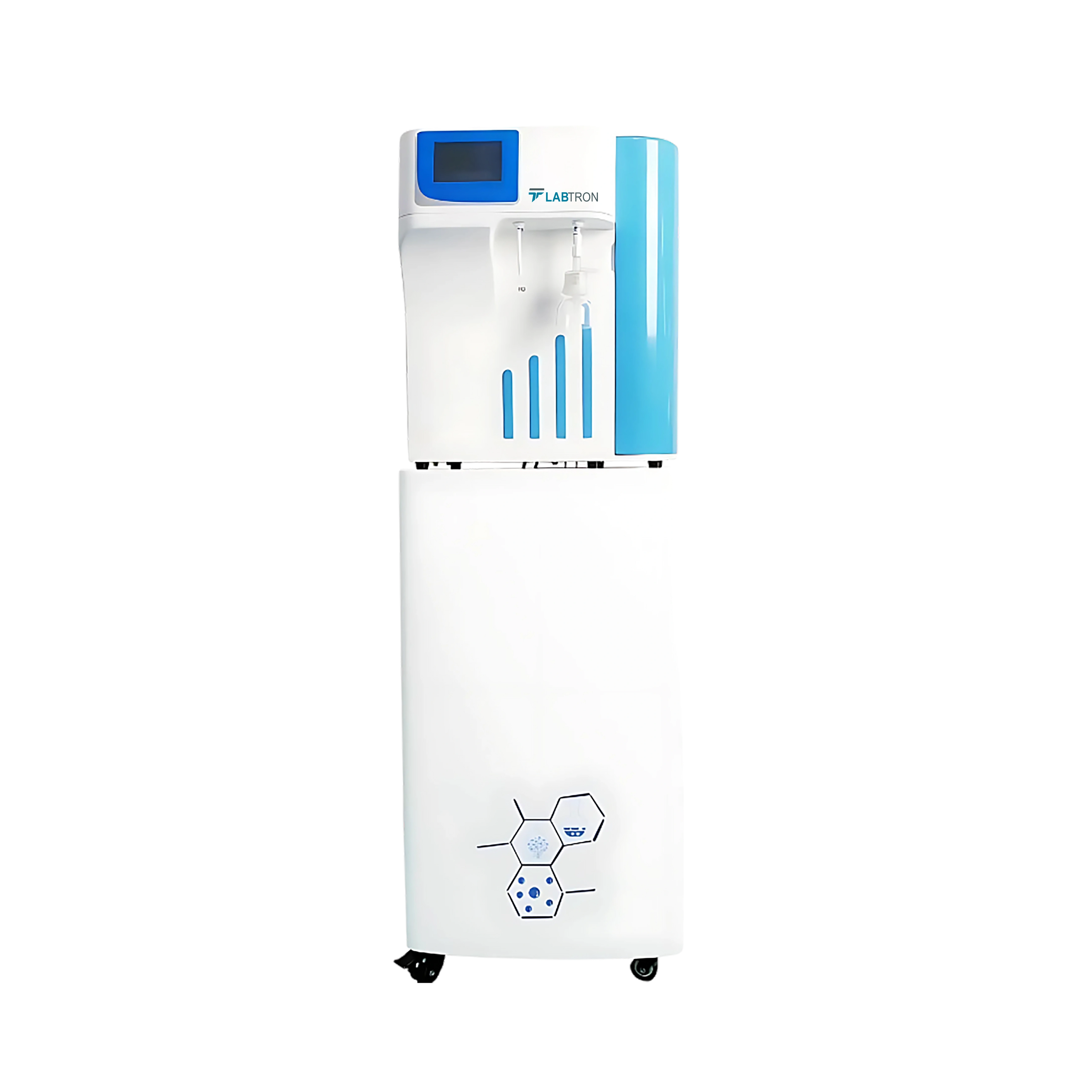

Deionized Water System LDIN-B12 is used for producing high-purity DI water for laboratory experiments, reagent preparation, and analytical testing. It is used in laboratories, pharmaceutical labs, and research facilities requiring ASTM Type II water.
| No. | Description of Consumables | Replace Cycle | Quantity |
| 1 | 12-inch PP filter | About 4 to 6 months | 1 pc |
| 2 | 12-inch Activated carbon filter | About 4 to 6 months | 2 pcs |
| 3 | 400 GPD RO membrane | About 1 to 2 years | 3 pcs |
| 4 | EDI Module | 2 to 3 years | 1 pc |
Labtron Deionized Water System ensure efficient ion removal, producing high-purity water at rate of 10L to 90L per hour. Their multi-stage filtration process enhances quality by eliminating contaminants and impurities. They feature advanced resin-based technology, effectively reducing conductivity in treated liquid. Their automated control system enables real-time monitoring of standard parameters. Our Deionized Water System is applicable in laboratories, pharmaceuticals, and electronics ensuring contamination-free results in research, and manufacturing processes.
