Microplate Reader LMPR-A30

Microplate reader LMPR-A30 is cost effective, efficient and reliable microplate reader. It is well equipped with comprehensive qualitative and quantitative data evaluation function, optical system with 8 channel optical fiber, auto plate centering system and stable memory.

Request Quote

Plate type	48/96-well plate
Wavelength range	400-850 nm
Standard filters	405, 450, 492, 630 nm
Additional filters	Filter wheel for up to 8 filters
Reading range	0.000 to 4.000 Abs
Reading speed	Single wavelength ≤ 3s; dual wavelength ≤ 6s
Resolution	0.001 Abs
Accuracy	± 0.008 Abs
Reproducibility	≤ 0.2 %
Stability	± 0.003 Abs
Shaking mode	Linear shaking, 3 speeds
Photodetector	Silicon photodiode
Light source	8V/50W controlled tungsten halogen lamp
Interface connection	USB
Power supply	100 to 240 V, 50 to 60 Hz
Dimension (LxWxH)	460 × 350 ×197 mm
Net weight	10 kg
Gross weight	12 kg

Measures single or dual wavelength
Wide wavelength range of 400 to 850 nm
Reads both 48 and 96-well plate
Needs to be connected with computer to operate
Capable of performing 12 different tests in just one plate
Optical system with 8 channel optical fiber scanning
Auto plate centering system to position the center of the cell accurately
Auto-lamp adjustment and auto calibration function
Stable memory capable of storing 10,000,000 test data and 500 test results
Multiple formats of result output
USB port for easy data transfer
Consists ELISA Reader software

It finds wide application in Immunoassays (ELISA), enzyme assays, absorbance based microplate reader assay (Bradford assay), proliferation assays and toxicity.

Available Range :

Light Source : controller tungsten halogen lamp Light Source : 8 V/50 W controller tungsten halogen lamp Wavelength range : 200 nm to 1000 nm with 1 nm steps Plate type : 48/96-well plate Plate Type : 96-well plate Plate Type : 48/96-well plate

Related Models :

Model	Plate type	Wavelength range	Standard filters	Additional filters	Reading range	Reading speed	Resolution	Accuracy	Reproducibility	Stability	Shaking mode	Photodetector	Light source	Interface connection	Power supply	Dimension (LxWxH)	Net weight	Gross weight
LMPR-A12	-	-	-	-	0.000 to 4.000 Abs	-	0.001 OD	± 1.0 % at 1.0 OD, 450 nm	≤ 0.2%	±0.003 Abs	-	-	-	-	100 to 240 V, 50/60 Hz	-	-	-
LMPR-A13	-	-	-	-	0.000 to 4.000 Abs	-	0.001 OD	± 0.008 Abs	≤ 0.2%	± 0.003 Abs	-	-	-	-	100 to 240 V, 50/60 Hz	-	-	-
LMPR-A14	-	200 nm to 1000 nm with 1 nm steps	-	-	-	-	-	-	-	-	-	-	Xenon flash lamp	-	DC 24 V 6.5 A	-	-	-
LMPR-A30	48/96-well plate	400-850 nm	405, 450, 492, 630 nm	Filter wheel for up to 8 filters	0.000 to 4.000 Abs	Single wavelength ≤ 3s; dual wavelength ≤ 6s	0.001 Abs	± 0.008 Abs	≤ 0.2 %	± 0.003 Abs	Linear shaking, 3 speeds	Silicon photodiode	8V/50W controlled tungsten halogen lamp	USB	100 to 240 V, 50 to 60 Hz	460 × 350 ×197 mm	10 kg	12 kg
LMPR-A10	-	-	-	-	-	-	0.001 Abs	-	-	-	-	-	-	-	-	-	-	-
LMPR-A20	-	-	-	Filter wheel for up to 8 filters	-	-	0.001 Abs	± 0.008 Abs	-	-	-	-	-	DVI, UGA,NETWORK INTERFACE, USB, AUDIO INTERFACE, RS-232	-	-	-	-

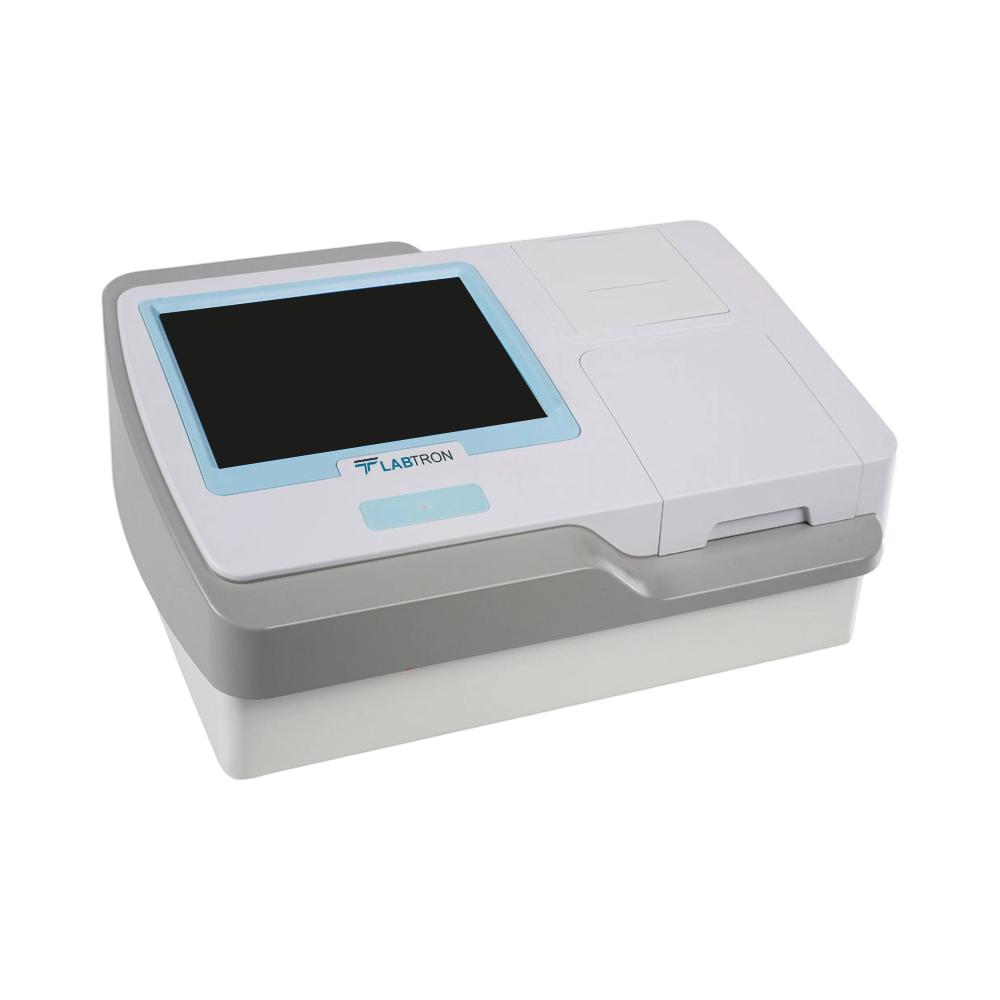

LMPR-A15	48-well,96-well microplates	400 to 800 nm	-	-	0 to 4.000 Abs	6 s/96 well plate, single wavelength	0.001Abs (display, print); inner calculating 0.0001Abs	≤±0.01 Abs	-	≤±0.003 Abs	-	-	Halogen-tungsten lamp; 12V/20W; ≥3000 hours	-	AC 110/220 V±10 %, 60/50 Hz	-	-	16 kg
LMPR-B10	-	190 nm to 900 nm	-	-	-	-	0.001 Abs	-	-	-	-	-	-	-	-	-	18 kg	35 kg
