| Testing Elements | K, Na, Ba |
| Channels | 3 |
| Display Value | Concentration value / Energy |
| Measuring Range | K: 0 to 100 ppm Na: 0 to 160 ppm Ba: 0 to 3000 ppm |
| Detection Limit | K: less than or equal to 0.004 mmol/L Na: less than or equal to 0.008 mmol/L Ba: less than or equal to 0.044 mmol/L |
| Linearity Error | K: less than or equal to 0.005 mmol/L Na: less than or equal to 0.003 mmol/L Ba: less than or equal to 0.066 mmol/L |
| Display | 7-inch capacitive touchscreen |
| Response Time | less than 8 s |
| Aspiration Rate | less than 6 ml/min |
| Stability | less than or equal to 3% drift within 15 s |
| Reproducibility | less than or equal to 3% |
| Calibration Curve | Yes |
| Printer | Yes |
| Fuel Supply | LPG |
| Output | USB port |
| Power Supply | AC 220V/50Hz or AC 110V/60Hz |
| Dimensions | 710 × 380 × 520 mm |
| Net Weight | 20 kg |
Integrated air compressor

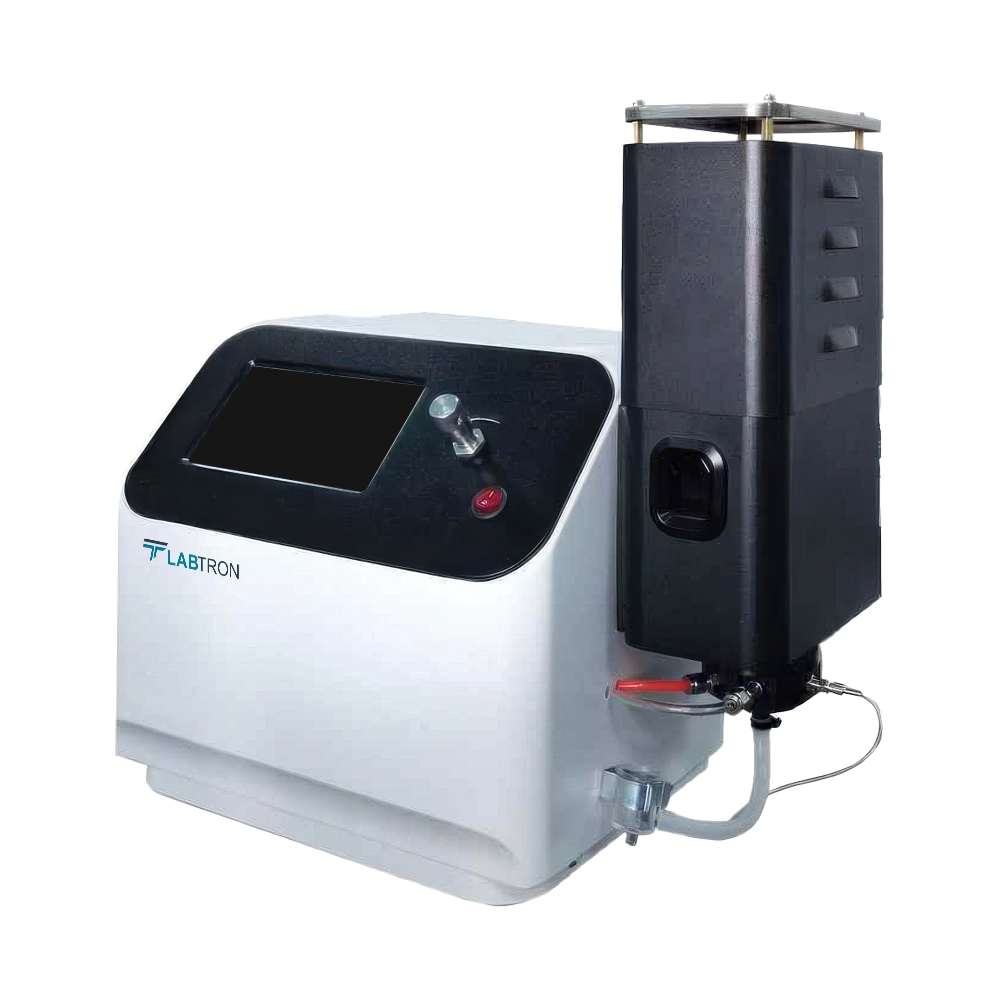

Our Flame Photometer LFP-B12 is especially useful in industrial sectors requiring accurate barium analysis such as mining, metallurgy, and environmental monitoring. It ensures high sensitivity and reliability for selective element analysis.
| Main unit | 1 unit |
| Drainage tube | 1.5 m |
| Acupuncture needle (0.35×75 mm) | 2 pcs |
| PRV for LPG | 1 pc |
| LPG tube (orange) | 2 m |
| Glass cylinder for flame | 1 pc |
| Chimney | 1 pc |
| Air compressor | 1 unit |
| Observation window lid | 1 pc |
| Binding tie | 2 pcs |
| PU tube for air | 5 m |
| Stainless steel clamp | 2 pcs |
| Thermal printer (Bluetooth) | 1 unit |
| Power cable | 1 pc |
Download catalog for
Flame Photometer LFP-B12 Catalog
Labtron Flame Photometers serve to measure the amount of metal ions in test materials, including K, Na, Li, Ca, and Ba. This has USB ports for data transfer in addition to a color touchscreen display. They have air compressors to maintain steady flame conditions and flameout prevention systems. These provide the option to choose various concentration units and enable the pre-selection of frame sizes. We provide photometers that compute test sample correlation automatically. Our flame photometers are perfect for accurate and dependable metal ion analysis because of their sophisticated features and user-friendly design.
Our Flame Photometer is equipped with a dedicated glass cylinder and observation window lid for direct flame monitoring. This setup helps users detect any irregularities in flame behavior in real time. The chimney attachment supports safe ventilation while maintaining flame integrity. This feature ensures stable readings and enhances safety during continuous operation.
Labtron’s Flame Photometer includes a compact main unit and all necessary tubing and connectors for quick assembly. Lightweight accessories like PU and LPG tubes, stainless steel clamps, and drainage components are designed for flexible routing. The bundled air compressor eliminates the need for external sources. This makes the system well-suited for multi-lab use or mobile testing setups.
The Flame Photometer includes a Bluetooth-enabled thermal printer for instant data output without needing a computer. This allows users to document results directly at the point of testing. The printer reduces manual recording errors and helps streamline workflow in busy labs. It’s especially useful for traceability in regulated environments.
The Flame Photometer is equipped with a dedicated air compressor and PU air tubing to maintain a consistent and reliable flame. This built-in supply system eliminates dependency on external air sources. The included binding ties allow organized routing of the tubing. The setup supports steady operation and reduces the risk of flame fluctuations.
The Flame Photometer features single-point calibration and clear setup instructions in the included user manual. Lab staff can easily install components like the acupuncture needles and glass cylinder without special tools. With labeled accessories and intuitive design, initial setup takes minimal time. The system is designed for straightforward daily operation.
The Flame Photometer is optimized for LPG use and includes a pressure-reducing valve (PRV) to regulate fuel flow safely. The 2-meter LPG tube provided is designed for high-temperature conditions and easy connection. The system ensures a stable flame throughout analysis. This makes it a secure and efficient option for routine elemental testing.
The Flame Photometer comes with a comprehensive set of standard accessories to ensure quick and smooth setup. These include an air compressor, drainage tube, LPG tube, observation window lid, and a stainless steel clamp set. The package also contains a Bluetooth thermal printer and a user manual for guided operation. These components simplify installation and support seamless lab integration.
