How does the Flame Photometer help with multi-element analysis in lab applications?

The Flame Photometer supports simultaneous testing of potassium, sodium, and calcium, making it suitable for diverse sample types. The design allows users to switch between elements without changing configurations. Labtron’s system enhances testing flexibility in water treatment, soil analysis, and chemical production labs. It’s ideal for settings where multi-ion detection is frequently required.

How does the touchscreen interface improve the operation of the Flame Photometer?

The Flame Photometer includes a large touchscreen that provides a clear and responsive interface for all functions. Users can easily select measurement modes, access calibration settings, and review results. The intuitive layout minimizes errors and simplifies workflows. This feature is especially useful for high-throughput labs or shared lab spaces.

Can the Flame Photometer be used for quality control in manufacturing labs?

Yes, the Flame Photometer is widely used in quality control for industries like food, fertilizer, and pharmaceuticals. It helps maintain product consistency by monitoring metal ion concentrations. The system supports frequent, routine testing with dependable accuracy. It’s ideal for labs requiring repeatable, reliable results.

What kind of calibration method does the Flame Photometer support?

Our Flame Photometer uses a single-point calibration method at maximum concentration, which simplifies preparation and reduces the need for frequent adjustments. This approach speeds up setup without compromising accuracy. Labtron’s system maintains calibration stability over time, even in high-throughput settings. It’s a practical solution for labs with consistent sample types.

What maintenance is required to keep the Flame Photometer performing optimally?

Labtron's Flame Photometer requires regular cleaning of key components, including the burner, nebulizer, and tubing, to maintain consistent performance. Simple maintenance procedures are built into the design for user convenience. Our equipment includes service-friendly access to internal components. Periodic checks ensure long-term reliability and accuracy.

How does the Flame Photometer handle sample efficiency and waste reduction?

The Flame Photometer is designed to work with a low aspiration rate, minimizing sample consumption while still delivering reliable results. This is beneficial for labs working with limited or expensive sample materials. The system efficiently uses reagents and supports sustainable lab practices. It’s well-suited for cost-sensitive or eco-conscious laboratories.

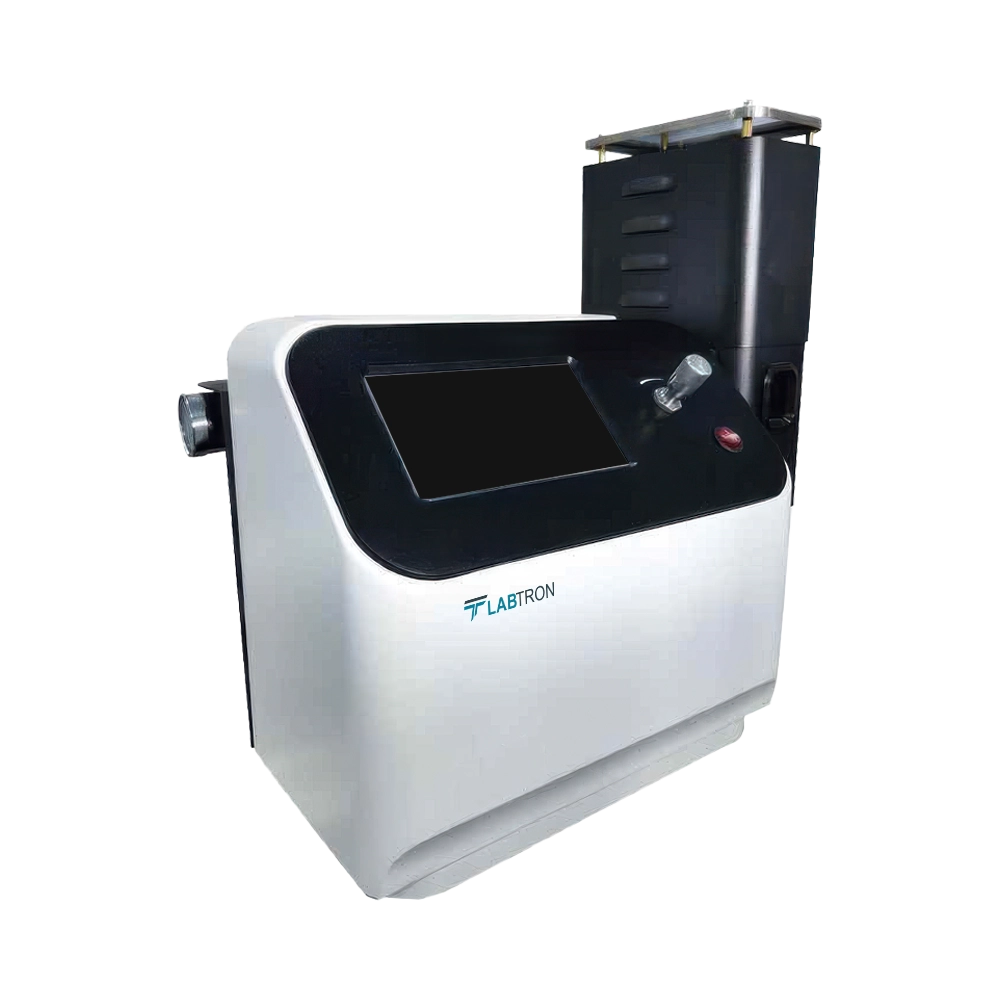

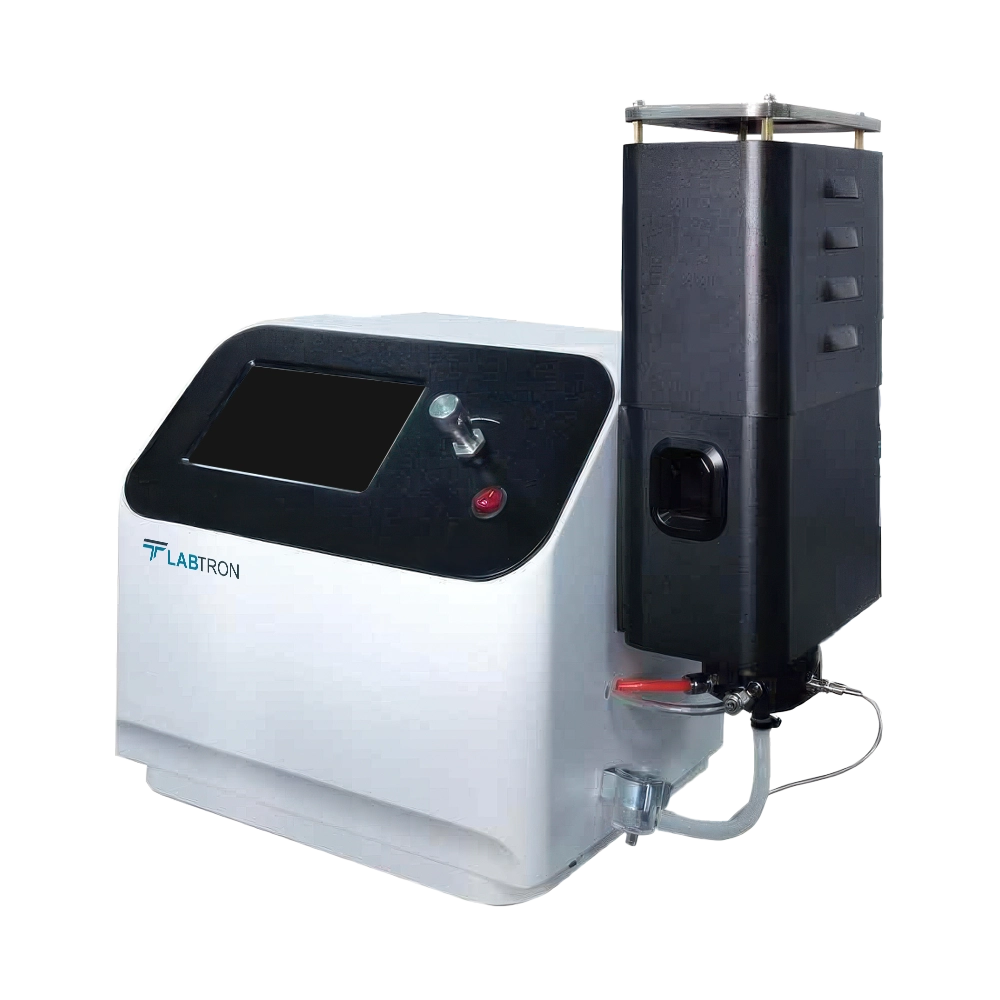

Flame Photometer LFP-B13

Name: Flame Photometer LFP-B13
Brand: Labtron
SKU: LFP-B13
Rating: 4.7 (900 reviews)

Flame Photometer LFP-B13 supports three-element analysis with calcium detection up to 1000 ppm. Its sodium detection limit is ≤0.008 mmol/L, ensuring sensitive and consistent measurement performance. Single point calibration at maximum concentration reduces manual effort and improves result accuracy. The 7-inch capacitive touchscreen display offers clear visuals and user-friendly operation. Our Flame Photometer is ideal for environmental labs and industrial liquid testing applications.

Request Quote

Testing Elements	K, Na, Ca
Channels	3
Display Value	Concentration value / Energy
Measuring Range	K: 0 to 100 ppm Na: 0 to 160 ppm Ca: 0 to 1000 ppm
Detection Limit	K: less than or equal to 0.004 mmol/L Na: less than or equal to 0.008 mmol/L Ca: less than or equal to 0.050 mmol/L
Linearity Error	K: less than or equal to 0.005 mmol/L Na: less than or equal to 0.003 mmol/L Ca: less than or equal to 0.075 mmol/L
Display	7-inch capacitive touchscreen
Response Time	less than 8 s
Aspiration Rate	less than 6 ml/min
Stability	less than or equal to 3% drift within 15 s
Reproducibility	less than or equal to 3%
Calibration Curve	Yes
Printer	Yes
Fuel Supply	LPG
Output	USB port
Power Supply	AC 220V/50Hz or AC 110V/60Hz
Dimension	710 × 380 × 520 mm
Weight	20 kg

Compact for benchtop use
Flame consistency enhancement
High-speed data processing
Reliable detection with stable results
LPG flame ignition system
USB output for easy data management
Fast 8-second response

Our Flame Photometer LFP-B13 is tailored for simultaneous K, Na, and Ca measurement, perfect for soil testing and fertilizer formulation. Its triple-element functionality allows efficient nutrient profiling in agricultural research.

Main unit	1 unit
Drainage tube	1.5 m
Acupuncture needle (0.35×75 mm)	2 pcs
PRV for LPG	1 pc
LPG tube (orange)	2 m
Glass cylinder for flame	1 pc
Chimney	1 pc
Air compressor	1 unit
Observation window lid	1 pc
Binding tie	2 pcs
PU tube for air	5 m
Stainless steel clamp	2 pcs
Thermal printer (Bluetooth)	1 unit
Power cable	1 pc

Download catalog for
Flame Photometer LFP-B13 Catalog

Available Range :

Flame Photometer LFP-A10 : K, Na Flame Photometer LFP-B12 : K, Na, Ba Flame Photometer LFP-A21 : K, Na, Ca Flame Photometer LFP-A20 : K, Na, Li Flame Photometer LFP-A30 : K, Na, Li, Ca Flame Photometer LFP-A40 : K, Na, Li, Ca, Ba
