How does the Flame Photometer ensure consistent and accurate readings?

The Flame Photometer maintains reading accuracy through its built-in calibration curve and low-drift system. It delivers reliable performance even during repeated testing. A stable flame and regulated aspiration rate contribute to reproducible outcomes. Labtron’s design ensures minimal deviation and high consistency for daily lab operations.

Is the Flame Photometer suitable for high-throughput environments?

Our Flame Photometer supports rapid ion detection, making it suitable for labs processing multiple samples per day. The quick response time and dual-channel setup improve efficiency in busy workflows. Its intuitive interface reduces operator time and simplifies data review. The system supports both clinical diagnostics and routine lab testing.

How easy is it to operate and maintain the Flame Photometer?

The Flame Photometer features a user-friendly touchscreen with guided navigation for setup and operation. Daily use is simplified through automated calibration and a built-in printer. Routine maintenance involves cleaning the burner and checking fluid lines. Our design ensures smooth functioning with minimal technical intervention.

Can data be exported from the Flame Photometer?

Yes, the Flame Photometer includes a USB output for transferring data to external systems. Users can also print results instantly using the built-in printer. This makes documentation and result sharing fast and reliable. Labtron’s device supports efficient digital workflows in labs that require consistent data archiving.

How does the Flame Photometer support quality control in testing?

Labtron’s Flame Photometer uses internal calibration and stable signal output to support consistent results. It enables validation before each run to meet quality standards. The system maintains performance even under high sample loads. This helps labs ensure traceable, reliable measurements across various sample types.

What elements can the Flame Photometer detect and how is it used in labs?

The Flame Photometer detects sodium and potassium ions through flame emission. It is commonly used in clinical, agricultural, and water testing labs for measuring electrolyte concentration in liquid samples. The system supports dual-element analysis, helping users save time during routine measurements. Our instrument is ideal for applications requiring quick and reliable elemental quantification.

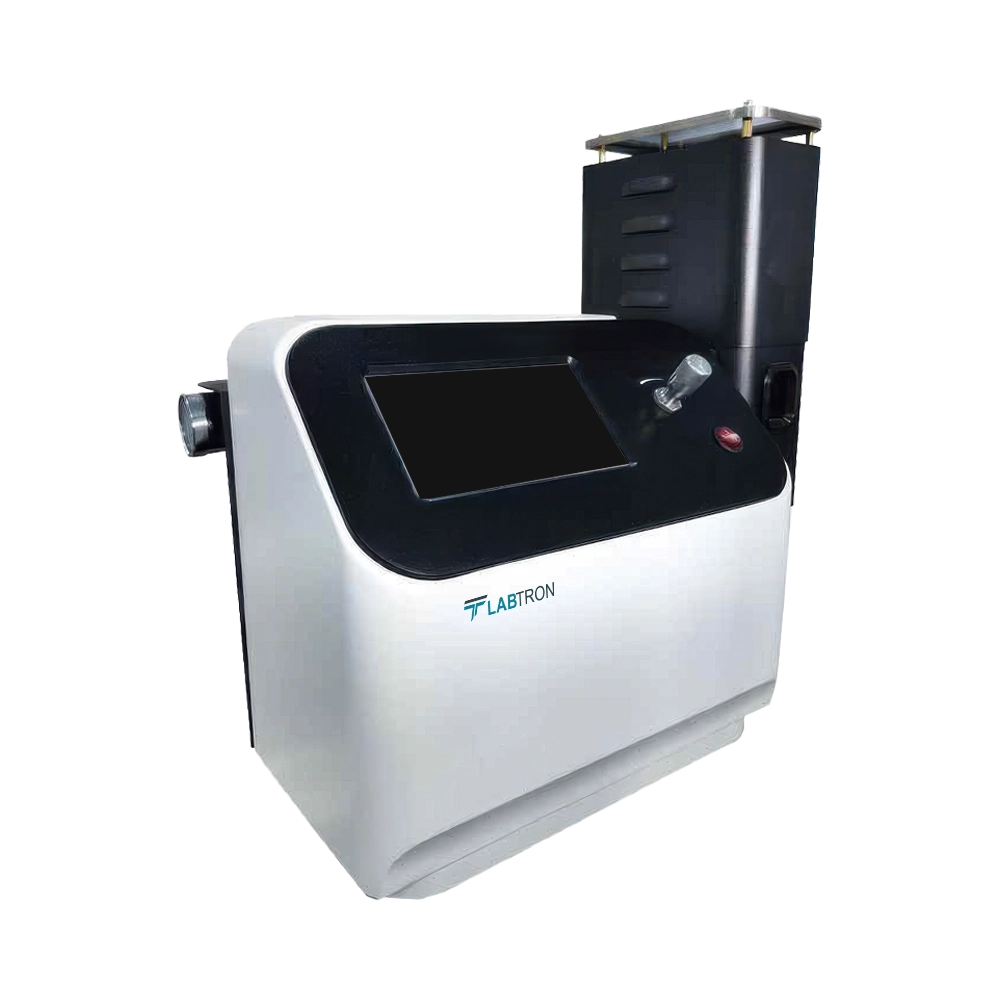

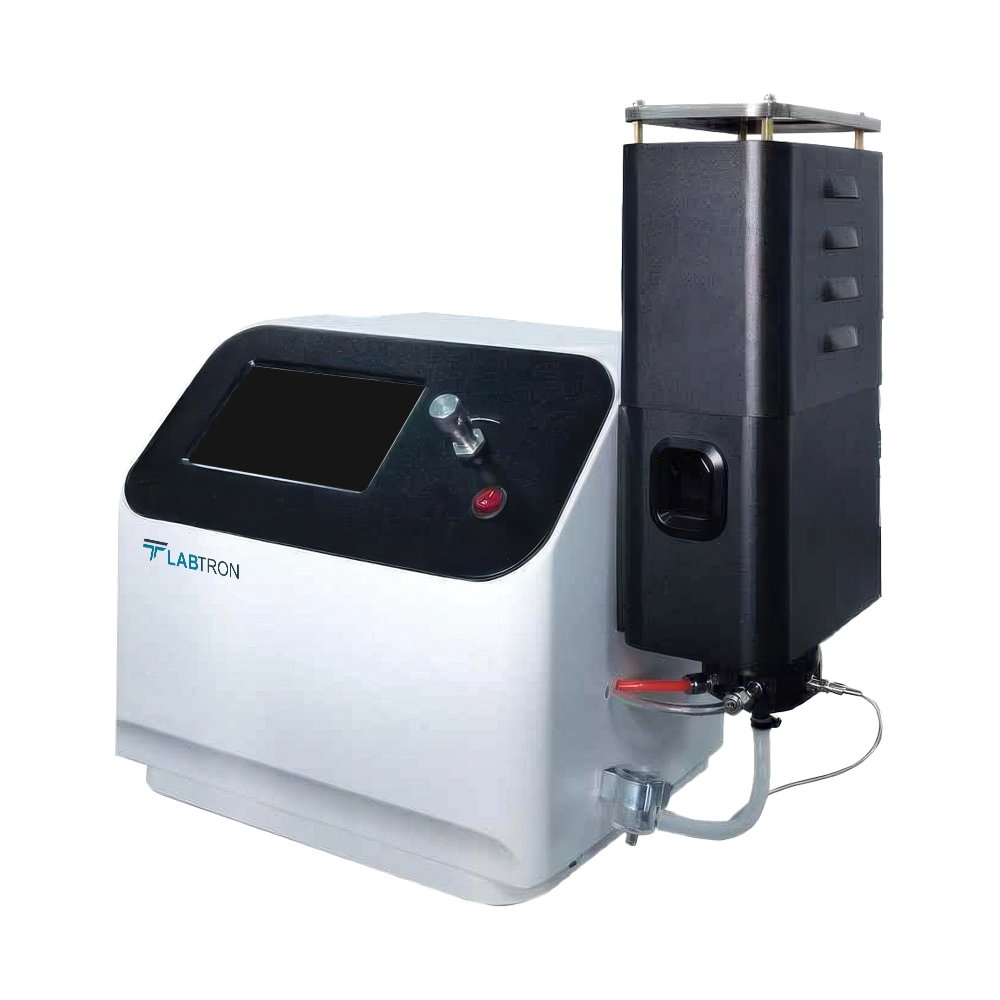

Flame Photometer LFP-B15

Name: Flame Photometer LFP-B15
Brand: Labtron
SKU: LFP-B15
Rating: 4.9 (610 reviews)

Flame Photometer LFP-B15 comes with a compact 2-channel configuration for potassium and sodium detection in routine applications. It detects potassium and sodium within a range of 0 to 100 ppm and 0 to 160 ppm, respectively. The detection limit reaches ≤0.004 mmol/L for potassium and ≤0.008 mmol/L for sodium. A built-in printer and USB output simplify data access and result management. Ideal for clinical, environmental, and academic labs conducting fast and consistent ion analysis.

Request Quote

Testing Elements	K, Na
Channels	2
Display Value	Concentration value / Energy
Measuring Range	K: 0 to 100, Na: 0 to 160 ppm
Detection Limit	K: less than or equal to 0.004, Na: less than or equal to 0.008 mmol/L
Linearity Error	K: less than or equal to 0.005, Na: less than or equal to 0.03 mmol/L
Display	7-inch capacitive touchscreen
Response Time	less than 8 s
Aspiration Rate	less than 6 ml/min
Stability	less than or equal to 3% drift within 15 s
Reproducibility	less than or equal to 3%
Calibration Curve	Yes
Printer	Yes
Fuel Supply	LPG
Output	USB port
Power Supply	AC 220V/50Hz or AC 110V/60Hz
Dimensions	710×380×520mm
Net Weight	20 kg

Dual-element detection
Automatic sample correlation calculation
Fast results with low drift
Compact LPG-based operation
Touch screen control with calibration
Corrosion-resistant body design
Integrated high-performance aspirator

Our Flame Photometer LFP-B15 is ideal for detecting potassium and sodium in agricultural testing, food laboratories, and academic research labs. It ensures stable flame readings and reliable low-concentration ion measurement for routine lab workflows.

Main unit	1 unit
Drainage tube	1.5 m
Acupuncture needle (0.35×75 mm)	2 pcs
PRV for LPG	1 pc
LPG tube (orange)	2 m
Glass cylinder for flame	1 pc
Chimney	1 pc
Air compressor	1 unit
Observation window lid	1 pc
Binding tie	2 pcs
PU tube for air	5 m
Stainless steel clamp	2 pcs
Thermal printer (Bluetooth)	1 unit
Power cable	1 pc

Download catalog for
Flame Photometer LFP-B15 Catalog

Available Range :

Flame Photometer LFP-A10 : K, Na Flame Photometer LFP-B12 : K, Na, Ba Flame Photometer LFP-A21 : K, Na, Ca Flame Photometer LFP-A20 : K, Na, Li Flame Photometer LFP-A30 : K, Na, Li, Ca Flame Photometer LFP-A40 : K, Na, Li, Ca, Ba

Flame Photometer LFP-B20

Testing Elements : K, Na, Li, Ca
Data Range : 0.000 to 999.9
Channel Quantity : 4
Range : K: 40 to 100 ppmNa: 0 to 160 ppmLi: 0 to 100 ppmCa: 1 to 1000 ppm

Compare Remove

Flame Photometer LFP-B12

Testing Elements : K, Na, Ba
Channels : 3
Display Value : Concentration value / Energy
Measuring Range : K: 0 to 100 ppmNa: 0 to 160 ppmBa: 0 to 3000 ppm

Compare Remove

Flame Photometer LFP-B21

Testing Elements : K, Na, Li
Data Range : 0.000 to 999.9
Channel Quantity : 3
Range : K: 40 to 100 ppm Na: 0 to 160 ppm Li: 0 to 100 ppm

Compare Remove

Flame Photometer LFP-A30

Testing Elements : K, Na, Li, Ca
No of Channels : 4
Display Value : Concentration value
Data Range : 0.000 to 999.9

Compare Remove

Flame Photometer LFP-A41

Testing Elements : K, Na, Li, Ca, Ba
Sample Volume : < 3 ml/min
Temperature Range : 10 to 35 ℃
Relative Humidity : ≤ 85%

Compare Remove

Flame Photometer LFP-B22

Testing Elements : K, Na
Data Range : 0.000 to 999.9
Channel : 2
Range : K: 40 to 100 ppmNa: 0 to 160 ppm

Compare Remove

Flame Photometer LFP-B10

Testing Elements : K, Na, Li, Ca, Ba
Channels : 5
Display Value : Concentration value / Energy
Measuring Range : K: 0 to 100 ppmNa: 0 to 160 ppmLi: 0 to 100 ppmCa: 0 to 1000 ppmBa: 0 to 3000 ppm

Compare Remove

Flame Photometer LFP-B14

Testing Elements : K, Na, Li
Channels : 3
Display Value : Concentration value / Energy
Measuring Range : K: 0 to 100 ppmNa: 0 to 160 ppmLi: 0 to 100 ppm

Compare Remove
