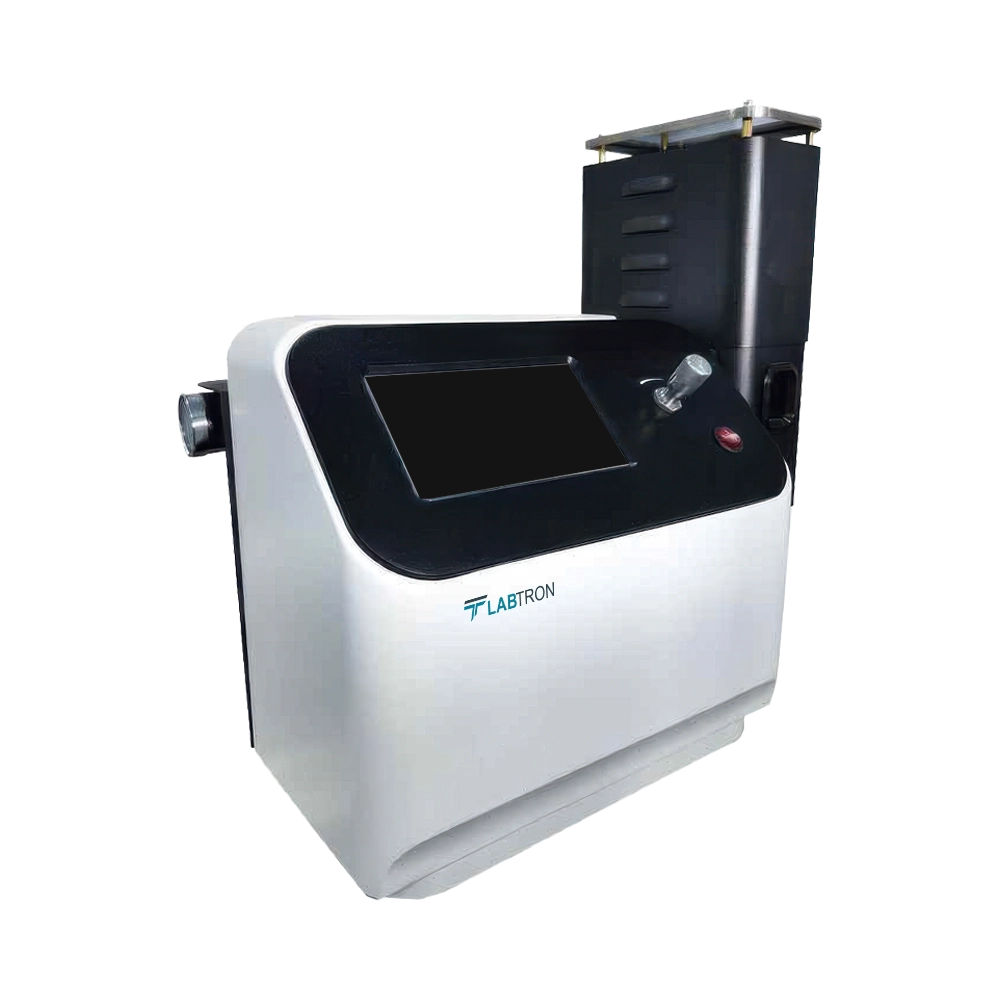

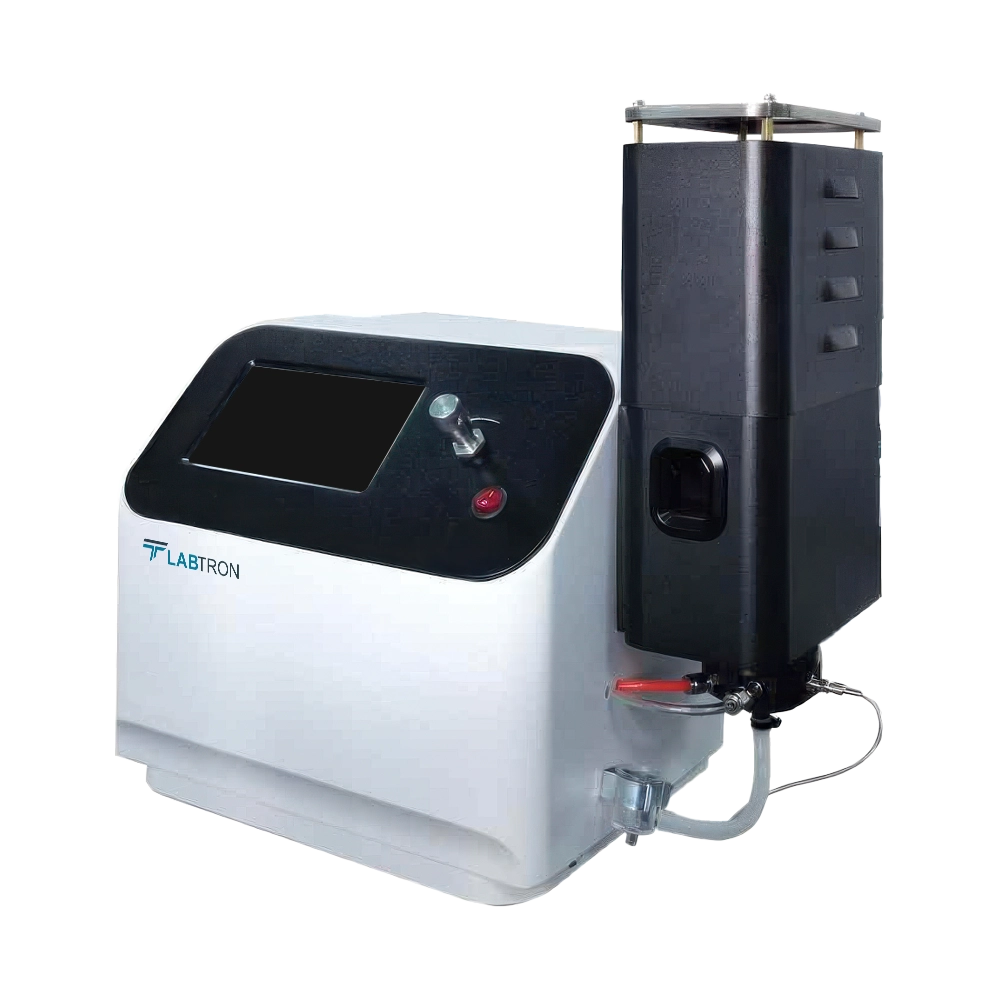

Flame Photometer LFP-B14

Flame Photometer LFP-B14

Flame Photometer LFP-B14 analyzes lithium up to 100 ppm with support for three-element detection. It features a response time of less than 8 seconds, enhancing elemental analysis in routine workflows. Stability is ensured with a drift of ≤3% within 15 seconds during measurements. An integrated LPG burner and built-in standard air filter maintain consistent flame quality and safe operation. This Flame Photometer is suitable for testing in environmental, industrial, and agricultural laboratories.

Flame Photometer LFP-B14
Flame Photometer LFP-B14
Flame Photometer LFP-B14
Request Quote
Testing Elements K, Na, Li
Channels 3
Display Value Concentration value / Energy
Measuring Range K: 0 to 100 ppm
Na: 0 to 160 ppm
Li: 0 to 100 ppm
Detection Limit K: less than or equal to 0.004 mmol/L
Na: less than or equal to 0.008 mmol/L
Li: less than or equal to 0.015 mmol/L
Linearity Error K: less than or equal to 0.005 mmol/L
Na: less than or equal to 0.003 mmol/L
Li: less than or equal to 0.021 mmol/L
Display 7-inch capacitive touchscreen
Response Time less than 8 s
Aspiration Rate less than 6 ml/min
Stability less than or equal to 3% drift within 15 s
Reproducibility less than or equal to 3%
Calibration Curve Yes
Printer Yes
Fuel Supply LPG
Output USB port
Power Supply AC 220V/50Hz or AC 110V/60Hz
Dimensions 710 × 380 × 520 mm
Net Weight 20 kg
  • Standard air compressor support
  • Flame optimization for control
  • Calibration curve functionality
  • Automatic correlation calculation
  • Touchscreen interface with USB
  • Built-in thermal printer

Our Flame Photometer LFP-B14 is optimized for labs focused on alkali metal analysis, offering precise readings of K, Na, and Li. It’s ideal for biochemical labs, especially those studying lithium-based pharmaceutical compounds.

Main unit1 unit
Drainage tube1.5 m
Acupuncture needle (0.35×75 mm)2 pcs
PRV for LPG1 pc
LPG tube (orange)2 m
Glass cylinder for flame1 pc
Chimney1 pc
Air compressor1 unit
Observation window lid1 pc
Binding tie2 pcs
PU tube for air5 m
Stainless steel clamp2 pcs
Thermal printer (Bluetooth)1 unit
Power cable1 pc

Models of Flame Photometer

Labtron Flame Photometers serve to measure the amount of metal ions in test materials, including K, Na, Li, Ca, and Ba. This has USB ports for data transfer in addition to a color touchscreen display. They have air compressors to maintain steady flame conditions and flameout prevention systems. These provide the option to choose various concentration units and enable the pre-selection of frame sizes. We provide photometers that compute test sample correlation automatically. Our flame photometers are perfect for accurate and dependable metal ion analysis because of their sophisticated features and user-friendly design.

Flame Photometer LFP-B22

Flame Photometer LFP-B22

  • Testing Elements : K, Na
  • Data Range : 0.000 to 999.9
  • Channel : 2
  • Range : K: 40 to 100 ppmNa: 0 to 160 ppm
Flame Photometer LFP-B10

Flame Photometer LFP-B10

  • Testing Elements : K, Na, Li, Ca, Ba
  • Channels : 5
  • Display Value : Concentration value / Energy
  • Measuring Range : K: 0 to 100 ppmNa: 0 to 160 ppmLi: 0 to 100 ppmCa: 0 to 1000 ppmBa: 0 to 3000 ppm
Flame Photometer LFP-A11

Flame Photometer LFP-A11

  • Testing Elements : K, Na
  • No of Channels : 2
  • Display Value : Concentration value
  • Data Range : 000.0 to 999.9
Flame Photometer LFP-A41
Flame Photometer LFP-A41
  • Testing Elements : K, Na, Li, Ca, Ba
  • Sample Volume : < 3 ml/min
  • Temperature Range : 10 to 35 ℃
  • Relative Humidity : ≤ 85%
Flame Photometer LFP-A10
Flame Photometer LFP-A10
  • Testing Elements : K, Na
  • No of Channels : 2
  • Display Value : Optical Power
  • Data Range : 0000 to 9999
Flame Photometer LFP-A30

Flame Photometer LFP-A30

  • Testing Elements : K, Na, Li, Ca
  • No of Channels : 4
  • Display Value : Concentration value
  • Data Range : 0.000 to 999.9
Flame Photometer LFP-A21

Flame Photometer LFP-A21

  • Testing Elements : K, Na, Ca
  • No of Channels : 3
  • Display Value : Concentration value
  • Data Range : 0.000 to 999.9
Flame Photometer LFP-B21

Flame Photometer LFP-B21

  • Testing Elements : K, Na, Li
  • Data Range : 0.000 to 999.9
  • Channel Quantity : 3
  • Range : K: 40 to 100 ppm Na: 0 to 160 ppm Li: 0 to 100 ppm

Flame Photometer LFP-B14 FAQ's
  • The Flame Photometer can measure lithium, sodium, and potassium simultaneously, making it highly efficient for multi-element analysis. This capability allows for comprehensive testing of samples without the need for multiple instruments or lengthy procedures. The ability to analyze these three key elements is essential for various applications in research, environmental, and industrial labs. Its simultaneous detection reduces testing time, making it ideal for high-throughput environments.

  • Labtron’s Flame Photometer is equipped with a standard air filter and LPG burner to maintain a stable flame throughout operation. The internal system regulates fuel and airflow to prevent flameouts and support continuous testing. This built-in safety design makes the instrument suitable for extended use in routine labs. The setup also ensures consistent combustion conditions for accurate results.

  • The Flame Photometer is designed with built-in calibration curve functionality to streamline the calibration process. Users can easily follow on-screen prompts to set up accurate calibration points based on sample requirements. The system maintains measurement reliability across different testing batches. This makes it highly suitable for labs requiring consistent and repeatable data output.

  • Our Flame Photometer comes equipped with a USB port for quick and easy data transfer. This allows users to export test results directly to external drives or connected systems for reporting and archival. It supports traceable workflows and simplifies lab documentation. The export feature is especially useful in regulated or multi-user environments.

  • Regular maintenance is essential to ensure the longevity and accuracy of the Flame Photometer. The device should be inspected periodically to check the LPG burner and air filter, which are key to maintaining consistent flame quality. Cleaning the aspiration system is also recommended to prevent blockages and ensure accurate sample introduction. Routine checks and upkeep help avoid performance degradation, extend the life of the equipment, and reduce downtime in the laboratory.

  • Yes, this Flame Photometer is well-suited for agricultural testing, including soil and water analysis. It accurately measures key elements like sodium, potassium, and lithium, which are crucial for assessing soil fertility and plant health. The instrument can help agricultural scientists determine nutrient levels in irrigation water and soil samples, ensuring effective crop management. It plays a crucial role in ensuring sustainable farming practices and improving crop yield quality.
