Grinding and Polishing Machine LGPM-A12

Name: Grinding and Polishing Machine LGPM-A12
Brand: Labtron
SKU: LGPM-A12
Rating: 4.8 (617 reviews)

Grinding and Polishing Machine LGPM-A12 is equipped with a 254 mm working disc with a magnetic transfer system. It incorporates a variable disc speed of 100 to 1000 rpm, supporting both positive and negative rotation. The grinding head achieves speeds up to 100 rpm with a loading range of 30 to 200 N. Its center-load mechanism ensures even pressure distribution for consistent results. Independently adjustable parameters deliver precise metallographic sample preparation for research and industrial laboratories.

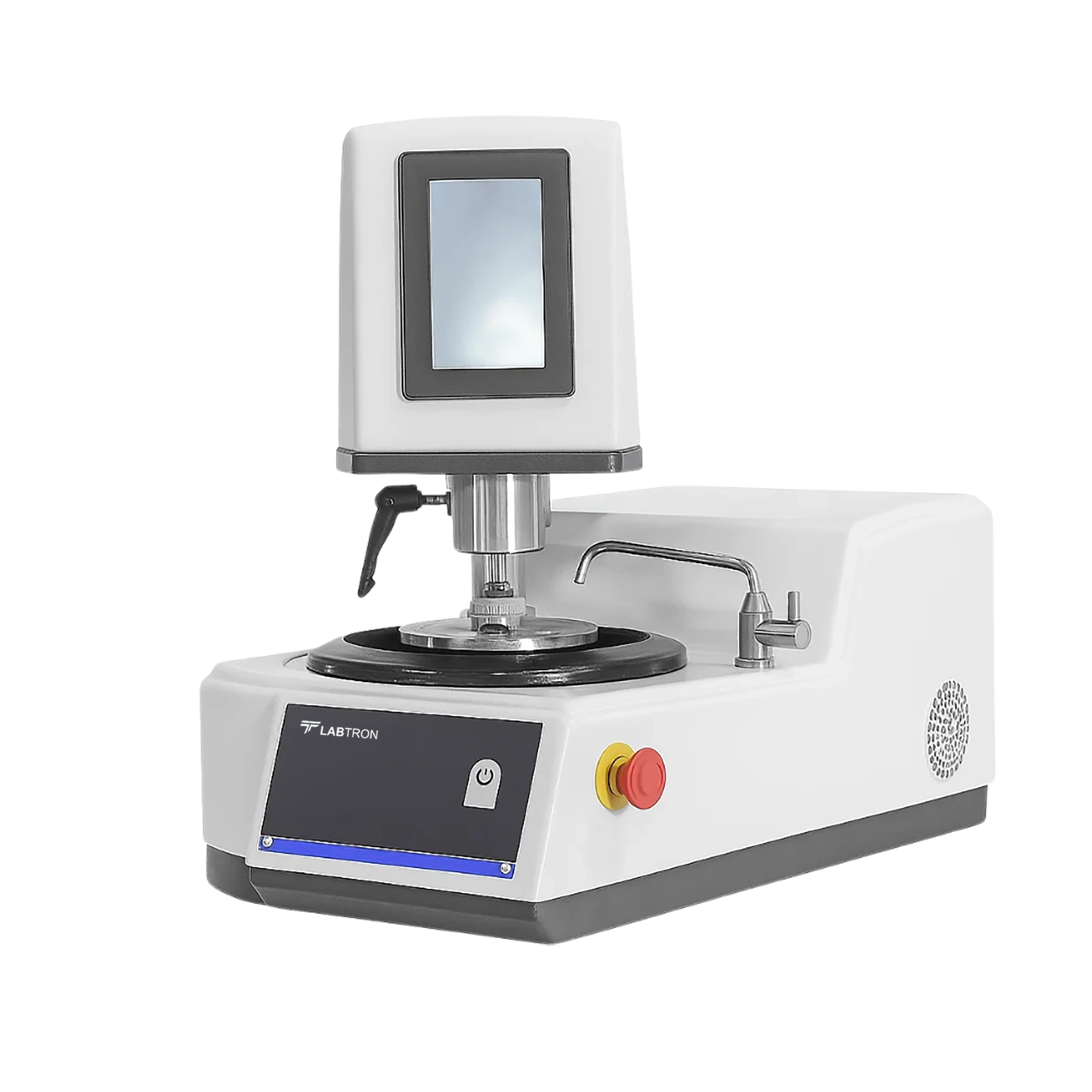

Grinding and Polishing Machine LGPM-A12-01

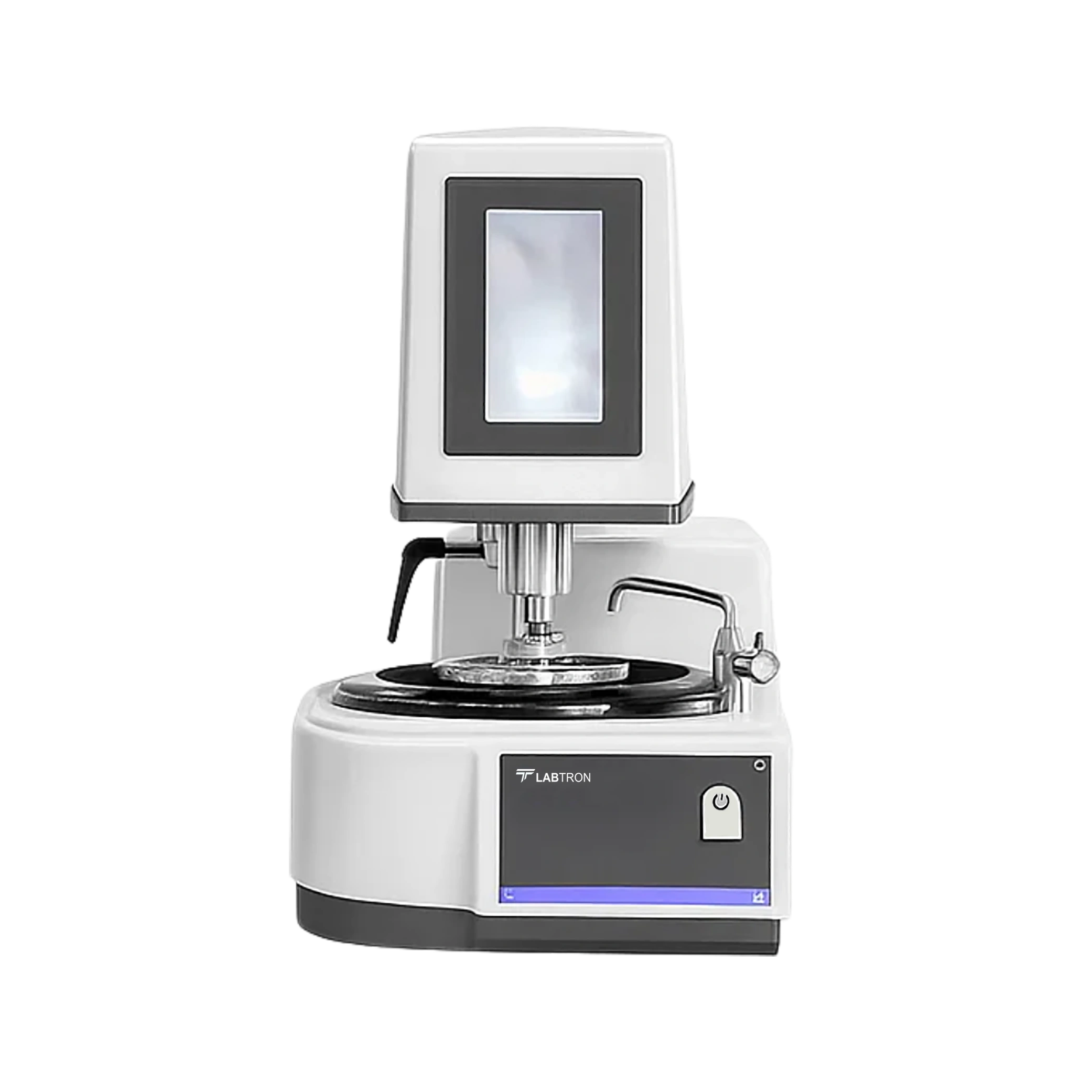

Grinding and Polishing Machine LGPM-A12-02

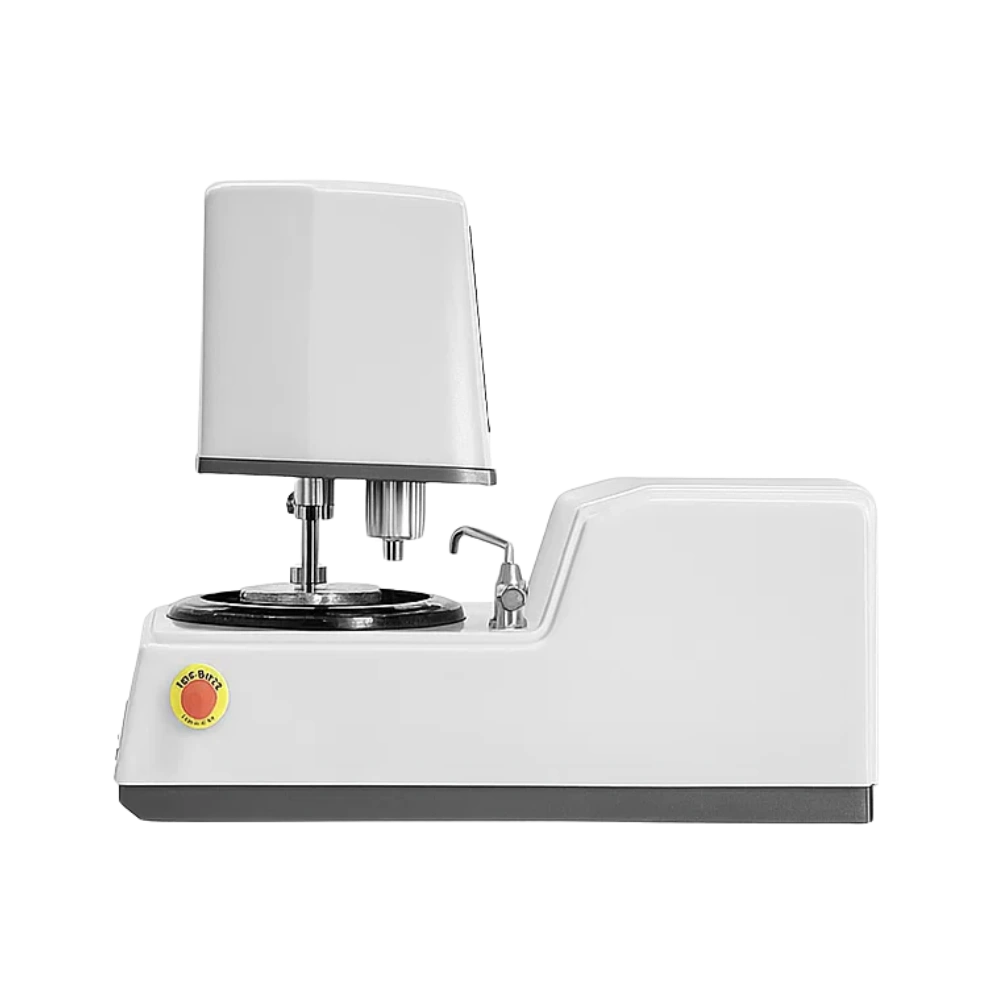

Grinding and Polishing Machine LGPM-A12-03

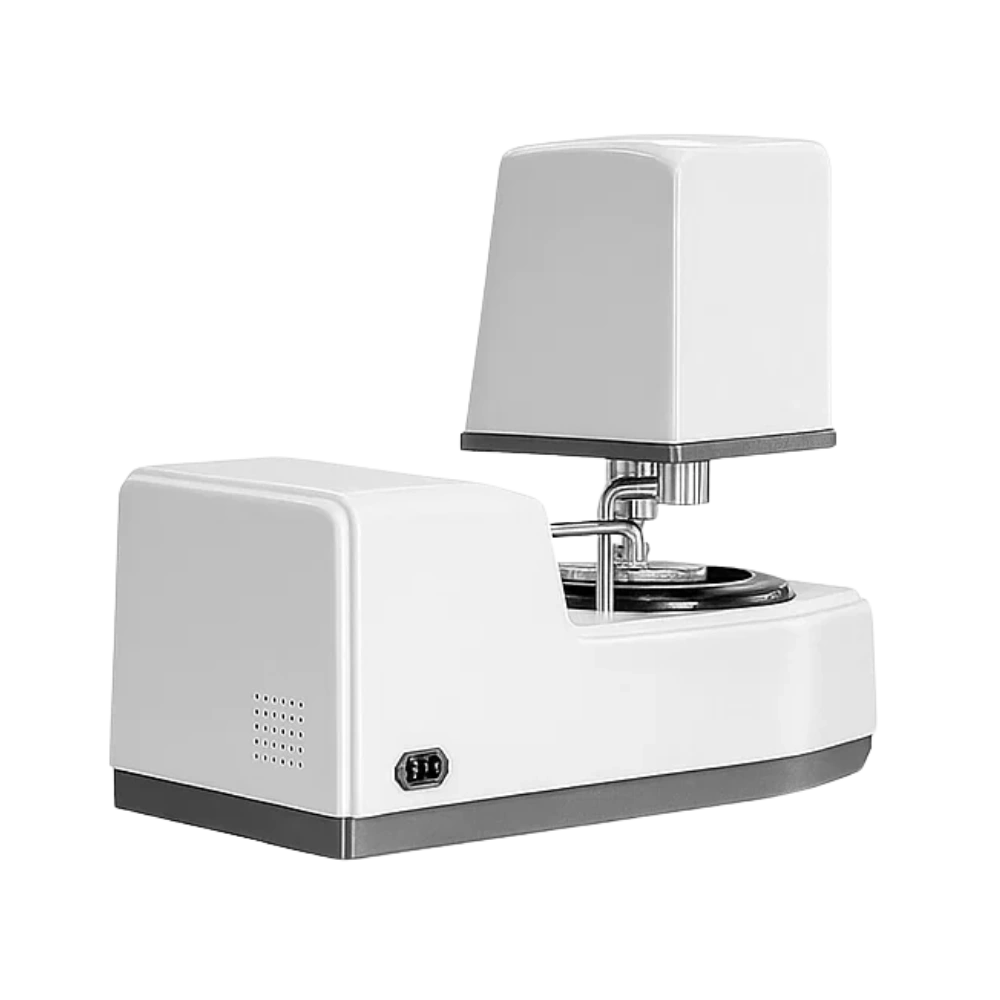

Grinding and Polishing Machine LGPM-A12-04

Request Quote

Station	Single plate
Working Disc Diameter	Standard 254 mm
Working Disc Speed	100 to1000 rpm
Grinding Head Speed	0 to100 rpm
Sample Preparation Time Range	0 to 9999 s
Loading Range	30 to 200 N
Loading Mode	Centre load
Sample Gripper	Standard 30 mm six (optional 40 to 50 mm four)
Power Consumption	0.75 kW
Power Supply	AC 220 V, 50 Hz
Dimension	760 × 470 × 700 mm
Packaging Dimension	760 × 730 × 700 mm
Net Weight	90 kg
Gross Weight	120 kg

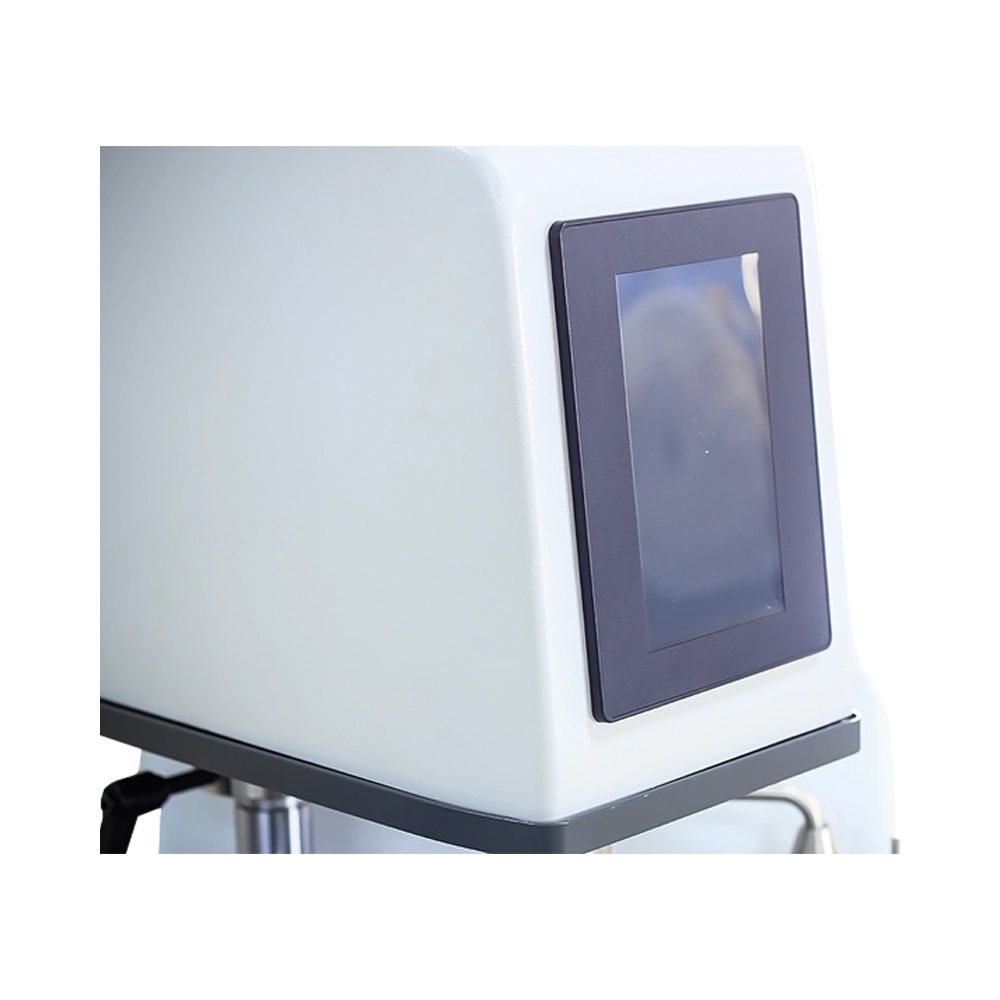

Touch screen interface for easy operation
Adjustable loading force for flexibility
Solenoid valve for water control
Replaceable magnetic disk for versatility
High precision with low noise

Our Grinding and Polishing Machine LGPM-A12 is ideal for preparing metallographic samples, providing precise surface finishes for materials like steel and iron. It is perfect for material research and quality control in laboratories.

Name	Quantity
Water proofing	1
Data adapter cables	1
Mounting table	1
Sand paper with glue (250)	10 sheets
Polished cloth velvet with back glue	1 sheet
Anti-stick dish (250mm)	1 sheet
Buffing Lubricant coolant Blue 200ml	1 bottle
Gripper	1 set
Power adapter cable	A root
Stylus pen	1
Sand paper with glue (250) 1000	10 sheets
Diamond suspended polishing liquid 6 microns 200ml	1 bottle
With magnetic work plate (250mm)	1 sheet
Anti-stick tray pry bar	1

Download catalog for
Grinding and Polishing Machine LGPM-A12 Catalog

Grinding and Polishing Machine LGPM-A12 | Station Single plate | Working Disc Diameter Standard 254 mm

Grinding and Polishing Machine LGPM-A12 | Touch screen interface for easy operation | Adjustable loading force for flexibility

Models of Grinding and Polishing Machine

Labtron Grinding and Polishing Machine offers modes for both grinding and polishing, with options for coarse and fine abrasives. They feature variable speed settings to adjust the rotation of the abrasive wheels. Their advanced control systems ensure precise operation, supported by digital displays and sensors for accuracy. A servo motor maintains high torque at all speeds for consistent performance of our grinding and polishing machine.
