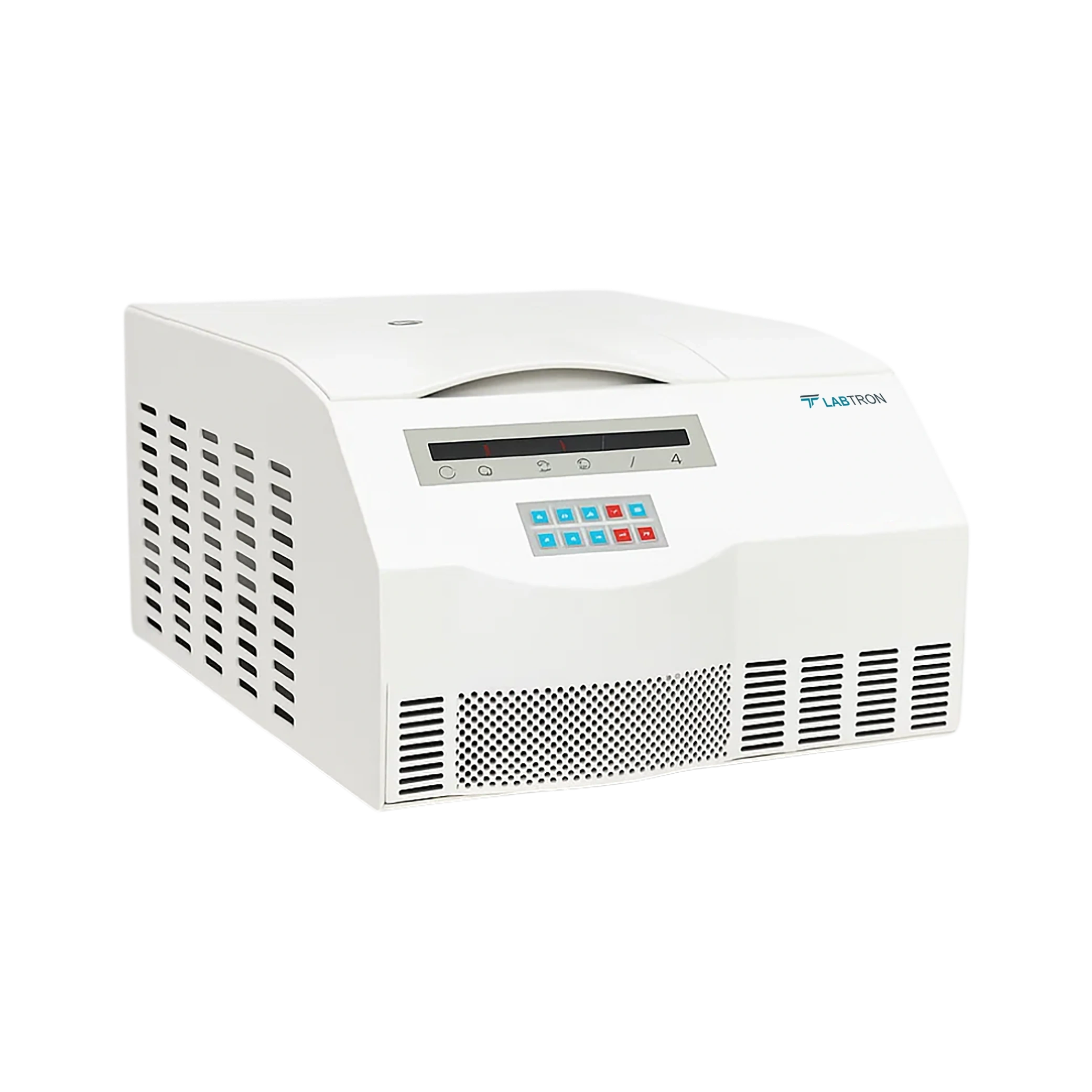

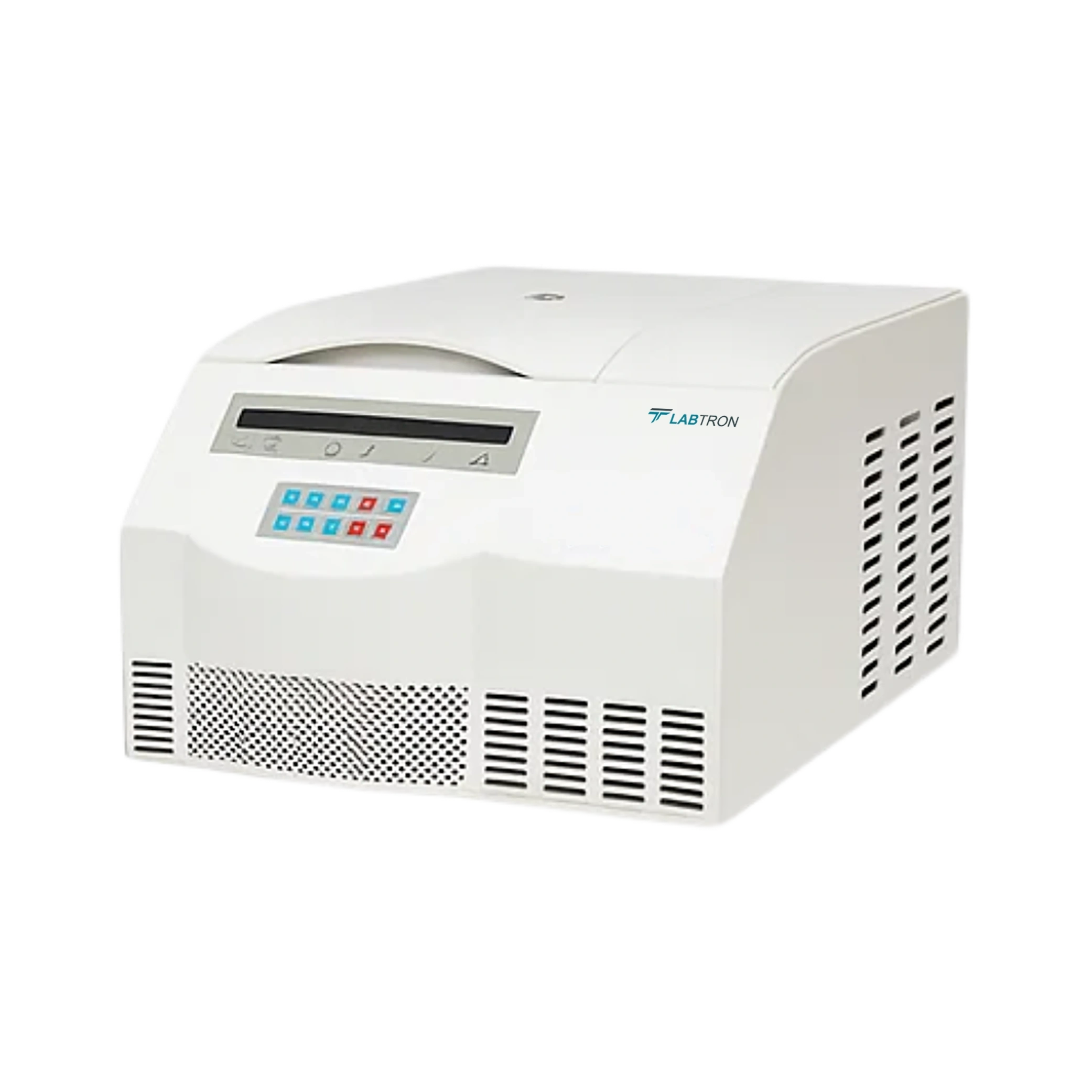

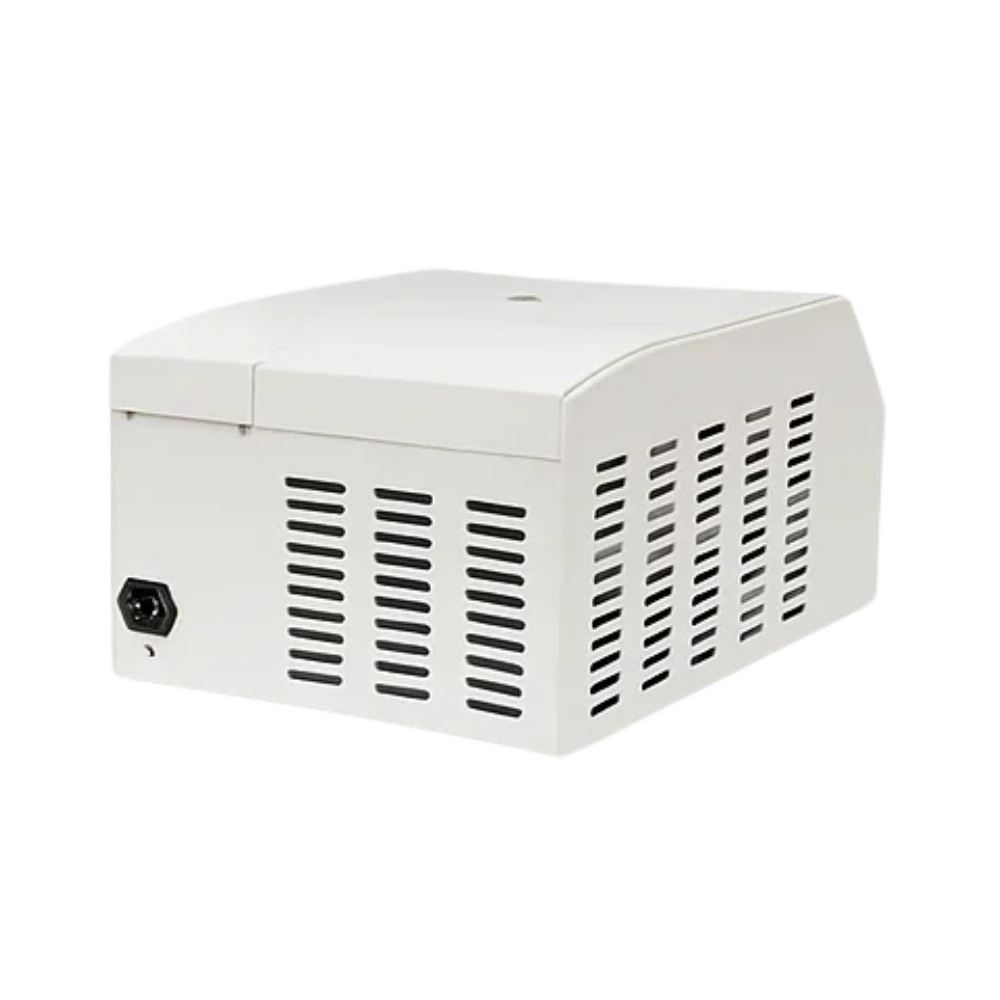

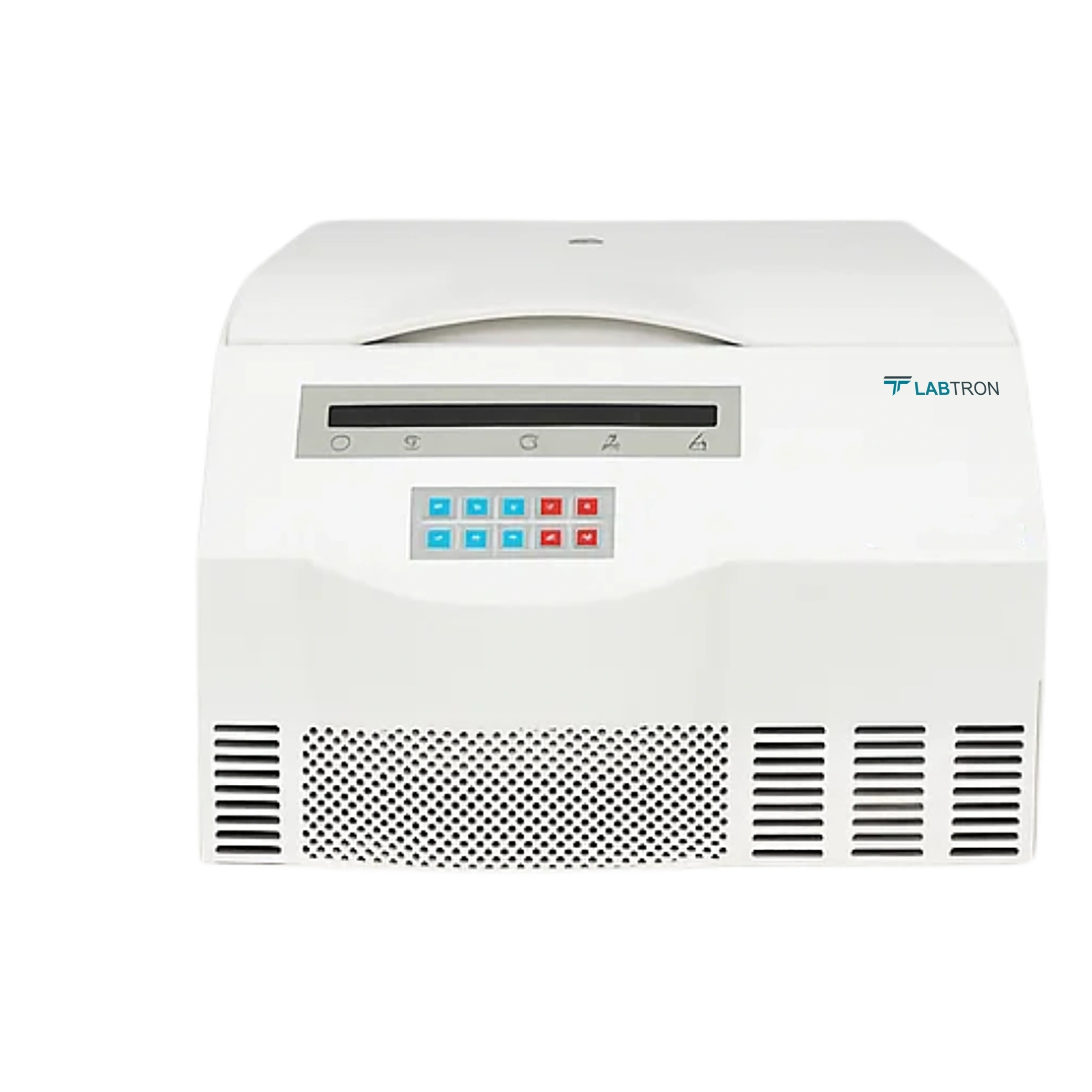

High Speed Centrifuge LHS-A26

Name: High Speed Centrifuge LHS-A26
Brand: Labtron
SKU: LHS-A26
Rating: 4.9 (934 reviews)

High Speed Centrifuge LHS-A26 is capable of reaching very high speeds up to 18500 RPM. It is integrated with a refrigeration system that maintains the temperature of samples between -20℃ to 40℃. Features 10 types of acceleration and deceleration options for pre-cooling. This unit offers over 10 rotors and 10 programmable settings. Our compact design centrifuge performs high-speed operation with low noise and minimal vibration.

Request Quote

Max. Speed	18500 rpm
Max. RCF	23990×g
Max. Capacity	4×250ml
Time Range	0 to 99h59min
RPM/RCF Convert	Yes
Noise	≤ 58 dB
Temperature	-20℃ to 40℃
Acc/Dec	10 Kinds
Speed Accuracy	±20r/min
Temperature Accuracy	±1℃
Power Supply	AC 220V/110V 50HZ/60HZ
Dimension (W × D × H)	668 × 700 × 420 mm
Weight	125 Kg

LED or LCD screen display screen
Speed, time, and temperature parameters display
Brushless frequency motor with high torque
Maintenance-free with no powder pollution
Equipped with imbalance and over-speed sensors
Made from high-quality steel for enhanced safety

Our High-Speed Centrifuge is widely used in laboratories, chemistry fields, hospitals, and more.

Rotor Type	Max. Speed	Max Volume	Max. RCF
Swing Rotor 01 (Round bucket)	4000 rpm	4×250 ml	2880 ×g
Swing out rotor 01	4000 rpm	4×16×7 ml	2860 ×g
Swing out rotor 02	4000 rpm	4×16×5 ml	2470 ×g
Swing out rotor 03	4000 rpm	4×13×10 ml	2830 ×g
Microplate rotor 01 (frame type)	4000 rpm	2×3×96 hole	2310 ×g
Microplate rotor 02 (box-type)	4000 rpm	2×3×96 hole	2270 ×g
Swing out rotor 04	5000 rpm	4×1×50 ml	4730 ×g
Swing out rotor 05	5000 rpm	4×1×100 ml	4730 ×g
Swing out rotor 06	4000 rpm	4×2×100 ml	3020 ×g
Swing out rotor 07	4000 rpm	4×2×50 ml	3020 ×g
Swing out rotor 08	4000 rpm	4×4×15 ml	3020 ×g
Swing out rotor 09	4000 rpm	4×6×15 ml	3020 ×g
Swing out rotor 10	4000 rpm	4×4×10/7 ml	2770 ×g
Swing out rotor 11	4000 rpm	4×4×5ml vacuum tube adapter	2360 ×g
Swing out rotor 12	4000 rpm	4×6×10/7 ml	2770 ×g
Swing out rotor 13	4000 rpm	4×6×5ml vacuum tube adapter	2360 ×g
Swing out rotor 14	4000 rpm	4×8×10/7 ml	2770 ×g
Swing out rotor 15	4000 rpm	4×8×5ml vacuum tube adapter	2360 ×g
Swing out rotor 16	4000 rpm	4×12×5 ml vacuum tube	2480 ×g
Swing out rotor 17	4000 rpm	4×12×7 ml vacuum tube	2760 ×g
Swing out rotor 18	4000 rpm	4 × 10 × 10ml vacuum tube	2880 ×g
Fixed Rotor 01	14000 rpm	4×8 PCR	12070 ×g
Fixed Rotor 02	13000 rpm	6×8 PCR	16080 ×g
Fixed Rotor 03	14000 rpm	8×8 PCR	13390 ×g
Fixed Rotor 04	13000 rpm	12×8 PCR	17220 ×g
Fixed Rotor 05	14000 rpm	40×0.5 ml	19960 ×g
Fixed Rotor 06	18500 rpm	12×1.5 ml	23990 ×g
Fixed Rotor 07	15000 rpm	24×1.5 ml	20600 ×g
Fixed Rotor 08	13500 rpm	30×1.5 ml	19340 ×g
Fixed Rotor 09	11000 rpm	48×1.5 ml	12840 ×g
Fixed Rotor 10	15000 rpm	16×5 ml	19350 ×g
Fixed Rotor 11	14000 rpm	6×10 ml	16460 ×g
Fixed Rotor 12	13000 rpm	12×10ml	17030 ×g
Fixed Rotor 13	11000 rpm	16×10ml	13950 ×g
Fixed Rotor 14	11000 rpm	8×15ml	12730 ×g
Fixed Rotor 15	9000 rpm	12×15ml	9590 ×g
Fixed Rotor 16	5000 rpm	24×15ml	3500 ×g
Fixed Rotor 17	5000 rpm	30×15ml	3830 ×g
Fixed Rotor 18	12000 rpm	6×30ml	14000 ×g
Fixed Rotor 19	12000 rpm	6×50ml(conical)	16050 ×g
Fixed Rotor 20	12000 rpm	6×50ml(round)	15960 ×g
Fixed Rotor 21	5000 rpm	12×50ml	3860 ×g
Fixed Rotor 22	11000 rpm	4×85ml	13560 ×g
Fixed Rotor 23	10000 rpm	4×100ml	10310 ×g
Fixed Rotor 24	8000 rpm	6×100ml	7280 ×g
Fixed Rotor 25	12000 rpm	24 capillaries	15800 ×g
Swing Rotor 26	15000 rpm	4×5ml	19920 ×g
Vertical Rotor 01	16000 rpm	16×5ml	16450 ×g
Vertical Rotor 02	14000 rpm	8×30ml	19750 ×g

Download catalog for
High Speed Centrifuge LHS-A26 Catalog

Download manual for
High Speed Centrifuge LHS-A26 Manual

Available Range :

High Speed Centrifuge LHS-A10 : 12000 rpm High Speed Centrifuge LHS-A20 : 16000 rpm High Speed Centrifuge LHS-A23 : 18500 rpm High Speed Centrifuge LHS-C10 : 20000rpm High Speed Centrifuge LHS-B10 : 21000 rpm

Models of High Speed Centrifuge

Labtron High Speed Centrifuge is specialized to separate components of mixture based on density through rapid rotation. They operate by spinning samples at high speed of 12000rpm to 21000rpm generating significant centrifugal forces. Their tubes are designed to withstand elevated g-forces without breaking or leaking. They incorporate advanced cooling systems to maintain optimal temperatures during centrifugation processes. Our High Speed Centrifuge is essential in medical laboratories for blood separation and biopharmaceutical companies for product purification.
