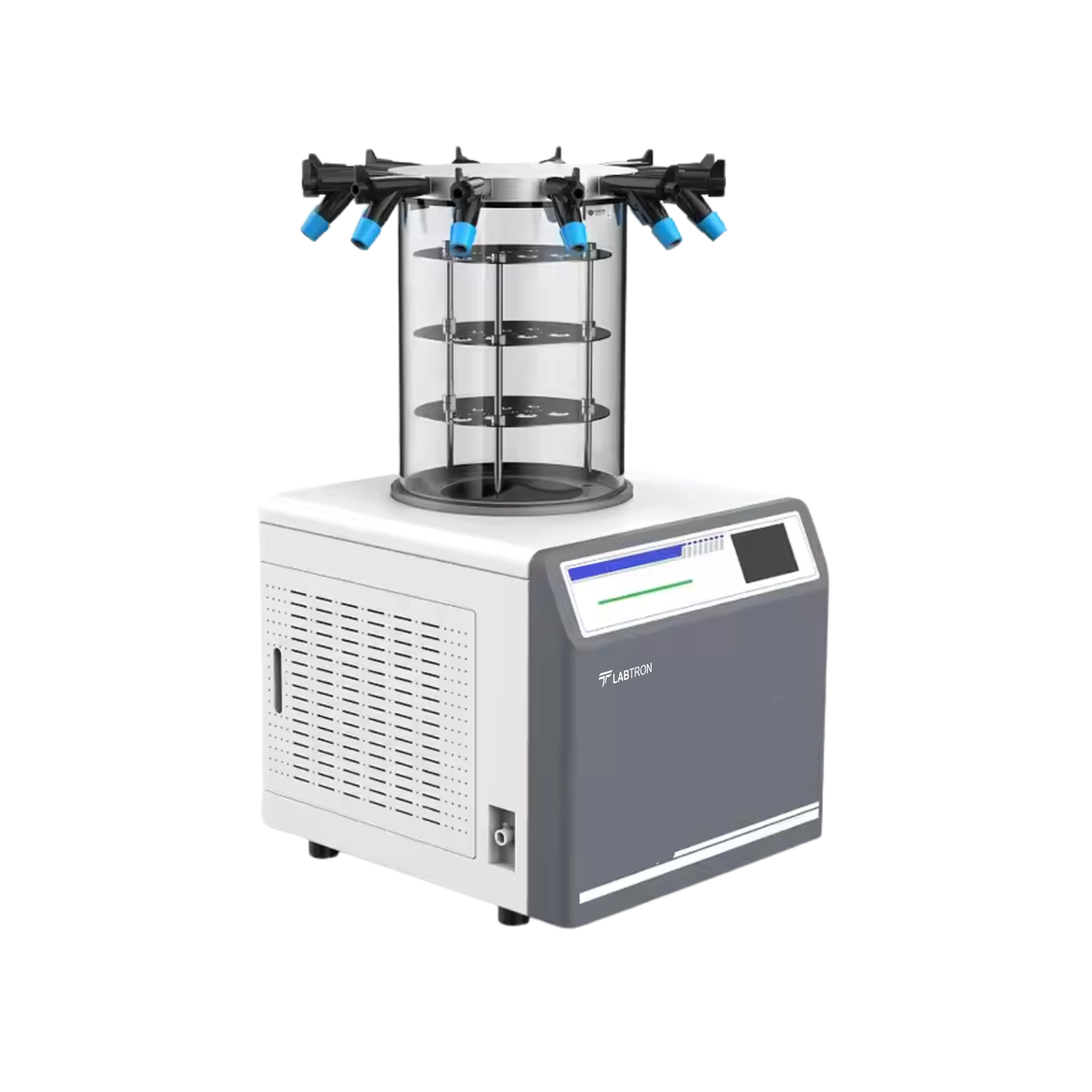

Bench-top Manifold Freeze Dryer LBFD-D14 is equipped with a condenser that maintains a temperature of -90°C and supports 6 kg of ice. It has a 12-port manifold, allowing simultaneous processing of multiple samples, which increases productivity. The interface is enhanced by a color-coded numeric status display, which provides real-time feedback. Additionally, it is equipped with a cold trap defrost function, which allows for quick and convenient removal of accumulated ice. Our freeze dryer is highly reliable and efficient for pharmaceutical and chemical research applications.
| Condenser Temperature | - 90℃ |
| Condenser Capacity | 6 kg |
| Cold Trap Volume | 10 L |
| Freeze-Dried Chamber Type | Acrylic chamber with aluminum upper cover and external valve (12 ports) |
| Vacuum Level | 5×10⁻³ mbar |
| Pumping Capacity | 8 m³/h |
| Sample Shelf Diameter | Φ 260 mm |
| Shelf Area (Single Layer) | 0.55 m² |
| Shelf Layers (Optional) | 3 to 10 layers |
| External Valve | 12 pieces |
| Anti-Corrosive Treatment | PTFE-coated trap and coil (standard) |
| Vacuum Pump Pipe Connection | Single stainless steel flexible pipe |
| Power Consumption | 1500 W |
| Voltage | 220 V / 50 Hz |
| Dimensions | 510 × 570 × 500 mm |
| Weight | 65 kg |
One-click operation
Optional co-crystallization point detection device
Optional end-point judgment detection system
Maintenance alerts
Operational flexibility
User-friendly interface
Our Bench-top Manifold Freeze Dryer LBFD-D14 is ideal for lyophilizing pharmaceuticals, biological samples, and heat-sensitive materials. It is especially suitable for processing organic solvents and corrosive substances in research, medical, and industrial labs.
Two-stage Rotary Vane Pump I (Ultimate Vacuum: 5 × 10-3 mbar, Pumping Rate: 8 m3/h) × 1
Sr. No. | Name | Specifications |
1 | Two-stage Rotary Vane Pump I | Ultimate Vacuum: 5 × 10-3 mbar Pumping Rate: 8 m3/h |
2 | Two-stage Rotary Vane Pump II | Ultimate Vacuum: 5 × 10-3 mbar Air extraction Rate: 10 m3/h |
3 | Two-stage Rotary Vane Pump III | Ultimate Vacuum: 2 × 10-3 mbar Pumping Rate: 6 m3/h |
4 | Two-stage Rotary Vane Pump 1V | Ultimate Vacuum: 2 × 10-3 mbar Pumping Rate: 5.7 m3/h |
5 | Chemical Corrosion-proof Vacuum Pump | Ultimate Vacuum: 2 × 10-3 mbar Pumping Rate: 8 m3/h |
6 | Chemical Hybrid pump | Ultimate Vacuum: 2 × 10-3 mbar Air extraction Rate: 5.9 m3/h |
7 | Scroll Dry Pump | Ultimate Vacuum: 2 × 10-2 mbar Pumping Rate: 6.2 m3/h |
8 | Vacuum Pump Oil (5 L) | 5 L/barrel |
9 | Stainless steel sample tray | Experimental |
10 | Electric heated shelves | Փ 200 mm |
| 11 | Capping device (vial) | Vial |
Eutectic point detection function
Data Output and analysis system
Download catalog for
Bench-top Manifold Freeze Dryer LBFD-D14 Catalog
Available Range :
Bench-top Top Press Freeze Dryer LBFD-C10 : - 50 °C Bench-top Manifold Top Press Freeze Dryer LBFD-E10 : - 50°C Bench-top Standard Freeze Dryer LBFD-A14 : - 70℃ Bench-top Top Press Freeze Dryer LBFD-C11 : - 80 °C Bench-top Manifold Top Press Freeze Dryer LBFD-E11 : - 80°C Bench-top Standard Freeze Dryer LBFD-A16 : - 90℃ Bench-top Standard Freeze Dryer LBFD-A12 : -100℃ Bench-top T-type Freeze Dryer LBFD-B10 : -50°C Bench-top T-type Freeze Dryer LBFD-B12 : -56°C Bench-top Standard Freeze Dryer LBFD-F10 : -60°C (optional -80°C) Bench-top Manifold Freeze Dryer LBFD-D11 : -80 °CLabtron Laboratory Bench-top Freeze Dryer offers compact, desktop-sized unit of temperature ranging from -50℃ to -100℃. Their moisture sensors provide accurate readings, ensuring correct monitoring throughout cycle. They offer automatic defrosting capabilities, reducing manual intervention and ensuring consistent freeze-drying efficiency. Their safety interlocks prevent accidental operation, enhancing user safety during process. Our Laboratory Bench-top Freeze Dryer is ideal for preserving sensitive biological materials like enzymes, proteins, tissues, pharmaceuticals and food samples.
Our Bench-top Manifold Freeze Dryer has an ice condenser capacity of 6 kg that means it can capture 6 kg of water vapour, water or organic solvents in 24 hours. One should select the sample size accordingly. Labtron offers a wide range of freeze dryers which can support higher sample size. User can select the freeze dryers according to their needs.
The eutectic temperature is the lowest temperature at which a solution can exist in a stable state. It is important because the vacuum level should be set to a temperature below the eutectic temperature to prevent ice crystals from forming during the drying process.
Generally there can be issue with maintaining vacuum, condenser freezing, or issues with vacuum pump. But Labtron believes in precision and our Bench-top Manifold Freeze Dryer is made of high-quality components and offers a quality grade performance. It features proactive reminders for maintenance. Also, we are at your service in case of any issue.
Freeze-dried samples should be stored in a cool, dry place. One should always consider using dessicators for storing such samples. It is important to protect them from moisture, light, and air exposure. Storage conditions vary depending on the type of sample. Biological materials such as enzymes, vaccines, or bacterial cultures should be stored in a freezer at around -20°C or lower.
Our Bench-top Manifold Freeze Dryer offers versatile options for sample loading. It supports sample trays, round-bottom flasks, and wide mouth lyophilization bottles. It is suitable for various types of containers with different shapes. This versatility makes it applicable for a wide range of pharmaceutical, laboratory, and research applications.
