| Max Speed | 5000 rpm |
| Speed Accuracy | ± 10 rpm |
| Max RCF | 5200 × g |
| Capacity | 4 × 500 mL |
| Timing Range | 1 min to 9999 min 59 sec |
| Noise | Up to 60 dB |
| ACC/DEC Rates | 19 rates |
| Programs | 12 |
| Power Consumption | 600 W |
| Dimension | 550 × 450 × 390 mm |
| Packaging Dimension | 780*530*550 mm |
| Net Weight | 50 kg |
| Gross Weight | 75kg |
Automatic conversion between rpm and RCF

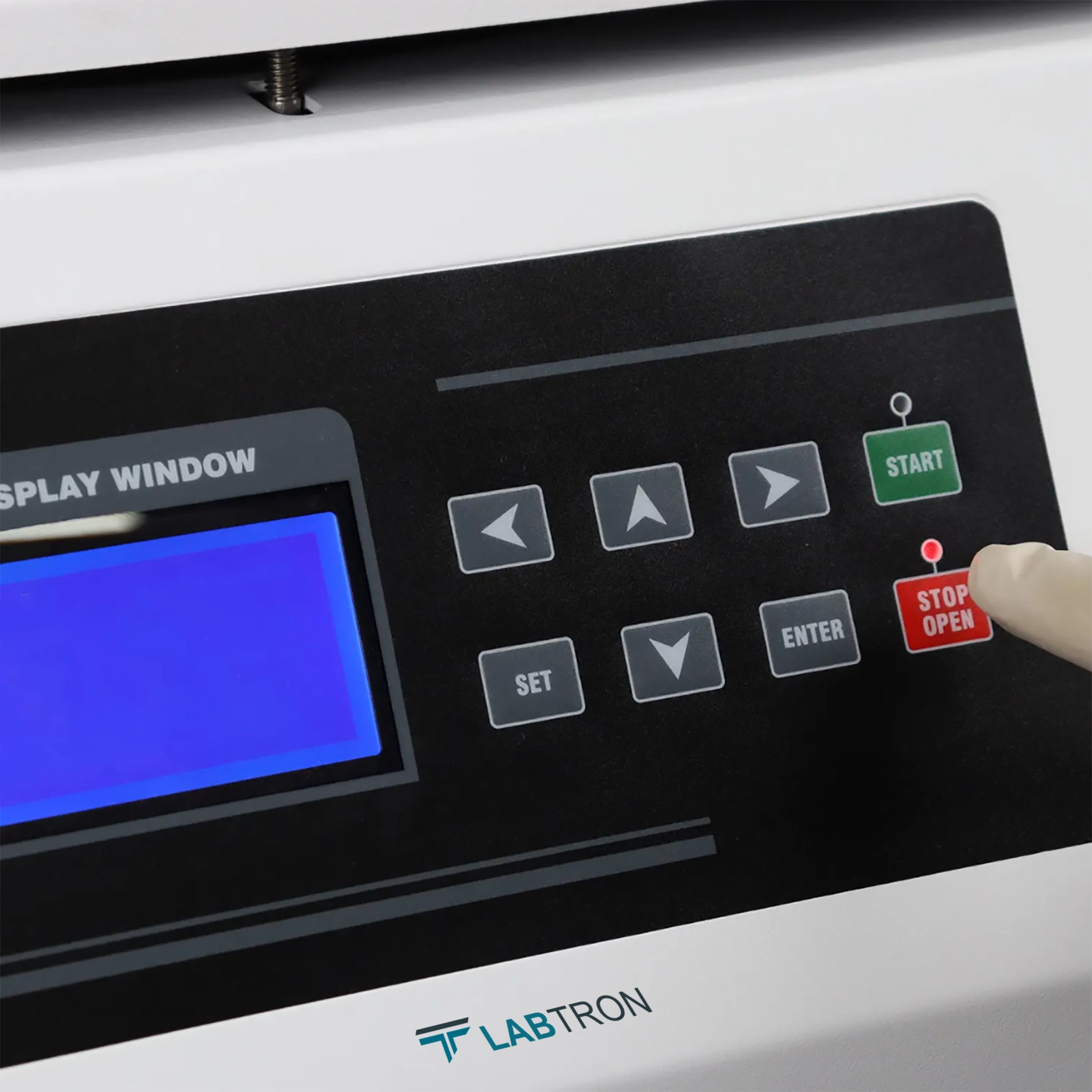

Microprocessor-controlled operation
Motorized electronic door
Calibration/ operation port
Emergency door release
Our Low Speed Centrifuge LLS-A70 is ideal for routine sample separation, sedimentation, and purification in clinical, research, and industrial laboratories. It is suitable for use in biology, medicine, chemistry, and environmental testing.
| Name | Max. Speed | Max. RCF | Capacity | Tube Size |
| Swing Out Rotor 01 | 5000 | 4650 × g | 4 × 100 mL | Փ38 × 114 mm |
| Swing Out Rotor 02 | 5000 | 4650 × g | 4 × 50 mL | Փ30 × 116 mm |
| Swing Out Rotor 03 | 4000 | 2980 × g | 32 × 15 mL | Փ17 × 121 mm |
| Swing Out Rotor 04 | 4000 | 2980 × g | 8 × 50 mL | Փ30 × 116 mm |
| Swing Out Rotor 05 | 4000 | 2980 × g | 8 × 100 mL | Փ38 × 114 mm |
| Swing Out Rotor 06 | 4000 | 2980 × g | 48 × 2 to 7 mL (Blood Tube) | Փ13 × 75 to 100 mm |
| Swing Out Rotor 07 | 4000 | 2980 × g | 64 × 2 to 7 mL | Փ13 × 75 to 100 mm |
| Swing Out Rotor 08 | 5000 | 5200 × g | 4 × 250 mL | Փ63 × 111 mm |
| Swing Out Rotor 09 | 4000 | 3400 × g | 4 × 500 mL | Փ80 × 137 mm |
| Swing Out Rotor 10 | 4000 | 3400 × g | 20 × 50 mL | Փ29.5 × 116 mm |
| Swing Out Rotor 11 | 4000 | 3400 × g | 40 × 15 mL | Փ17 × 121 mm |
| Swing Out Rotor 12 | 4000 | 3400 × g | 80 × 10 Ml (Blood Tube) | Փ15 × 100 mm |
| Swing Out Rotor 13 | 4000 | 3400 × g | 112 × 2 to 7 mL (Blood Tube) | Փ13 × 75 to 100 mm |
| Swing Out Rotor 14 | 4000 | 3400 × g | 100 × 1.5 mL | Փ11 × 42 mm |
| Swing Out Rotor 15 | 4000 | 3400 × g | 148 × 5 mL (RIA Tube) | Փ13 × 75 to 100 mm |
| Swing Out Rotor 16 | 4000 | 3400 × g | 96 × 2 to 7 mL | Փ13 × 75 to 100 mm |
| Swing Out Rotor 17 | 4000 | 3400 × g | 4 × 250 mL (Conical bottom) | Փ60 × 164 mm |
| Microplate Rotor 01 | 4000 | 1970 × g | 2 × 3 × 96 well plate | 128 × 87 × 60 mm |
| Microplate Rotor 02 | 4000 | 3400 × g | 4 × 2 × 96 well plate | 128 × 87 × 60 mm |
Name | Capacity | Compatibility |
Adapter 01 | 8 × 50 mL | Swing Our Rotor 08 |
Adapter 02 | 4 × 100 mL | Swing Our Rotor 08 |
Adapter 03 | 36 × 10 mL | Swing Our Rotor 08 |
Adapter 04 | 40 × 7 mL | Swing Our Rotor 08 |
Adapter 05 | 20 × 15 mL | Swing Our Rotor 08 |
| Adapter 06 (Normal) | 16 × 50 mL | Swing Our Rotor 09 |
| Adapter 07 (Aerosol Tight) | 16 × 50 mL | Swing Our Rotor 09 |
| Adapter 08 (Normal) | 36 × 15 mL | Swing Our Rotor 09 |
| Adapter 09 (Aerosol Tight) | 36 × 15 mL | Swing Our Rotor 09 |
| Adapter 10 (Normal) | 76 × 2 to 7 mL | Swing Our Rotor 09 |
| Adapter 11 (Aerosol Tight) | 76 × 2 to 7 mL | Swing Our Rotor 09 |
Download catalog for
Low Speed Centrifuge LLS-A70 Catalog
Available Range :
Low Speed Centrifuge LLS-A59 : 0 to 6000 rpm (adjustable) Low Speed Centrifuge LLS-A32 : 4000 rpm Low Speed Centrifuge LLS-A62 : 4200 rpm Low Speed Centrifuge LLS-B14 : 500 to 4000 rpm Low Speed Centrifuge LLS-A58 : 5000 rpm Low Speed Centrifuge LLS-A26 : 5000rpm Low Speed Centrifuge LLS-D14 : 5300 rpm Low Speed Centrifuge LLS-A21 : 5500rpm Low Speed Centrifuge LLS-A61 : 6000 rpm Low Speed Centrifuge LLS-A25 : 6000rpm Low Speed Centrifuge LLS-A12 : 6500 rpm Low Speed Centrifuge LLS-A22 : 6500rpm
Labtron Low Speed Centrifuge provide separation of substances of different densities within liquid upto 6000rpm. They are equipped with fixed-angle or swing-out rotors, which determine positioning of specimens and their effective segregation. Their components include motor that drives spindles at controlled, less velocity rotation for efficient partitioning. They include cooling mechanism to maintain integrity during prolonged processes. Our Low Speed Centrifuge isolates proteins from cell lysates, assists sedimentation of bacterial cells and medicine formulation.
Labtron’s Low Speed Centrifuge LLS-A70 integrates a three-axis gyroscopic imbalance detection system, which continuously monitors rotor balance in real time. This system not only prevents mechanical strain or failure due to unbalanced loads but also enhances user safety by automatically halting operation in the event of irregular vibration or instability, especially during high-speed spins with uneven sample distribution.
Our Low Speed Centrifuge LLS-A70 includes over 12 user-programmable memory slots, allowing operators to store and recall frequently used protocols. This feature is particularly beneficial in settings where standardization and repeatability are critical, such as diagnostic labs or pharmaceutical production environments. Stored programs reduce setup time, minimize user error, and promote consistent sample handling.
The motorized electronic door system of Low Speed Centrifuge LLS-A70 adds convenience and safety by automating the opening and closing mechanism. It eliminates the need for manual force, reducing the risk of lid-related injuries or stress on mechanical parts. It also integrates seamlessly with the centrifuge's internal safety protocols, ensuring that the door remains locked during operation and only unlocks when rotor motion has fully ceased.

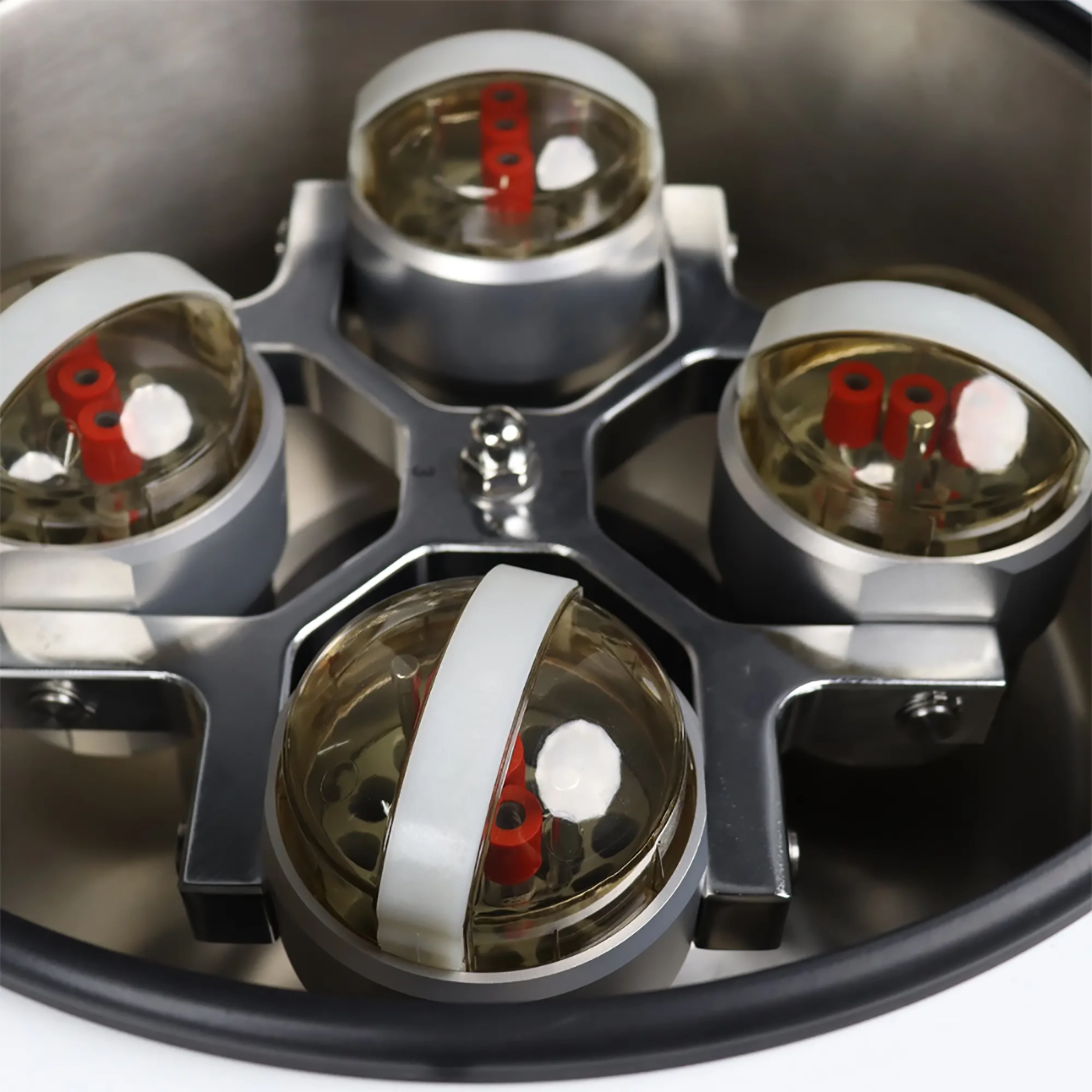

This Low Speed Centrifuge LLS-A70 supports an extensive range of 17 swing-out rotors and 2 microplate rotors, accommodating volumes from 1.5 mL to 500 mL and formats including blood tubes, conical tubes, RIA tubes, and microplates. This adaptability allows the centrifuge to be configured for routine clinical diagnostics, high-throughput sample processing, or research involving different vessel types, all using a single platform.
