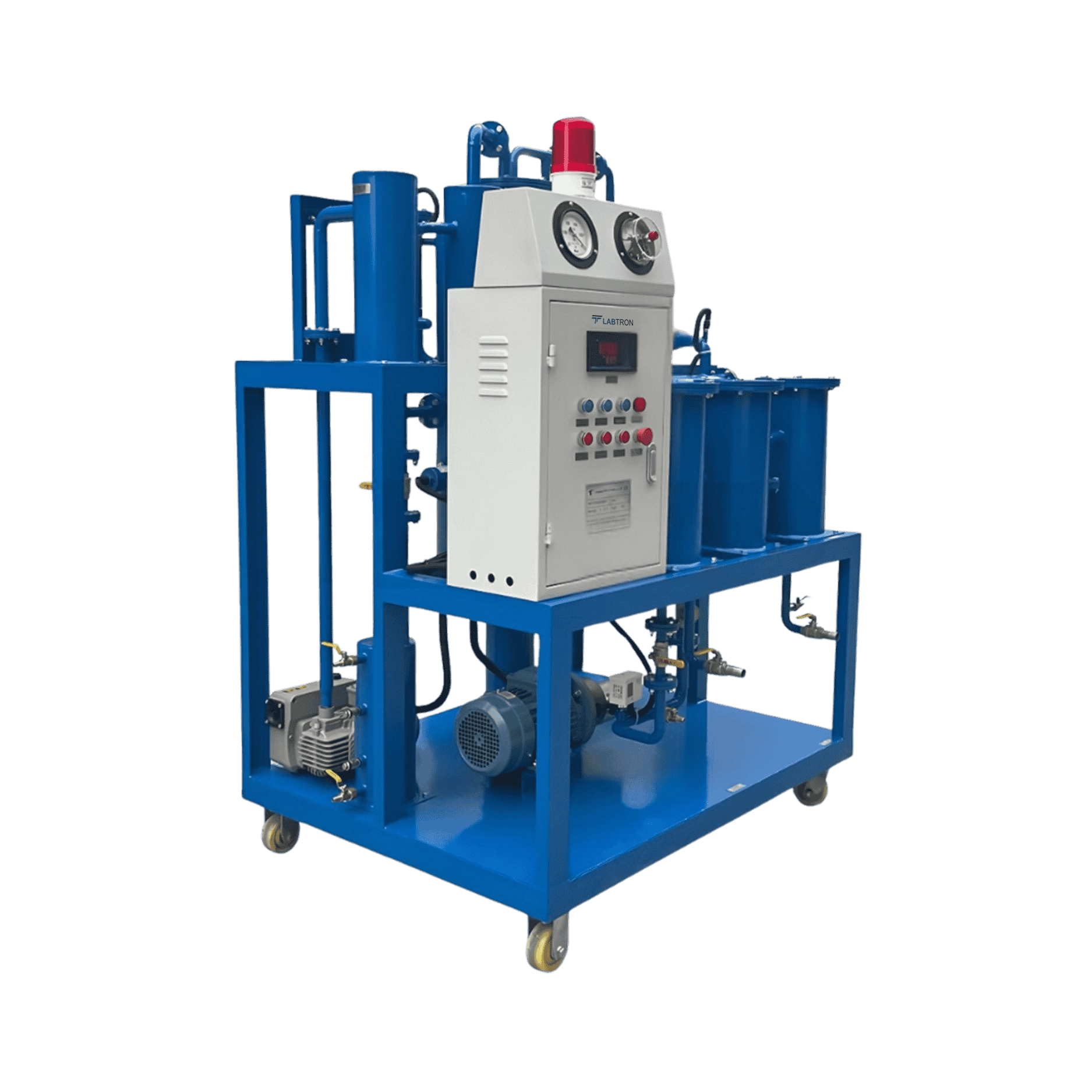

Lubricating Oil Purifier LBOP-A12

Name: Lubricating Oil Purifier LBOP-A12
Brand: Labtron
SKU: LBOP-A12
Rating: 5 (660 reviews)

Lubricating Oil Purifier LBOP-A12 operates at a flow rate of 30 L/min, efficiently removing impurities from lubricating oil to ensure optimal performance. The dual filtration system enables quick filter element replacement without halting operation, minimizing downtime. It provides real-time monitoring for moisture and particles, enabling proactive maintenance. Our Oil Purifier features an air-cooling system that cools the vacuum, eliminating the water cooling.

Request Quote

Flow Rate	30 L/min
Working Vacuum	-0.06 to -0.098 MPa
Working Pressure	Less than or equal to 0.3 MPa
Temperature Range	0 to 100℃
Working Oil Temperature	45 to 65℃
Working Noise	Less than or equal to 68 dB(A)
Continuous Working Time	Greater than or equal to 150 H
Outlet(inlet) Caliber	Φ 25 mm
Moisture Content	Less than or equal to 50 PPM
Gas Content	0.1 %
Impurity Size	Less than or equal to 1 μm
Electric Heating Power	24,000 W
Power Consumption	26,000 W
Power Supply	380V/50Hz/3
Dimensions (L×W×H)	1450 × 1050 × 1750 mm
Weight	450 kg

Anti-explosion heat transfer
Corrosion-resistant materials
Long continuous runtime
Built-in alarm system
Minimal maintenance requirements

Lubricating Oil Purifier LBOP-A12 is used in life sciences to maintain oil purity in laboratory and research equipment. It ensures optimal performance and extends the lifespan of machinery in pharmaceutical and biomedical applications.

Download catalog for
Lubricating Oil Purifier LBOP-A12 Catalog

Available Range :

Lubricating Oil Purifier LBOP-A10 : 10 L/min Lubricating Oil Purifier LBOP-A14 : 100 L/min Lubricating Oil Purifier LBOP-A15 : 150 L/min Lubricating Oil Purifier LBOP-A11 : 20 L/min Lubricating Oil Purifier LBOP-A16 : 200 L/min Lubricating Oil Purifier LBOP-A12 : 30 L/min Lubricating Oil Purifier LBOP-A17 : 300 L/min Lubricating Oil Purifier LBOP-A13 : 50 L/min

Models of Lubricating Oil Purifier

Labtron Lubricating Oil Purifier includes a multi-stage filtration system that efficiently removes impurities, ensuring superior oil purity and enhanced equipment performance. They feature an infrared oil level sensor that monitors and regulates oil levels, preventing overflow. Their automatic fault detection system helps identify issues promptly, ensuring efficient maintenance and minimizing downtime. These include an air-cooling system that efficiently cools the vacuum system without water, simplifying maintenance. Our Lubricating Oil Purifier removes contaminants, water, gases, and impurities, extends lifespan, enhances performance, and reduces maintenance costs.
