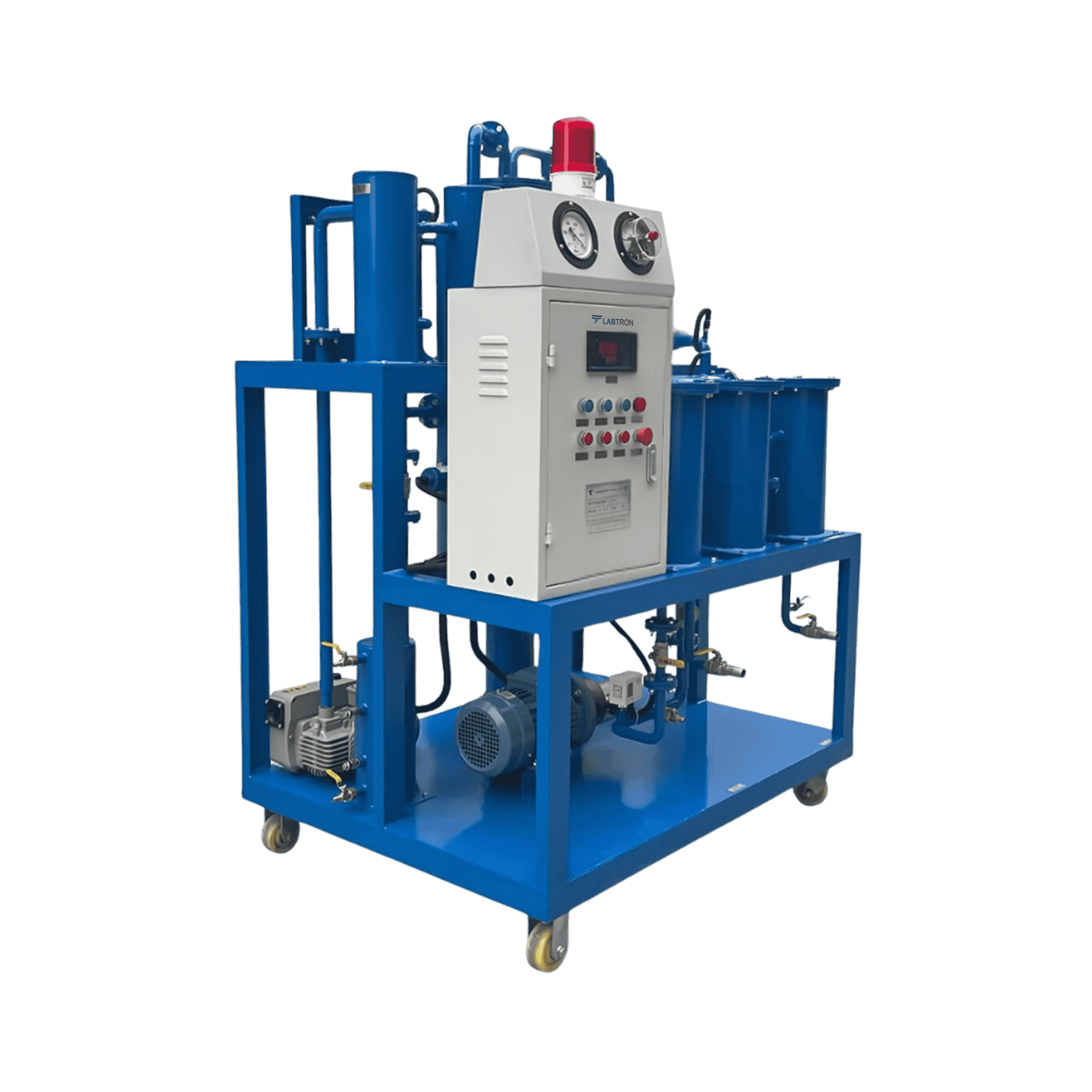

Lubricating Oil Purifier LBOP-A13

Name: Lubricating Oil Purifier LBOP-A13
Brand: Labtron
SKU: LBOP-A13
Rating: 4.9 (631 reviews)

Lubricating Oil Purifier LBOP-A13 has a flow rate of 50 liters per minute, effectively purifying lubricating oil to ensure optimal machinery performance. It features optional PLC (Programmable Logic Controller) control for automated, precise, operation. Equipped with an overheat protection system to prevent excessive temperatures, ensuring safe operation. Our Oil Purifier offers a dual filtration system that enables quick filter changes minimizing downtime.

Request Quote

Flow Rate	50 L/min
Working Vacuum	-0.06 to -0.098 MPa
Working Pressure	Less than or equal to 0.3 MPa
Temperature Range	0 to 100℃
Working Oil Temperature	45 to 65℃
Working Noise	Less than or equal to 70 dB(A)
Continuous Working Time	Greater than or equal to 150 H
Outlet(inlet) Caliber	Φ 32 mm
Moisture Content	Less than or equal to 50 PPM
Gas Content	0.1 %
Impurity Size	Less than or equal to 1 μm
Electric Heating Power	36,000 W
Power Consumption	39,000 W
Power Supply	380V/50Hz/3
Dimensions (L×W×H)	1500 × 1100 × 1800 mm
Weight	500 kg

Automatic infrared oil level control
Real-time monitoring system
Heavy-vibration resistance
Built-in pressure relief valve
High-quality electrical components

Lubricating Oil Purifier LBOP-A13 enhances the reliability of lubricating oils in pharmaceutical, biotechnology, and laboratory equipment. It prevents oil contamination and degradation, ensuring smooth operation in life science applications.

Download catalog for
Lubricating Oil Purifier LBOP-A13 Catalog

Available Range :

Lubricating Oil Purifier LBOP-A10 : 10 L/min Lubricating Oil Purifier LBOP-A14 : 100 L/min Lubricating Oil Purifier LBOP-A15 : 150 L/min Lubricating Oil Purifier LBOP-A11 : 20 L/min Lubricating Oil Purifier LBOP-A16 : 200 L/min Lubricating Oil Purifier LBOP-A12 : 30 L/min Lubricating Oil Purifier LBOP-A17 : 300 L/min Lubricating Oil Purifier LBOP-A13 : 50 L/min

Models of Lubricating Oil Purifier

Labtron Lubricating Oil Purifier includes a multi-stage filtration system that efficiently removes impurities, ensuring superior oil purity and enhanced equipment performance. They feature an infrared oil level sensor that monitors and regulates oil levels, preventing overflow. Their automatic fault detection system helps identify issues promptly, ensuring efficient maintenance and minimizing downtime. These include an air-cooling system that efficiently cools the vacuum system without water, simplifying maintenance. Our Lubricating Oil Purifier removes contaminants, water, gases, and impurities, extends lifespan, enhances performance, and reduces maintenance costs.
