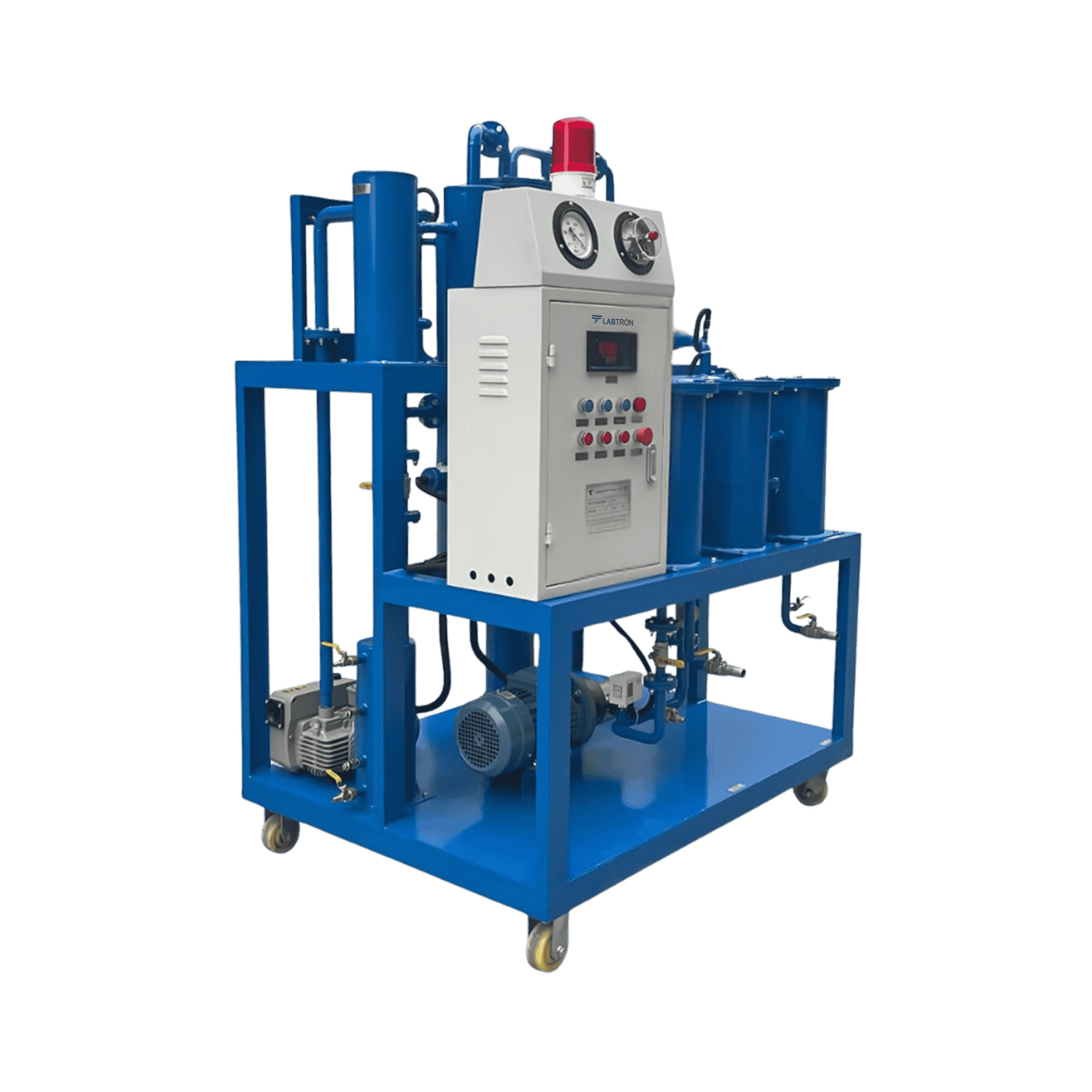

Lubricating Oil Purifier LBOP-A15

Name: Lubricating Oil Purifier LBOP-A15
Brand: Labtron
SKU: LBOP-A15
Rating: 4.9 (738 reviews)

Lubricating Oil Purifier LBOP-A15 operates with a flow rate of 150 L/min, ensuring efficient and continuous filtration for optimal oil quality. Equipped with an air-cooling system for vacuum operations, it eliminates the inconvenience of water cooling. It automatically shuts down in case of excessive pressure through its high-pressure protection device. Our Oil Purifier has a reinforced three-dimensional flash distillation column for rapid moisture and gas removal.

Request Quote

Flow Rate	150 L/min
Working Vacuum	-0.06 to -0.098 MPa
Working Pressure	Less than or equal to 0.3 MPa
Temperature Range	0 to 100℃
Working Oil Temperature	45 to 65℃
Working Noise	Less than or equal to 75 dB(A)
Continuous Working Time	Greater than or equal to 150 H
Outlet(inlet) Caliber	Φ 45 mm
Moisture Content	Less than or equal to 50 PPM
Gas Content	0.1 %
Impurity Size	Less than or equal to 1 μm
Electric Heating Power	72,000 W
Power Consumption	79,000 W
Power Supply	380V/50Hz/3
Dimensions (L×W×H)	1800 × 1250 × 2000 mm
Weight	1300 kg

Low-noise operation system
User-friendly digital monitoring
Automated PLC control
Optimized power consumption
Portable outdoor configuration

Lubricating Oil Purifier LBOP-A15 is used in life science research and industrial applications to purify oils for sensitive equipment. It enhances the efficiency and longevity of machinery by removing contaminants, moisture, and gases from lubricating oils.

Download catalog for
Lubricating Oil Purifier LBOP-A15 Catalog

Available Range :

Lubricating Oil Purifier LBOP-A10 : 10 L/min Lubricating Oil Purifier LBOP-A14 : 100 L/min Lubricating Oil Purifier LBOP-A15 : 150 L/min Lubricating Oil Purifier LBOP-A11 : 20 L/min Lubricating Oil Purifier LBOP-A16 : 200 L/min Lubricating Oil Purifier LBOP-A12 : 30 L/min Lubricating Oil Purifier LBOP-A17 : 300 L/min Lubricating Oil Purifier LBOP-A13 : 50 L/min

Models of Lubricating Oil Purifier

Labtron Lubricating Oil Purifier includes a multi-stage filtration system that efficiently removes impurities, ensuring superior oil purity and enhanced equipment performance. They feature an infrared oil level sensor that monitors and regulates oil levels, preventing overflow. Their automatic fault detection system helps identify issues promptly, ensuring efficient maintenance and minimizing downtime. These include an air-cooling system that efficiently cools the vacuum system without water, simplifying maintenance. Our Lubricating Oil Purifier removes contaminants, water, gases, and impurities, extends lifespan, enhances performance, and reduces maintenance costs.
