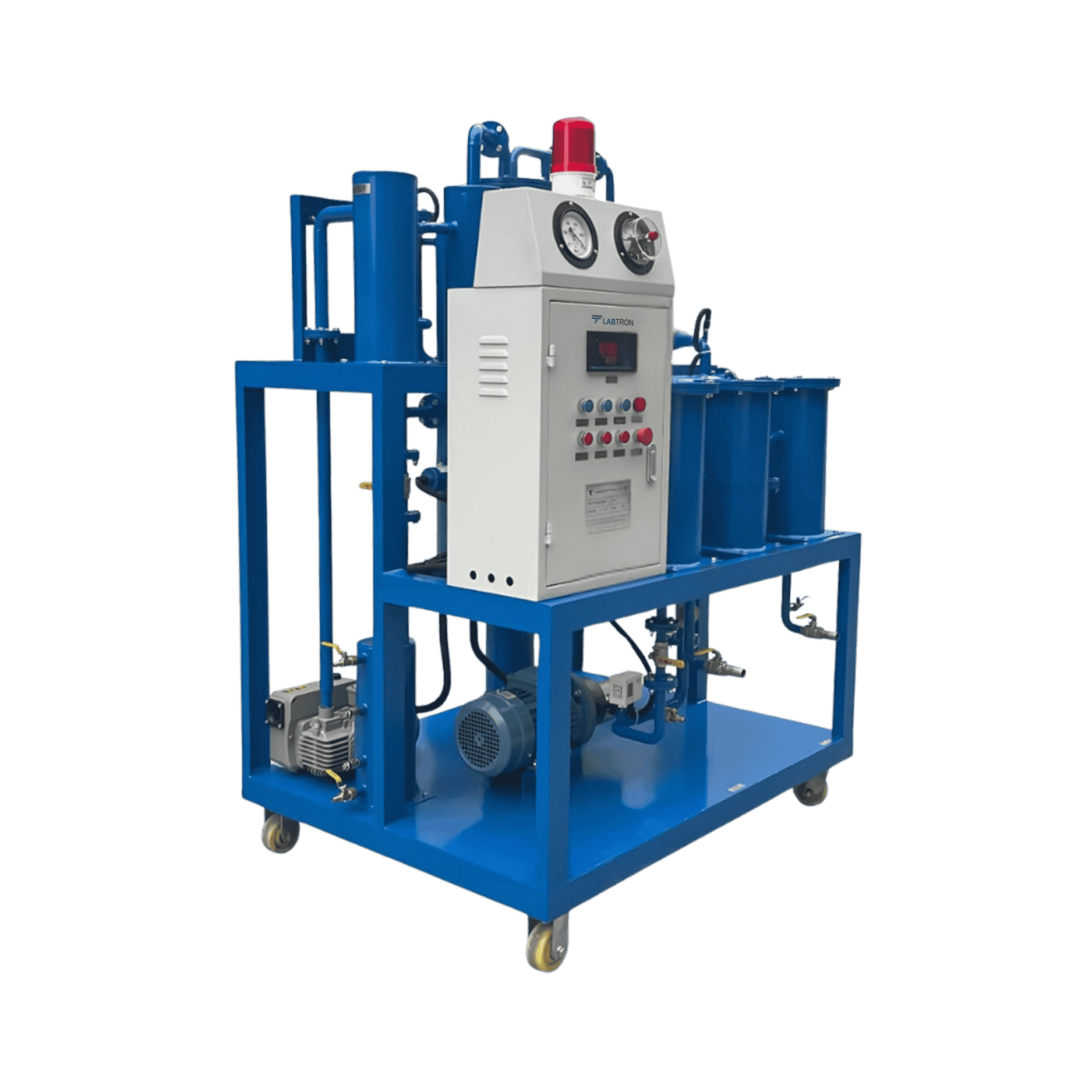

Lubricating Oil Purifier LBOP-A16

Name: Lubricating Oil Purifier LBOP-A16
Brand: Labtron
SKU: LBOP-A16
Rating: 4.8 (772 reviews)

Lubricating Oil Purifier LBOP-A16 operates with a flow rate of 200 liters per minute, efficiently removing contaminants from the lubricating oil. It offers real-time monitoring with optional digital flow meters and timers for oil volume and operation time. Features a low-noise operation system, ensuring minimal sound levels for a quieter working environment. Our Oil Purifier includes a dual filtration system for easy filter changes without stopping work.

Request Quote

Flow Rate	200 L/min
Working Vacuum	-0.06 to -0.098 MPa
Working Pressure	Less than or equal to 0.3 MPa
Temperature Range	0 to 100℃
Working Oil Temperature	45 to 65℃
Working Noise	Less than or equal to 75 dB(A)
Continuous Working Time	Greater than or equal to 150 H
Outlet(inlet) Caliber	Φ 50 mm
Moisture Content	Less than or equal to 50 PPM
Gas Content	0.1 %
Impurity Size	Less than or equal to 1 μm
Electric Heating Power	120,000 W
Power Consumption	128,000 W
Power Supply	380V/50Hz/3
Dimensions (L×W×H)	2000 × 1400 × 2200 mm
Weight	1500 kg

Extended continuous time
Automatic oil level control
Enhanced fluid life extension
Non-interfering operation
Dual heating and cooling

Lubricating Oil Purifier LBOP-A16 is applicable in life sciences industries, ensuring the cleanliness of lubricating oils in critical equipment. It helps maintain system reliability and prevents contamination in biopharmaceutical and research environments.

Download catalog for
Lubricating Oil Purifier LBOP-A16 Catalog

Available Range :

Lubricating Oil Purifier LBOP-A10 : 10 L/min Lubricating Oil Purifier LBOP-A14 : 100 L/min Lubricating Oil Purifier LBOP-A15 : 150 L/min Lubricating Oil Purifier LBOP-A11 : 20 L/min Lubricating Oil Purifier LBOP-A16 : 200 L/min Lubricating Oil Purifier LBOP-A12 : 30 L/min Lubricating Oil Purifier LBOP-A17 : 300 L/min Lubricating Oil Purifier LBOP-A13 : 50 L/min

Models of Lubricating Oil Purifier

Labtron Lubricating Oil Purifier includes a multi-stage filtration system that efficiently removes impurities, ensuring superior oil purity and enhanced equipment performance. They feature an infrared oil level sensor that monitors and regulates oil levels, preventing overflow. Their automatic fault detection system helps identify issues promptly, ensuring efficient maintenance and minimizing downtime. These include an air-cooling system that efficiently cools the vacuum system without water, simplifying maintenance. Our Lubricating Oil Purifier removes contaminants, water, gases, and impurities, extends lifespan, enhances performance, and reduces maintenance costs.
