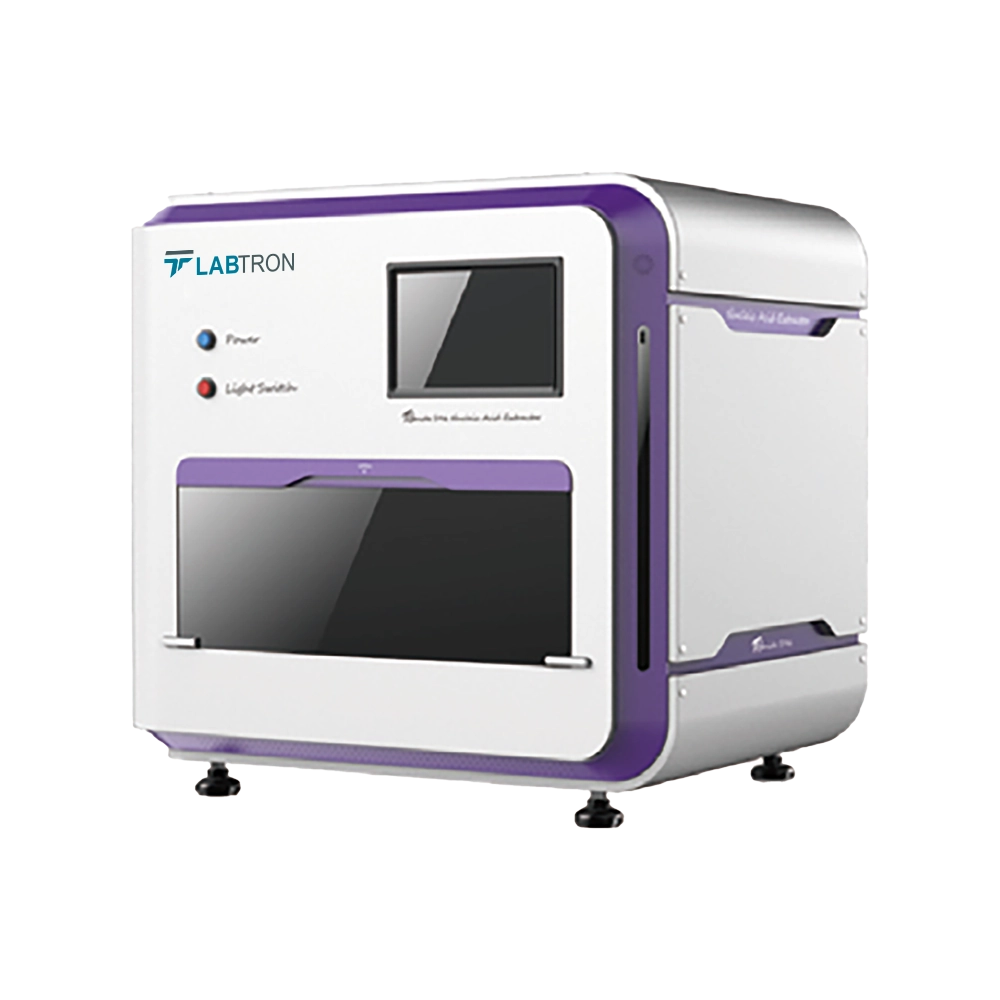

Nucleic Acid Extraction System LNES-B24

Name: Nucleic Acid Extraction System LNES-B24
Brand: Labtron
SKU: LNES-B24
Rating: 5 (957 reviews)

Nucleic Acid Extraction System LNES-B24 supports precise extraction with a sample capacity of up to 24 and sample volumes from 50 to 5000 µl. It features a 10.1-inch touch screen with a windows control system for intuitive operation. The system includes an aerosol prevention fan, and a UV sterilization module for enhanced contamination prevention. Its four-dimensional integrated movement and self-adaptive vibration amplitude ensure efficient extraction. Our extraction system provides safe and effective nucleic acid extraction in demanding lab environments.

Request Quote

Sample Capacity	24 samples
Sample Volume	50 to 5000 µl
Recommended Volume	2000 to 5000 µl
Extraction Difference Between Wells	≤ 1%
Matching Reagent	24-well plate for elution
Magnetic Bead Recovery	≥ 98%
Temperature Control Range	Room temperature to 80°C
Working Temperature	10℃ to 30℃
Extraction Method	Magnetic rod
Operation Interface	10.1-inch touch screen
Operation Mode	Built-in windows control system
Data Interface	USB
Power Supply	220 VAC 50 Hz
Dimensions (W × D × H)	805 × 640 × 721 mm
Weight	140 kg

24-flux module
Cycle binding
Flexible program editing
Multi-gear adjustable vibration
Liquid drip prevention tray

Our Nucleic Acid Extraction System is widely used for automated DNA/RNA extraction in research labs, clinical diagnostics, and biotechnology facilities, such as hospitals, genetic research centres, and pharmaceutical companies.

Download catalog for
Nucleic Acid Extraction System LNES-B24 Catalog

Available Range :

Nucleic Acid Extraction System LNES-A10 : 1 to 8 samples Nucleic Acid Extraction System LNES-A13 : 1 to 96 Nucleic Acid Extraction System LNES-B30 : 16 Nucleic Acid Extraction System LNES-B20 : 16 samples Nucleic Acid Extraction System LNES-B24 : 24 samples Nucleic Acid Extraction System LNES-A11 : 32 samples Nucleic Acid Extraction System LNES-A12 : 48 samples Nucleic Acid Extraction System LNES-B23 : 96 samples Nucleic Acid Extraction System LNES-B11 : 96 well

Models of Nucleic Acid Extraction System

Labtron Nucleic Acid Extraction System offer highly versatile magnetic-particle processing for high-throughput extraction. They efficiently isolate nucleic acid from whole blood, tissue, cells, plants, and viruses. The Extractor features a constant temperature function for optimal reaction speed and an extraction kit for reliable results. They have a user-friendly touchscreen, a built-in UV lamp, and ample data storage capacity. Our durable Nucleic Acid Extraction System is ideal for applications in diagnostic kits and research laboratories.
