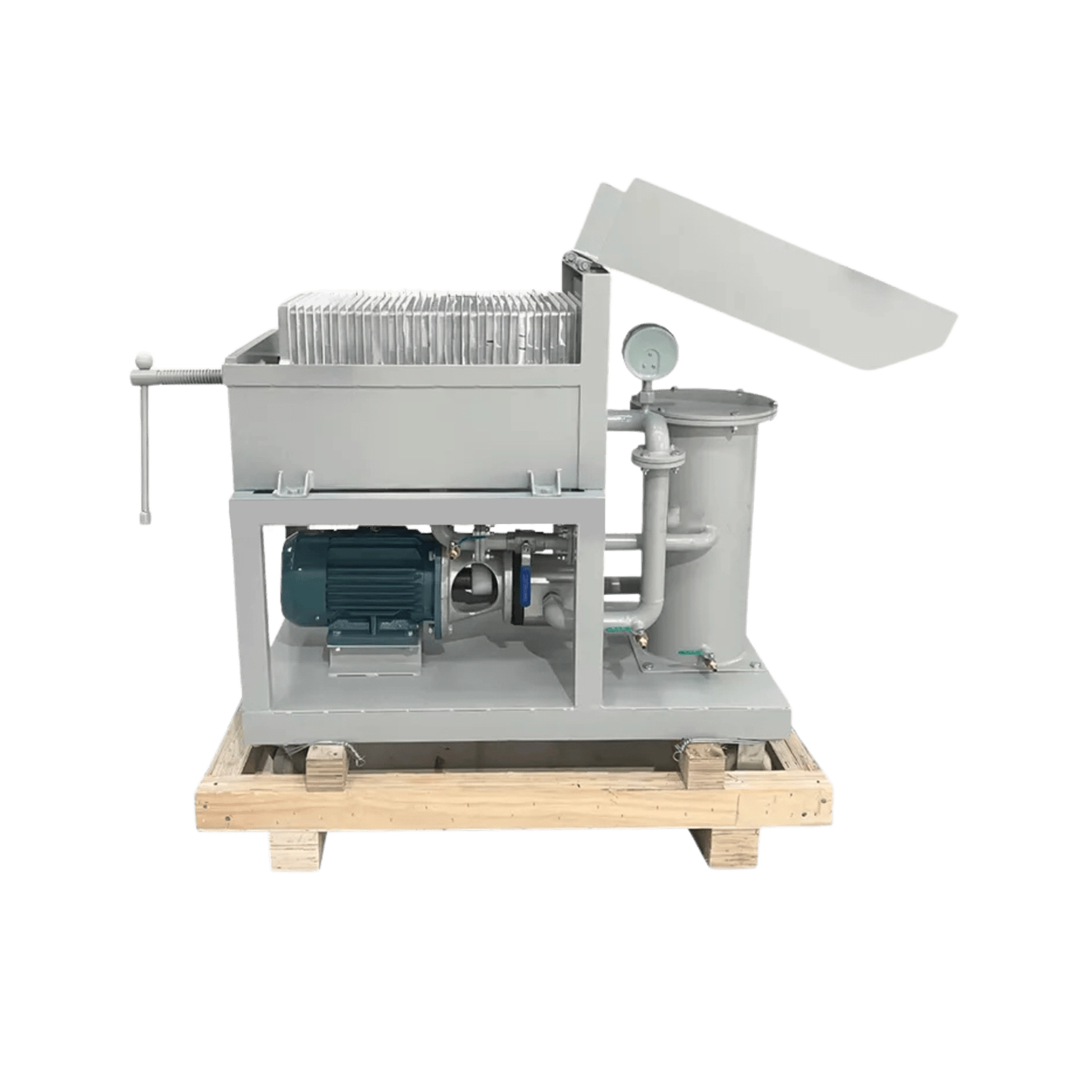

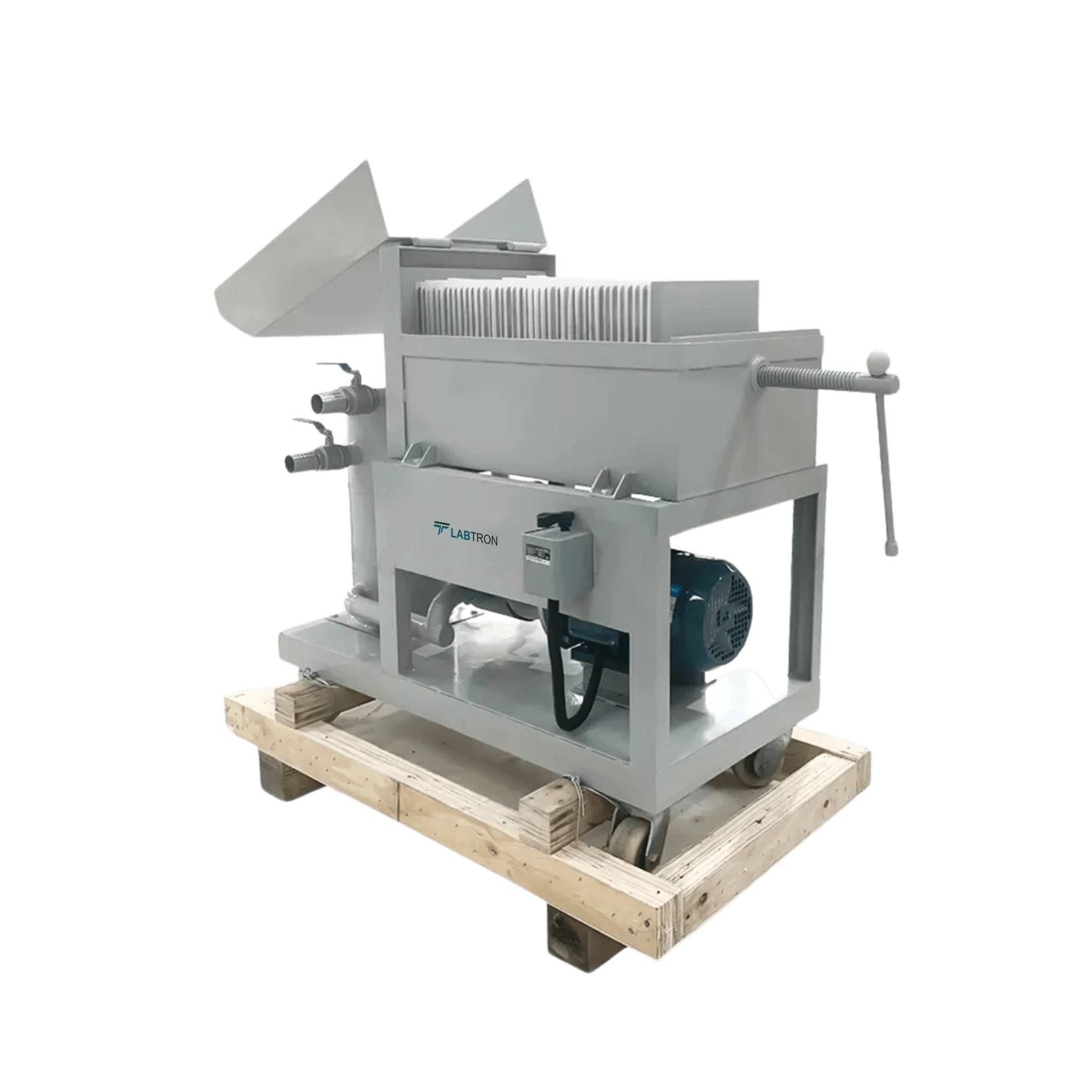

Oil Pressure Filter LOPF-A10

Name: Oil Pressure Filter LOPF-A10
Brand: Labtron
SKU: LOPF-A10
Rating: 4.7 (662 reviews)

Oil Pressure Filter LOPF-A10 features a high-efficiency flow rate of 30 L/min, ensuring optimal oil purification for industrial applications. The high-speed motor delivers powerful performance, ensuring efficient oil refining with minimal downtime. It has a multi-plate filtration that maximizes impurity removal for oil purity. Our Oil Pressure Filter includes an oil pump that ensures consistent circulation and stable pressure for effective separation.

Request Quote

Flow Rate	30 L/min
Working Pressure	0 to 0.5 MPa
Filtering Area	Greater than or equal to 0.3 m²
Filter Room Number	11
Filter Plate Number	12
Oil Pump Pressure	0.6 Mpa
Filter Accuracy	Greater than or equal to 1µ
Filter Paper Size	185 × 190 mm
Motor Revolution	1400 r/min
Pipe Diameter Inlet	32 mm
Pipe Diameter Outlet	25 mm
Power Consumption	1100 W
Power Supply	380v 3Ph 50hz
Dimensions (L×W×H)	700 × 300 × 720 mm
Weight	76 kg

Equipped with standardized filter paper
Low maintenance requirements
Easy-to-monitor controls
Advanced sealing system
Enhanced contamination control

Oil Pressure Filter LOPF-A10 is used in power plants, petroleum, and metallurgy industries to purify oils like transformers, turbine, and engine oil. It efficiently removes impurities and moisture, ensuring optimal equipment performance.

Download catalog for
Oil Pressure Filter LOPF-A10 Catalog

Available Range :

Oil Pressure Filter LOPF-A12 : 100 L/min Oil Pressure Filter LOPF-A13 : 150 L/min Oil Pressure Filter LOPF-A14 : 200 L/min Oil Pressure Filter LOPF-A10 : 30 L/min Oil Pressure Filter LOPF-A15 : 300 L/min Oil Pressure Filter LOPF-A11 : 50 L/min

Models of Oil Pressure Filter

Labtron Oil Pressure Filter utilizes mechanical pressure from a pinch device to ensure efficient oil flow through the filter media. They include a multi-stage filtration process to progressively remove impurities, ensuring superior oil purification and extended service life. These filters are available in high flow rate options, allowing efficient processing of large oil volumes. The leak-proof design ensures no oil escapes during operation, maintaining efficiency. Our Oil Pressure Filter removes impurities, water, and contaminants from oils, extending equipment life, improving performance, and ensuring clean operation in various industries.
