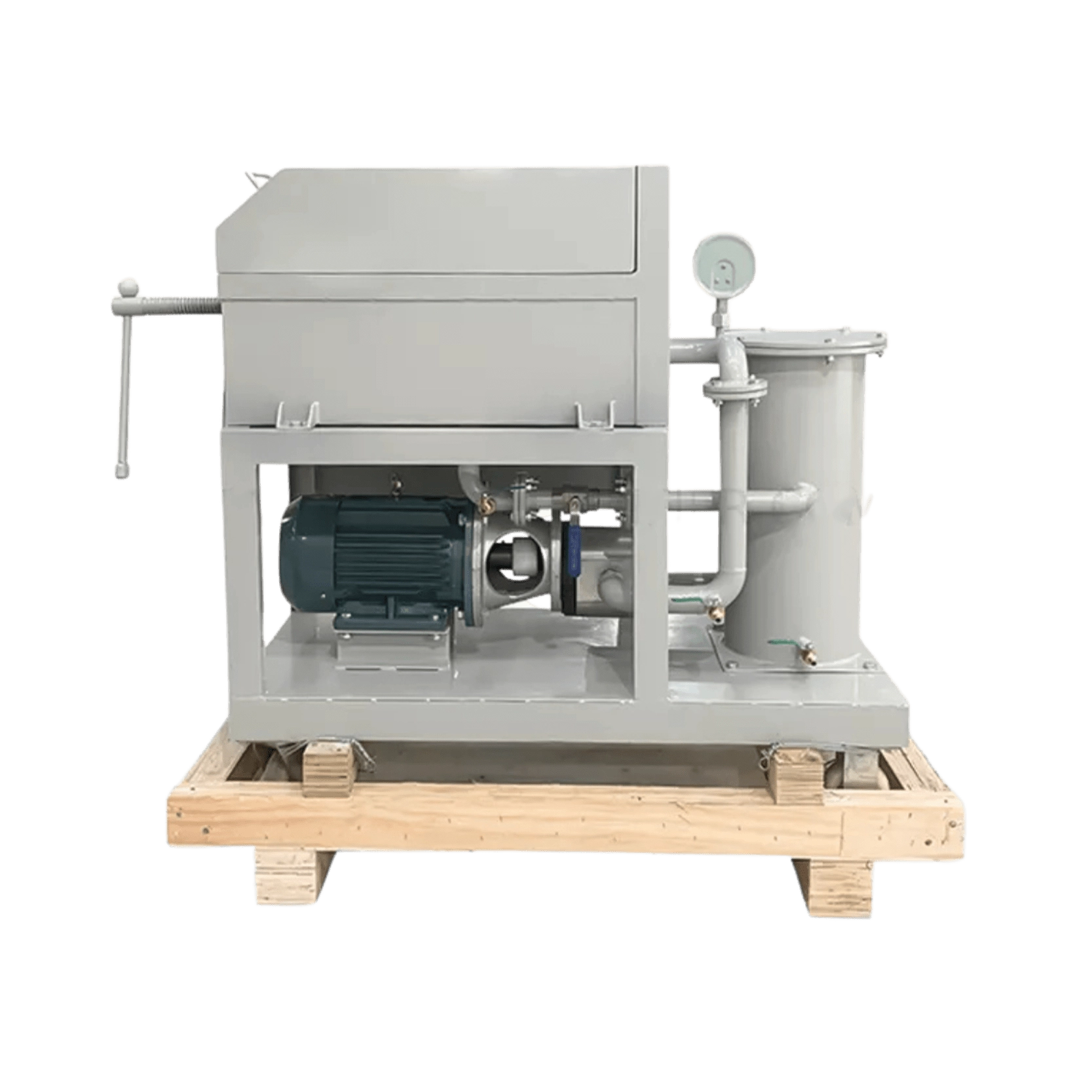

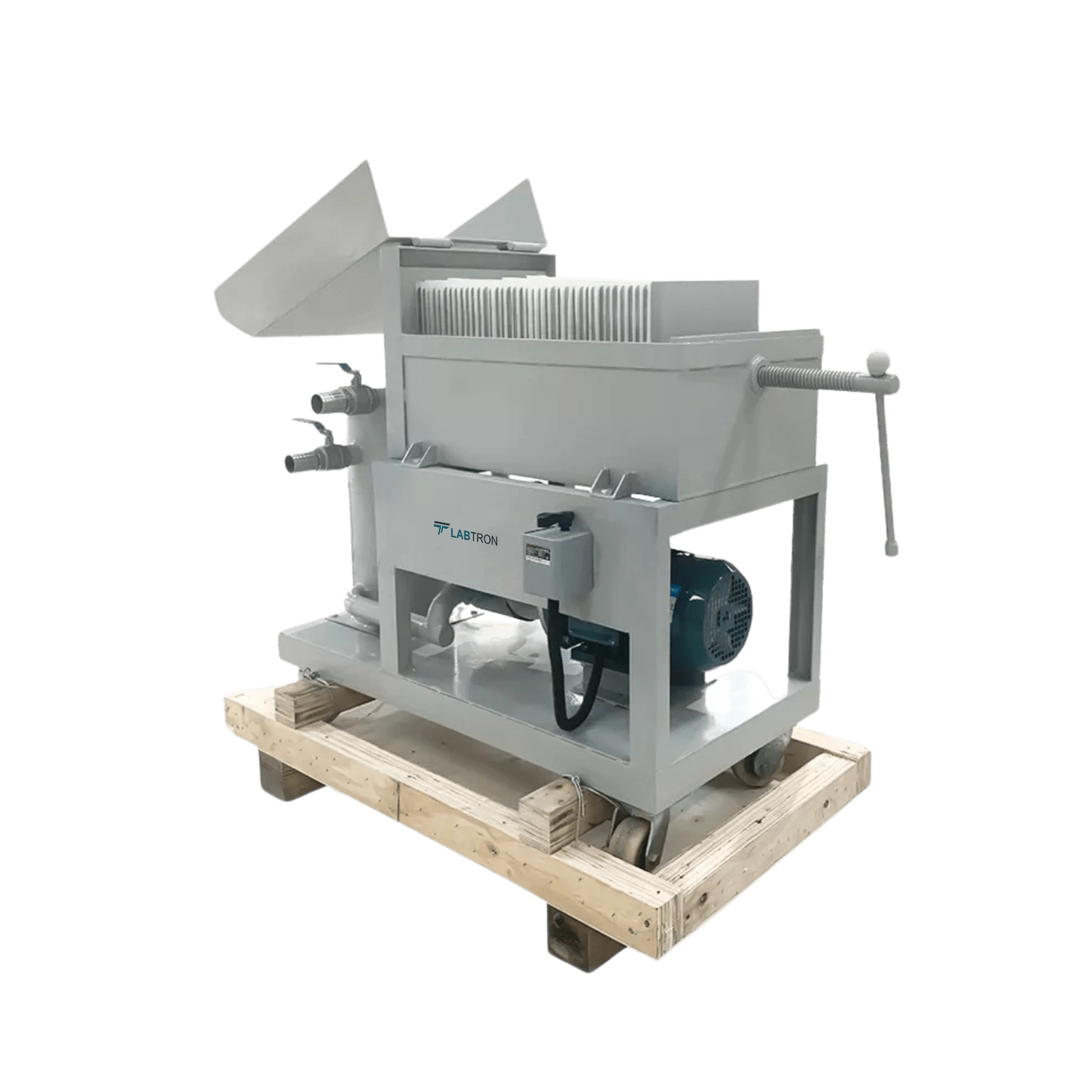

Oil Pressure Filter LOPF-A15

Name: Oil Pressure Filter LOPF-A15
Brand: Labtron
SKU: LOPF-A15
Rating: 4.9 (828 reviews)

Oil Pressure Filter LOPF-A15 operates at a flow rate of 300 L/min, effectively filtering the oil and maintaining optimal pressure levels within the system. The filter media is securely placed between the filter plate and frame, ensuring stable filtration under pressure. It includes pressure monitoring gauges for both the inlet and outlet, to track system performance. Our Oil Pressure Filter has a simple structure, ease of use, and low costs, making it a reliable technique.

Request Quote

Flow Rate	300 L/min
Working Pressure	0 to 0.5 MPa
Filtering Area	Greater than or equal to 3.1 m²
Filter Room Number	23
Filter Plate Number	24
Oil Pump Pressure	0.6 Mpa
Filter Accuracy	Greater than or equal to 1µ
Filter Paper Size	285 × 290 mm
Motor Revolution	1400 r/min
Pipe Diameter Inlet	65 mm
Pipe Diameter Outlet	50 mm
Power Consumption	5500 W
Power Supply	380v 3Ph 50hz
Dimensions (L×W×H)	1300 × 440 × 1000 mm
Weight	280 kg

Low noise operation
Robust sealing system
Quick-release mechanism
Advanced filtration technology
Corrosion-resistant components

Oil Pressure Filter LOPF-A15 is used in life science and industrial applications, such as pharmaceutical production. It efficiently purifies oils, removing impurities and water to ensure clean, high-quality fluids.

Download catalog for
Oil Pressure Filter LOPF-A15 Catalog

Available Range :

Oil Pressure Filter LOPF-A12 : 100 L/min Oil Pressure Filter LOPF-A13 : 150 L/min Oil Pressure Filter LOPF-A14 : 200 L/min Oil Pressure Filter LOPF-A10 : 30 L/min Oil Pressure Filter LOPF-A15 : 300 L/min Oil Pressure Filter LOPF-A11 : 50 L/min

Models of Oil Pressure Filter

Labtron Oil Pressure Filter utilizes mechanical pressure from a pinch device to ensure efficient oil flow through the filter media. They include a multi-stage filtration process to progressively remove impurities, ensuring superior oil purification and extended service life. These filters are available in high flow rate options, allowing efficient processing of large oil volumes. The leak-proof design ensures no oil escapes during operation, maintaining efficiency. Our Oil Pressure Filter removes impurities, water, and contaminants from oils, extending equipment life, improving performance, and ensuring clean operation in various industries.
