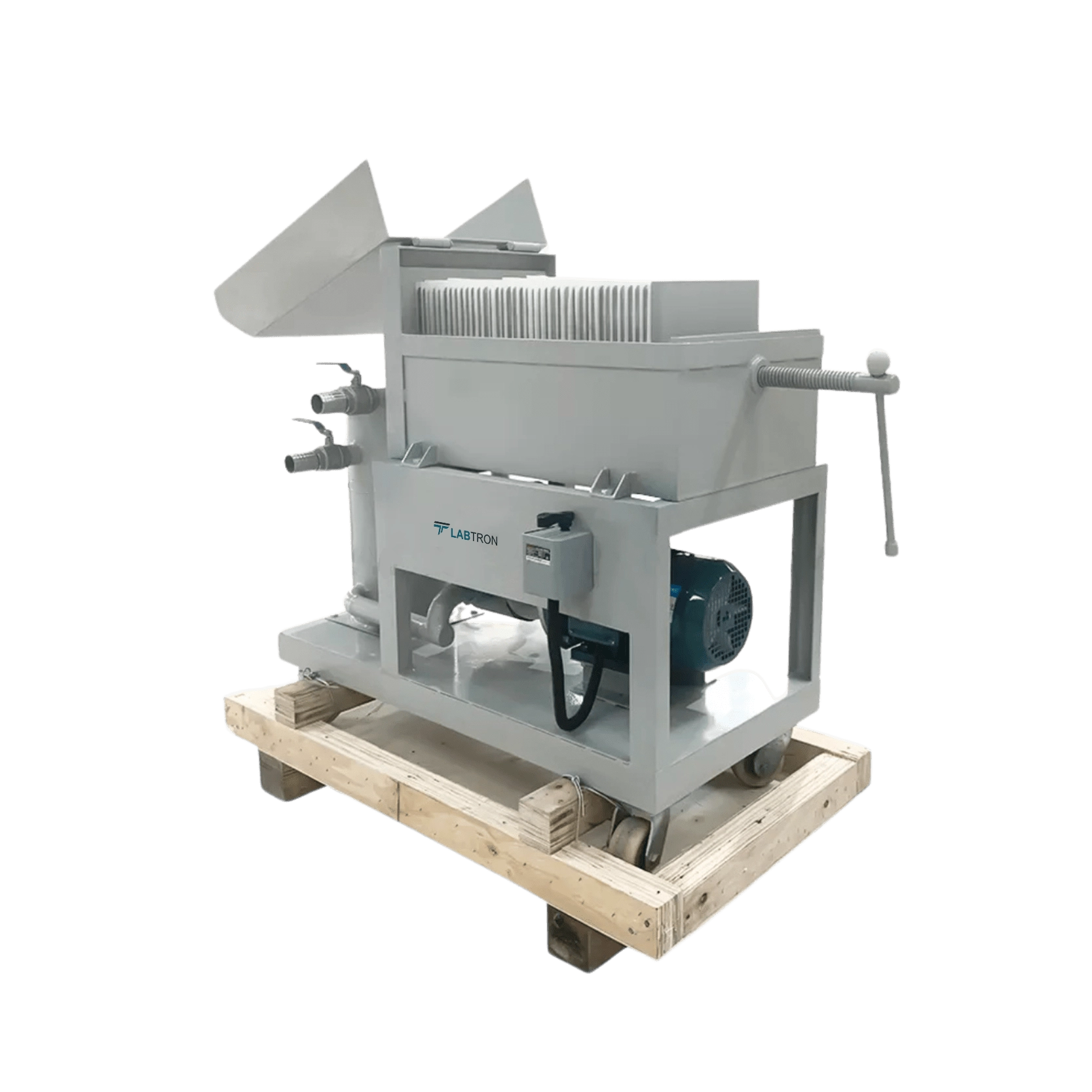

Oil Pressure Filter LOPF-A14

Name: Oil Pressure Filter LOPF-A14
Brand: Labtron
SKU: LOPF-A14
Rating: 4.8 (622 reviews)

Oil Pressure Filter LOPF-A14 is crafted to operate efficiently with a flow rate of 200 L/min, ensuring optimal filtration performance and system protection. It provides stable operation with automatic pressure adjustment, preventing overload and optimizing purification functionality. Equipped with a high-speed motor, delivering smooth operation and reliable oil cleaning. Our Oil Pressure Filter enhances oil viscosity, stability, and lubrication, boosting system efficiency.

Request Quote

Flow Rate	200 L/min
Working Pressure	0 to 0.5 MPa
Filtering Area	Greater than or equal to 2.01 m2
Filter Room Number	18
Filter Plate Number	19
Oil Pump Pressure	0.6 Mpa
Filter Accuracy	Greater than or equal to 1µ
Filter Paper Size	285 × 290 mm
Motor Revolution	1400 r/min
Pipe Diameter Inlet	50 mm
Pipe Diameter Outlet	44 mm
Power Consumption	4000 W
Power Supply	380v 3Ph 50hz
Dimensions (L×W×H)	1100 × 440 × 1000 mm
Weight	230 kg

Low oil degradation rate
Advanced moisture removal
High-temperature resistance
Secure filter media placement
Standard power supply

Oil Pressure Filter LOPF-A14 is used in power plants, industrial facilities, and petroleum industries to purify oils like transformer, turbine, engine, and hydraulic oils. It ensures optimal oil quality by removing contaminants, water, and impurities to enhance system efficiency.

Download catalog for
Oil Pressure Filter LOPF-A14 Catalog

Available Range :

Oil Pressure Filter LOPF-A12 : 100 L/min Oil Pressure Filter LOPF-A13 : 150 L/min Oil Pressure Filter LOPF-A14 : 200 L/min Oil Pressure Filter LOPF-A10 : 30 L/min Oil Pressure Filter LOPF-A15 : 300 L/min Oil Pressure Filter LOPF-A11 : 50 L/min

Models of Oil Pressure Filter

Labtron Oil Pressure Filter utilizes mechanical pressure from a pinch device to ensure efficient oil flow through the filter media. They include a multi-stage filtration process to progressively remove impurities, ensuring superior oil purification and extended service life. These filters are available in high flow rate options, allowing efficient processing of large oil volumes. The leak-proof design ensures no oil escapes during operation, maintaining efficiency. Our Oil Pressure Filter removes impurities, water, and contaminants from oils, extending equipment life, improving performance, and ensuring clean operation in various industries.
