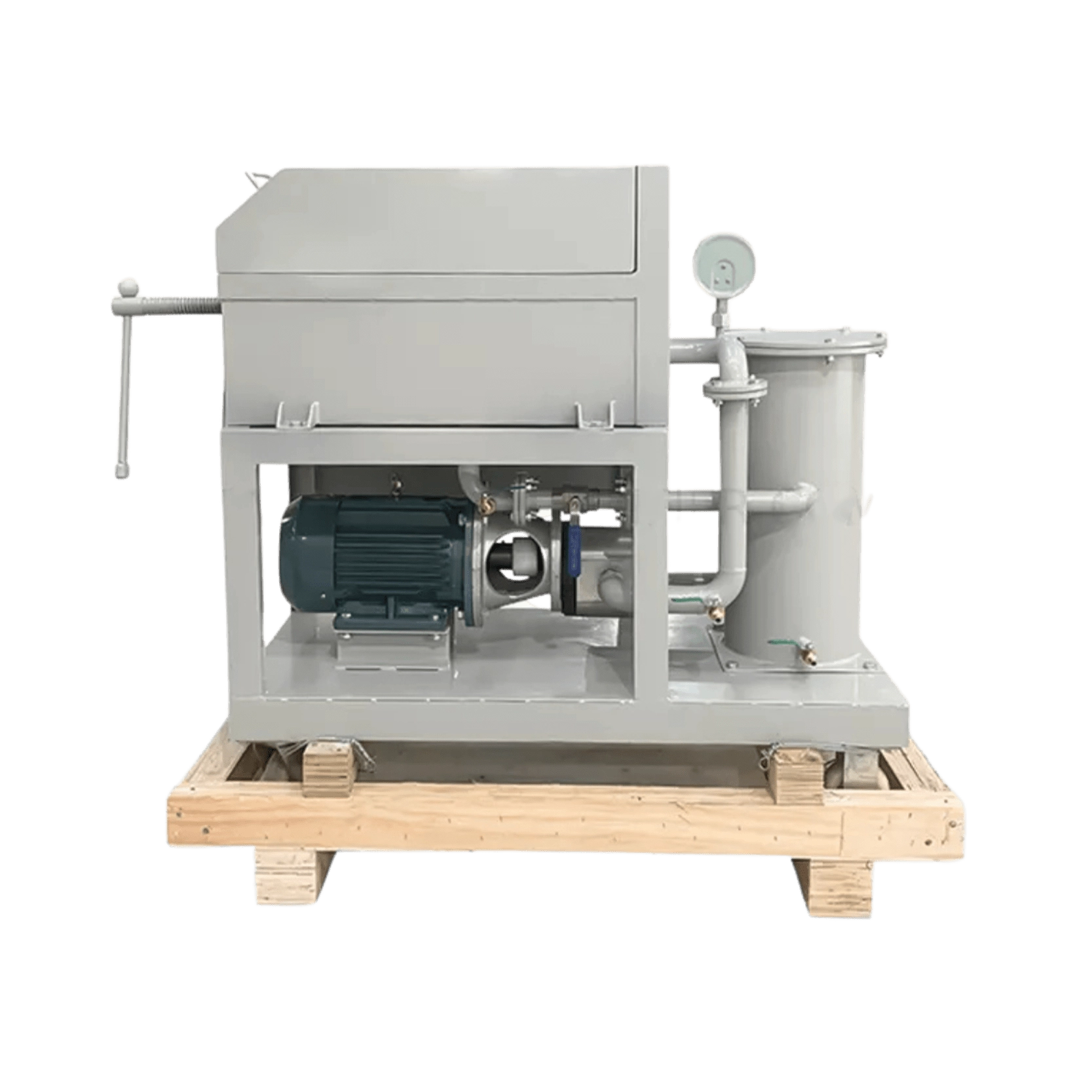

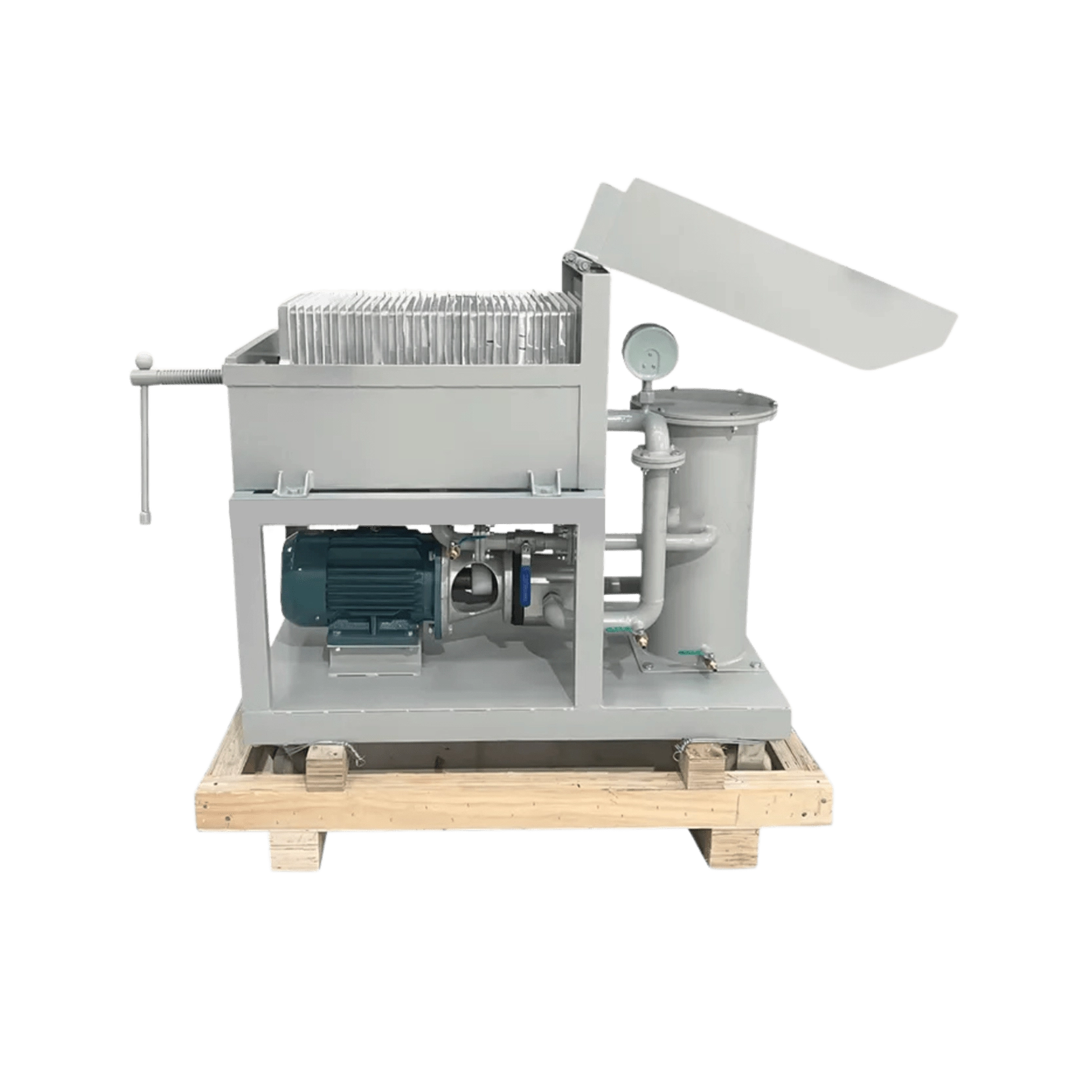

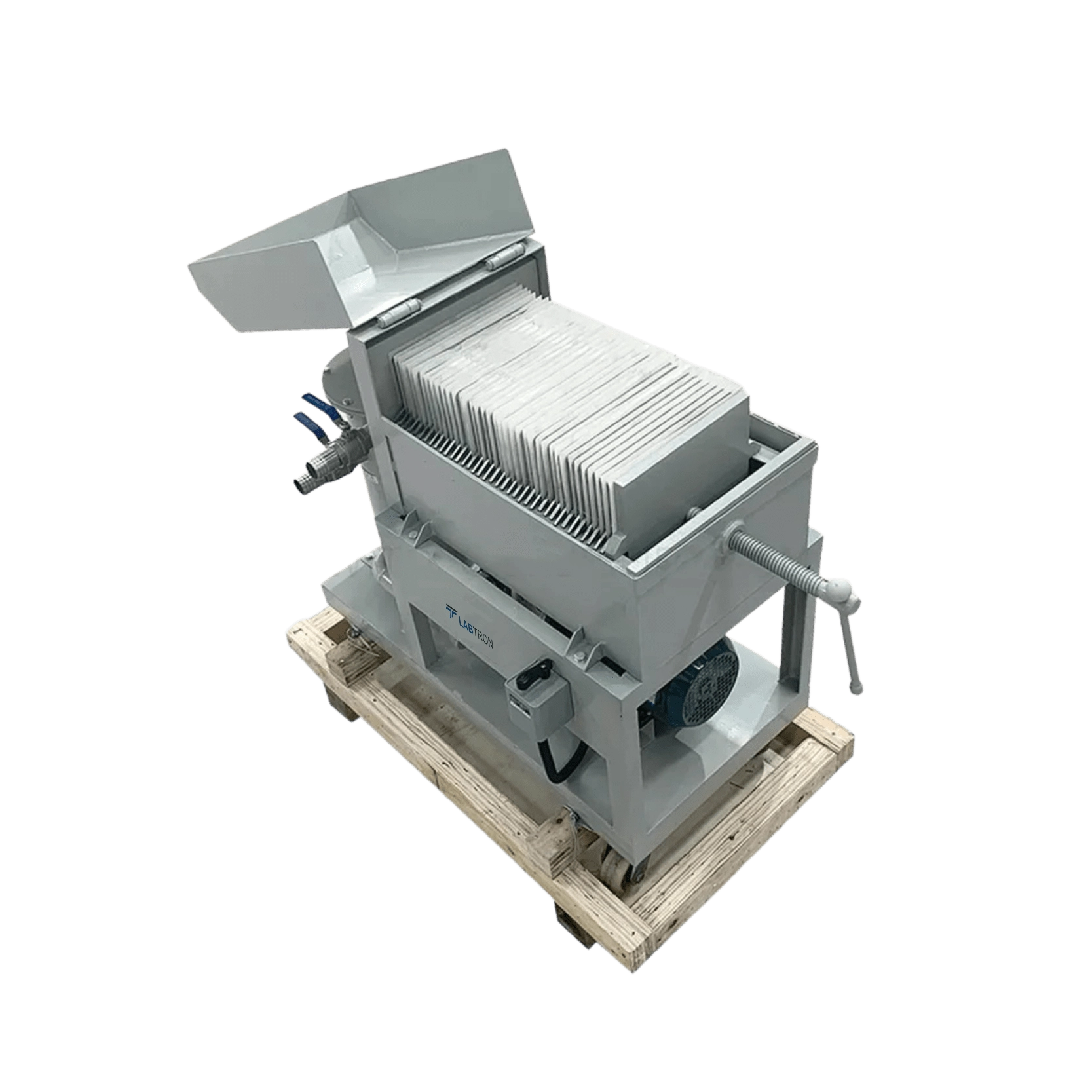

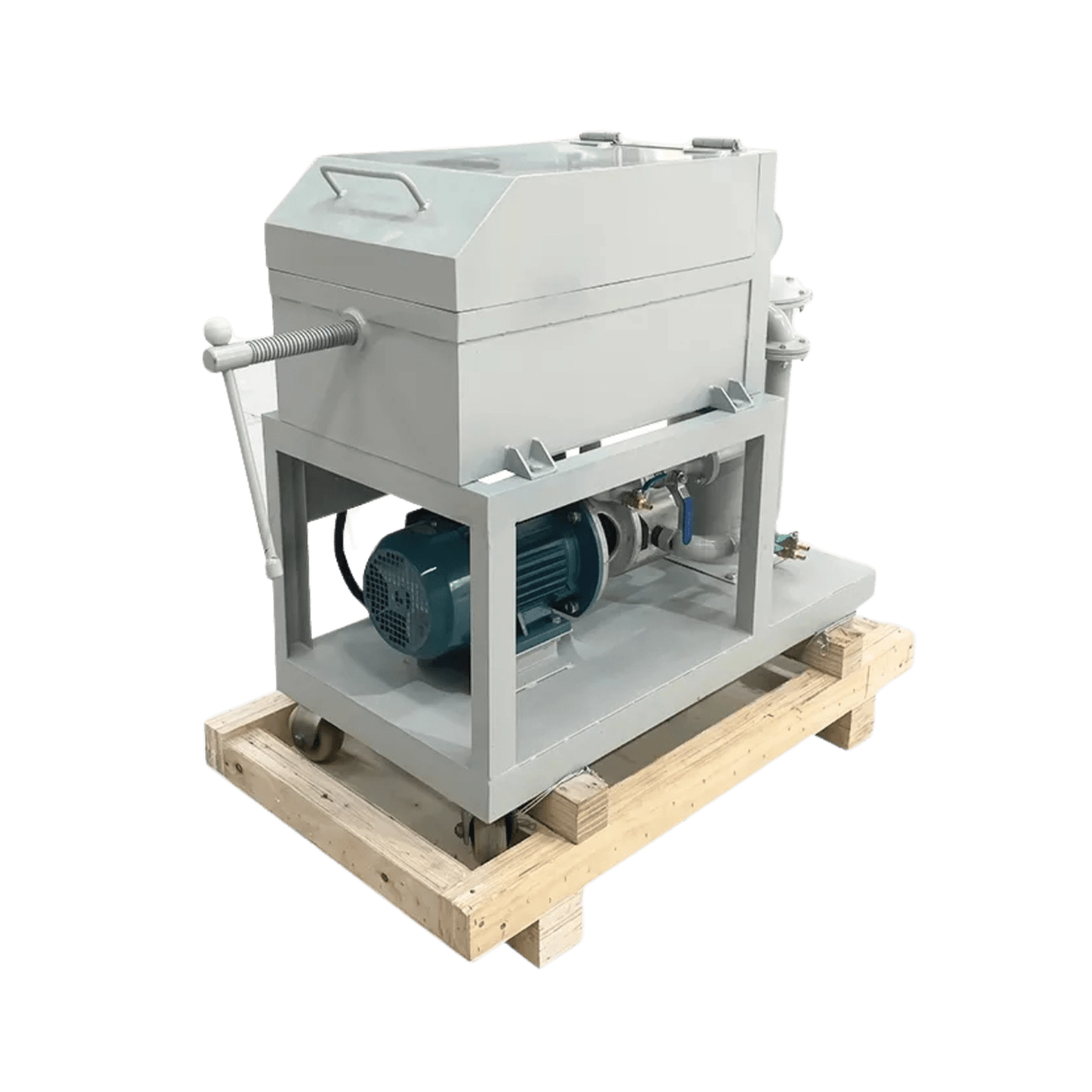

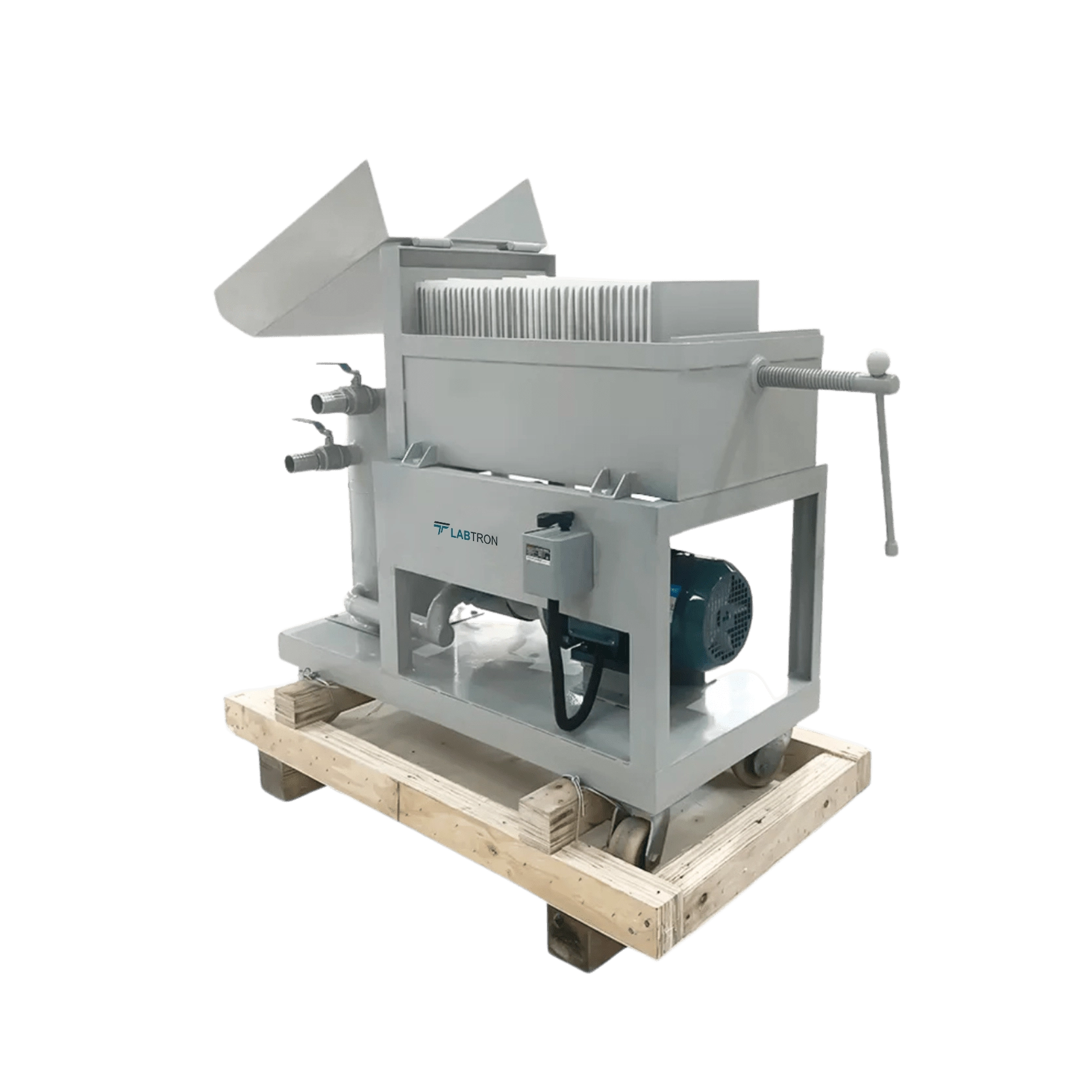

Oil Pressure Filter LOPF-A11

Name: Oil Pressure Filter LOPF-A11
Brand: Labtron
SKU: LOPF-A11
Rating: 4.9 (651 reviews)

Oil Pressure Filter LOPF-A11 is crafted with a 50 L/min flow rate to ensure effective filtration while maintaining the system's pressure stability. The motor operates at a high speed, ensuring consistent and efficient performance for oil purification. It includes safety valves to monitor pressure, prevent overpressure, and protection. Our Oil Pressure Filter filters impurities from industrial oils, enhancing machinery productivity.

Request Quote

Flow Rate	50 L/min
Working Pressure	0 to 0.5 MPa
Filtering Area	Greater than or equal to 0.39 m²
Filter Room Number	13
Filter Plate Number	14
Oil Pump Pressure	0.6 Mpa
Filter Accuracy	Greater than or equal to 1µ
Filter Paper Size	185 × 190 mm
Motor Revolution	1400 r/min
Pipe Diameter Inlet	32 mm
Pipe Diameter Outlet	25 mm
Power Consumption	1100 W
Power Supply	380v 3Ph 50hz
Dimensions (L×W×H)	750 × 300 × 840 mm
Weight	86 kg

Advanced filtration accuracy
Automatic self-cleaning mechanism
Integrated pressure monitoring
Stable operating temperature
Compact power supply

Oil Pressure Filter LOPF-A11 is used in life science applications to filter oils in laboratory and biotechnological equipment, ensuring purity. It helps maintain system performance by removing contaminants that could affect sensitive processes.

Download catalog for
Oil Pressure Filter LOPF-A11 Catalog

Available Range :

Oil Pressure Filter LOPF-A12 : 100 L/min Oil Pressure Filter LOPF-A13 : 150 L/min Oil Pressure Filter LOPF-A14 : 200 L/min Oil Pressure Filter LOPF-A10 : 30 L/min Oil Pressure Filter LOPF-A15 : 300 L/min Oil Pressure Filter LOPF-A11 : 50 L/min

Models of Oil Pressure Filter

Labtron Oil Pressure Filter utilizes mechanical pressure from a pinch device to ensure efficient oil flow through the filter media. They include a multi-stage filtration process to progressively remove impurities, ensuring superior oil purification and extended service life. These filters are available in high flow rate options, allowing efficient processing of large oil volumes. The leak-proof design ensures no oil escapes during operation, maintaining efficiency. Our Oil Pressure Filter removes impurities, water, and contaminants from oils, extending equipment life, improving performance, and ensuring clean operation in various industries.
