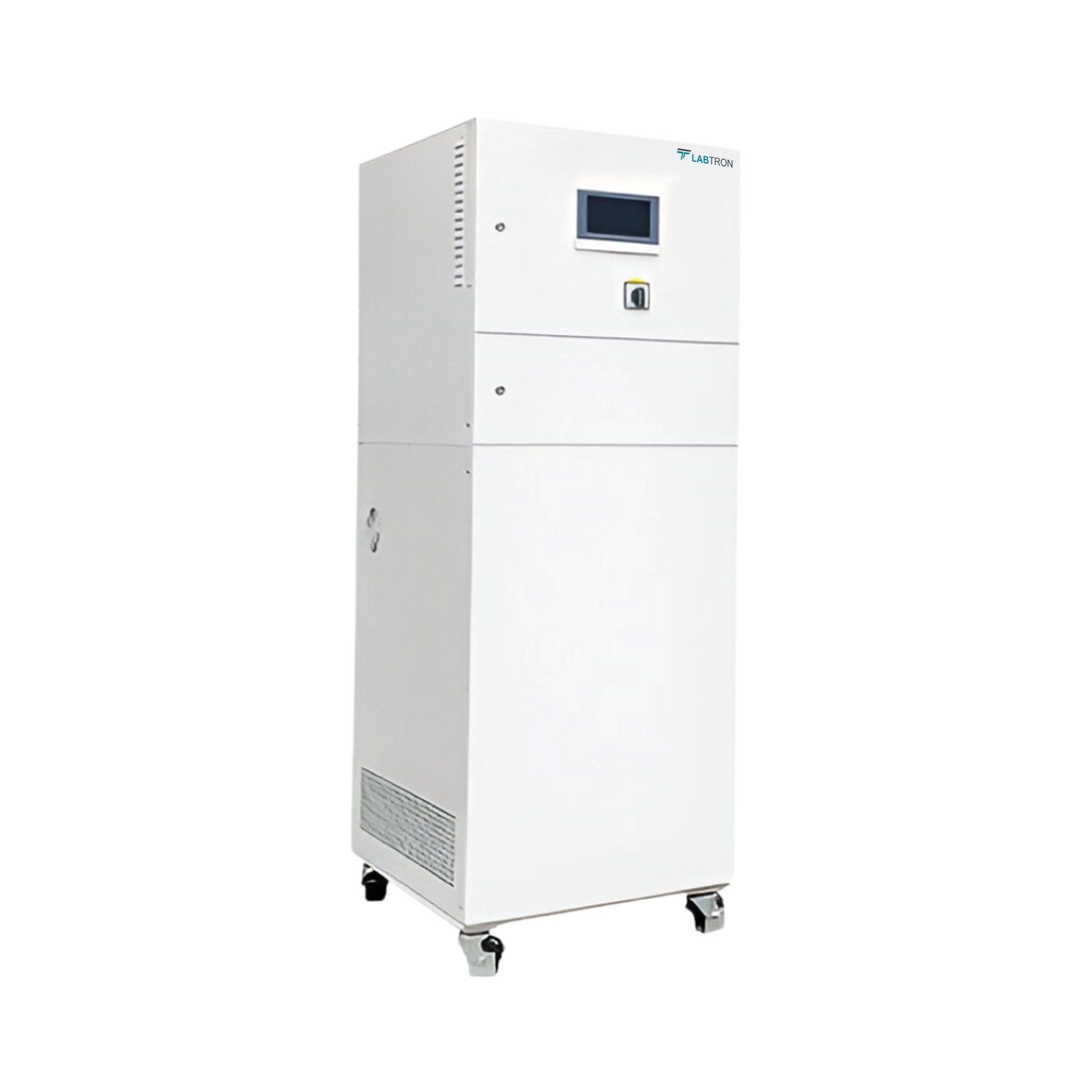

Recirculating Chiller LRC-E13

Name: Recirculating Chiller LRC-E13
Brand: Labtron
SKU: LRC-E13
Rating: 4.8 (770 reviews)

Recirculating Chiller LRC-E13 is equipped with temperature accuracy of ±0.05°C for optimal cooling. Features automatic thermal adjustment, enhancing system efficiency while ensuring stable operations. Incorporated with energy-saving technology, it minimizes power consumption while effectively managing heat. Offers continuous fluid circulation, preventing overheating and protecting sensitive equipment from damage. It ensures precise temperature regulation across pharmaceutical processes, chemical production, and industrial systems.

Request Quote

Temperature Range	-80°C to 90°C
Temperature Control	±0.05°C
Expansion Tank Volume	15L
Fluid Volume	8L Internal Circulation
Flow Control	12 to 45L/min 6bar max
Heating Capacity	3.5Kw
Cooling Water flow	5m³/H at 20°C
Circuit Breaker	40A
Cooling Capacity	2Kw at -70°C
Dimension	700mm x 850mm x 1850mm

Temperature Safety Alarms
Space-Efficient Cooling Unit
Accurate Temperature Sensors
Quick Temperature Stabilization
Robust Industrial Cooling

Our Recirculating Chiller ensures precise temperature regulation across pharmaceutical processes, chemical production, and industrial systems, providing stable cooling and safeguarding valuable equipment from overheating to optimize efficiency.

Download catalog for
Recirculating Chiller LRC-E13 Catalog

Available Range :

Recirculating Chiller LRC-F10 : -100°C to 90°C Recirculating Chiller LRC-A12 : -20 ℃ to RT Recirculating Chiller LRC-L10 : -20°C to RT Recirculating Chiller LRC-A11 : -20℃ to RT Recirculating Chiller LRC-C10 : -25°C to 90°C Recirculating Chiller LRC-D10 : -45°C to 90°C Recirculating Chiller LRC-E10 : -80°C to 90°C Recirculating Chiller LRC-B10 : 5°C to 90°C Recirculating Chiller LRC-A10 : 5˚C to 40˚C Recirculating Chillers LRC-L11 : –20 to 25°C Recirculating Chillers LRC-L12 : –30 to 5°C

Models of Recirculating Chiller

Labtron Recirculating Chiller provide cooling of fluids from -5℃ to 40℃ by circulating them through system to remove heat. They include evaporators to absorb thermal energy from liquid ensuring temperature control. Their expansion valves control flow of refrigerant and regulate freezing capacity of system. They feature filtration system to remove particulates and impurities from solution. Our Recirculating Chiller is applicable for automotive testing, electronics, medical and pharmaceutical equipment.
