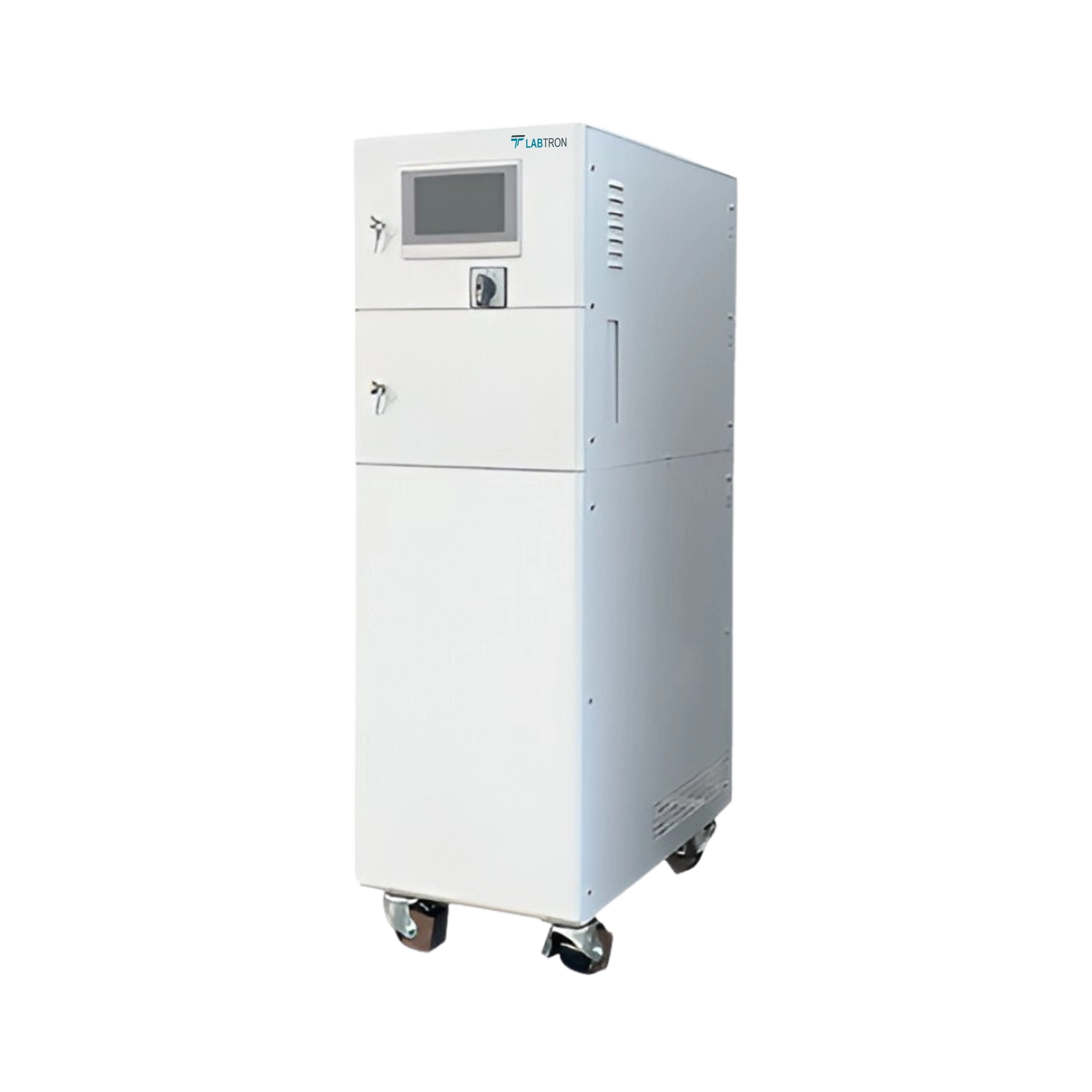

Recirculating Chiller LRC-C10

Recirculating Chiller LRC-C10

Recirculating Chiller LRC-C10 maintains an estimated temperature range of -25°C to 90°C. Equipped with reliable thermal regulation, it ensures stable conditions for various laboratory operations. Offers Advanced cooling technology that supports precise heat control for sensitive applications. Featuring a multi-functional cooling system, that is suitable for diverse requirements across various industries. It is employed in HVAC systems to maintain proper fluid cooling for climate control, providing effective heat transfer and stable operation.

Recirculating Chiller LRC-C10
Recirculating Chiller LRC-C10
Request Quote
Temperature Range -25°C to 90°C
Temperature Control ±0.05°C
Expansion Tank Volume 10L
Fluid Volume 4L Internal Circulation
Flow Control 10 to 25L/min
Cooling Water flow 1.2m³/H at 20°C
Refrigerant R448A
Cooling Capacity 2Kw at -15°C
Dimension 950mm x 380mm x 1060mm
Net Weight 170 kg
Gross Weight 270 kg
  • Energy-Saving Design

  • Temperature Stabilization Feature

  • Built-in Diagnostic System

  • Rapid Heat Dissipation

  • High Flow Rate

Our Recirculating Chiller is employed in HVAC systems to maintain proper fluid cooling for climate control, providing effective heat transfer and stable operation for industrial heating, ventilation, and air conditioning systems.

Recirculating Chiller LRC-C10
Recirculating Chiller LRC-C10

Models of Recirculating Chiller

Labtron Recirculating Chiller provide cooling of fluids from -5℃ to 40℃ by circulating them through system to remove heat. They include evaporators to absorb thermal energy from liquid ensuring temperature control. Their expansion valves control flow of refrigerant and regulate freezing capacity of system. They feature filtration system to remove particulates and impurities from solution. Our Recirculating Chiller is applicable for automotive testing, electronics, medical and pharmaceutical equipment.

Recirculating Chiller LRC-E11

Recirculating Chiller LRC-E11

  • Temperature Range : -80°C to 90°C
  • Temperature Control : ±0.05°C
  • Expansion Tank Volume : 10L
  • Fluid Volume : 5L Internal Circulation
Recirculating Chiller LRC-B13

Recirculating Chiller LRC-B13

  • Temperature Range : 5°C to 90°C
  • Temperature Control : ±0.05°C
  • Expansion Tank Volume : 15L
  • Fluid Volume : 8L internal Circulation
Recirculating Chillers LRC-L12

Recirculating Chillers LRC-L12

  • Temperature Range : –30 to 5°C
  • Temperature Control Accuracy : ±2°C
  • Ambient Temperature : 5 to 35°C
  • Cooling Method : Air cooling
Recirculating Chillers LRC-L16
Recirculating Chillers LRC-L16
  • Working Temperature Range : -15~25 °C
  • Ambient Temperature : 5 to 35°C
  • Temperature stability : ±2 °C
  • Cooling method : Air cooling
Recirculating Chiller LRC-F11
Recirculating Chiller LRC-F11
  • Temperature Range : -100°C to 90°C
  • Temperature Control : ±0.05°C
  • Expansion Tank Volume : 15L
  • Fluid Volume : 8L Internal Circulation
Recirculating Chiller LRC-E13

Recirculating Chiller LRC-E13

  • Temperature Range : -80°C to 90°C
  • Temperature Control : ±0.05°C
  • Expansion Tank Volume : 15L
  • Fluid Volume : 8L Internal Circulation
Recirculating Chiller LRC-D10

Recirculating Chiller LRC-D10

  • Temperature Range : -45°C to 90°C
  • Temperature Control : ±0.05°C
  • Expansion Tank Volume : 10L
  • Fluid Volume : 4L Internal Circulation
Recirculating Chillers LRC-L14

Recirculating Chillers LRC-L14

  • Temperature Range : –30 to 5°C
  • Temperature Control Accuracy : ±2°C
  • Ambient Temperature : 5 to 35°C
  • Cooling Method : Air cooling
Recirculating Chiller LRC-C10 FAQ's
  • Labtron recirculating chillers are commonly used in laboratory experiments, cooling temperature-sensitive equipment, lasers, reactors, and other industrial applications requiring precise and efficient cooling. These chillers are ideal for maintaining stable and consistent temperature conditions, making them crucial for experiments, processes, and industries where accurate thermal control is vital.

  • Our recirculating chillers are engineered with energy-efficient components, such as variable-speed pumps and advanced heat exchange systems, which reduce power consumption while maintaining high cooling performance. This results in lower operating costs and makes our chillers an environmentally friendly choice, contributing to both cost savings and sustainability in operations.

  • Yes, Labtron offers a range of recirculating chiller models capable of handling both small and large volume cooling applications. Our chillers are designed to efficiently manage substantial heat dissipation needs, making them ideal for industrial processes, large-scale manufacturing, or any application requiring high cooling capacity. Depending on the model, they can maintain precise temperature control even in high-demand situations.

  • Yes, our recirculating chillers are engineered to operate efficiently in a range of ambient temperatures, including high-temperature environments. However, it’s important to ensure that the chiller’s specifications, such as cooling capacity and maximum operating temperature, align with specific workspace conditions. Some of our models are designed with high-temperature-resistant components to ensure reliable performance even in extreme conditions.

  • Labtron recirculating chillers offer several advantages over traditional cooling systems, such as cooling towers or air-cooled units. These include precise temperature control, greater energy efficiency, reduced operational costs, and easier maintenance. Unlike traditional systems, recirculating chillers reuse coolant, which lowers water consumption and helps to maintain stable, consistent cooling conditions. This not only enhances the performance and lifespan of sensitive equipment but also reduces overall operational and environmental costs.

  • Yes, our recirculating chillers come equipped with a range of safety features, such as overheat protection, low coolant level alarms, and automatic shut-off systems. These features help prevent damage to both the chiller and the connected equipment, ensuring safe operation.
