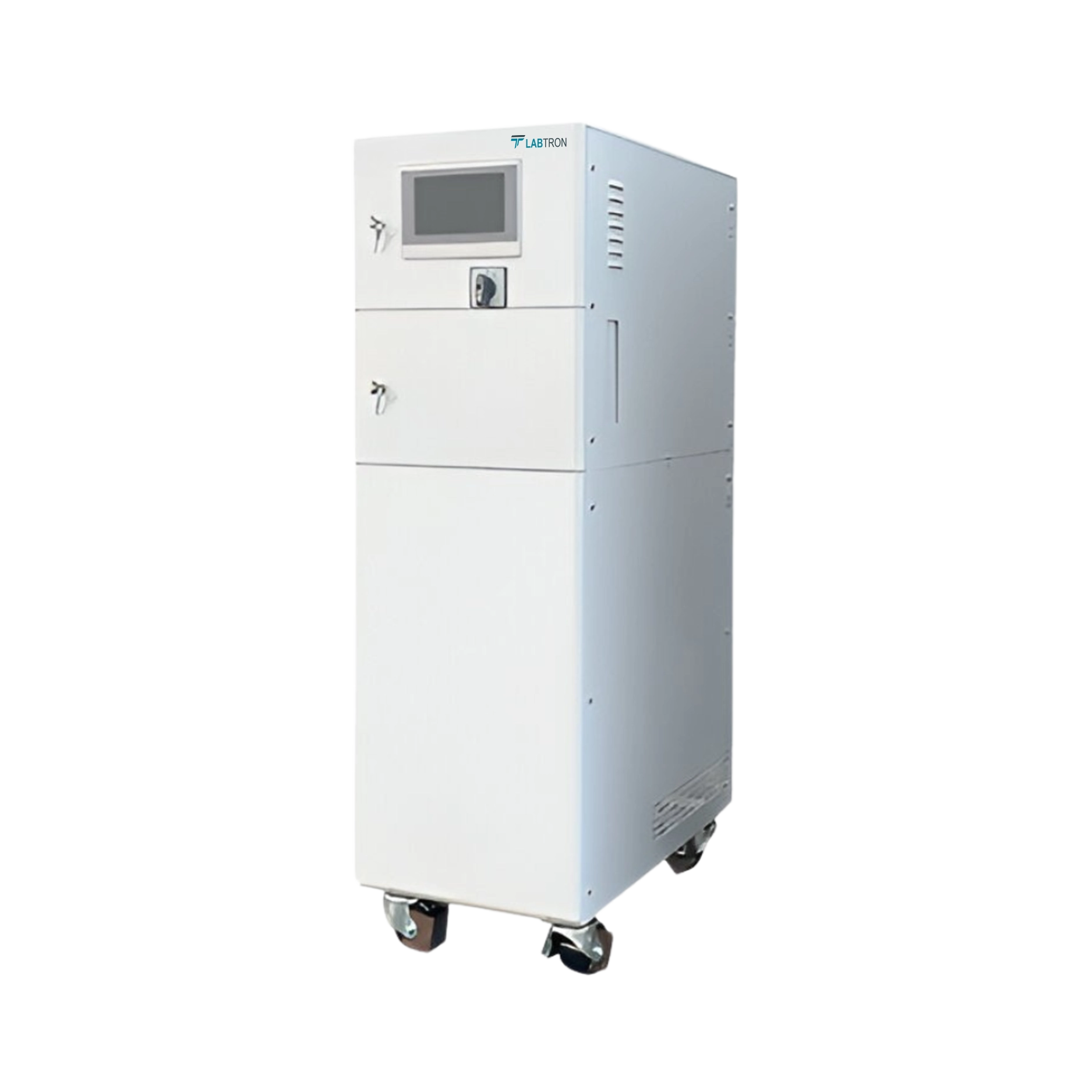

Recirculating Chiller LRC-D12

Recirculating Chiller LRC-D12

Recirculating Chiller LRC-D12 offers a flow control range of 15 to 45L/min, 5bar max for precise thermal regulation. Equipped with advanced insulation technology, it minimizes energy loss and enhances system efficiency. Incorporated with a leak detection system, ensuring the integrity of the coolant loop. Features a high-performance heat exchanger, enabling efficient heat transfer and cooling. The system is used in renewable energy systems, providing airflow control to high-temperature components like solar cells.

Recirculating Chiller LRC-D12
Recirculating Chiller LRC-D12
Request Quote
Temperature Range -45°C to 90°C
Temperature Control ±0.05°C
Expansion Tank Volume 15L
Fluid Volume 6L Internal Circulation
Flow Control 15 to 45L/min 5bar max
Cooling Water flow 3.5m³/H at 20°C
Refrigerant R448A
Cooling Capacity 1.8Kw at -35°C
Dimension 950mm x 380mm x 1060mm
  • Robust Pump Functionality

  • Multi-Industry Compatibility

  • Energy-Efficient Performance Design

  • Safety-Focused Design Features

  • Reliable Operation Under Pressure

Our Recirculating Chiller is used in renewable energy systems, cooling high-temperature components like solar cells. It is employed in chemical synthesis, ensuring proper thermal conditions to prevent unwanted reactions.

Recirculating Chiller LRC-D12
Recirculating Chiller LRC-D12

Models of Recirculating Chiller

Labtron Recirculating Chiller provide cooling of fluids from -5℃ to 40℃ by circulating them through system to remove heat. They include evaporators to absorb thermal energy from liquid ensuring temperature control. Their expansion valves control flow of refrigerant and regulate freezing capacity of system. They feature filtration system to remove particulates and impurities from solution. Our Recirculating Chiller is applicable for automotive testing, electronics, medical and pharmaceutical equipment.

Recirculating Chiller LRC-A10

Recirculating Chiller LRC-A10

  • Temperature range : 5˚C to 40˚C
  • Temperature control : PID
  • Temperature stability : ± 0.3˚C
  • Temperature sensor : PT100
Recirculating Chiller LRC-B14

Recirculating Chiller LRC-B14

  • Temperature Range : 5°C to 90°C
  • Temperature Control : ±0.05°C
  • Expansion Tank Volume : 20L
  • Fluid Volume : 10L internal Circulation
Recirculating Chiller LRC-C15

Recirculating Chiller LRC-C15

  • Temperature Range : -25°C to 90°C
  • Temperature Control : ±0.05°C
  • Expansion Tank Volume : 25L
  • Fluid Volume : 12L Internal Circulating
Recirculating Chiller LRC-F11
Recirculating Chiller LRC-F11
  • Temperature Range : -100°C to 90°C
  • Temperature Control : ±0.05°C
  • Expansion Tank Volume : 15L
  • Fluid Volume : 8L Internal Circulation
Recirculating Chiller LRC-C16
Recirculating Chiller LRC-C16
  • Temperature Range : -25°C to 90°C
  • Temperature Control : ±0.05°C
  • Expansion Tank Volume : 35L
  • Fluid Volume : 20L Internal Circulating
Recirculating Chiller LRC-B12

Recirculating Chiller LRC-B12

  • Temperature Range : 5°C to 90°C
  • Temperature Control : ±0.05°C
  • Expansion Tank Volume : 15L
  • Fluid Volume : 6L internal Circulating
Recirculating Chiller LRC-C12

Recirculating Chiller LRC-C12

  • Temperature Range : -25°C to 90°C
  • Temperature Control : ±0.05°C
  • Expansion Tank Volume : 15L
  • Fluid Volume : 6L Internal Circulation
Recirculating Chiller LRC-C14

Recirculating Chiller LRC-C14

  • Temperature Range : -25°C to 90°C
  • Temperature Control : ±0.05°C
  • Expansion Tank Volume : 20L
  • Fluid Volume : 10L Internal Circulation
Recirculating Chiller LRC-D12 FAQ's
  • Power consumption varies depending on the chiller's size, cooling capacity and operational features. Most chillers use electricity to power their compressors, pumps, and other components. Energy-efficient models are available, consuming less electricity without compromising cooling performance, which can help reduce operating costs. To ensure optimal energy use, regular maintenance and proper operation are also key factors in minimizing power consumption.

  • Many recirculating chillers feature adjustable flow rates, allowing users to optimize cooling efficiency for various applications. The flow rate can be adjusted through the digital control panel or system settings, providing more precise temperature management and enhancing performance for specific processes. This flexibility also ensures that the chiller can be adapted to meet the unique needs of different equipment and experiments.

  • Yes, recirculating chillers are ideal for cooling CNC machines, helping maintain optimal operational temperatures and prevent overheating. They ensure that CNC machines run efficiently, reducing the risk of thermal damage to critical components and enhancing overall machine performance. This leads to extended machine life and improved productivity by minimizing downtime.

  • Yes, recirculating chillers are ideal for maintaining temperature-controlled storage environments, such as cooling chambers or refrigerators. They ensure that stored materials or products remain at the required temperature for optimal preservation, helping to extend shelf life and maintain quality. Additionally, they provide consistent temperature regulation, which is crucial for industries like pharmaceuticals, food, and biotechnology.

  • Yes, recirculating chillers are designed to protect sensitive equipment by providing consistent and reliable cooling, which helps maintain optimal operating conditions. However, it is important to regularly maintain the system to prevent malfunctions that could potentially impact the equipment's performance or longevity. Additionally, many chillers come with safety features, such as temperature alarms, to further ensure protection against overheating.

  • While most recirculating chillers are designed to operate in moderate temperatures, some industrial-grade models are specifically built to withstand extreme ambient conditions. If planning to use the chiller in very hot or cold environments, it is essential to check the product specifications to ensure compatibility with operating conditions. In some cases, additional modifications or accessories may be required for optimal performance.
