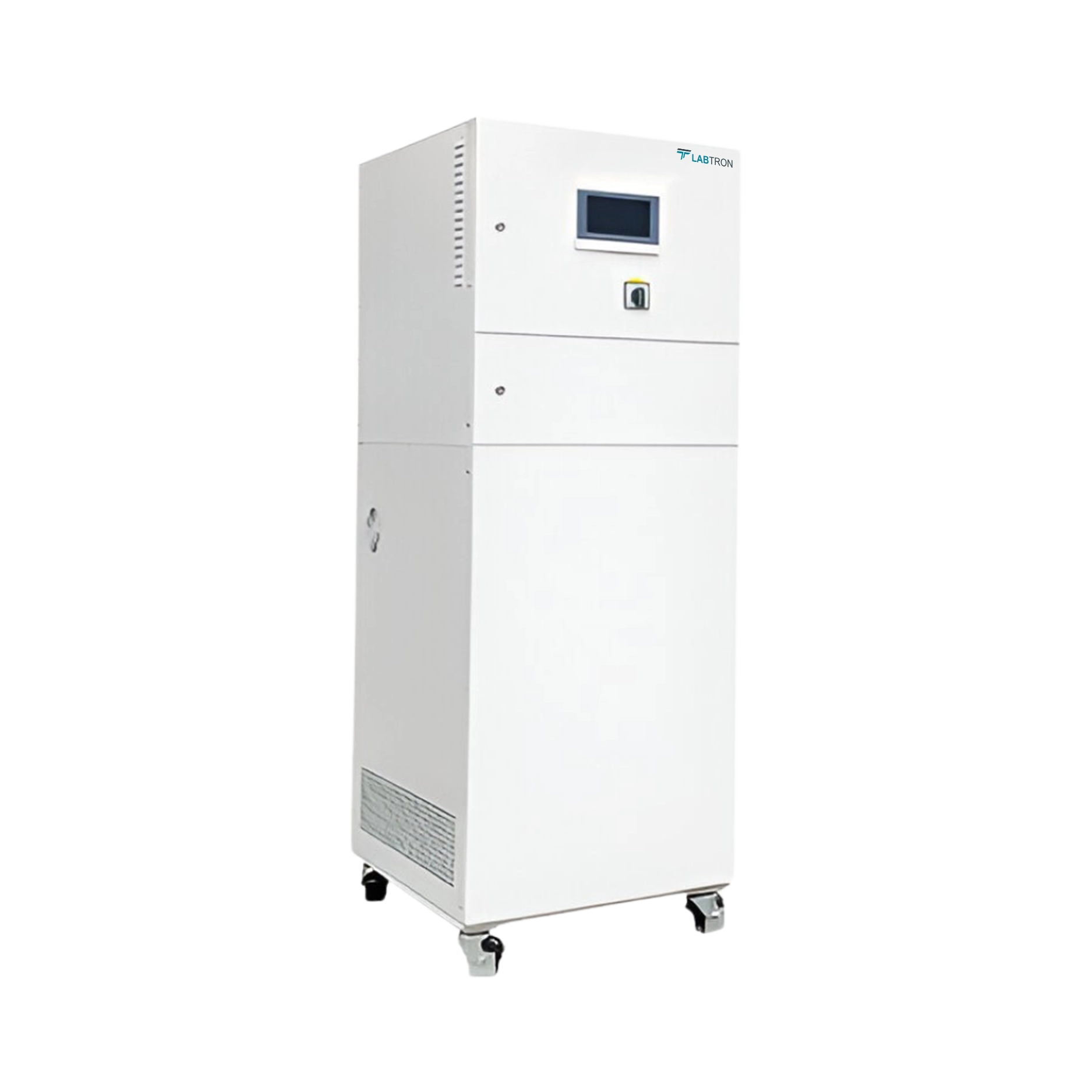

Recirculating Chiller LRC-F10

Name: Recirculating Chiller LRC-F10
Brand: Labtron
SKU: LRC-F10
Rating: 4.8 (886 reviews)

Recirculating Chiller LRC-F10 is equipped with a temperature range of -100°C to 90°C for reliable cooling. It offers a low-maintenance design, minimizing the need for regular upkeep, ensuring long-lasting performance. Incorporates overheat protection mechanism that safeguard against excessive thermal fluctuations. Features an integrated filtration system, enhancing fluid cleanliness and optimizing the system’s operation. It is designed for efficient regulation for semiconductor fabrication, precision machining, and environmental testing.

Request Quote

Temperature Range	-100°C to 90°C
Temperature Control	±0.05°C
Expansion Tank Volume	10L
Fluid Volume	5L Internal Circulation
Flow Control	7 to 25L/min
Heating Capacity	3.5Kw
Cooling Water flow	50L/min 2bar to 7bar at 20°C
Circuit Breaker	32A
Cooling Capacity	1.5Kw at -90°C

Quick Fault Detection
Compact External Design
Heavy-Duty Performance
Anti-Contamination Design
Stable System Pressure

Our Recirculating Chiller offers reliable cooling for semiconductor fabrication, precision machining, and environmental testing, ensuring precise temperature control and protecting critical systems from overheating.

Download catalog for
Recirculating Chiller LRC-F10 Catalog

Available Range :

Recirculating Chiller LRC-F10 : -100°C to 90°C Recirculating Chiller LRC-A12 : -20 ℃ to RT Recirculating Chiller LRC-L10 : -20°C to RT Recirculating Chiller LRC-A11 : -20℃ to RT Recirculating Chiller LRC-C10 : -25°C to 90°C Recirculating Chiller LRC-D10 : -45°C to 90°C Recirculating Chiller LRC-E10 : -80°C to 90°C Recirculating Chiller LRC-B10 : 5°C to 90°C Recirculating Chiller LRC-A10 : 5˚C to 40˚C Recirculating Chillers LRC-L11 : –20 to 25°C Recirculating Chillers LRC-L12 : –30 to 5°C

Models of Recirculating Chiller

Labtron Recirculating Chiller provide cooling of fluids from -5℃ to 40℃ by circulating them through system to remove heat. They include evaporators to absorb thermal energy from liquid ensuring temperature control. Their expansion valves control flow of refrigerant and regulate freezing capacity of system. They feature filtration system to remove particulates and impurities from solution. Our Recirculating Chiller is applicable for automotive testing, electronics, medical and pharmaceutical equipment.
