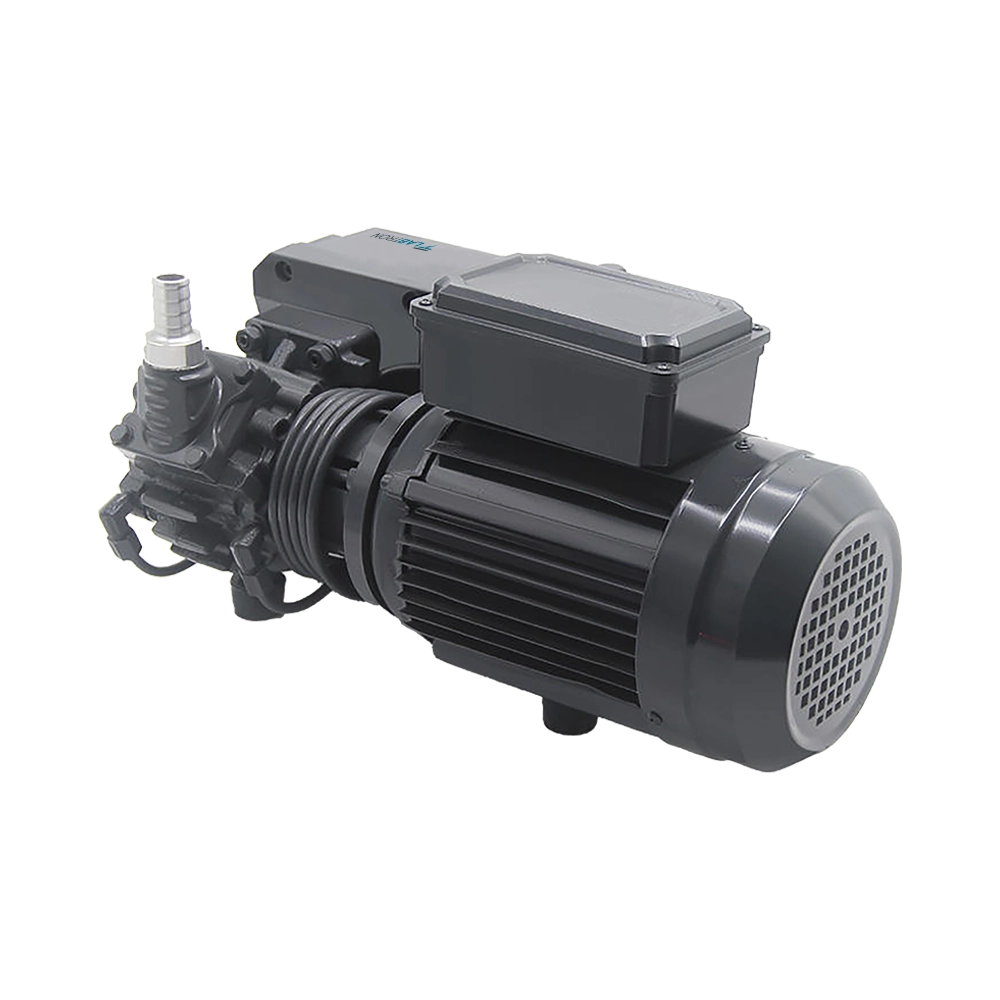

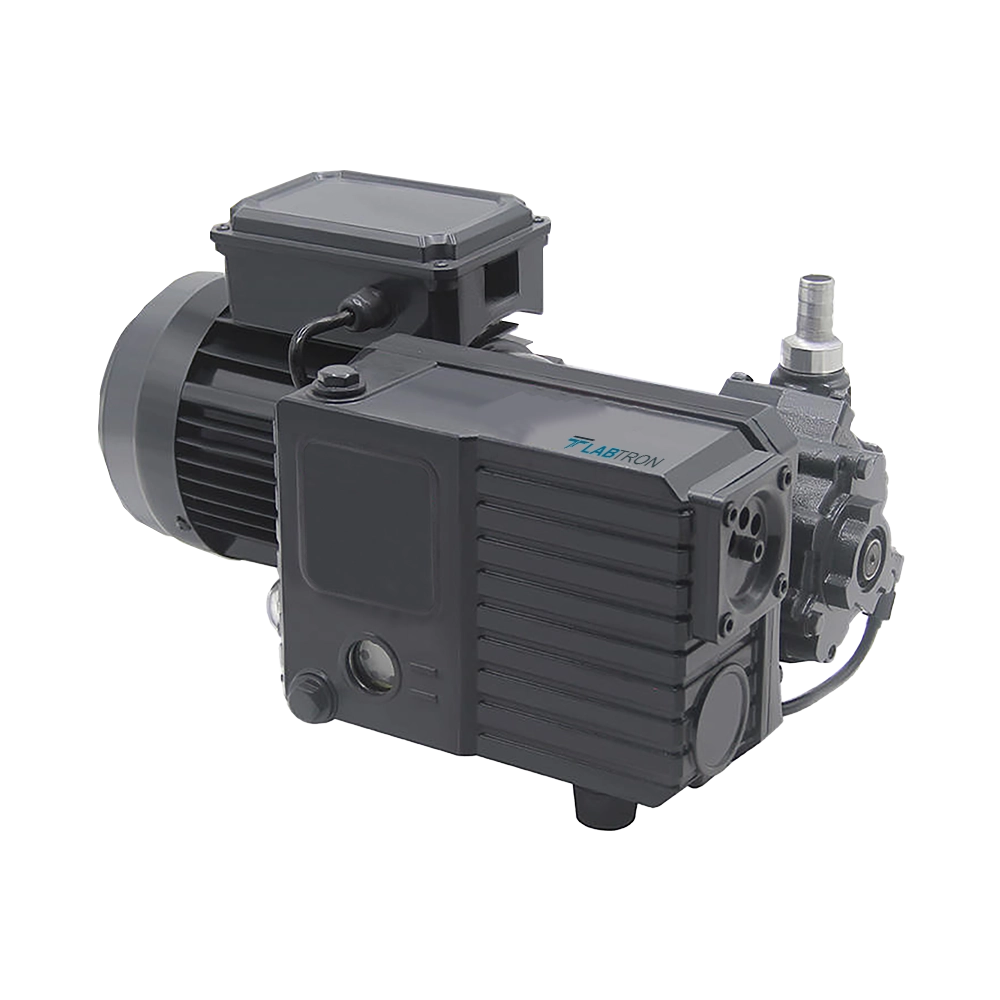

Rotary Vane Vacuum Pump LRVP-A17

Name: Rotary Vane Vacuum Pump LRVP-A17
Brand: Labtron
SKU: LRVP-A17
Rating: 4.8 (760 reviews)

Rotary Vane Vacuum Pump LRVP-A17 operates at impressive vacuum level of 5 Pa for efficient performance. Its advanced lubrication system reduces wear and tear for long-lasting usage. The built-in oil mist separator minimizes contamination for clean, efficient operation. Equipped with integrated cooling system for enhanced thermal management efficiency. Designed for low maintenance, reducing downtime and operational costs significantly.

Request Quote

Pumping Speed	3.5 CFM
Oil Capacity	0.225 L
Rotating Speed	1440rpm
Ultimate Pressure	5 Pa
Power	0.33HP
Voltage	220V
Frequency	50Hz
Dimension	275mm × 115mm × 240mm
Weight	6.1kg
Gross Weight	6.5kg

High vacuum level achieved
Efficient oil-sealed mechanism
Durable rotary vane construction
Low operating noise level
Compact footprint for installation
Dual-stage vacuum performance

Our Rotary Vane Vacuum Pump LRVP-A17 ensures optimal vacuum levels for efficient degassing, drying, and laboratory processes in industrial, scientific, and chemical fields, enhancing system reliability and precision.

Fan Cover
Cross Screw
Fan
Motor Cover
Cross Screw
Bearing
Motor Rotor
Power Supply Cords
Power Switch
Centrifugal Switch
Motor Stator
Capacitor
Handle
Inlet Lifting
Trestle
Screw
Cap board
Exhaust lifting
Die cast Aluminium Housing
Sight Glass
Oil Drain Cap
Screw
Seal
Base
Rubber Foot

Download catalog for
Rotary Vane Vacuum Pump LRVP-A17 Catalog

Available Range :

Rotary Vane Vacuum Pump LRVP-A11 : 1.5 CFM Rotary Vane Vacuum Pump LRVP-A13 : 10 CFM Rotary Vane Vacuum Pump LRVP-A14 : 1666.67 L / min Rotary Vane Vacuum Pump LRVP-A16 : 2.5 CFM Rotary Vane Vacuum Pump LRVP-A10 : 20 m³/h Rotary Vane Vacuum Pump LRVP-A17 : 3.5 CFM Rotary Vane Vacuum Pump LRVP-A18 : 4.5 CFM Rotary Vane Vacuum Pump LRVP-A12 : 6 CFM Rotary Vane Vacuum Pump LRVP-A20 : 8 CFM

Models of Rotary Vane Vacuum Pump

Labtron Rotary Vane Vacuum Pump offers lightweight and portable design to create vacuum by removing air or gas from an enclosed space. They include built-in exhaust filter to prevent oil mist emission and maintain cleanliness. Their automatic gas ballast valve prevents vapor condensation within pump chamber. They offer high pumping speed, increasing productivity in air free dependent procedures. Our Rotary Vane Vacuum Pump is ideal for industrial processes like degassing, drying, and distillation.
