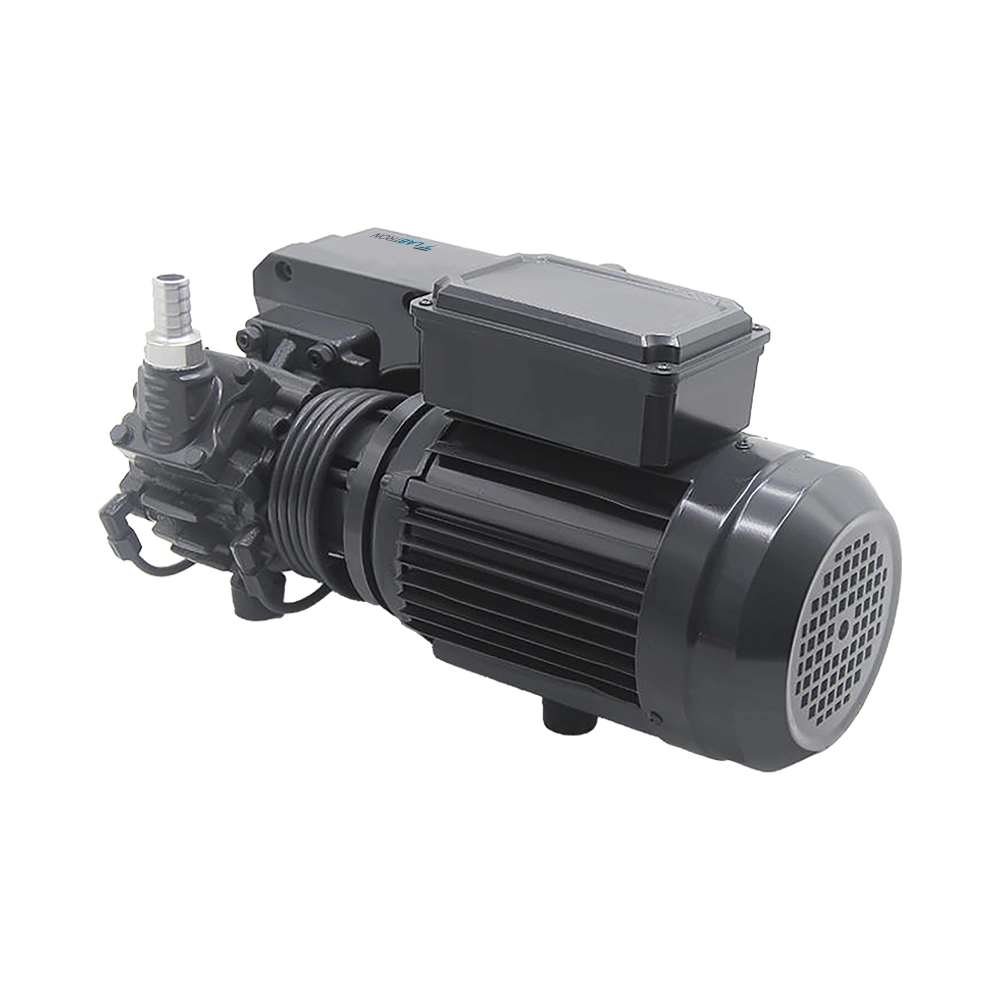

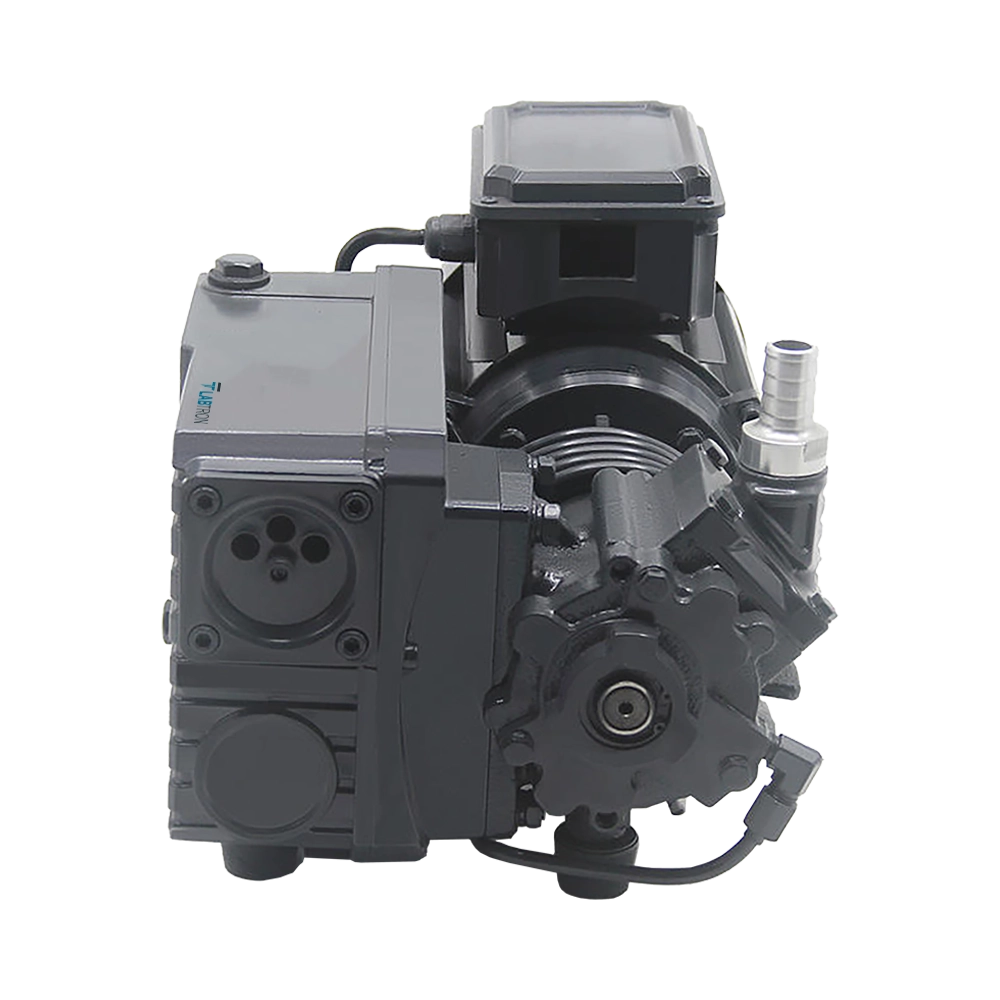

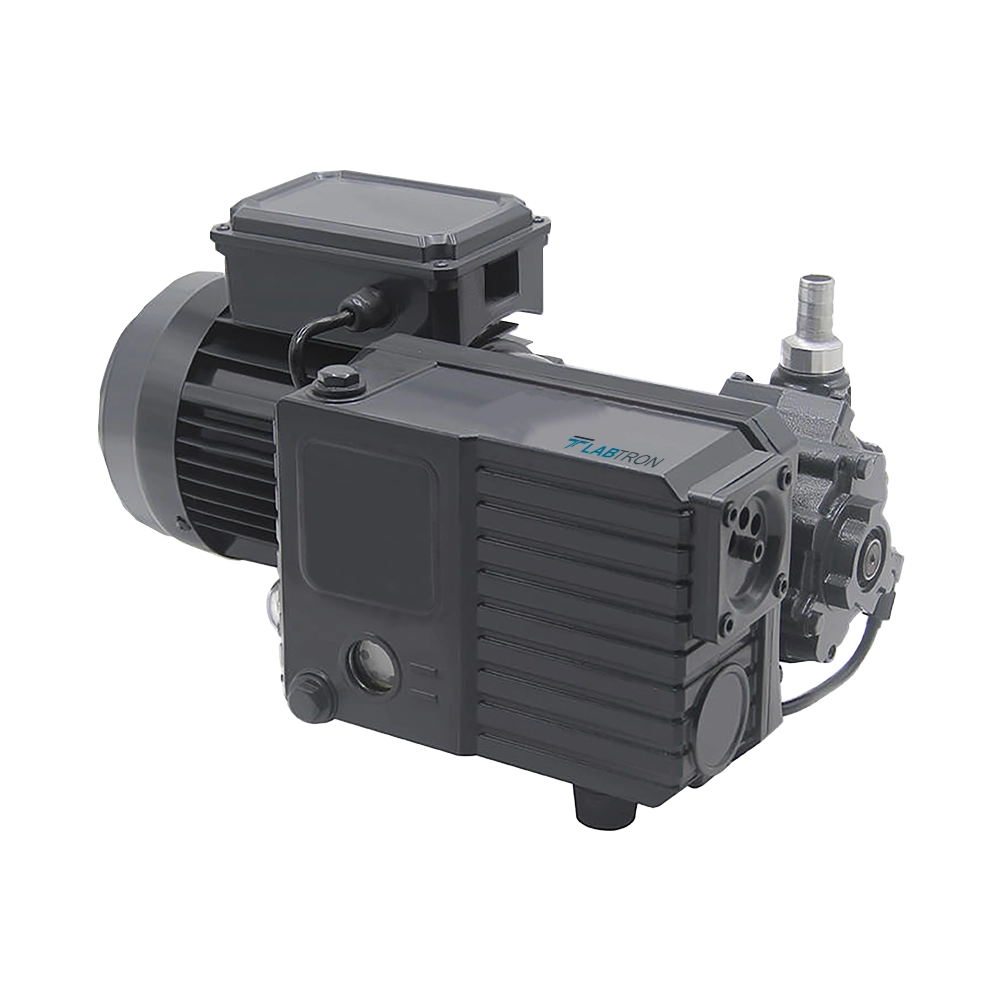

Rotary Vane Vacuum Pump LRVP-A20

Name: Rotary Vane Vacuum Pump LRVP-A20
Brand: Labtron
SKU: LRVP-A20
Rating: 4.7 (857 reviews)

Rotary Vane Vacuum Pump LRVP-A20 features oil capacity of 0.3 L ensuring optimal lubrication for smooth and efficient operation. Its built-in cooling fan provide excellent thermal management during extended use. The advanced lubrication system minimizes wear and enhances operational longevity. Equipped with anti-suck-back valve to prevent backflow and safeguards process environment. The sealed construction ensures contamination free working maintaining clean and safe area.

Request Quote

Pumping Speed	8 CFM
Oil Capacity	0.3 L
Rotating Speed	1440rpm
Ultimate Pressure	5 Pa
Power	0.75HP
Voltage	220V
Frequency	50Hz
Dimension	360mm × 135mm × 270mm
Weight	12kg

High vacuum pressure capability
Low operating noise level
Advanced cooling system integration
Long operational service life
Easy maintenance and cleaning

Our Rotary Vane Vacuum Pump LRVP-A20 is ideal for industrial and laboratory applications, offering precise vacuum levels, efficient vapor management, and exceptional performance in drying, coating, material processing, and research tasks.

Fan Cover
Cross Screw
Fan
Motor Cover
Cross Screw
Bearing
Motor Rotor
Power Supply Cords
Power Switch
Centrifugal Switch
Motor Stator
Capacitor
Handle
Inlet Lifting
Trestle
Screw
Cap board
Exhaust lifting
Die cast Aluminium Housing
Sight Glass
Oil Drain Cap
Screw
Seal
Base
Rubber Foot

Download catalog for
Rotary Vane Vacuum Pump LRVP-A20 Catalog

Available Range :

Rotary Vane Vacuum Pump LRVP-A11 : 1.5 CFM Rotary Vane Vacuum Pump LRVP-A13 : 10 CFM Rotary Vane Vacuum Pump LRVP-A14 : 1666.67 L / min Rotary Vane Vacuum Pump LRVP-A16 : 2.5 CFM Rotary Vane Vacuum Pump LRVP-A10 : 20 m³/h Rotary Vane Vacuum Pump LRVP-A17 : 3.5 CFM Rotary Vane Vacuum Pump LRVP-A18 : 4.5 CFM Rotary Vane Vacuum Pump LRVP-A12 : 6 CFM Rotary Vane Vacuum Pump LRVP-A20 : 8 CFM

Models of Rotary Vane Vacuum Pump

Labtron Rotary Vane Vacuum Pump offers lightweight and portable design to create vacuum by removing air or gas from an enclosed space. They include built-in exhaust filter to prevent oil mist emission and maintain cleanliness. Their automatic gas ballast valve prevents vapor condensation within pump chamber. They offer high pumping speed, increasing productivity in air free dependent procedures. Our Rotary Vane Vacuum Pump is ideal for industrial processes like degassing, drying, and distillation.
