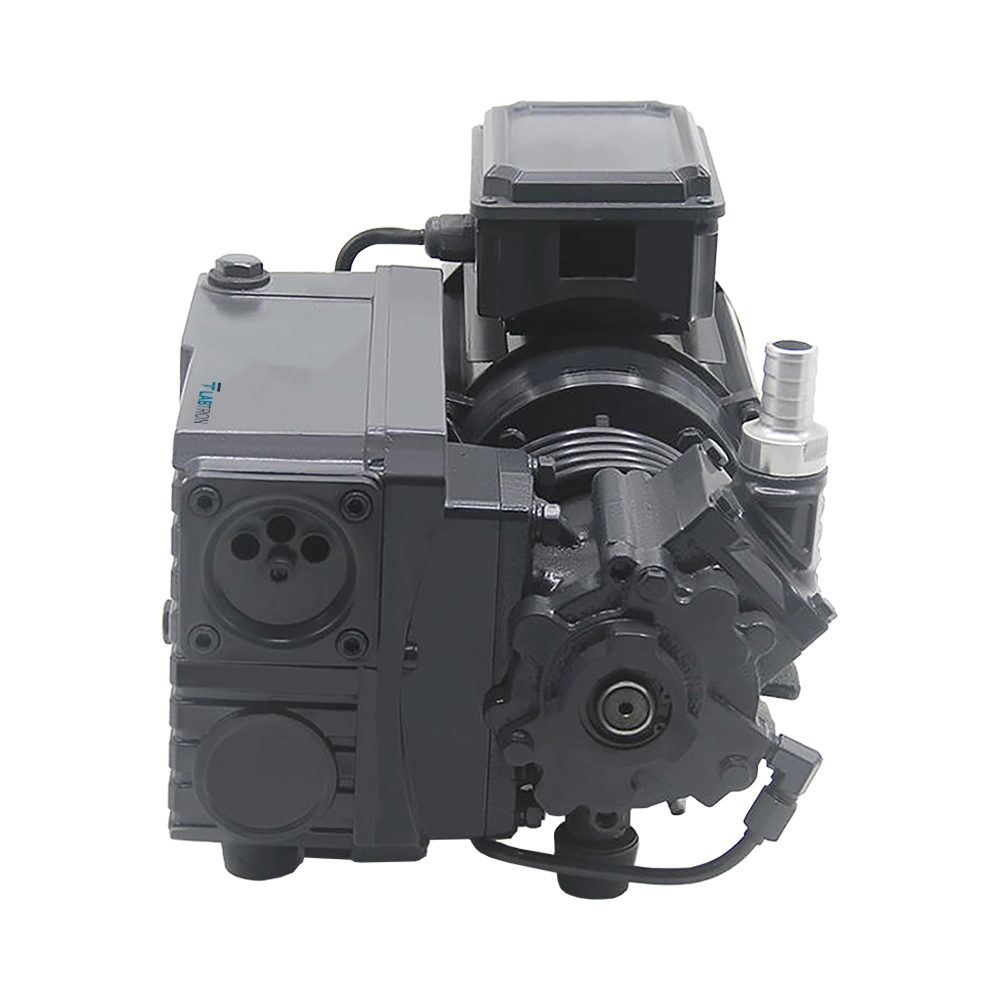

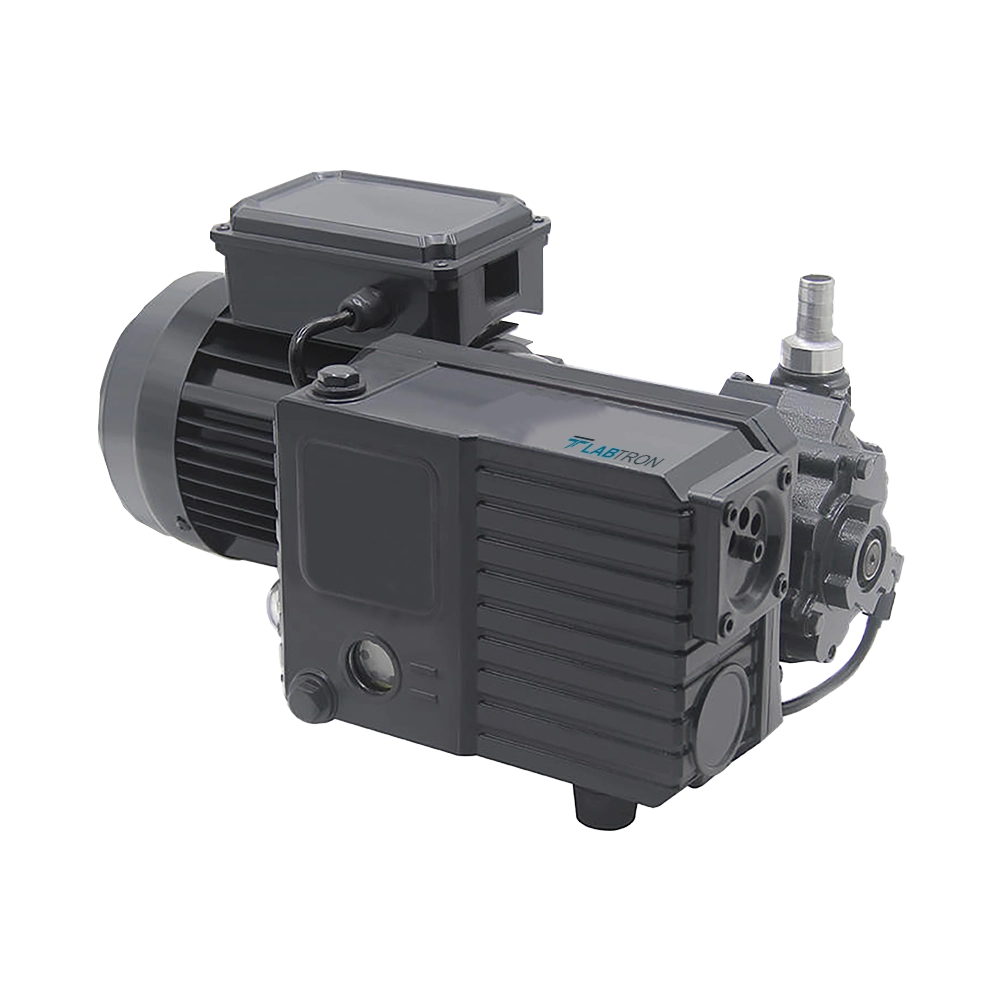

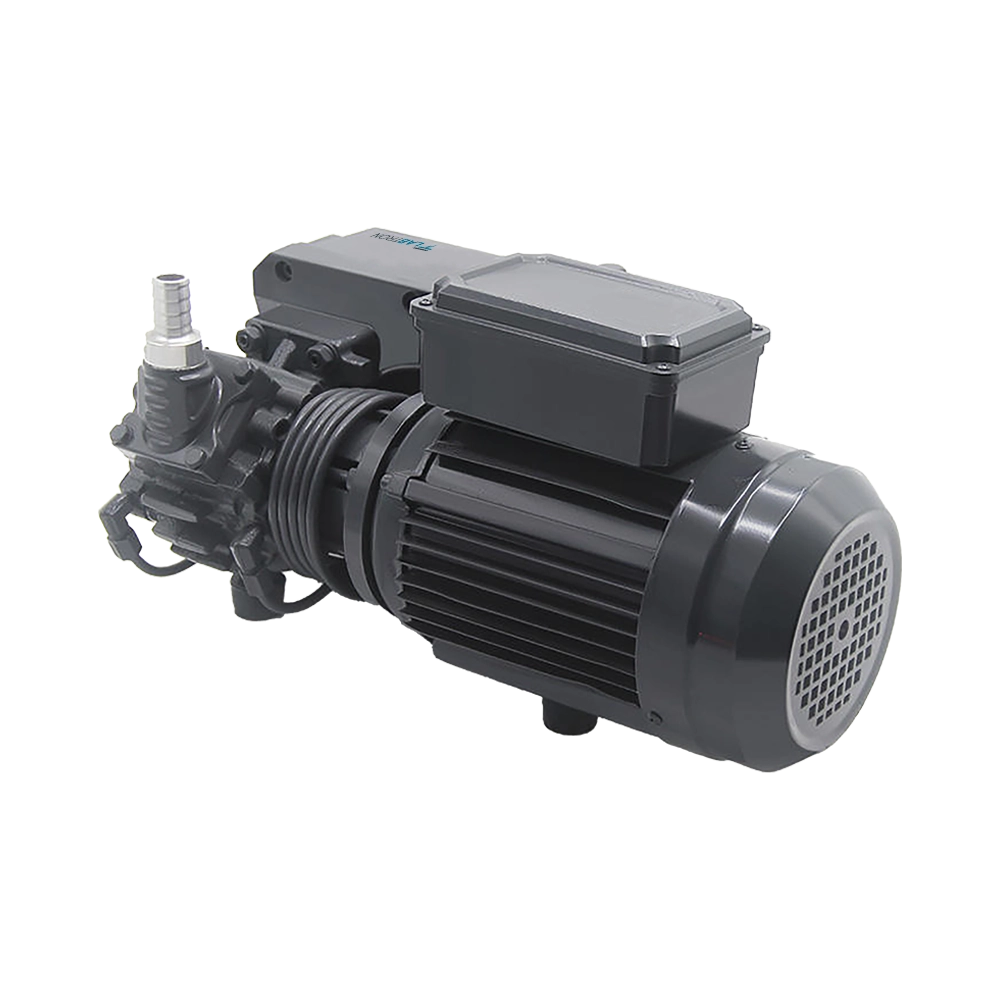

Rotary Vane Vacuum Pump LRVP-A22

Name: Rotary Vane Vacuum Pump LRVP-A22
Brand: Labtron
SKU: LRVP-A22
Rating: 4.8 (781 reviews)

Rotary Vane Vacuum Pump LRVP-A22 provides stable performance with a vacuum level of 3×10⁻¹ Pa for reliable results. Features durable vanes ensuring consistent and smooth operation under rigorous conditions. Its integrated cooling system prevents overheating during prolonged use and ensures longevity. Equipped with a noise-reduction mechanism for quiet and uninterrupted operations. Precision-engineered seals prevent leakage, ensuring consistent pressure during operation.

Request Quote

Pumping Speed	2.5 CFM
Oil Capacity	0.25 L
Rotating Speed	2800rpm
Ultimate Pressure	3 × 10⁻¹ Pa
Power	0.75HP
Voltage	220V
Frequency	50Hz
Dimension	280mm × 110mm × 215mm
Weight	8.6kg

Oil-lubricated rotary mechanism
Efficient gas ballast valve
Smooth, vibration-free operation
Stable performance under load
Corrosion-resistant internal components

Our Rotary Vane Vacuum Pump LRVP-A22 ensures reliable vacuum generation for industrial and laboratory processes, including vacuum filtration, degassing, and distillation, delivering consistent performance in diverse research and production environments

Fan Cover
Cross Screw
Fan
Motor Cover
Cross Screw
Bearing
Motor Rotor
Power Supply Cords
Power Switch
Centrifugal Switch
Motor Stator
Capacitor
Handle
Inlet Lifting
Trestle
Screw
Cap board
Exhaust lifting
Die cast Aluminium Housing
Sight Glass
Oil Drain Cap
Screw
Seal
Base
Rubber Foot

Download catalog for
Rotary Vane Vacuum Pump LRVP-A22 Catalog

Available Range :

Rotary Vane Vacuum Pump LRVP-A11 : 1.5 CFM Rotary Vane Vacuum Pump LRVP-A13 : 10 CFM Rotary Vane Vacuum Pump LRVP-A14 : 1666.67 L / min Rotary Vane Vacuum Pump LRVP-A16 : 2.5 CFM Rotary Vane Vacuum Pump LRVP-A10 : 20 m³/h Rotary Vane Vacuum Pump LRVP-A17 : 3.5 CFM Rotary Vane Vacuum Pump LRVP-A18 : 4.5 CFM Rotary Vane Vacuum Pump LRVP-A12 : 6 CFM Rotary Vane Vacuum Pump LRVP-A20 : 8 CFM

Models of Rotary Vane Vacuum Pump

Labtron Rotary Vane Vacuum Pump offers lightweight and portable design to create vacuum by removing air or gas from an enclosed space. They include built-in exhaust filter to prevent oil mist emission and maintain cleanliness. Their automatic gas ballast valve prevents vapor condensation within pump chamber. They offer high pumping speed, increasing productivity in air free dependent procedures. Our Rotary Vane Vacuum Pump is ideal for industrial processes like degassing, drying, and distillation.
