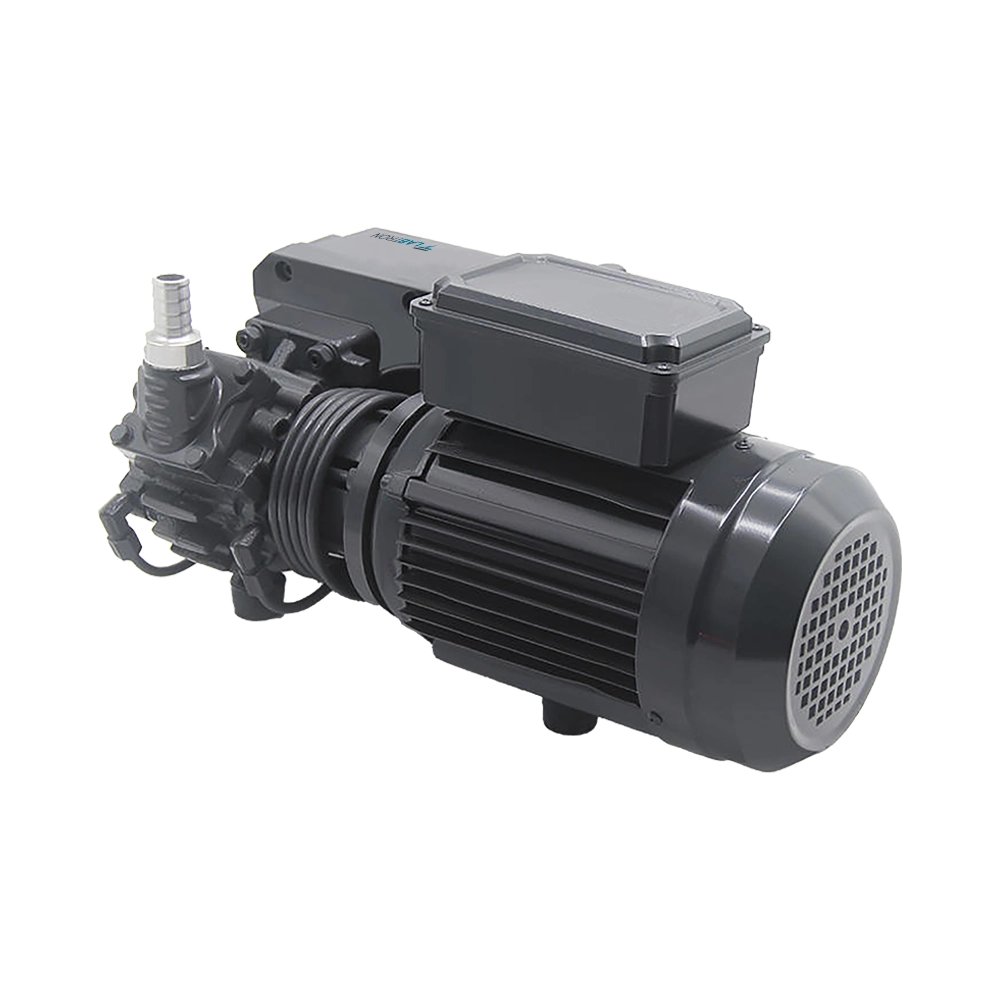

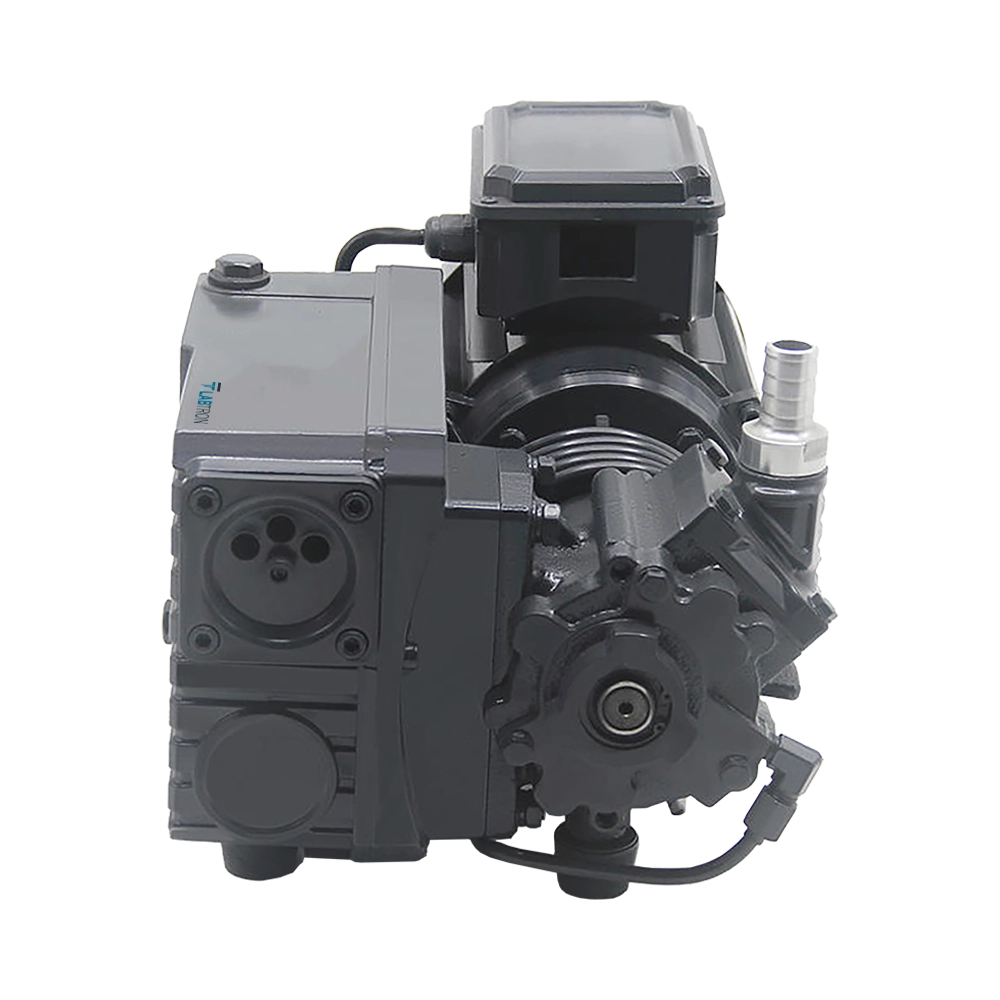

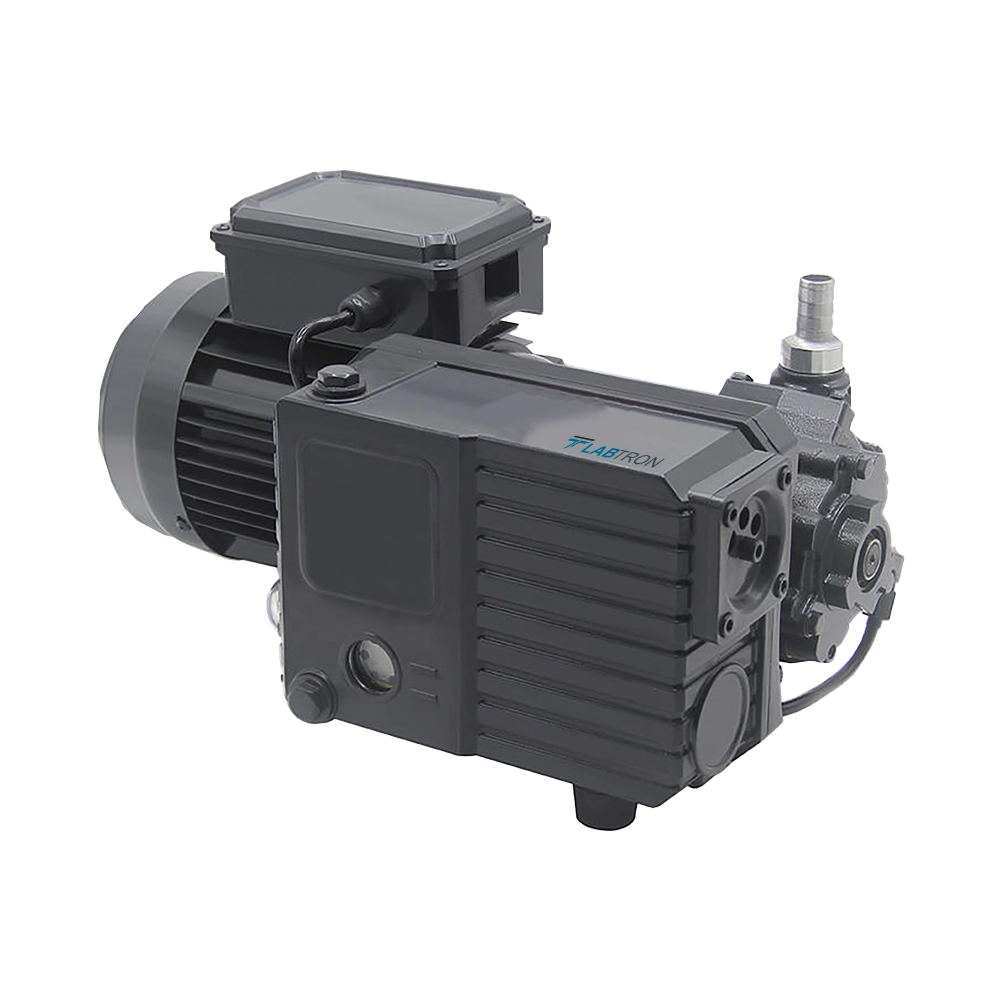

Rotary Vane Vacuum Pump LRVP-A15

Name: Rotary Vane Vacuum Pump LRVP-A15
Brand: Labtron
SKU: LRVP-A15
Rating: 4.8 (929 reviews)

Rotary Vane Vacuum Pump LRVP-A15 operates at rotating speed of 1440 rpm, ensuring efficient and stable vacuum creation. It performs optimally with average pressure of 5 Pa, providing reliable performance. The pump is equipped with high-quality bearings for smooth operation and durable long-term performance, even under continuous use. Built-in safety mechanisms are incorporated to protect system from damage and extend its operational life. Additionally, it is energy-efficient, offering eco-friendly solution by reducing electricity consumption and lowering operating costs.

Request Quote

Pumping Speed	1.5 CFM
Oil Capacity	0.17 L
Rotating Speed	1440rpm
Ultimate Pressure	5 Pa
Power	0.25HP
Voltage	220V
Frequency	50Hz
Dimension	243mm × 114mm × 207mm
Weight	5.2kg
Gross Weight	5.53kg

Low operational noise levels
Oil-lubricated vane mechanism
Integrated gas ballast system
Durable metal pump casing
Reliable motor-driven operation

Our Rotary Vane Vacuum Pump LRVP-A15 enables efficient vacuuming for industrial and laboratory applications, including evaporation, degassing, and material handling, offering robust design, high reliability, and excellent moisture-handling capabilities.

Fan Cover
Cross Screw
Fan
Motor Cover
Cross Screw
Bearing
Motor Rotor
Power Supply Cords
Power Switch
Centrifugal Switch
Motor Stator
Capacitor
Handle
Inlet Lifting
Trestle
Screw
Cap board
Exhaust lifting
Die cast Aluminium Housing
Sight Glass
Oil Drain Cap
Screw
Seal
Base
Rubber Foot

Download catalog for
Rotary Vane Vacuum Pump LRVP-A15 Catalog

Available Range :

Rotary Vane Vacuum Pump LRVP-A11 : 1.5 CFM Rotary Vane Vacuum Pump LRVP-A13 : 10 CFM Rotary Vane Vacuum Pump LRVP-A14 : 1666.67 L / min Rotary Vane Vacuum Pump LRVP-A16 : 2.5 CFM Rotary Vane Vacuum Pump LRVP-A10 : 20 m³/h Rotary Vane Vacuum Pump LRVP-A17 : 3.5 CFM Rotary Vane Vacuum Pump LRVP-A18 : 4.5 CFM Rotary Vane Vacuum Pump LRVP-A12 : 6 CFM Rotary Vane Vacuum Pump LRVP-A20 : 8 CFM

Models of Rotary Vane Vacuum Pump

Labtron Rotary Vane Vacuum Pump offers lightweight and portable design to create vacuum by removing air or gas from an enclosed space. They include built-in exhaust filter to prevent oil mist emission and maintain cleanliness. Their automatic gas ballast valve prevents vapor condensation within pump chamber. They offer high pumping speed, increasing productivity in air free dependent procedures. Our Rotary Vane Vacuum Pump is ideal for industrial processes like degassing, drying, and distillation.
