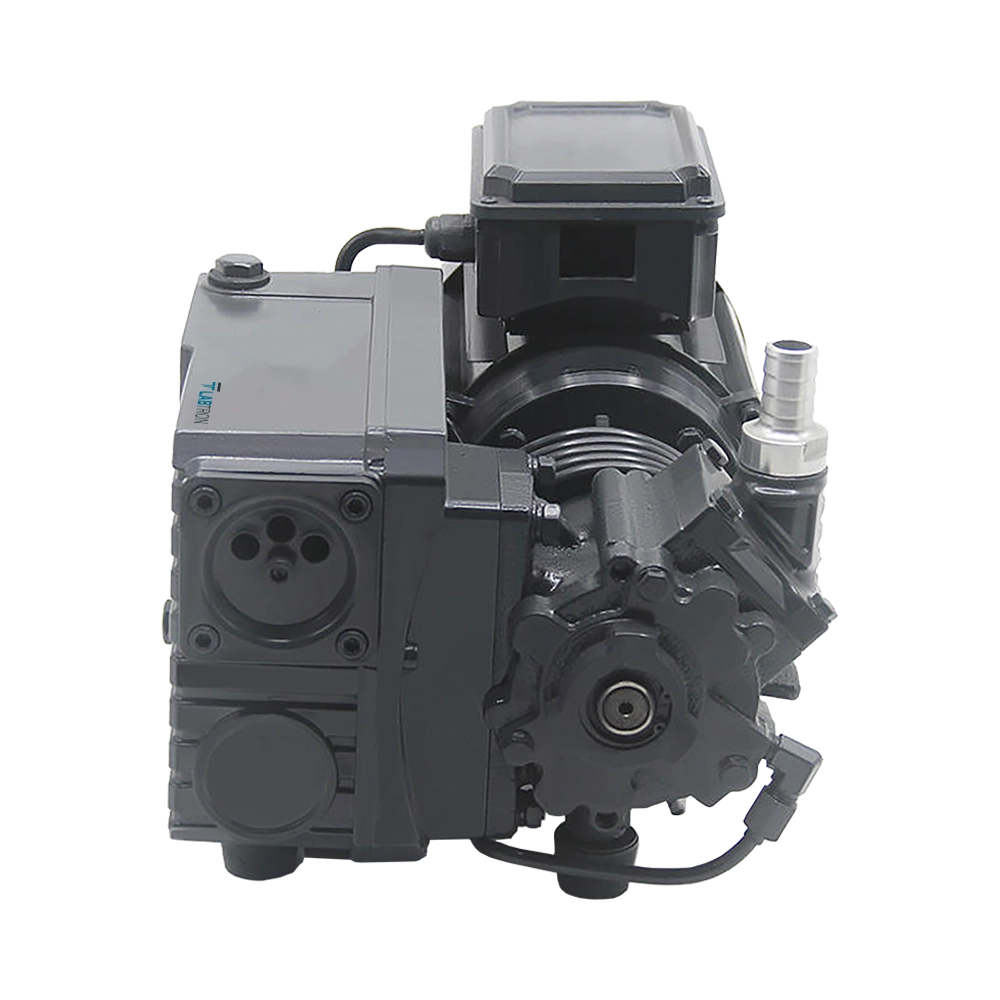

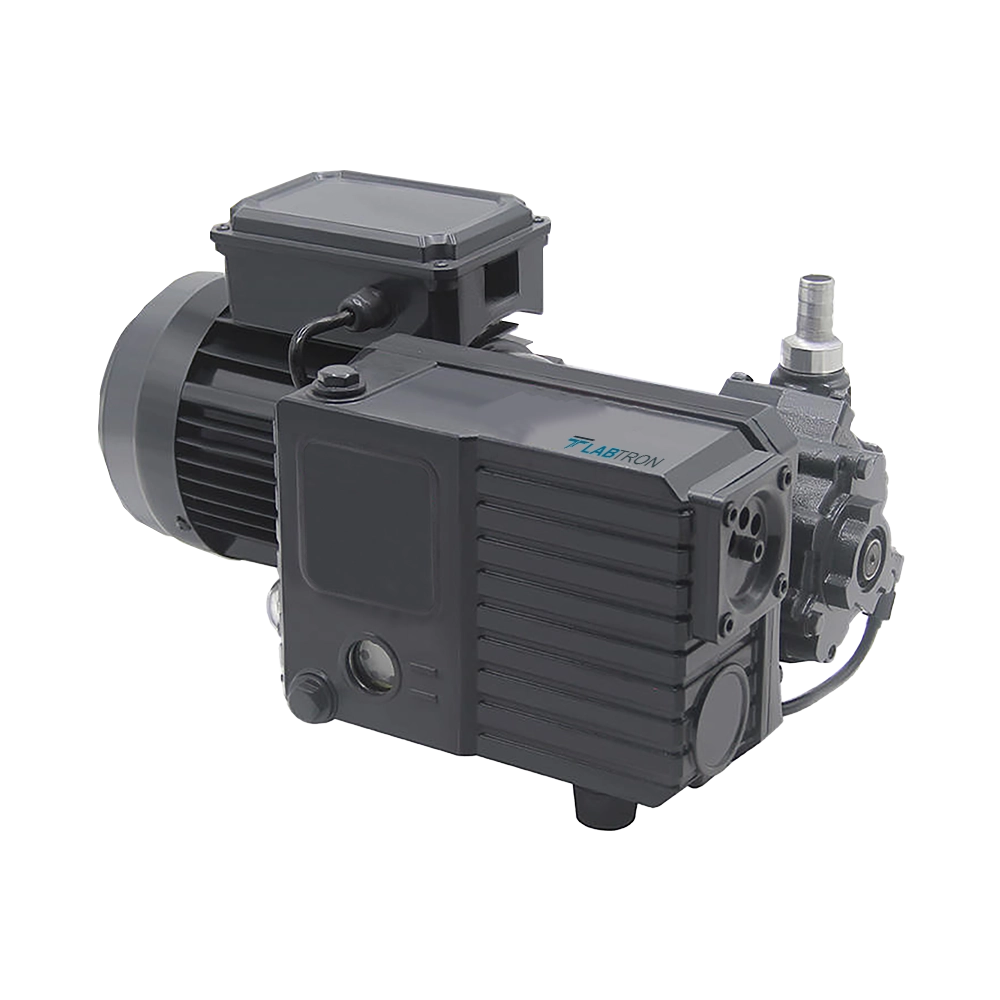

Rotary Vane Vacuum Pump LRVP-A19

Name: Rotary Vane Vacuum Pump LRVP-A19
Brand: Labtron
SKU: LRVP-A19
Rating: 5 (846 reviews)

Rotary Vane Vacuum Pump LRVP-A19 offers optimized 6 CFM vacuum flow ensuring consistent performance in various setups. Its dual-stage functionality enhances deeper vacuum capabilities for advanced processes. The automatic pressure regulation maintains optimal vacuum levels during operation, ensuring steady performance. Equipped with safety mechanisms to prevent backflow and contamination risks safeguarding both the system user. Offers advanced material coating providing protects against degradation from moisture and chemical exposure.

Request Quote

Pumping Speed	6 CFM
Oil Capacity	0.25 L
Rotating Speed	1440rpm
Ultimate Pressure	5 Pa
Power	0.5HP
Voltage	220V
Frequency	50Hz
Dimension	310mm × 125mm × 255mm
Weight	9.3kg

Optimized energy consumption efficiency
Stable vacuum output delivered
Leak-proof sealed operation
Flexible usage in industries
Improved vacuum stability ensured

Our Rotary Vane Vacuum Pump LRVP-A19 facilitates efficient vacuum creation for drying, filtration, and material processing in industrial, pharmaceutical, and research environments, delivering consistent performance and operational reliability.

Fan Cover
Cross Screw
Fan
Motor Cover
Cross Screw
Bearing
Motor Rotor
Power Supply Cords
Power Switch
Centrifugal Switch
Motor Stator
Capacitor
Handle
Inlet Lifting
Trestle
Screw
Cap board
Exhaust lifting
Die cast Aluminium Housing
Sight Glass
Oil Drain Cap
Screw
Seal
Base
Rubber Foot

Download catalog for
Rotary Vane Vacuum Pump LRVP-A19 Catalog

Available Range :

Rotary Vane Vacuum Pump LRVP-A11 : 1.5 CFM Rotary Vane Vacuum Pump LRVP-A13 : 10 CFM Rotary Vane Vacuum Pump LRVP-A14 : 1666.67 L / min Rotary Vane Vacuum Pump LRVP-A16 : 2.5 CFM Rotary Vane Vacuum Pump LRVP-A10 : 20 m³/h Rotary Vane Vacuum Pump LRVP-A17 : 3.5 CFM Rotary Vane Vacuum Pump LRVP-A18 : 4.5 CFM Rotary Vane Vacuum Pump LRVP-A12 : 6 CFM Rotary Vane Vacuum Pump LRVP-A20 : 8 CFM

Models of Rotary Vane Vacuum Pump

Labtron Rotary Vane Vacuum Pump offers lightweight and portable design to create vacuum by removing air or gas from an enclosed space. They include built-in exhaust filter to prevent oil mist emission and maintain cleanliness. Their automatic gas ballast valve prevents vapor condensation within pump chamber. They offer high pumping speed, increasing productivity in air free dependent procedures. Our Rotary Vane Vacuum Pump is ideal for industrial processes like degassing, drying, and distillation.
