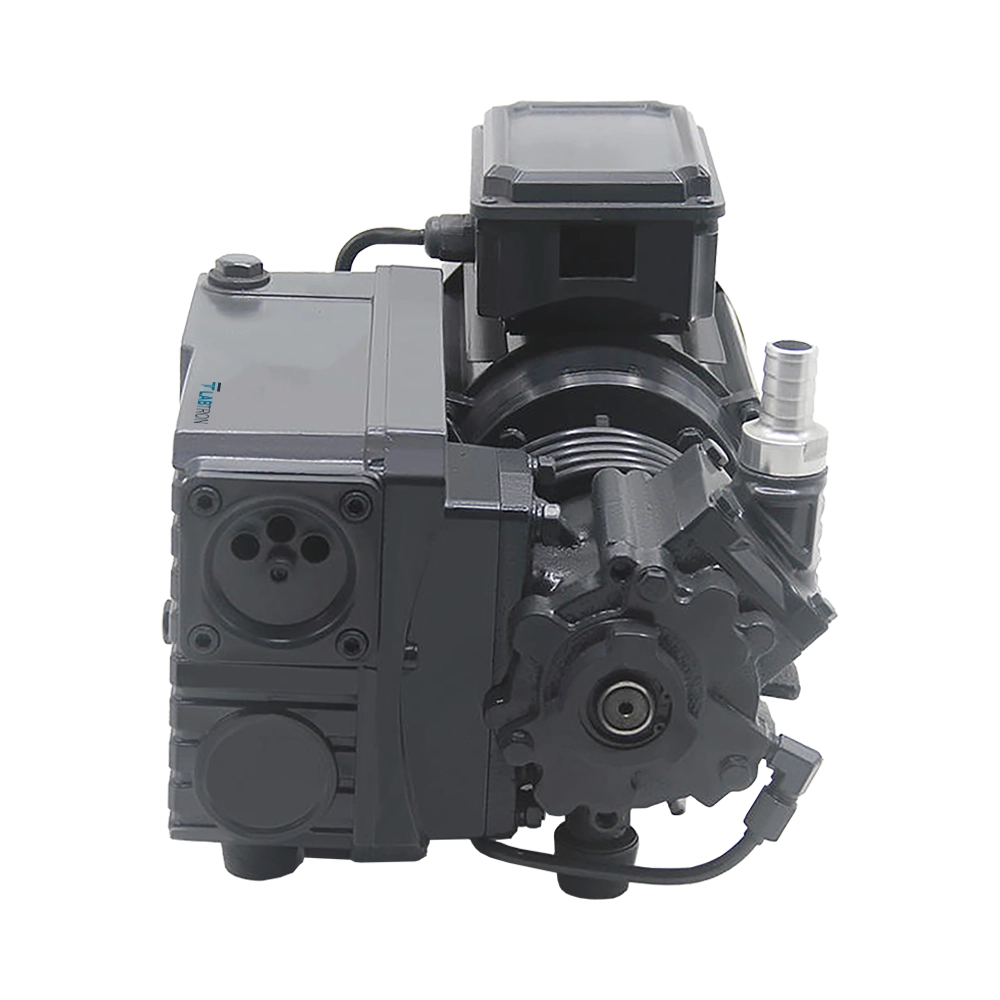

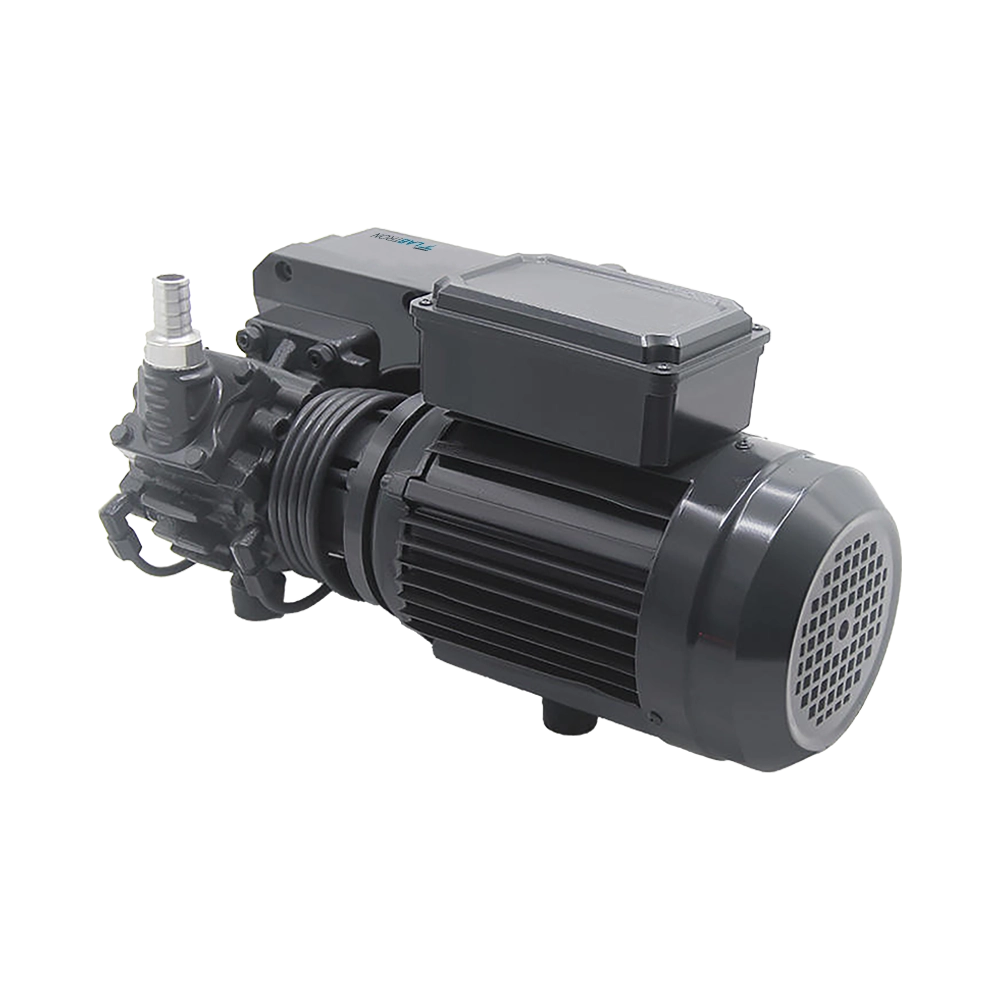

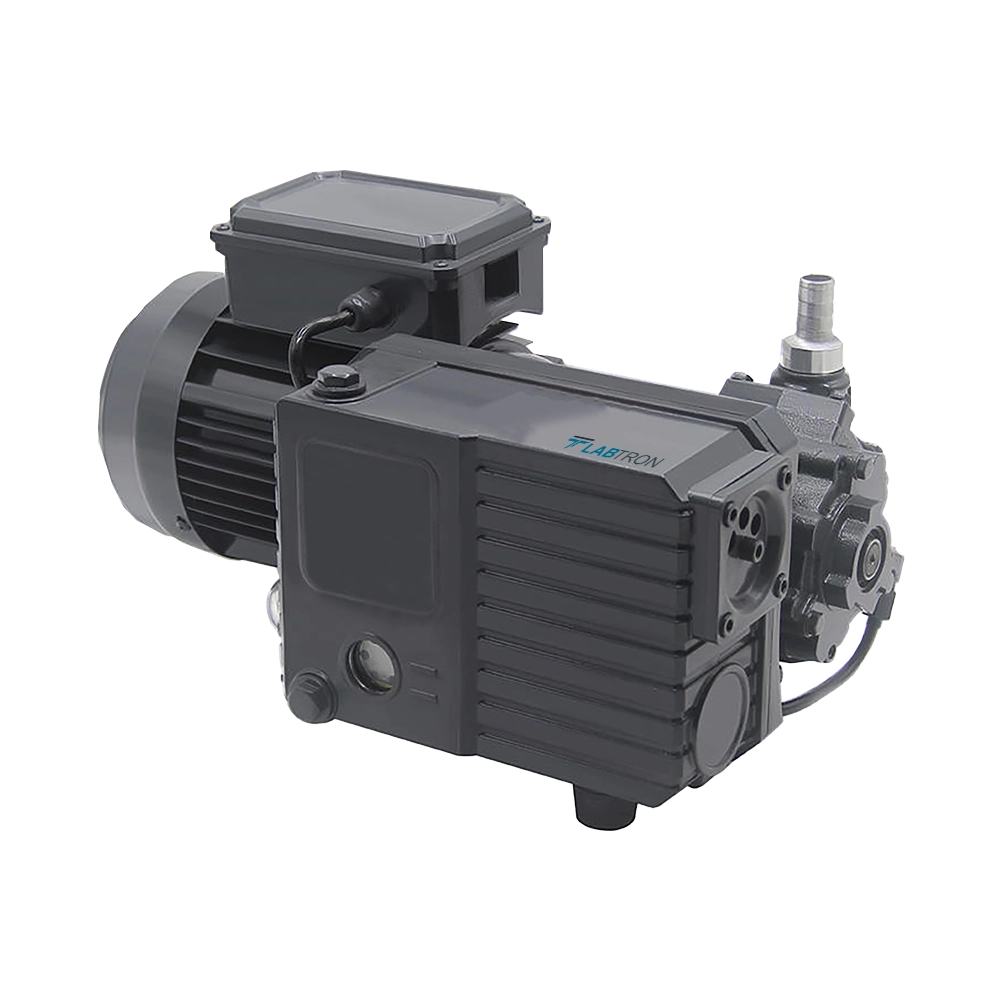

Rotary Vane Vacuum Pump LRVP-A18

Name: Rotary Vane Vacuum Pump LRVP-A18
Brand: Labtron
SKU: LRVP-A18
Rating: 4.8 (736 reviews)

Rotary Vane Vacuum Pump LRVP-A18 ensures stable vacuum output with calibrated 1440rpm rotating mechanism. Its advanced sealing system prevents leakage, maintaining system integrity during operation. Feature high oil retention capacity that reduces need for frequent oil changes for user convenience and minimizing downtime. The digital control panel enable precise monitoring and customization of parameters to optimize workflow. Offers high pumping speed to accelerate evacuation processes for faster results.

Request Quote

Pumping Speed	4.5 CFM
Oil Capacity	0.25 L
Rotating Speed	1440rpm
Ultimate Pressure	5 Pa
Power	0.33HP
Voltage	220V
Frequency	50Hz
Dimension	290mm × 120mm × 240mm
Weight	8.5kg

Reliable long-term performance
Oil mist eliminator included
Easy maintenance and servicing
Enhanced vapor handling capability
Compact structure for portability

Our Rotary Vane Vacuum Pump LRVP-A18 delivers precise vacuum control for material handling, drying, and degassing applications in research, manufacturing, and chemical processing, ensuring efficient and consistent performance across diverse operations.

Fan Cover
Cross Screw
Fan
Motor Cover
Cross Screw
Bearing
Motor Rotor
Power Supply Cords
Power Switch
Centrifugal Switch
Motor Stator
Capacitor
Handle
Inlet Lifting
Trestle
Screw
Cap board
Exhaust lifting
Die cast Aluminium Housing
Sight Glass
Oil Drain Cap
Screw
Seal
Base
Rubber Foot

Download catalog for
Rotary Vane Vacuum Pump LRVP-A18 Catalog

Available Range :

Rotary Vane Vacuum Pump LRVP-A11 : 1.5 CFM Rotary Vane Vacuum Pump LRVP-A13 : 10 CFM Rotary Vane Vacuum Pump LRVP-A14 : 1666.67 L / min Rotary Vane Vacuum Pump LRVP-A16 : 2.5 CFM Rotary Vane Vacuum Pump LRVP-A10 : 20 m³/h Rotary Vane Vacuum Pump LRVP-A17 : 3.5 CFM Rotary Vane Vacuum Pump LRVP-A18 : 4.5 CFM Rotary Vane Vacuum Pump LRVP-A12 : 6 CFM Rotary Vane Vacuum Pump LRVP-A20 : 8 CFM

Models of Rotary Vane Vacuum Pump

Labtron Rotary Vane Vacuum Pump offers lightweight and portable design to create vacuum by removing air or gas from an enclosed space. They include built-in exhaust filter to prevent oil mist emission and maintain cleanliness. Their automatic gas ballast valve prevents vapor condensation within pump chamber. They offer high pumping speed, increasing productivity in air free dependent procedures. Our Rotary Vane Vacuum Pump is ideal for industrial processes like degassing, drying, and distillation.
