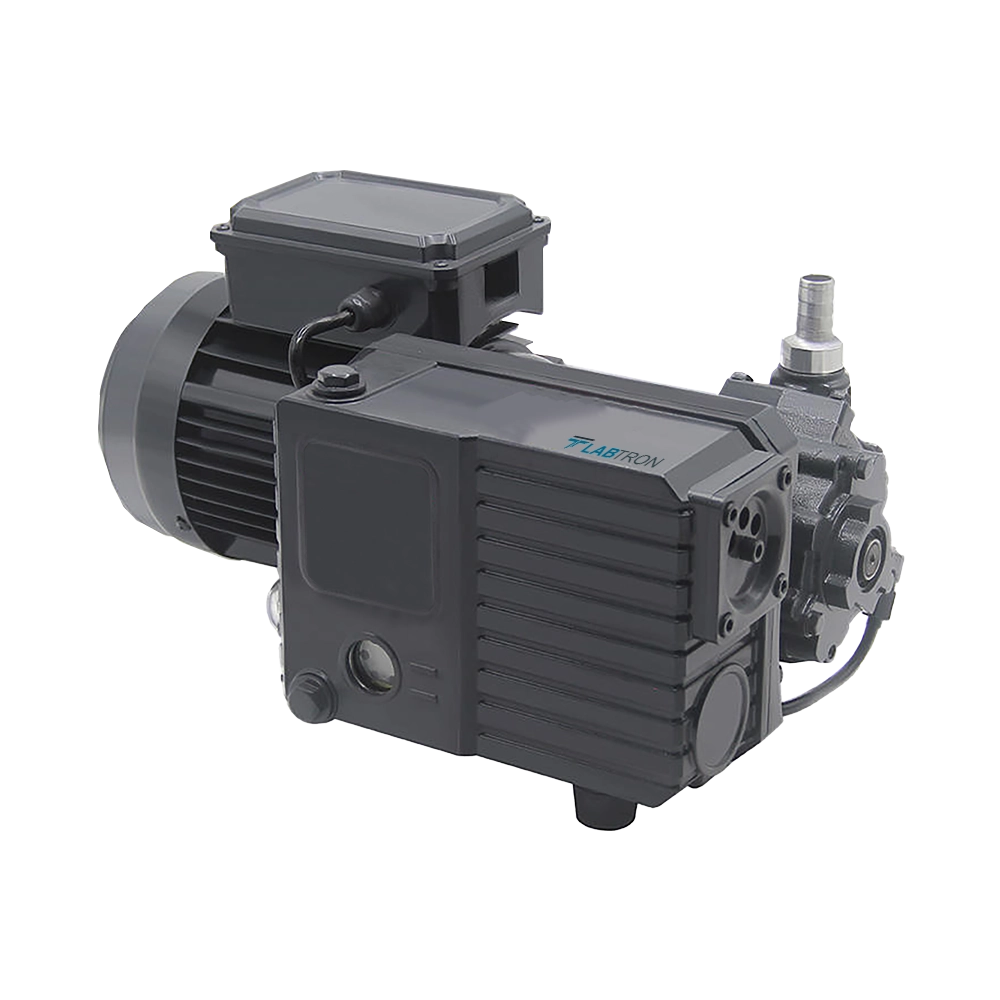

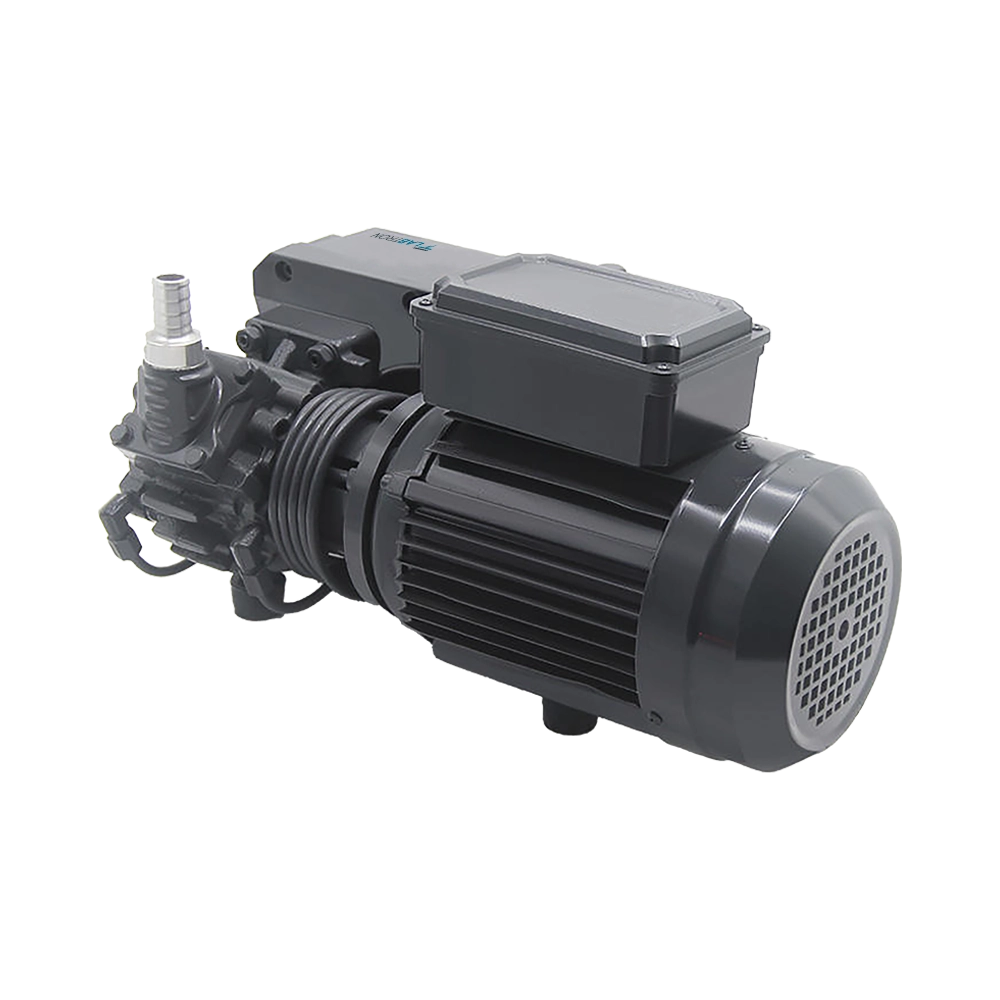

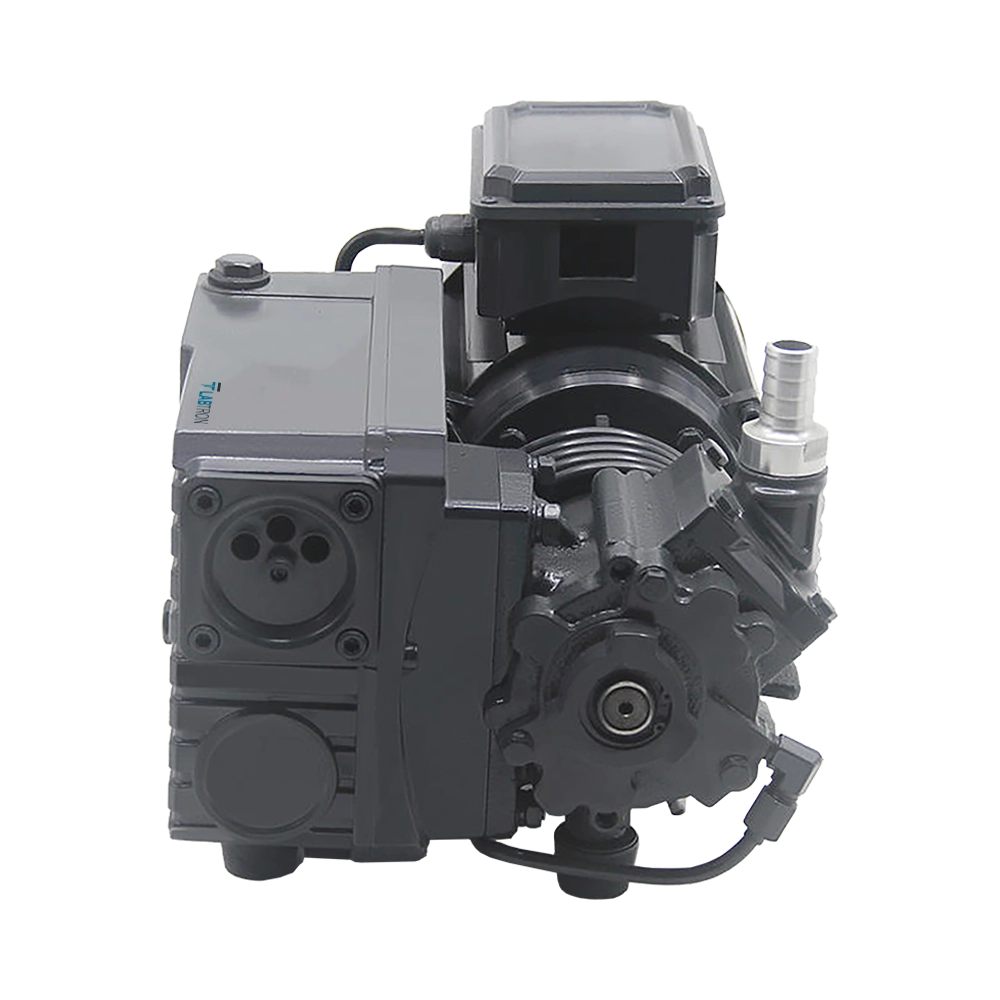

Rotary Vane Vacuum Pump LRVP-A24

Name: Rotary Vane Vacuum Pump LRVP-A24
Brand: Labtron
SKU: LRVP-A24
Rating: 5 (941 reviews)

Rotary Vane Vacuum Pump LRVP-A24 offers 0.5HP motor that delivers efficient and consistent vacuum performance. Its high-grade filters improve air quality by capturing contaminants effectively. Equipped with a noise-reduction mechanism for quiet and uninterrupted operation. The backing pump option optimizes performance in demanding multi-stage processes. Includes advanced diagnostics system to alert users for maintenance requirements promptly.

Request Quote

Pumping Speed	4.5 CFM
Oil Capacity	0.33 L
Rotating Speed	2800rpm
Ultimate Pressure	3 × 10⁻¹ Pa
Power	0.5HP
Voltage	220V
Frequency	50Hz
Dimension	290mm × 115mm × 220mm
Weight	9.5kg

Energy-efficient motor design
Enhanced vacuum pressure stability
Lightweight for portability handling
Compact size saves space
Advanced safety protection

Our Rotary Vane Vacuum Pump LRVP-A24 is designed for extended, low-maintenance operation, making it ideal for industrial vacuum processes like filtration, degassing, and distillation, ensuring consistent performance in demanding environments.

Fan Cover
Cross Screw
Fan
Motor Cover
Cross Screw
Bearing
Motor Rotor
Power Supply Cords
Power Switch
Centrifugal Switch
Motor Stator
Capacitor
Handle
Inlet Lifting
Trestle
Screw
Cap board
Exhaust lifting
Die cast Aluminium Housing
Sight Glass
Oil Drain Cap
Screw
Seal
Base
Rubber Foot

Download catalog for
Rotary Vane Vacuum Pump LRVP-A24 Catalog

Available Range :

Rotary Vane Vacuum Pump LRVP-A11 : 1.5 CFM Rotary Vane Vacuum Pump LRVP-A13 : 10 CFM Rotary Vane Vacuum Pump LRVP-A14 : 1666.67 L / min Rotary Vane Vacuum Pump LRVP-A16 : 2.5 CFM Rotary Vane Vacuum Pump LRVP-A10 : 20 m³/h Rotary Vane Vacuum Pump LRVP-A17 : 3.5 CFM Rotary Vane Vacuum Pump LRVP-A18 : 4.5 CFM Rotary Vane Vacuum Pump LRVP-A12 : 6 CFM Rotary Vane Vacuum Pump LRVP-A20 : 8 CFM

Models of Rotary Vane Vacuum Pump

Labtron Rotary Vane Vacuum Pump offers lightweight and portable design to create vacuum by removing air or gas from an enclosed space. They include built-in exhaust filter to prevent oil mist emission and maintain cleanliness. Their automatic gas ballast valve prevents vapor condensation within pump chamber. They offer high pumping speed, increasing productivity in air free dependent procedures. Our Rotary Vane Vacuum Pump is ideal for industrial processes like degassing, drying, and distillation.
